Bently Nevada 3300 XL 8 mm Probe Model Identification Guide

A Bently Nevada 3300 XL 8 mm channel is a complete transducer system, not a probe selected in isolation. The system combines a probe, an extension cable when required, and a matching Proximitor sensor. Model identification must therefore answer three questions: what mechanical probe fits the machine, what electrical system length is required, and whether every component belongs to the same compatible system.

Ordering mistakes often come from reading one group of digits correctly while overlooking the rest. A thread can match while case length is wrong. A probe can fit mechanically while its integral cable and extension do not add to the Proximitor’s rated electrical length. A connector can mate while the selected approval, armor, or temperature option does not match the installation.

The probe, cable path, and Proximitor form one calibrated measurement chain for shaft vibration or position.

Begin with the measurement duty

The 3300 XL 8 mm system uses an eddy-current proximity transducer to measure distance to a conductive target. Static gap voltage represents the average probe-to-target distance. The changing component represents shaft-relative motion. Common applications include radial shaft vibration, axial position, and other displacement measurements approved for the machine design.

Baker Hughes identifies the 3300 XL 8 mm system as a standard proximity-transducer platform and describes a standard 5 m system on its official Bently Nevada proximity sensors page. Application range, scale factor, target material, shaft geometry, mounting, and hazardous-area requirements must still be verified in the current datasheet and project drawings.

Do not select an 8 mm probe merely because another 8 mm probe was installed nearby. A Keyphasor channel, radial-vibration channel, thrust-position channel, and differential-expansion measurement can have different mounting, range, target, monitor, and voting requirements.

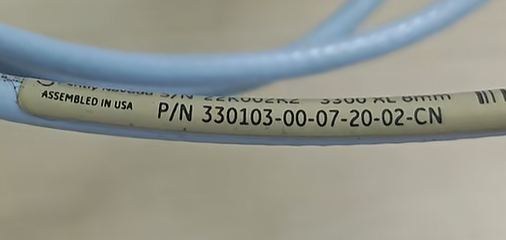

Read the catalog number in functional groups

A complete probe catalog number begins with a base number followed by option groups. The base identifies the probe family and major mechanical form. The option groups then define dimensions, total cable length, connector or cable construction, and agency approval. The ordering table in the current manufacturer datasheet is the authority because available options can differ by base model and revision.

Decode each group against the ordering table for that exact base number; identical-looking digits do not necessarily mean the same thing in another family.

Base number and mounting thread

Standard 3300 XL 8 mm probe families include imperial-thread and metric-thread versions, along with armored, reverse-mount, smooth-case, and extended-temperature variants. For example, 330101 and 330103 are commonly encountered standard-mount families with different thread conventions. Confirm the full base description rather than converting a thread in the field or assuming a visually similar body is equivalent.

Unthreaded length and case length

The first dimensional groups describe the probe body geometry. Unthreaded length controls how much smooth body exists near the tip. Case length determines the available threaded or mounting body. Both affect bracket engagement, locknut position, insertion depth, and clearance. Compare them with the drawing and installed probe, not only the typed purchase description.

Overall cable length

The cable-length option is commonly expressed in tenths of a metre in the probe ordering structure. This is a frequent source of tenfold errors: a code representing 0.5 m must not be described as 5 m. Verify the unit printed in the ordering table and calculate the complete system length before ordering.

Connector, armor, and fluid protection

The connector or cable option determines whether the probe has the specified miniature coaxial connection, protective hardware, armor, or fluid-blocking construction. Armor protects against handling and abrasion but does not correct a poor route or unsupported cable. Fluid-protection options are chosen when the installation must resist oil migration along the cable construction. Match the installed connector protector and environmental requirement.

Agency approval

The final approval group must match the site classification and certificate requirements. Do not infer approval from the base probe number, label color, or a similar spare. Verify the complete catalog number, certification markings, control drawing where applicable, and the receiving monitor or barrier arrangement.

Match the electrical system length

The probe’s integral cable plus extension cable must equal the electrical length specified for the Proximitor system. Common systems are designed around 5 m or 9 m total electrical length. A 1 m probe paired with a 4 m extension can form a 5 m chain when those exact components are approved together. A 1 m probe with an 8 m extension belongs to a 9 m chain. The selected Proximitor must match that system length.

Add the probe and extension lengths, then match the Proximitor designation; connector fit alone does not establish electrical compatibility.

Do not add an arbitrary coaxial jumper, shorten the integral cable, or coil excess cable tightly beside high-energy wiring. Preserve the manufacturer’s system construction, connector protection, separation, and grounding practice. Route and support the cable so maintenance work cannot pull on the probe termination.

Interchangeability has boundaries

Bently Nevada’s discussion of 3300 XL interchangeability explains the maintenance advantage of exchanging compatible probes, extension cables, and Proximitors without treating every channel as a uniquely matched set. That benefit applies within the documented compatible system. It does not mean any proximity component with the same connector, tip diameter, or nominal sensitivity can be mixed.

Before replacing one component, compare system family, electrical length, target material, scale factor, probe geometry, cable and connector option, temperature classification, approvals, and monitor configuration. If the installed channel includes an extended-temperature component, confirm whether the entire replacement chain and expected accuracy meet the project specification.

Use model identification to prevent mechanical errors

Measure the removed probe before disposal. Record overall body geometry, unthreaded length, case length, thread, cable length, armor, connector, and nameplate. Compare those observations with the machine drawing. A probe with a shorter case may not reach the required gap; a longer case can interfere with guards or internal parts. Reverse-mount and smooth-case probes require the correct bracket strategy.

The available 3300 XL proximity probe collection can help locate catalog candidates, while matching cable options can be reviewed in the 3300 XL extension cable collection. Final compatibility still comes from the current OEM ordering information and the installed system record.

Verify the channel after installation

Mechanical checks

Confirm mounting torque and locking, probe clearance through the expected shaft movement, cable strain relief, connector protection, and separation from damage sources. Verify that the probe observes the intended target and that the target surface and geometry meet the transducer requirements.

Electrical checks

With the approved procedure, verify supply and common, Proximitor output, initial gap voltage, polarity, and monitor channel configuration. Compare the static value with the mechanical setup. A voltage in range does not prove correct sensitivity or system length.

Dynamic and protection checks

Confirm the vibration or position reading against the machine state and adjacent channels. Test alarm, danger, channel bypass, recorder, and trip voting only under the site’s machinery-protection procedure. Never change an alarm or trip setpoint to compensate for a questionable probe system.

Thread, body geometry, cable construction, temperature option, and approval all belong in the spare-parts record.

Create a complete spare specification

A useful spare record includes the full probe, extension cable, and Proximitor catalog numbers; system length; installation location; monitor channel; target material; normal gap voltage; hazardous-area documents; mounting drawing; and acceptance-test results. Photograph the labels and connector arrangement before removal.

The core rule is simple: decode the whole string, then verify the whole measurement chain. This prevents the most expensive identification error—buying a probe that looks correct and threads into place but cannot reproduce the calibrated electrical and mechanical system the protection channel expects.
