MicroLogix 1400 Online Edit Error with MUL Instruction

A MicroLogix 1400 may verify a project offline yet reject a MUL rung during an online edit. It is tempting to blame EtherNet/IP or assume that a decimal constant is always the cause. The error message alone does not prove either conclusion. Runtime editing adds restrictions that do not exist offline, and the arithmetic instruction also has to resolve compatible source and destination data types inside the controller's existing data files.

The practical fix is a controlled diagnosis. Preserve the current program, record the exact controller and software versions, identify what changed in the rung, and determine whether the failure belongs to the edit mechanism or the math itself. This prevents a live troubleshooting session from becoming a sequence of unrelated edits that are difficult to cancel or validate.

Change one operand at a time and keep the original rung available for comparison until the edit has been tested and assembled.

Start with the controller's online-edit boundaries

Rockwell Automation's MicroLogix 1400 user manual distinguishes offline editing from online editing. Online work cannot create or delete program files, resize data-table files, change the I/O configuration, or alter several protection settings. The manual also warns that accepting, assembling, or canceling edits can extend scan time and interrupt latency, and that available program memory limits how much edited logic can coexist before assembly.

Those restrictions directly affect a proposed floating-point repair. If the program already contains an adequately sized F file, a technician can reference an existing element. If the Float file does not exist or needs more elements, creating or resizing it requires an offline change and download. Trying to solve an operand problem by inventing F8:7 during a runtime edit will fail for a different reason, even if the arithmetic design is otherwise correct.

Prove whether the fault follows the rung or the connection

Before modifying the math, accept a harmless permitted change in a test area or confirm that another planned edit can be accepted under the same maintenance procedure. If every edit fails, inspect programming-software compatibility, controller mode, program memory, edit ownership, and communications stability. A network interruption can terminate an edit session, but a stable online connection does not guarantee that the requested rung is legal.

Capture the complete error text and the state of the insert and replace zones. Cancel failed edits cleanly before beginning another attempt. Confirm that at least one known-good download has established the online-edit baseline described by the user manual, and verify that the project opened by the workstation matches the controller image.

Handle fractional multipliers deliberately

A multiplier such as 0.7 represents a fractional value. Storing that factor in an existing Float element makes its type explicit and allows maintenance to document or adjust the factor through a controlled data address. However, changing the source operand is only half of the engineering decision. The destination determines whether the fractional result is preserved or converted into an integer representation.

If the destination is an N-file integer, test the controller's conversion behavior across the full operating range. Do not infer the result from a single example such as ten multiplied by 0.7. Check positive, negative, near-zero, maximum, and minimum values, and review the math-status handling used by the application. If downstream logic requires fractional resolution, use a suitable Float destination and convert only at the boundary where an integer is genuinely required.

An existing Float address can make the decimal factor explicit, but the destination type and range still require a complete test.

Use a safe correction sequence

First, upload or otherwise preserve the running program and record controller catalog number, series, firmware revision, RSLogix 500 revision, free memory, and operating mode. Next, locate an existing Float element that is unused, documented, and available without resizing the file. Initialize it to the required engineering factor through the site's approved procedure and confirm the value online.

Modify only the MUL source that represents the factor. Leave the original destination in place for the first compilation test unless precision requirements already demand a Float destination. Accept and test the edit with the machine in a safe state. Compare the result against an independent calculation over several input values before assembling the edit. If a Float destination is introduced, trace every consumer of the old integer value before changing addresses.

When no suitable Float element exists, stop the runtime edit. Add or resize the data file offline, verify the complete project, schedule the download, and define a rollback plan. The inconvenience is smaller than forcing an unreviewed arithmetic workaround into a running machine.

Consider integer ratio scaling only when it fits the range

Some applications can represent 0.7 as a ratio of seven to ten. Multiplying by the numerator and dividing by the denominator may avoid a Float dependency, but operation order, intermediate range, sign, and rounding become design choices. Multiplying first preserves more resolution but can overflow an intermediate integer. Dividing first reduces overflow risk while discarding information sooner.

Use a suitably ranged intermediate data type supported by the controller and confirm the exact instruction behavior in the MicroLogix reference manual. Ratio math is not automatically safer than floating-point math; it is useful only when the required resolution and full-scale range are documented and tested.

Validate the machine, not just the compiler

An accepted rung proves syntax and edit legality, not process correctness. Trend the source, factor, intermediate value, destination, relevant status bits, and the physical quantity affected by the calculation. Test boundary values and loss of the data source. Confirm that alarms, interlocks, HMI scaling, historian values, and any PID or comparison logic interpret the result as intended.

Observe scan time during test and assembly. Avoid performing a chain of edits while the process is changing quickly, and do not use forces as a substitute for a controlled test plan. If communications remain unstable, restore a known state and resolve the network problem before resuming online changes.

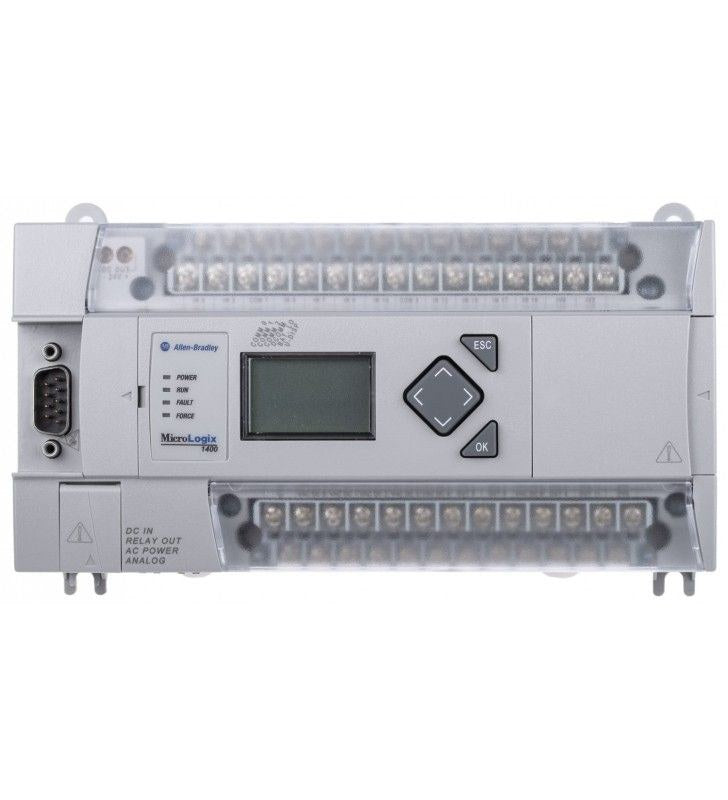

A compatible controller reference is available in the MicroLogix 1400 product listing, while related platforms are grouped under PLC and PAC systems. Match the exact catalog number, power configuration, I/O, firmware, and project requirements before using any replacement hardware.

Engineering view

The most reliable repair is not “replace every decimal literal with F8.” It is to identify whether the edit needs a data-file change, make the numeric types explicit, and prove the result throughout its engineering range. That approach fixes the compile problem without hiding a scaling error that could be more damaging than the rejected rung.
