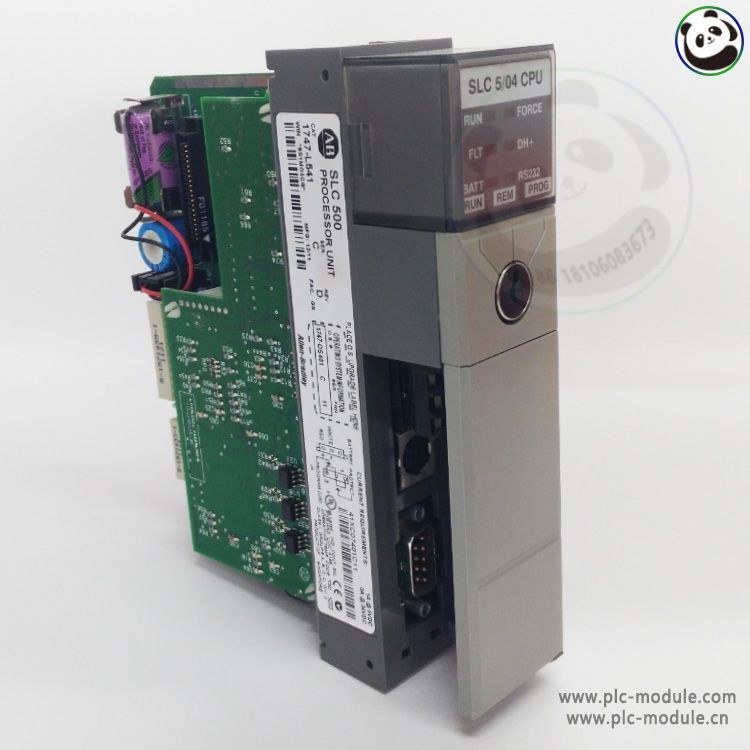

SLC 5/04 Day-of-Year Codes for Label Printers

Many packaging plants ask an SLC 5/04 to create a “Julian date” for a label printer. In most cases the required value is not an astronomical Julian Day Number. It is an ordinal day, also called day of year: January 1 is 001, and December 31 is 365 or 366. That distinction should be written into the interface specification before ladder logic is created.

A code such as 2026243 usually means year 2026 followed by ordinal day 243. It is useful for lot tracking because it has a fixed length and sorts naturally within a year. It does not identify time of day, time zone, production shift, or a globally unique batch. Those fields must be managed separately when traceability requires them.

Define the requested code as year plus three-digit ordinal day before choosing integer or string storage.

Verify the Controller Clock Source First

Do not copy status-file addresses from another project without checking the installed processor, series, firmware, and official data-table reference. The SLC status file contains clock information, but the exact words and update behavior must be verified for the target controller. Incorrect aliases can produce plausible values until a month or year transition exposes the mistake.

Copy year, month, and day into working registers as one coherent sample. If values are read across midnight, the routine can combine yesterday's month with today's day. One approach is to sample twice and accept the data only when both sets match. Another is to update the production date during a defined quiet interval after midnight.

The controller clock must also be maintained. A correct formula cannot repair a dead battery, an incorrect clock, or unauthorized adjustment. Alarm when the date is outside an approved range, and document who may set the clock after maintenance.

Use a Clear Month-Offset Method

The ordinal day equals the day of month plus all days in preceding months. Store non-leap cumulative offsets in an integer file: January 0, February 31, March 59, April 90, May 120, June 151, July 181, August 212, September 243, October 273, November 304, and December 334.

Validate the month before indexing that file. A zero, negative value, or value above 12 must not address an unintended register. Validate the day against the selected month as well. The controller should set a date-invalid bit, inhibit printing, and display the rejected fields rather than creating a plausible but false lot code.

After retrieving the offset, calculate ordinal day as offset plus day of month. Add one when the year is a leap year and the month is after February. Keep intermediate values visible in separate registers. A compact expression may save one rung but makes online troubleshooting harder.

Implement the Gregorian Leap-Year Rule

The common “divisible by four” test is incomplete for century years. Under the Gregorian rule, a year is a leap year when divisible by four, except years divisible by 100 are not leap years unless also divisible by 400. Therefore 2000 was a leap year, 2100 will not be, and 2400 will be.

NIST explains that the Gregorian calendar removes three leap years in every 400-year cycle. That rule is worth implementing because reusable code often survives longer than expected. See the NIST leap-year explanation.

Build the test from explicit remainder comparisons supported by the installed instruction set. Comment each branch. Avoid an expression that future technicians cannot verify online. If the plant specification deliberately uses a simpler rule, document its valid date range.

Keep Integer Arithmetic Within Range

The ordinal day fits in a 16-bit signed integer. A combined numeric value such as YYYYDDD does not. For example, 2026243 exceeds 32,767. Do not force the complete label code into a normal SLC integer register.

Keep year and ordinal day as separate integers, then build a string. This avoids overflow and preserves leading zeros. If the printer accepts separate fields, transmit them separately. If an astronomical Julian Day Number is genuinely required, use a separately reviewed algorithm and data representation; do not rename this ordinal-day routine.

Format a Fixed-Width Printer String

The production string should always contain four year digits and three ordinal-day digits. Day 7 must become 007. Build the result in an ASCII or string buffer using instructions supported by the processor and project. Confirm destination length before the print trigger, and overwrite the entire buffer so characters from an older message cannot remain.

Fixed-width formatting preserves leading zeros and keeps barcode fields aligned.

Use a request-and-acknowledge handshake with the printer. Freeze the completed date string when the request is issued. Do not let a free-running date routine change the buffer while a message is active. Record success, timeout, and printer rejection as separate states.

Validate Boundaries, Not Only Normal Dates

Test January 1, February 28, February 29 in a leap year, March 1 in leap and common years, December 31, and the new-year transition. Include 2099-12-31, 2100-02-28, and 2100-03-01 if the code may remain in service or be copied forward. Compare results with an independent calendar.

Challenge bad data deliberately: month 0, month 13, day 0, April 31, and February 29 in a common year. Confirm the routine refuses to print. Power-cycle the processor near a date transition and verify the clock, working registers, first-scan behavior, and printer handshake.

Integrate the Code with Batch Ownership

The date routine should provide a validated value, but the packaging sequence decides when it becomes part of a batch. A batch that starts before midnight may need its original production date after the calendar changes. Capture the approved value at batch start and retain it until the batch closes.

Store the documented routine with the plant's PLC and PAC systems migration records. Include the exact clock-source words used on that machine. Keep the active date code and validation status visible through the HMI and industrial computing layer.

Engineering Perspective

The main improvement is conceptual clarity. Call the value an ordinal day or day-of-year code, validate the clock and calendar fields, use the full Gregorian rule, keep arithmetic within range, and freeze a fixed-width string during transmission. These decisions prevent silent traceability errors that may appear only on a leap day, year boundary, or controller replacement.
