Troubleshooting Industrial Control Cabinets Systematically

A dark PLC, dropped I/O rack, or silent contactor often looks like one fault. In practice, the visible symptom may sit several protective and switching devices away from the cause. Fast troubleshooting comes from following the intended energy path and testing each boundary.

This method begins with safety and the drawing. It then moves from incoming power to branch protection, control power, field loads, and signal references. It avoids random resets and unnecessary part replacement.

Define the Symptom Before Opening the Panel

Record what stopped, what still works, and when the event occurred. Ask whether the entire machine lost power or only one subsystem. Check HMI messages, controller status, drive faults, and upstream equipment.

A total blackout suggests a different path from one failed output. If the PLC runs but every valve is inactive, investigate the field-power branch. If only one sensor is missing, start at that channel and its shared common.

Confirm whether maintenance, cleaning, a recipe change, or a power interruption preceded the fault. That context often identifies the affected branch before a meter is used.

Establish an Electrically Safe Work Condition

De-energize equipment whenever the task permits. Follow the site's lockout/tagout process and verify isolation. Stored energy can remain in drive DC buses, capacitors, pneumatic circuits, and mechanically loaded equipment.

Some diagnostic measurements require an energized circuit. Only qualified people should perform that work under the employer's electrical-safety program. Select appropriate personal protective equipment, boundaries, instruments, and probes.

OSHA's 29 CFR 1910.333 addresses work practices for exposed energized parts. It also requires qualified persons to use test equipment when verifying de-energization.

Use the Drawing as a Test Map

Mark the incoming source, disconnect, main protection, branch protection, transformers, DC supplies, distribution terminals, loads, and return paths. Identify every voltage level and grounding reference.

Do not assume the installed panel matches an old drawing. Compare device labels, wire numbers, terminal numbers, and fuse ratings with the field installation. Record deviations before they confuse the diagnosis.

Related breakers, relays, power supplies, and panel hardware can be reviewed in the Power & Electrical Components collection. The machine drawing and device manual remain the governing references.

Start at the Last Known Good Boundary

Testing every component from the service entrance wastes time. Begin where evidence shows power or control is present. Then move toward the failed load until the state changes.

For a dead 24 VDC output device, verify the supply at its source. Check voltage after the branch protective device, at the output module field terminal, and across the load. Use one documented reference where practical.

The fault lies between the last correct measurement and the first incorrect one. Divide that section again. This half-split approach reduces test steps in long circuits.

Check All Phases and Both Sides of Protection

A three-phase device can retain lights or control power after losing one phase. Measure the required phase-to-phase values at the proper test points. Do not infer all phases from one reading.

Test both line and load sides of fuses, breakers, and disconnects. A voltage reading to ground can mislead on ungrounded or high-impedance systems. Use the circuit's intended measurement method.

A protective device that trips again has reported a problem. Do not repeatedly reset it or install a larger rating without engineering review. Investigate short circuits, ground faults, overloads, failed loads, damaged cables, and incorrect protection.

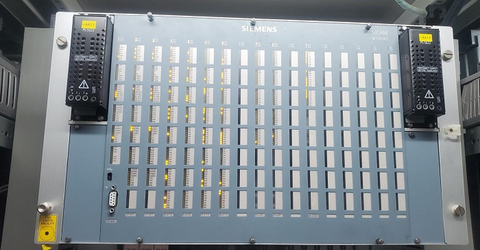

Separate AC Input From DC Control Power

Many drives, starters, and controllers use more than one supply. A drive may retain its display from control power while its three-phase input is absent. A PLC may run while field outputs have lost their separate supply.

At a DC power supply, verify the AC input and the DC output under load. Check current limiting, thermal shutdown, parallel operation, and any DC-OK contact. Nominal unloaded voltage does not prove that the supply can support the connected branch.

If the voltage falls under load, disconnect branches using the approved procedure. Restore them one at a time to locate overload or wiring damage. Do not disconnect energized conductors casually.

Follow the Return Path

Technicians often trace the positive conductor and ignore common or neutral. An open return can disable a load while leaving expected voltage on one terminal.

Measure across the load, not only from each terminal to protective earth. Check shared commons, neutral terminals, plug connectors, and removable terminal blocks. Verify that separate power supplies have the intended commoning arrangement.

Voltage drop across a closed contact or terminal under load exposes resistance that continuity testing may miss. Heat discoloration, loose strands, corrosion, and vibration damage support the electrical evidence.

Distinguish Command From Field Power

An illuminated PLC output indicator proves only an internal logic state. It does not prove voltage at the field terminal, current through the load, or correct operation of an interposing relay.

Compare the controller command, module status, terminal voltage, relay state, and load response. Check whether the output group has a separate field supply or removable fuse.

For networked I/O, confirm adapter health, connection status, module inhibition, ownership, and data freshness. A healthy Ethernet link does not prove the output module has field power.

Use Fault Codes as Evidence

Record codes before cycling power. Capture drive histories, PLC diagnostics, supply alarms, and network logs. A reset may restore production but erase the sequence that identifies the cause.

Time-align events from different devices. A drive undervoltage followed by a PLC communication alarm suggests a power event. The reverse order may indicate a network or controller issue.

Do not replace a device because its alarm appears first on the HMI. The alarm path may report a downstream consequence faster than the source fault.

Inspect Mechanical and Environmental Causes

Electrical faults often begin outside the enclosure. Look for cable flexing, crushed conduits, coolant ingress, failed fans, clogged filters, loose glands, and conductive contamination.

Check cabinet temperature and ventilation. A supply or drive that fails after warm-up may be overloaded or poorly cooled. Correct the root condition before replacing hardware.

Review recent additions. An extra solenoid, relay, or sensor can overload a branch that appeared adequate during initial commissioning.

Restore and Verify the Whole Function

After repair, inspect tools, terminals, covers, and protective devices. Restore energy under the approved sequence. Observe the first machine cycle and check the repaired circuit under realistic load.

Confirm that alarms clear for the right reason. Test related interlocks and safe states. Update drawings, labels, spare records, and the fault log when the field configuration changed.

A disciplined cabinet diagnosis is a chain of evidence: define the symptom, control the hazard, identify the energy path, find the last correct boundary, and verify the repair under load. That method is faster than guessing and leaves better information for the next fault.
