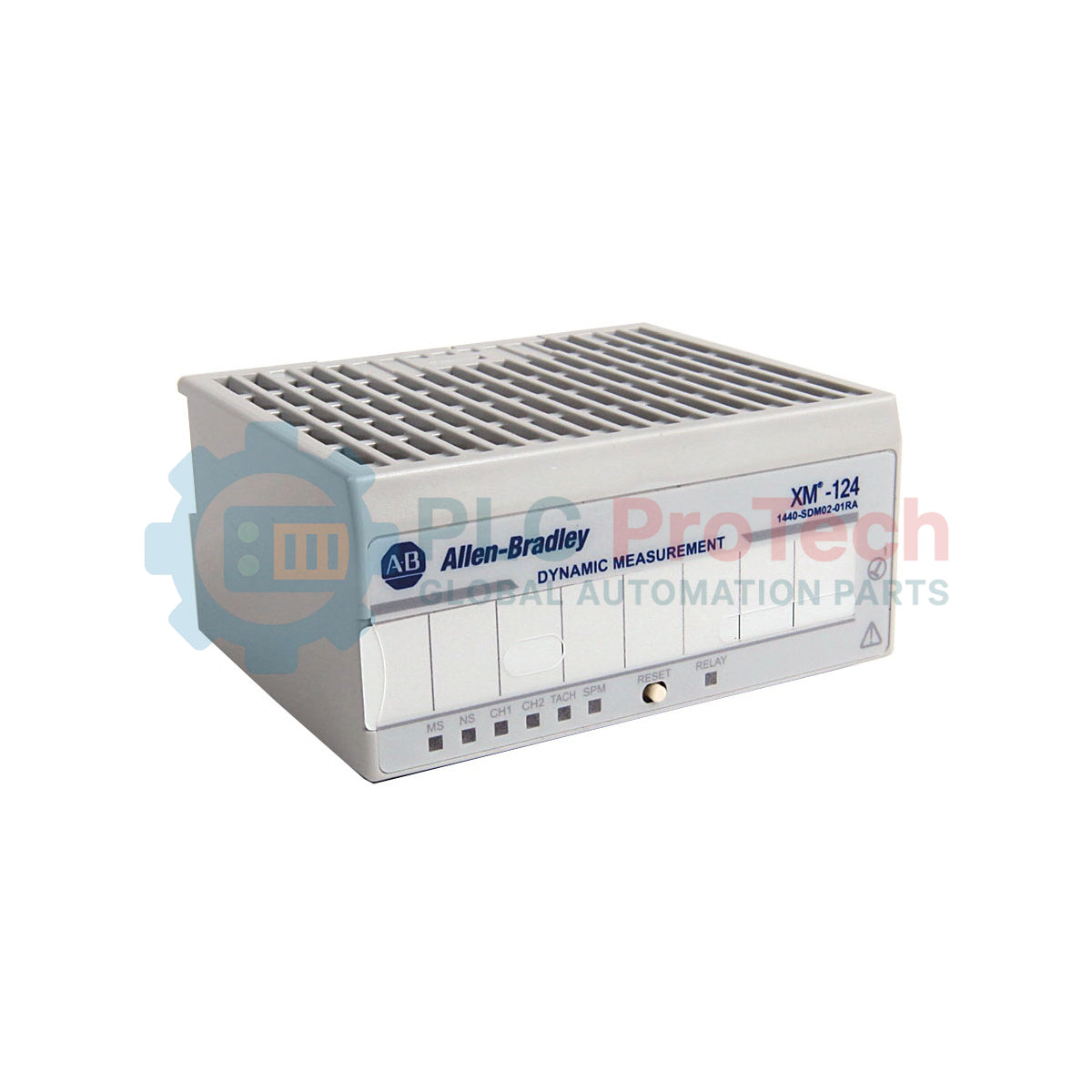

Bently Nevada 1440-SDM02-01RA XM Series Standard Dynamic Measurement Module

Description

Engineered for real-time vibration monitoring and machinery protection, the Bently Nevada 1440-SDM02-01RA (XM-124) processes high-frequency dynamic signals from proximity probes, accelerometers, and velocity sensors. This compact, DIN-rail mounted module operates as an intelligent distributed node within industrial machinery protection networks, transforming raw transducer inputs into actionable status, alarm, and trend data. Built for demanding heavy industrial environments, it features dual-channel flexibility and native integration capabilities with modern control architectures.

Features

• Dual Dynamic Inputs: Two fully independent channels configurable for eddy current transducer signals, accelerometers, or standard dynamic voltage signals.
• Integrated Transducer Power: Internal constant voltage source (24V DC / -24V DC at 40 mA) and constant current (4.5 mA IEPE) support to eliminate external sensor power requirements.
• Dedicated Tachometer Input: High-resolution tachometer channel processing speeds from 1 up to 1,200,000 RPM (0.0167 to 20,000 Hz) with an input impedance exceeding 120 kOhm.
• Isolated Analog Outputs: Two individually programmable 4 to 20 mA analog outputs designed to transmit measured parameters directly to PLCs, DCSs, or local indicators.
• Robust Network Integration: Native communication capabilities allow seamless parameter configuration, live diagnostics, and real-time spectrum analysis.

Applications

• Industrial steam and gas turbine shaft vibration and axial position monitoring.
• High-speed centrifugal and reciprocating compressor diagnostics.
• Hydroelectric generator runner-band clearance and structural vibration tracking.
• Heavy-duty gearbox, cooling tower fan, and rotating blower machine protection.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The 1440-SDM02-01RA (XM-124) module functions within the broader Allen-Bradley and Bently Nevada XM Series framework. When replacing legacy XM-124 hardware revisions, verify the serial configuration firmware matches your existing software profile. Note that while this module provides raw dynamic processing, high-level visualization and spectrum capture often require the XM Serial Configuration Utility or compatible network scanners (such as DeviceNet interfaces) for deep diagnostic parsing.

Application Pitfalls & Engineering Notes

To prevent thermal drift in high-density installations, avoid mounting the modules directly adjacent to high-dissipation heat sources (such as large industrial power drives or power supplies). Maintain a physical air gap on the DIN rail if panel temperatures exceed 50 Celsius. Additionally, because this module relies on high-speed sampling, any common-mode voltage fluctuations on the 24V DC bus can manifest as signal noise; a dedicated SELV/PELV Class 2 power supply is strictly required for stable sensor excitation.

Commissioning & Wiring Tips

Always route the dynamic sensor field cabling (especially high-impedance proximity probe lines) through dedicated, isolated conduits away from high-voltage AC motor lines. Ensure that cable shields are grounded at one end only—ideally at the terminal base—to prevent ground loop interference. During commissioning, if the tachometer reading exhibits double-triggering or instability, utilize the software utility to adjust the input trigger threshold and hysteresis parameters to bypass mechanical runout noise.
