Honeywell 51404453-502 Record and Control Printed Circuit Assembly

Description

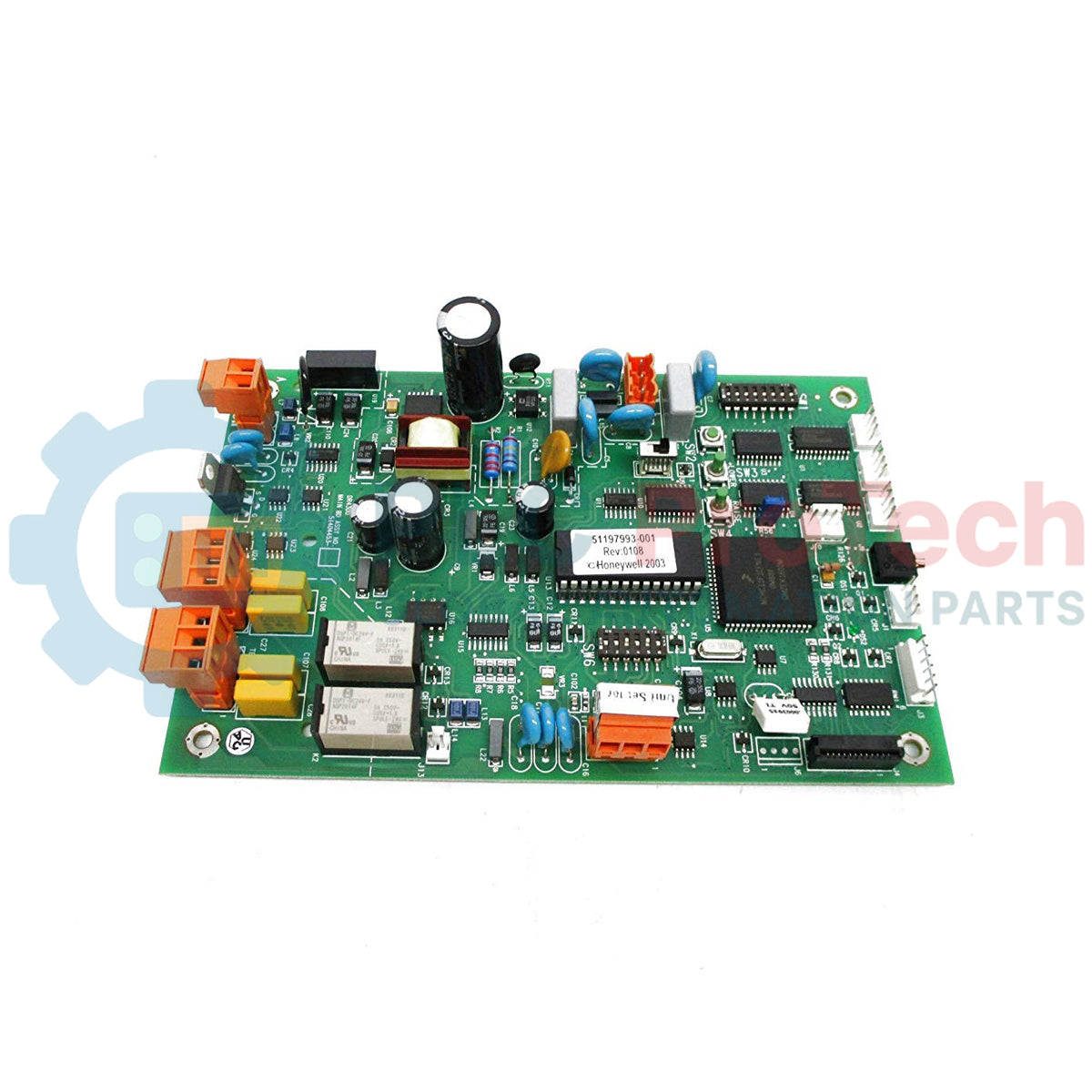

Designed to execute precise signal regulation and high-reliability switching, the Honeywell 51404453-502 functions as a core record and control printed circuit assembly within process instrumentation loops. This physical board serves as a factory-authorized spare kit, integrating a solid-state relay (SSR) and an open collector output module on a single ruggedized chassis to support dynamic automation actions. Built with industrial-grade substrates, the assembly handles continuous data processing and switching signals in high-demand environments without compromising loop isolation.

Features

• Integrated solid-state relay (SSR) for quiet, wear-free switching operations.
• Built-in open collector output for direct interfacing with external PLC inputs or small auxiliary loads.
• Robust multi-layer circuit board construction designed to resist thermal stress and electrical noise.
• Pre-configured jumper options and terminal routing for seamless integration into existing recording devices.
• Dedicated onboard voltage regulation to preserve signal accuracy across fluctuating power states.

Applications

• Industrial circular chart recorders and continuous-monitoring data loggers.
• Closed-loop temperature and pressure control systems inside manufacturing facilities.
• Signal routing and digital actuation interfaces within dedicated control cabinets.

Technical Specifications

Connections and Interfaces

Empirical Engineering Insights

Alternative Models & Compatibility

The 51404453-502 assembly directly replaces several older revisions of the record and control kits found in classical industrial recorder lines. When retrofitting legacy systems, ensure the main control unit's system firmware is compatible with newer solid-state drive switching patterns on the module to avoid handshake mismatches.

Application Pitfalls & Engineering Notes

A common issue encountered during prolonged thermal cycling is the lack of auxiliary heat dissipation around the onboard solid-state relay. When mounting this board inside tight, sealed enclosures with poor ventilation, the ambient temperature must be verified to prevent the open collector circuit from shutting down under thermal over-stress.

Commissioning & Wiring Tips

To eliminate electrical noise interference, verify that the open collector output lines utilize shielded, twisted-pair cabling. Ground the shield at the receiver (PLC/Controller) end only. Additionally, verify that any inductive loads connected to the open collector output are suppressed with external diodes to protect the onboard switching components from back-EMF spikes.

Installation Guidelines
