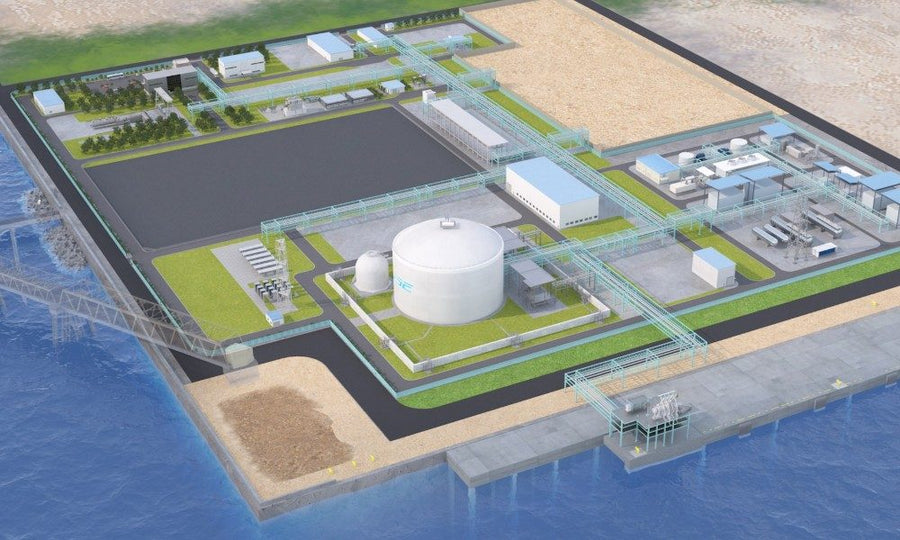

ABB has been selected by Kawasaki Heavy Industries to supply the control and safety system for the Kawasaki LH2 Terminal under development at Ogishima near Tokyo. The planned automation scope centers on ABB Ability System 800xA and will integrate process control, safety, and operational data across liquefaction, storage, marine loading and unloading, gas supply, and truck-loading activities.

The terminal is being developed by Japan Suiso Energy under a commercialization program backed by Japan’s New Energy and Industrial Technology Development Organization. Published plans include a 50,000 cubic meter liquid-hydrogen storage tank, marine cargo-handling equipment, liquefaction facilities, hydrogen-gas supply infrastructure, and truck loading. Construction began in 2025, and the demonstration program is expected to continue through fiscal 2030.

A common control environment is central to the project

ABB’s scope includes a SIL 3 safety instrumented system, redundant controllers, and redundant server infrastructure. A common control environment can give operators one consistent view of tank status, transfer sequences, utility systems, alarms, trips, and equipment availability. The benefit is not visual uniformity alone. Integrated time stamps, coordinated alarm handling, and common engineering records can shorten the path from an abnormal indication to a safe operating decision.

Liquid hydrogen introduces demanding process conditions. It is stored near minus 253 degrees Celsius, so instrumentation, materials, insulation, and transfer equipment must cope with cryogenic temperatures. Small heat inputs can increase boil-off. Hydrogen’s wide flammability range and low ignition energy make leak detection, ventilation, hazardous-area design, and ignition-source control essential. Automation must support these engineered safeguards without becoming a single point of failure.

For readers assessing ABB’s broader control direction, PLC ProTech’s report on ABB DCS modernization and digital integration provides useful context on the company’s separation of deterministic control from higher-level analytics.

Storage control begins with trustworthy measurement

A 50,000 cubic meter tank requires diverse measurements and independent protection layers. Level, pressure, temperature distribution, boil-off flow, valve position, and containment monitoring all contribute to the operating picture. Cryogenic service complicates sensor selection and impulse arrangements, while density and stratification can influence inventory calculations.

Engineers should distinguish control measurements from independent trip measurements where the hazard analysis requires separation. Voting logic may be appropriate for critical pressure or level protection, but voting only helps when sensors have sufficiently independent failure modes. Common impulse lines, shared power, identical environmental exposure, or a single calibration error can defeat apparent redundancy.

Managing boil-off without hiding instability

Normal heat ingress creates boil-off gas that must be recovered, compressed, reliquefied, or routed safely according to the terminal design. Control loops need enough range to manage routine variation while alarms reveal abnormal heat leak, valve leakage, or equipment degradation. Aggressive control tuning can mask an emerging problem by moving another actuator harder. Operators need trends and performance indicators that show both the controlled variable and the effort required to maintain it.

Marine transfer creates a moving boundary

Loading and unloading connect the fixed terminal to a vessel with its own control, emergency-shutdown, communication, and operating procedures. Transfer cannot begin simply because a valve is open. Permissives may include berth status, mooring confirmation, loading-arm connection, line inerting, pressure balance, valve lineup, gas detection, and verified communication between ship and shore.

The emergency-shutdown philosophy must define which side initiates, how signals are exchanged, what valves close, how pumps stop, and how trapped liquid is managed. Closing too slowly can extend a release; closing too quickly can create hydraulic or pressure transients. Cause-and-effect testing therefore needs dynamic scenarios, not only point-to-point checks.

Truck loading adds another interface with vehicle identification, grounding, connection verification, preset quantity, overfill protection, and departure interlocks. Keeping these operations in a shared 800xA environment can improve event correlation, but each loading bay should retain appropriate local protection and fail-safe behavior.

SIL 3 is a lifecycle commitment

A SIL 3 safety instrumented system is not established by purchasing a safety PLC. The target follows from hazard analysis and layer-of-protection work, then depends on sensor, logic solver, and final-element reliability; proof-test coverage; diagnostic capability; architecture; and management practices. Bypass control, override duration, maintenance records, and proof-test quality are as important as controller certification.

Hydrogen service places particular emphasis on final elements. Emergency isolation valves must move under the worst credible differential pressure and environmental condition. Partial-stroke testing can reveal some dangerous failures without a full shutdown, but it does not replace periodic full testing. Solenoid valves, actuators, position feedback, instrument air, and cabling all belong in the safety-function calculation.

PLC ProTech’s analysis of why process-safety programs fail despite completed checklists is relevant here: documentation has value only when field practices, competence, and operating discipline sustain the intended protection.

Redundancy must remove common-cause weaknesses

Redundant controllers and servers increase availability only if the design addresses shared dependencies. Power feeds, network switches, time sources, cooling, cybersecurity services, and engineering access can become common points of failure. Factory and site acceptance tests should include controller switchover, server loss, network-path interruption, instrument disagreement, and recovery from a failed update.

The system also needs a clear degraded-mode strategy. Operators should know which functions remain available after losing a server, controller path, remote I/O segment, or external data service. Alarm floods during a switchover can be as damaging as loss of control if they obscure the initiating event. Alarm rationalization, shelving governance, and sequence-of-events accuracy should be verified before hydrogen transfer begins.

Cybersecurity belongs in the safety conversation

An integrated terminal exchanges data with engineering stations, maintenance systems, historians, business applications, and potentially remote support. Network zones should separate basic control, safety, package equipment, supervisory services, and enterprise interfaces. Remote access needs named identities, multi-factor authentication, limited duration, approval, and logging. Safety-system access should be more restrictive than ordinary monitoring access.

Patching must follow a tested lifecycle. A terminal cannot accept enterprise-style automatic updates on critical controllers, yet indefinite deferral creates accumulated exposure. Asset inventory, vendor advisories, compensating controls, offline backups, and representative testing provide a practical middle path. System 800xA configuration, controller applications, safety logic, graphics, alarm databases, and package-system parameters all need controlled versions and recoverable copies.

Experience from Kobe reduces—but does not remove—scale-up risk

ABB previously supplied control and safety systems for the smaller Hy touch Kobe receiving terminal used in Kawasaki-led liquid-hydrogen shipping trials. That operating experience is valuable because it provides real event data, operator feedback, and maintenance lessons. The Ogishima facility is nevertheless a scale-up with more inventory, interfaces, and commercialization requirements. Proven modules should be reused where justified, while new hazards created by scale and throughput receive fresh analysis.

The most meaningful outcome of this project will be a repeatable operating model for imported liquid hydrogen. Reliable automation must coordinate cryogenic storage, marine transfer, distribution, safety, maintenance, and commercial data without blurring responsibility between them. ABB’s integrated control and safety scope gives Kawasaki a coherent platform; disciplined lifecycle engineering will determine how successfully that platform supports safe, available operation through the 2030 demonstration horizon.
