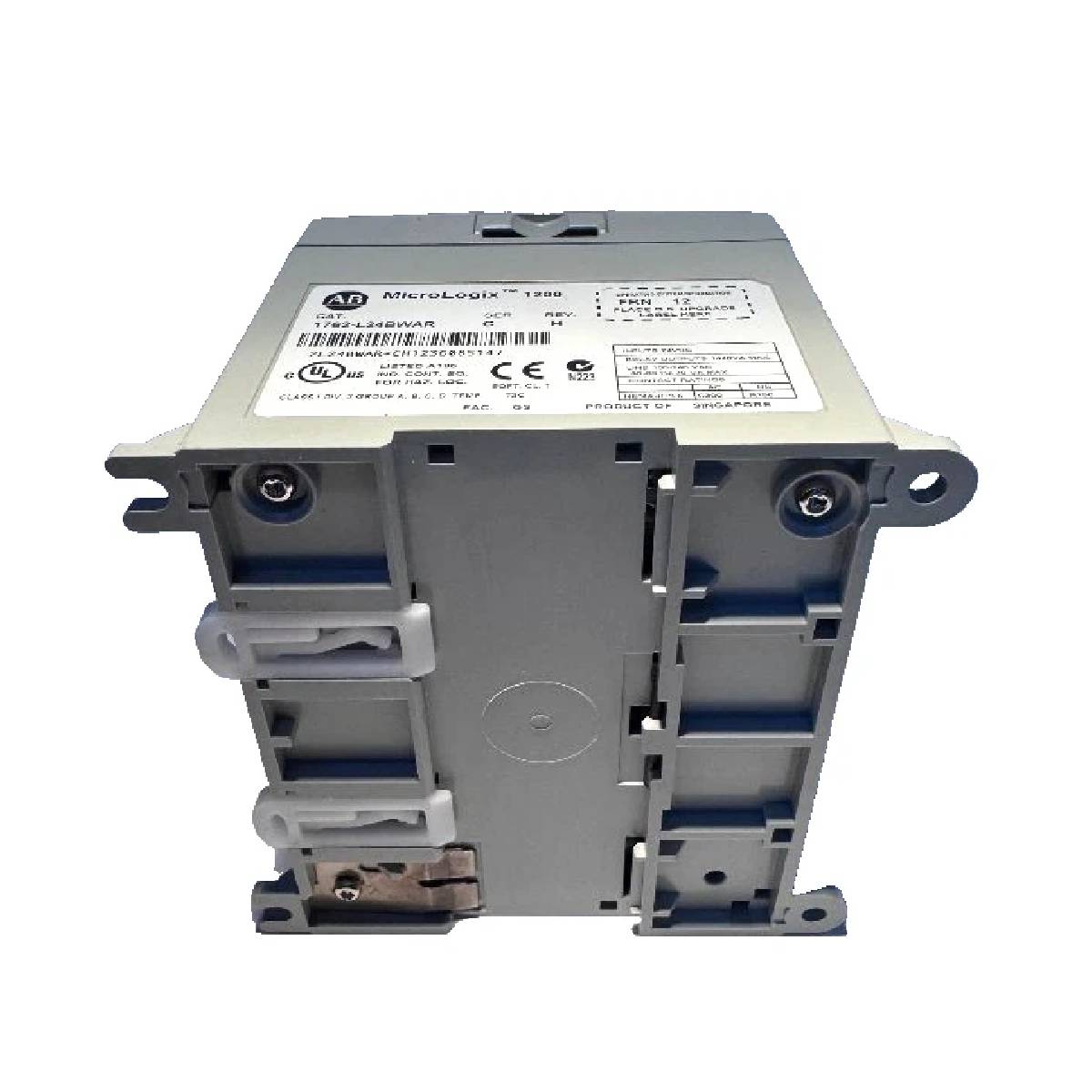

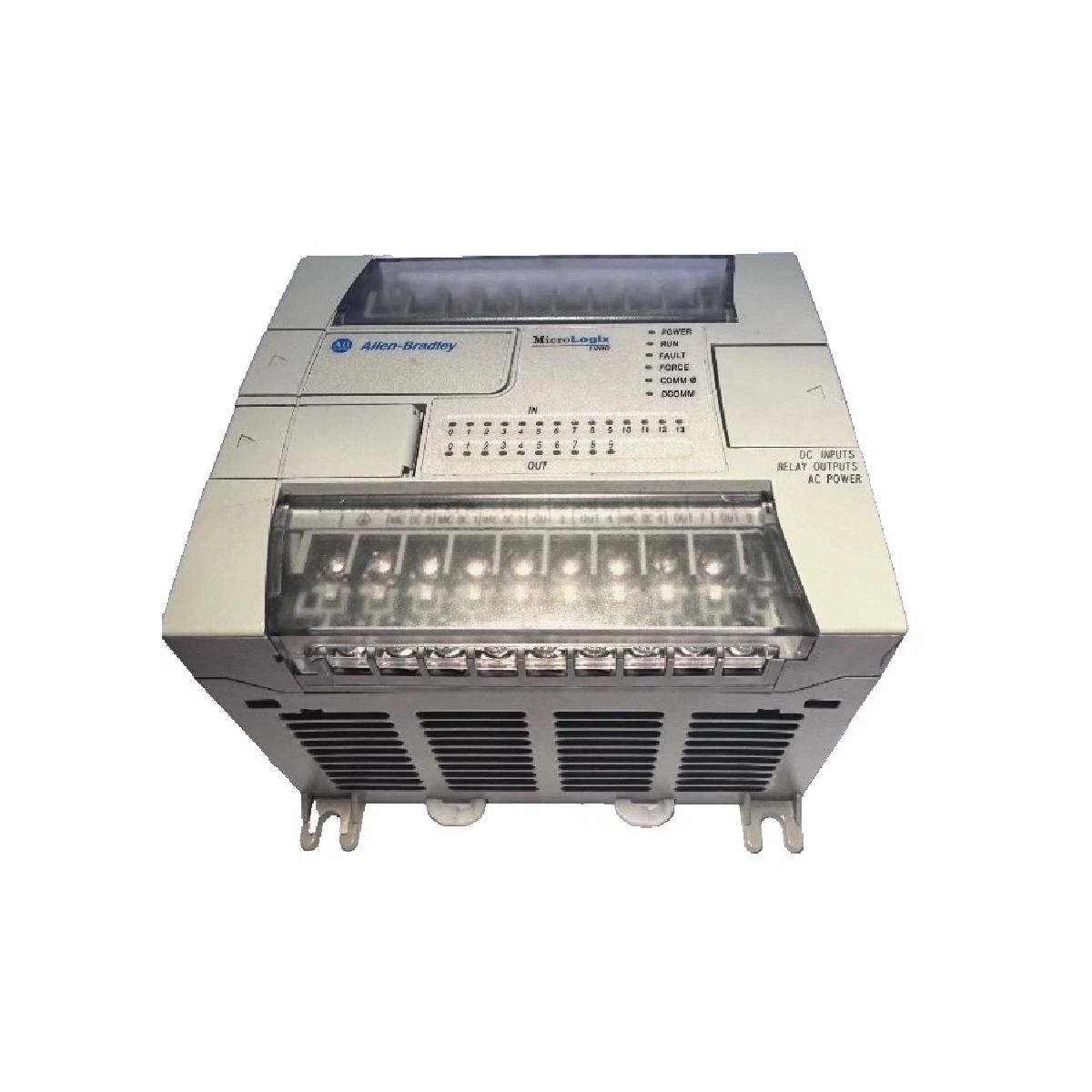

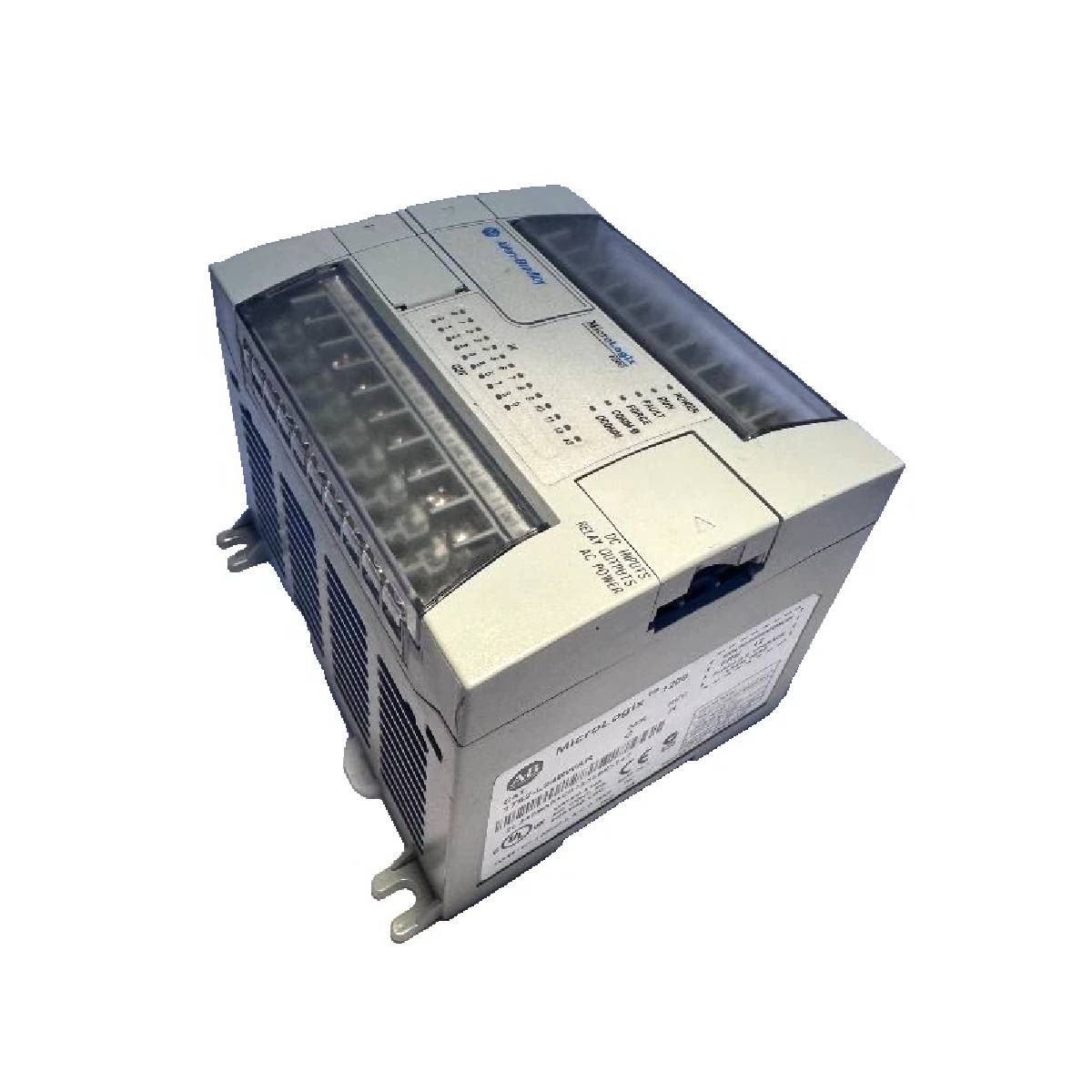

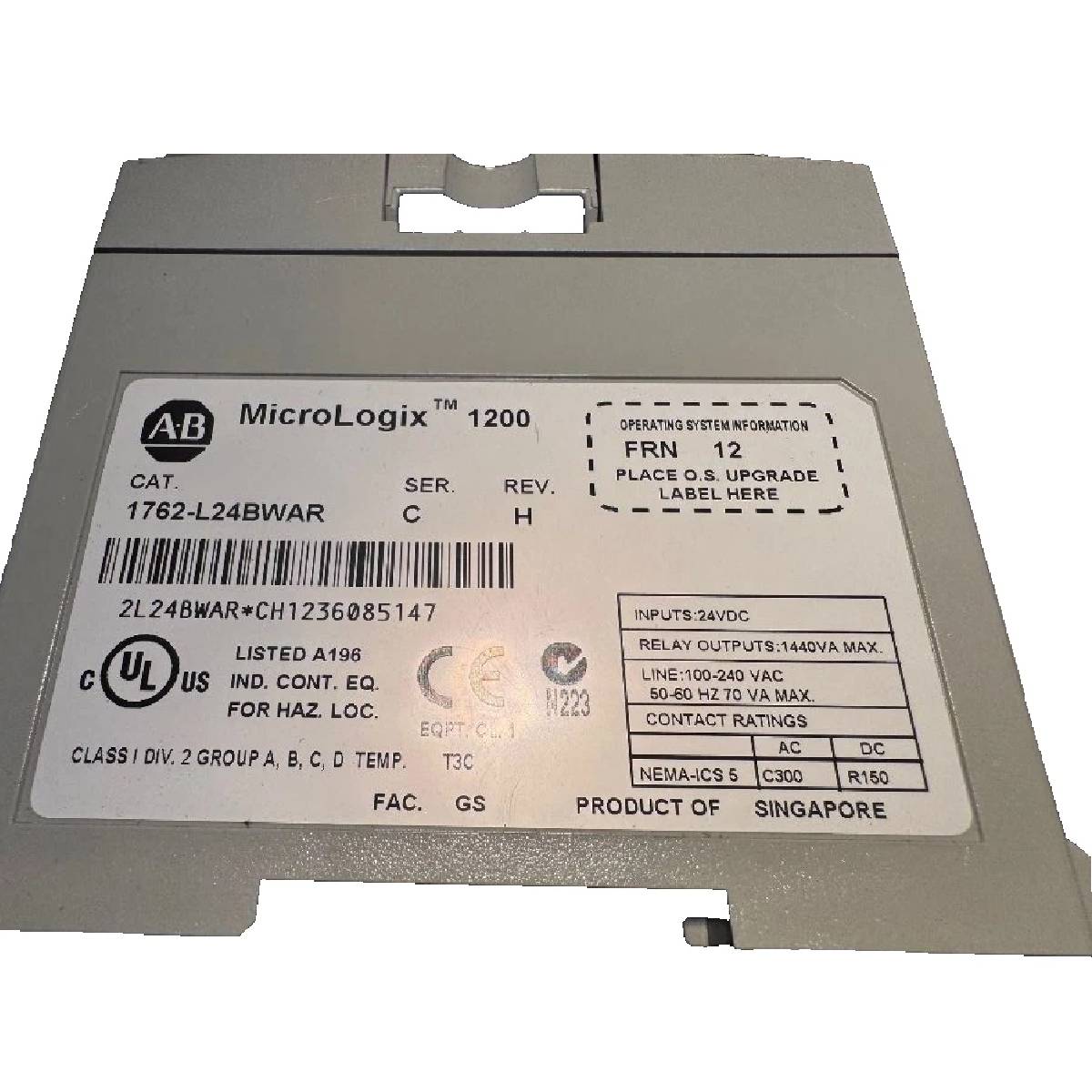

Allen-Bradley 1762-L24BWAR MicroLogix 1200 24 Point Controller

Description

The 1762-L24BWAR is a 24-point programmable logic controller belonging to the MicroLogix 1200 product series. It serves as a compact and reliable processing module for localized machine-level industrial automation. Operating on a 120/240V AC power supply, the unit delivers integrated input/output processing via 14 digital 24V DC inputs—configured as 10 standard inputs and 4 fast high-speed inputs—combined with 10 digital relay outputs. This Series C revision features an integrated auxiliary Programming/HMI port alongside its primary interface to allow concurrent terminal or peripheral messaging.

Features

• Unified fixed controller configuration supporting a 24-point localized I/O array.
• Configured with 14 discrete 24V DC inputs, utilizing 4 fast points specialized for high-speed counter tasks.
• Provides 10 isolated mechanical relay outputs capable of multi-voltage load switching.
• Equipped with an additional specialized Programming/HMI port to facilitate localized monitoring.
• System expansion ready, allowing up to four discrete 1762 I/O expansion modules to fit customized applications.

Applications

• Localized machine control and packaging machinery.
• Multi-axis material handling and conveyor automation.
• SCADA RTU nodes and distributed pumping control installations.

Technical Specifications

Installation Guidelines

• Mount the device within a clean industrial enclosure, maintaining a required clearance of at least 50 mm (2 in.) on all sides to allow proper ventilation and thermal dissipation.
• Attach firmly to a standard symmetric DIN rail or use the integrated screw mounting holes for secure flat panel installation.
• Route high-voltage AC input lines and low-voltage 24V DC I/O lines through separate wiring conduits to limit local electromagnetic coupling.
• Connect the frame ground terminal directly to a low-impedance master ground system before completing auxiliary I/O terminations.
