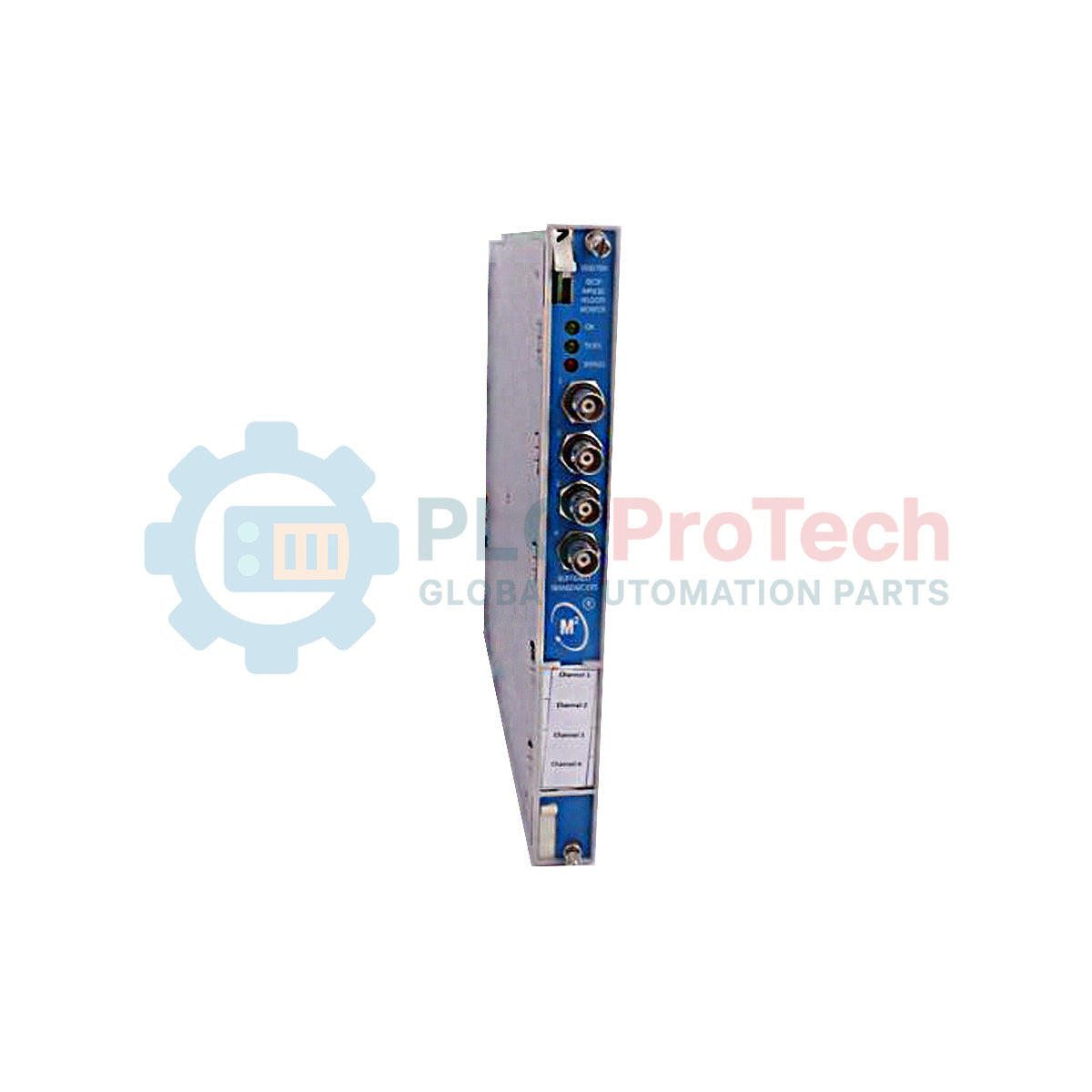

Bently Nevada 3500/61-05-CN 3500 Series Recorder Output Module

Description

Processing critical machinery temperature data, the Bently Nevada 3500/61-05-CN provides continuous, independent recorder outputs from RTD and thermocouple transducers directly to external control systems. Operating as a specialized 6-channel monitor module within the 3500 machinery protection system rack, this unit integrates built-in internal barriers to support intrinsically safe field wiring configurations. The 3500/61-05-CN serves a dual purpose by comparing temperature inputs against user-programmable alarm setpoints to drive protection relays while simultaneously generating proportional analog signals for strip-chart recorders, plant DCS, or PLC systems.

Key Features

• Accepts up to 6 independent RTD or Thermocouple (TC) transducer inputs.
• Integral internal barriers allow direct connection to transducers located in hazardous areas without requiring external barrier hardware.
• Generates high-impedance, isolated proportional recorder outputs for external tracking devices.
• Comprehensive onboard self-tests and continuous hardware diagnostics ensure high reliability.
• Supports customizable alarm configurations with alert and danger setpoints per channel.

Applications

• Continuous temperature monitoring of large industrial rotating machinery bearings (such as steam turbines and heavy-duty gas turbines).
• Motor and generator stator winding temperature supervision within hazardous process zones.
• Process temperature logging and machine protection in petrochemical, oil and gas, and power generation facilities.

Technical Specifications

Empirical Engineering Insights

Alternative Models & Compatibility

The -05 option (RTD/TC with Internal Barriers) cannot be mixed with non-barrier standard I/O modules on the same 3500/61 main card slot. When upgrading an older system or converting a standard 3500/61 setup to a barrier setup, you must replace both the back-plane I/O connector block and reprogram the channel configuration inside the Bently Nevada 3500 Rack Configuration Software (Version 3.0 or higher is recommended for accurate temperature curve linearizations).

Application Pitfalls & Engineering Notes

Because this module utilizes non-isolated RTD/TC inputs with internal barriers, care must be taken regarding the transducer grounding. Grounded thermocouples or RTDs that experience high ground-potential variations relative to the 3500 rack chassis ground can inject common-mode noise, leading to measurement drift or false alarms. Ensure that only ungrounded temperature sensors are deployed in installations subject to high electrical noise or ground loops.

Commissioning & Wiring Tips

To maintain the integrity of the intrinsically safe barrier circuits, keep the hazardous field wiring completely separate from non-intrinsically safe cabling within the cabinet. Shielded, twisted-pair cables must be utilized. Terminate the shields strictly at the designated shield terminal on the I/O module and keep the sensor end isolated from the machine housing to avoid ground loop current paths.
