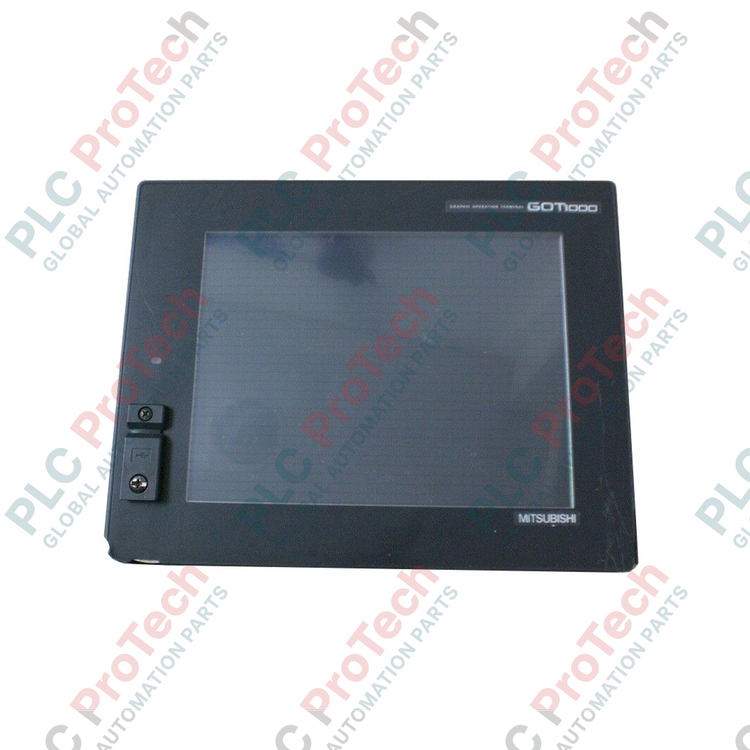

Description

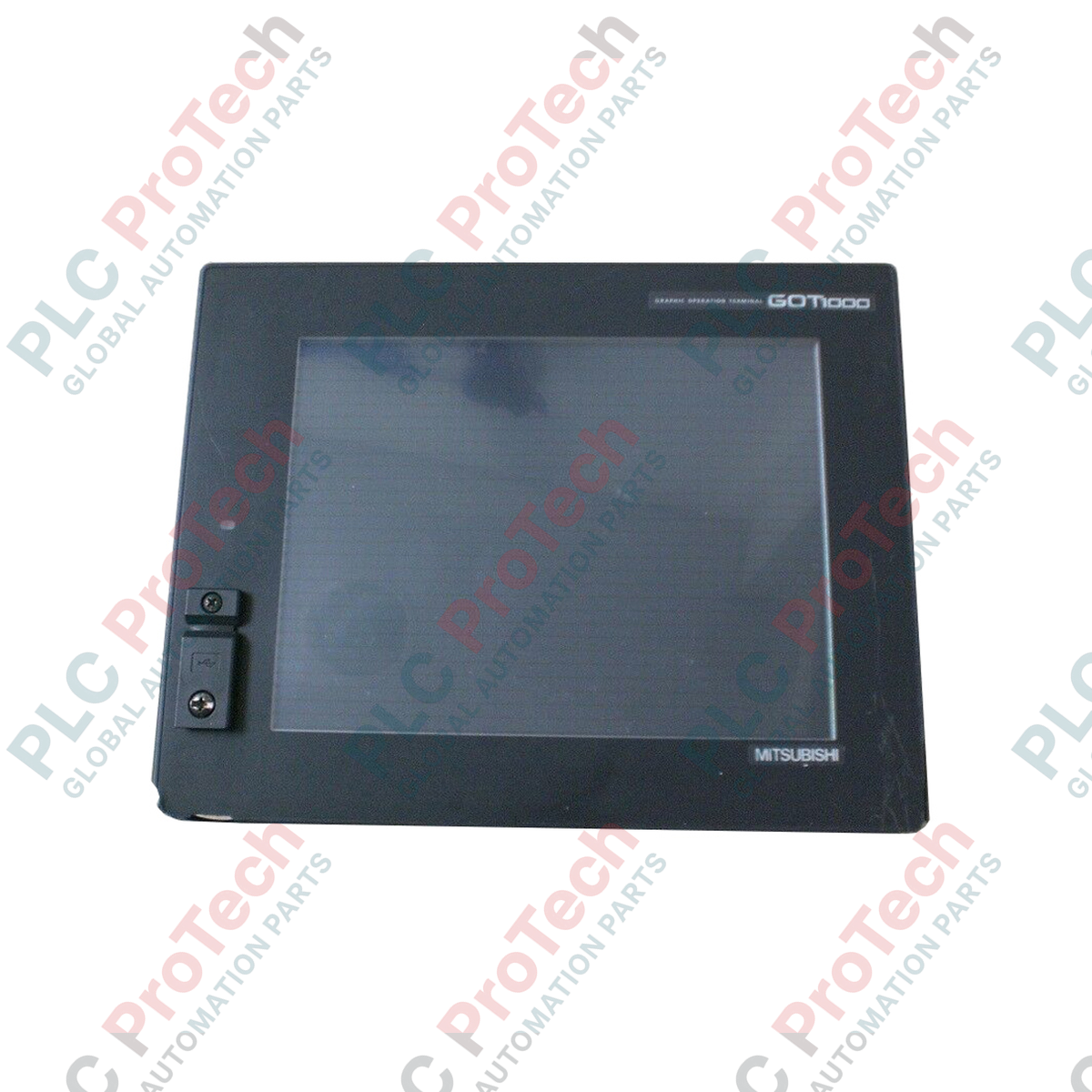

Facilitating high-resolution operator control and system monitoring, the Mitsubishi Electric GT1565-VTBD functions as a central visualization node within modern industrial control systems. Engineered as part of the high-performance GOT1000 family, this 8.4-inch graphic operation terminal translates complex machine telemetry into clean visual interfaces. It supports multiple industrial protocols simultaneously, allowing it to interface directly with PLC registers, drive parameters, and safety systems. Equipped with robust communication options, it ensures rapid data refresh rates and reliable system diagnostics in challenging physical plant environments.
Key Features
- High-density 8.4-inch TFT color display with rich color depth for clear diagnostic rendering.
- Standard VGA resolution (640 x 480 pixels) optimizes text readability and detailed mimic panel viewing.
- Integrated multi-channel communication ports supporting RS-232 and RS-422/485 serial standards.
- Dedicated USB interface on the front panel facilitates rapid on-site program uploads, downloads, and OS updates.
- Secure CompactFlash (CF) card slot for data logging, recipe storage, and system backups.
- Rugged structural design with an IP67f front panel protection rating against dust and low-pressure water jets.
- Industrial 24 VDC input power configuration suited for standard control cabinet integration.
Applications
- Automotive assembly lines and robotic weld cell coordination.
- Food, beverage, and packaging machinery automation.
- Municipal water treatment facilities and pumping station interfaces.
- Discrete parts manufacturing and multi-axis CNC machine status monitoring.
- Chemical dosing systems and batch process visualizations.
Technical Specifications
| Parameter |
Specification |
| Manufacturer |
Mitsubishi Electric |
| Model Number |
GT1565-VTBD |
| Series Name |
GOT1000 (GT15 Class) |
| Display Size |
8.4 inches |
| Display Technology |
TFT Color LCD |
| Resolution |
VGA (640 x 480 pixels) |
| Supply Voltage |
24 VDC (+10%, -15%) |
| Power Consumption |
39 W or less (with optional modules) |
| Onboard Interfaces |
RS-232, RS-422/485, USB Type-A, USB Type-B, CF Card Slot |
| Front Panel Protection |
IP67f (when panel-mounted correctly) |
| Operating Temperature |
0 to 50 degC |
| Country of Origin |
Japan |
| Shipping Weight (Calculated) |
2.3 kg (5.07 lbs) |
| Package Dimensions (Calculated) |
320 x 260 x 120 mm (12.6 x 10.2 x 4.7 inches) |
Connections and Interfaces
| Connector / Port |
Function Assignment |
| RS-232 Port |
D-Sub 9-pin male; used for direct controller connections, barcode readers, or PC configuration. |
| RS-422/485 Port |
D-Sub 9-pin female; dedicated communication interface for multi-drop PLC systems and peripheral hardware. |
| USB Host (Type-A) |
Data transfer via USB flash storage devices for logs, screen designs, and parameter files. |
| USB Device (Type-B) |
Direct connection point for system PC to facilitate high-speed design downloads using GT Works3. |
Alternative Models & Compatibility
The GT1565-VTBD serves as a direct functional alternative to the AC-powered GT1565-VTBA, sharing identical physical mounting dimensions and software templates while utilizing a safe 24 VDC power rail. For modern system upgrades, projects developed for this unit can be converted to the current GT2508-VTBD series using the built-in migration utilities inside GT Works3. However, key physical changes such as depth clearances and terminal block assignments must be audited when retrofitting.
Application Pitfalls & Engineering Notes
The display backlight has a rated lifespan of approximately 50,000 operational hours. To optimize the service life of this component, commissioning engineers should always configure the automatic backlight shut-off timer in the GT Designer3 utility. Ensure the surrounding panel temperature remains below 50 Celsius; operation in poorly ventilated, high-temperature cabinets can accelerate backlight degradation and cause screen-touch coordinate misalignment.
Commissioning & Wiring Tips
Always run communication cables (RS-422 and RS-232) in dedicated, shielded conduits separate from heavy three-phase motor runs. To protect the HMI's internal circuitry from common-mode voltage spikes, ground the functional ground (FG) terminal to a dedicated, low-impedance ground point (Class D ground, less than 100 ohms). Avoid daisy-chaining ground terminals with high-inductive loads like variable speed drives.
Installation Guidelines
CRITICAL WARNING
Isolate all power sources feeding the control enclosure before mounting or servicing the HMI. Ensure the 24 VDC power supply is completely de-energized and confirm correct terminal polarity before applying power. Reversing the input polarity can permanently damage internal solid-state components.
1
Verify the panel cutout dimensions (227 mm width by 176 mm height) are within tolerance limits (+1 mm / -0 mm).
2
Insert the waterproof sealing gasket into the groove on the back of the HMI bezel, ensuring it lies flat without twists.
3
Insert the HMI terminal into the cutout from the front of the enclosure door.
4
Secure the unit using the supplied mounting brackets, tightening them evenly to the specified torque rating (0.36 to 0.48 N-m) to prevent physical housing distortion.
