Hersteller: Mitsubishi Electric
Produkt-Nr.: GT2710-VTBA
Herkunftsland:Vereinigte Staaten
Produkttyp: HMI Touch Screens
Zahlung: T/T, Western Union
Gewicht: 8000g
Abmessungen: 30.3 cm x 21.8 cm x 5.2 cm
Versandhafen: Xiamen
Garantie: 12 Monate

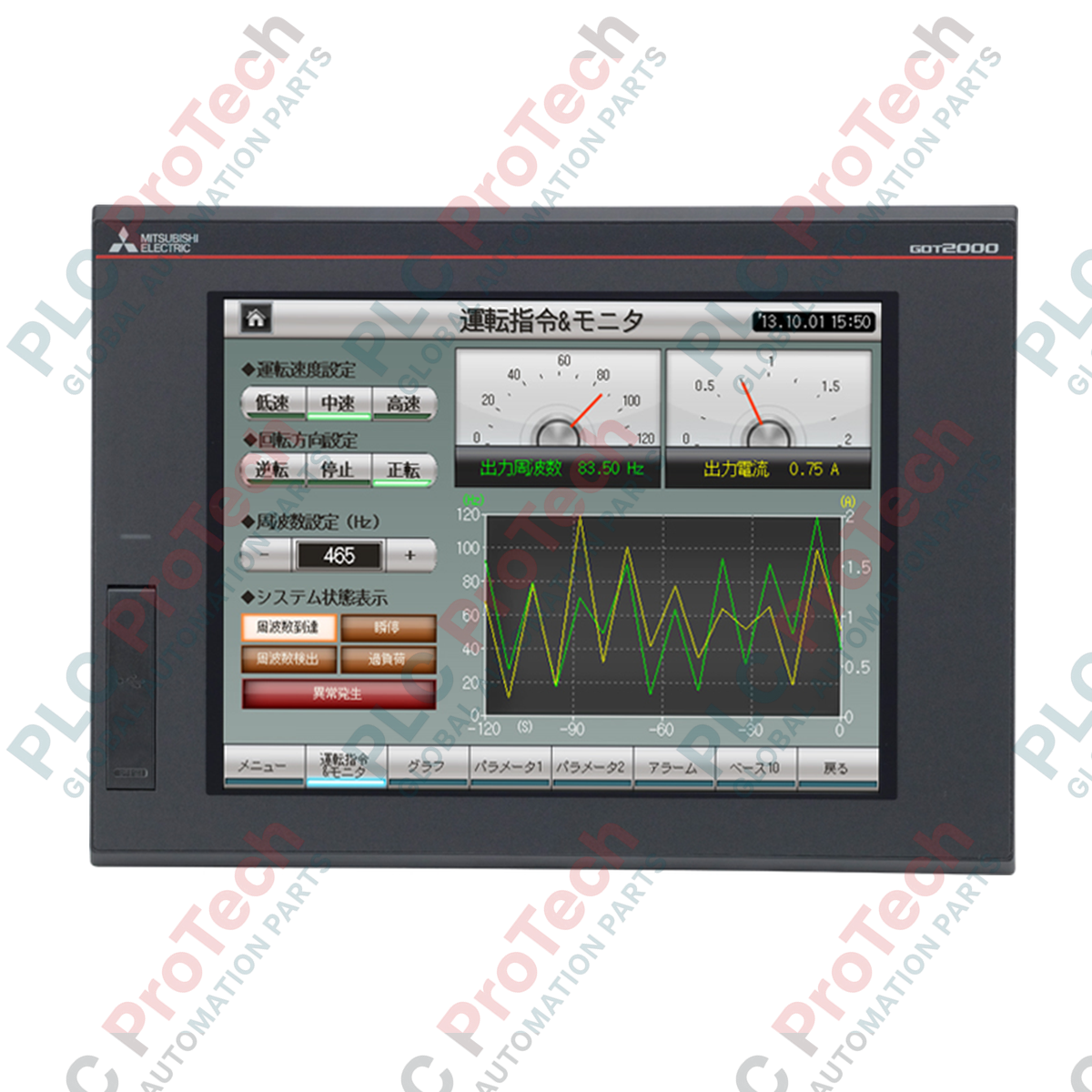

Serving as a high-performance operator interface within industrial automation architectures, the Mitsubishi Electric GT2710-VTBA delivers precise control and visualization capability via a 10.4-inch VGA TFT color display. Part of the advanced GOT2000 Series, this Human-Machine Interface (HMI) integrates multi-touch gesture functions, allowing plant operators to execute pinch-to-zoom, swiping, and multi-finger actions directly on the factory floor. Operating on an AC power supply, it features a rugged black frame housing designed to withstand harsh industrial environments, making it ideal for integration into demanding machine automation and process control networks.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | GT2710-VTBA |
| Series | GOT2000 (GT27) |
| Display Size & Type | 10.4-inch (or 10.1-inch active visual area) TFT Color Display |
| Resolution | VGA (640 x 480 pixels) |
| Multi-Touch Gestures | Supported (Advanced Gesture Model) |
| Frame Color | Black |
| Input Voltage Range | 100 to 240 VAC (+10%, -15%) |
| Maximum Power Load | 41 W or less |
| Stand-Alone Power Consumption | 17 W (Deactivates to 10 W with backlight off) |
| Inrush Current Limit | 60 A or less (duration of 2 ms at 25 degC, max load) |
| Permissible Instantaneous Failure Time | Within 20 ms (at 100 VAC or more) |
| Insulation Resistance | 10 megohms or higher (measured at 500 VDC) |
| Withstand Voltage | 1500 VAC for 1 minute (between power terminal and ground) |
| Operating Temperature (Horizontal) | 0 to 55 degC |
| Operating Temperature (Vertical) | 0 to 50 degC |
| Storage Temperature | -20 to 60 degC |
| Ambient Humidity Range | 10% to 90% RH (non-condensing) |
| Vibration & Impact Resistance | Compliant with JIS B 3502, IEC 61131-2 (147 m/s2 / 15G) |
| Operating Altitude | 2000 meters (6562 feet) or less |
| Product Weight | 2.1 kg (excluding mounting brackets) |
| External Dimensions (W x H x D) | 30.3 cm x 21.8 cm x 5.2 cm |
| Shipping Weight (Calculated) | 8.0 kg (including packaging material) |
| Connection / Terminal Parameter | Specification Standard |
|---|---|
| Applicable Wire Size | 0.75 to 2 mm² |
| Terminal Block Screw Type | M3 Screw Clamp Terminal |
| Compatible Crimp Terminals | RAV1.25-3, V2-S3.3, V2-N3A, FV2-N3A |
| Tightening Torque Range | 0.5 to 0.8 N.m |
The GT2710-VTBA can directly replace older GT1675 or GT1575 series HMIs of the same screen footprint; however, panel cutout adapter plates or bezel replacements may be required depending on the exact mounting depth and tolerance of your existing cutout. Ensure that your HMI application is compiled within GT Works3 (Version 1.100G or later) to access the specialized firmware drivers required for this unit's multi-touch and advanced gesture engine.
When utilizing a vertical installation orientation, the maximum permitted operating temperature drops from 55 degC to 50 degC. Ensure at least 100mm of clearance space exists between the rear of the HMI unit and adjacent control devices inside the cabinet to facilitate sufficient passive thermal convection. Do not mount this unit in environments featuring continuous exposure to greasy fumes, highly conductive metal dust, or direct sunlight, as this will accelerate display yellowing and touch-layer degradation.
Always route the primary AC power line separately from industrial communication cables (such as Ethernet or RS-422/485 serial buses) to minimize high-frequency electromagnetic interference (EMI). Connect the LG (Line Ground) and FG (Frame Ground) terminals to a dedicated Class-D industrial earth ground using a copper wire with a minimum cross-section of 2 mm² to prevent stray grounding loops from introducing touchscreen touch jitter.
CRITICAL WARNING: ELECTRICAL SHOCK HAZARD
Isolate and de-energize all primary supply lines before commencing physical installation, wiring, or maintenance of this unit. Verify the absent voltage state using a calibrated testing instrument before opening terminal covers or handling internal components. Failure to comply can result in severe personal injury or equipment destruction.
Verify that the enclosure cutout dimensions strictly match the required width and height profile for the 10.4" GOT2000 series, ensuring the seal gasket is properly seated around the HMI perimeter.
Insert the HMI unit into the panel cutout from the front, then secure the mounting brackets from the rear, tightening the screws to the specified torque rating to maintain IP67F protection.
Wire the AC power input terminals using suitable crimp terminals (RAV1.25-3 or similar) and tighten the terminal screws to a torque between 0.5 and 0.8 N.m.
Complete ground terminal connections to a class-D earth ground point before energizing the incoming power lines.
