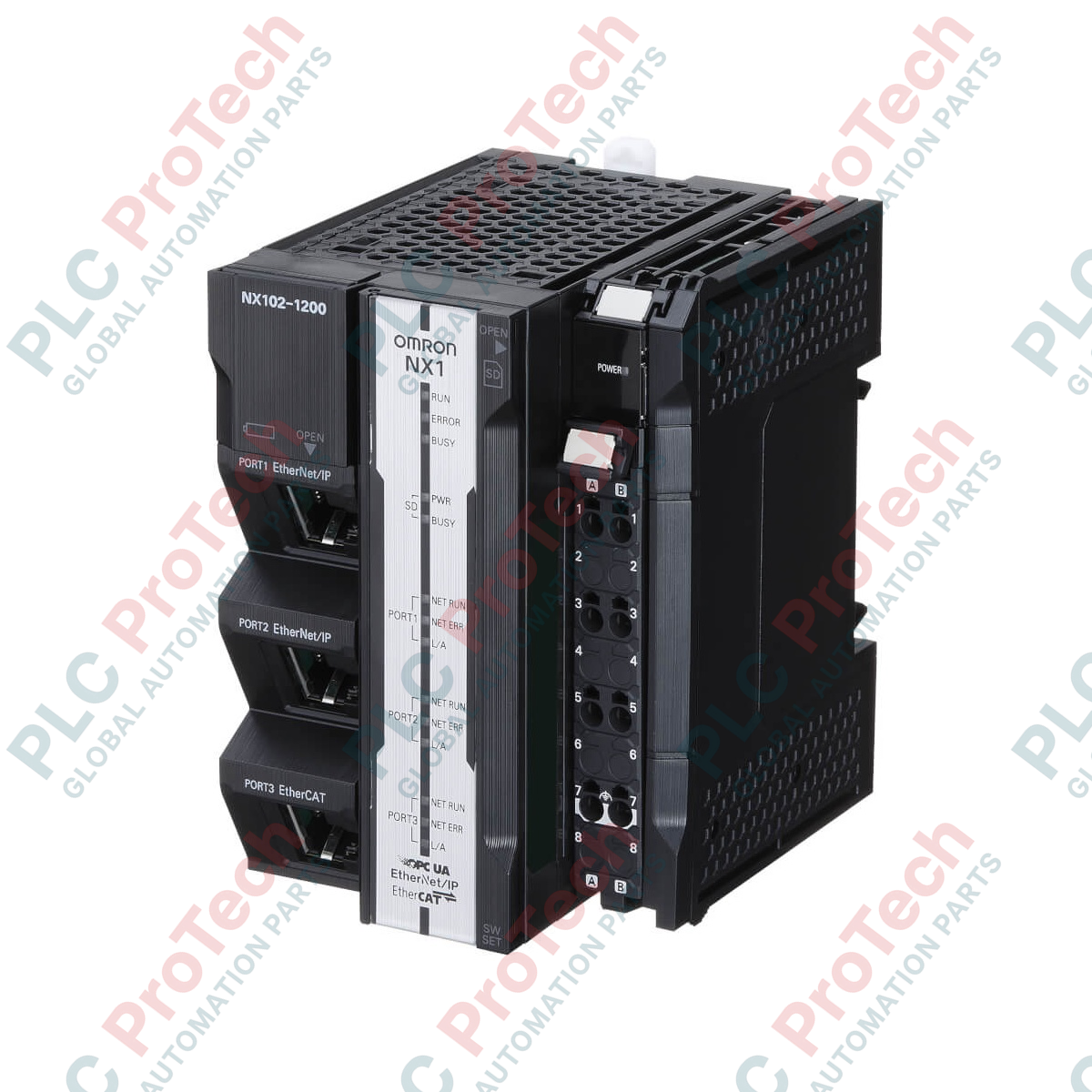

Omron NX102-1120 Sysmac NX1 Modular CPU

Description

Designed for high-speed machine control and seamless factory automation integration, the NX102-1120 controller brings database connectivity, motion control, and multi-network capabilities to the Sysmac NX1 platform. This modular CPU allows for real-time synchronization of physical axes while simultaneously managing sequence control, motion pathways, and secure vertical communication.

Equipped with native database connection functionality, this controller streamlines data logging and traceability by communicating directly with SQL servers. It functions as a secure bridge between production-floor hardware and enterprise-level IT infrastructure, offering reliable operations in high-throughput industrial environments.

Features

• Supports synchronized control of up to 4 motion axes and 4 point-to-point (PTP) axes.
• Direct SQL database connectivity for automated data collection and storage without intermediate PCs.
• Integrated OPC UA server functionality for secure, standardized communication with SCADA and MES systems.
• Dual EtherNet/IP ports and a dedicated EtherCAT Master port to handle high-bandwidth industrial networks.
• Scalable local architecture supporting up to 32 local NX-series expansion I/O units.

Applications

• Automotive assembly lines requiring precise multi-axis synchronization.
• High-speed packaging machinery requiring synchronized motion and database logging.
• Semiconductor fabrication processes.
• Water treatment and environmental monitoring systems.

Technical Specifications

Connections and Interfaces

Installation Guidelines

• Mounting: Install on standard 35 mm DIN rail in a vertical orientation to maintain adequate convection cooling.
• Clearance: Maintain at least 20 mm of clear space above and below the unit.
• Grounding: Use a dedicated ground connection with a ground resistance of 100 ohms or less.
• Shielding: Use double-shielded twisted-pair cables for all EtherCAT and EtherNet/IP network connections to mitigate electromagnetic interference.

Compliance and Certifications

• CE
• cULus
• KC (Korean Communications Commission)
• RCM (Regulatory Compliance Mark)
