Schneider Modicon Momentum 170FNT11000 FIPIO-Adapter

Description

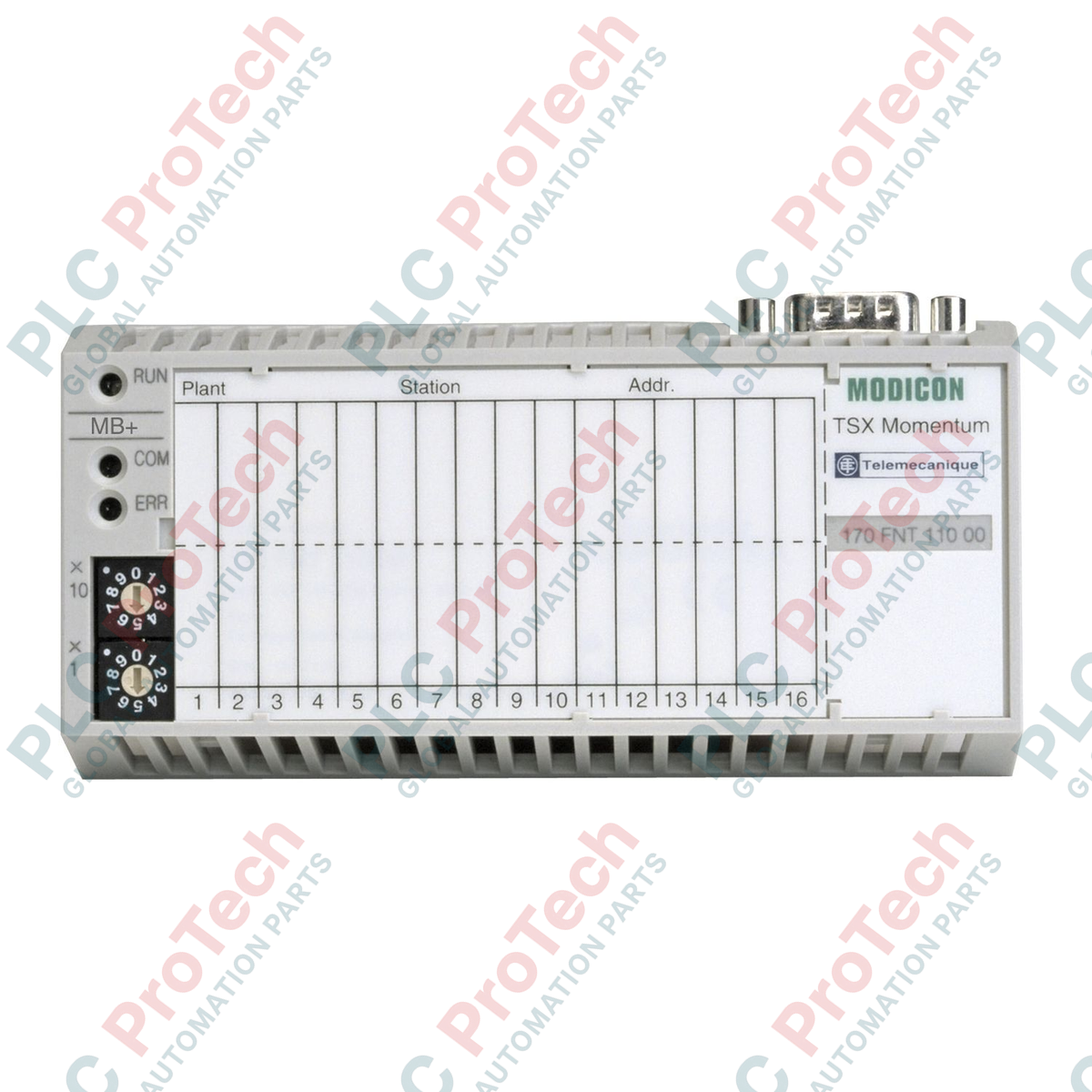

The 170FNT11000 is a specialized FIPIO Adapter designed for the Modicon Momentum automation platform. This module serves as the communication interface that allows Momentum I/O bases to be integrated into a FIPIO (Fieldbus Interface Processor Input/Output) fieldbus network. By acting as the network node, the adapter enables the PLC controller to exchange process data with distributed Momentum I/O stations over the FIPIO fieldbus. This facilitates flexible, decentralized automation architectures, allowing for the reliable distribution of control signals across larger plant floors.

Features

• FIPIO Network Integration: Enables Momentum I/O platforms to communicate via the standard FIPIO fieldbus protocol.
• Seamless Compatibility: Specifically engineered for the Modicon Momentum range, ensuring easy "snap-on" assembly with I/O bases.
• Distributed Automation: Supports decentralized system architectures, reducing cabling requirements and improving system scalability.
• Robust Connectivity: Provides a dedicated node for reliable, real-time deterministic communication in industrial environments.

Applications

• Distributed control architectures in manufacturing and process automation.
• Remote I/O connectivity for PLC systems operating on FIPIO networks.
• Industrial facility automation requiring decentralized signal collection.
• System maintenance and expansion of legacy Modicon Momentum installations.

Technical Specifications

Installation Guidelines

• Module Assembly: The adapter is designed to snap onto a Momentum I/O base. Ensure the connector pins on the base are clean and undamaged before sliding the adapter into place.
• Network Wiring: Use the appropriate FIPIO-certified cables and connectors. Ensure that the bus line is properly terminated at both ends of the network segment to prevent signal reflections.
• Addressing: Configure the node address (if applicable) using the designated switches or software configuration tools to ensure correct identification on the FIPIO bus.
• Grounding: Connect the shield of the FIPIO cable to the appropriate terminal on the adapter to maintain electromagnetic immunity.
• Diagnostic Check: Post-installation, verify the communication status LEDs on the adapter. A steady status light typically indicates successful network communication and proper node synchronization.
