Weidmuller 1469480000 PRO ECO 120W 24V 5A Switch-Mode Power Supply Unit

Nur noch 10 Artikel auf Lager verfügbar

Hersteller: Weidmuller
Produkt-Nr.: PRO ECO 120W 24V 5A
Herkunftsland:Deutschland
Produkttyp: Switch-Mode Power Supplies
Zahlung: T/T, Western Union
Gewicht: 675g
Abmessungen: 40 mm x 125 mm x 100 mm
Versandhafen: Xiamen
Garantie: 12 Monate

Weidmuller 1469480000 PRO ECO 120W 24V 5A Switch-Mode Power Supply Unit

Description

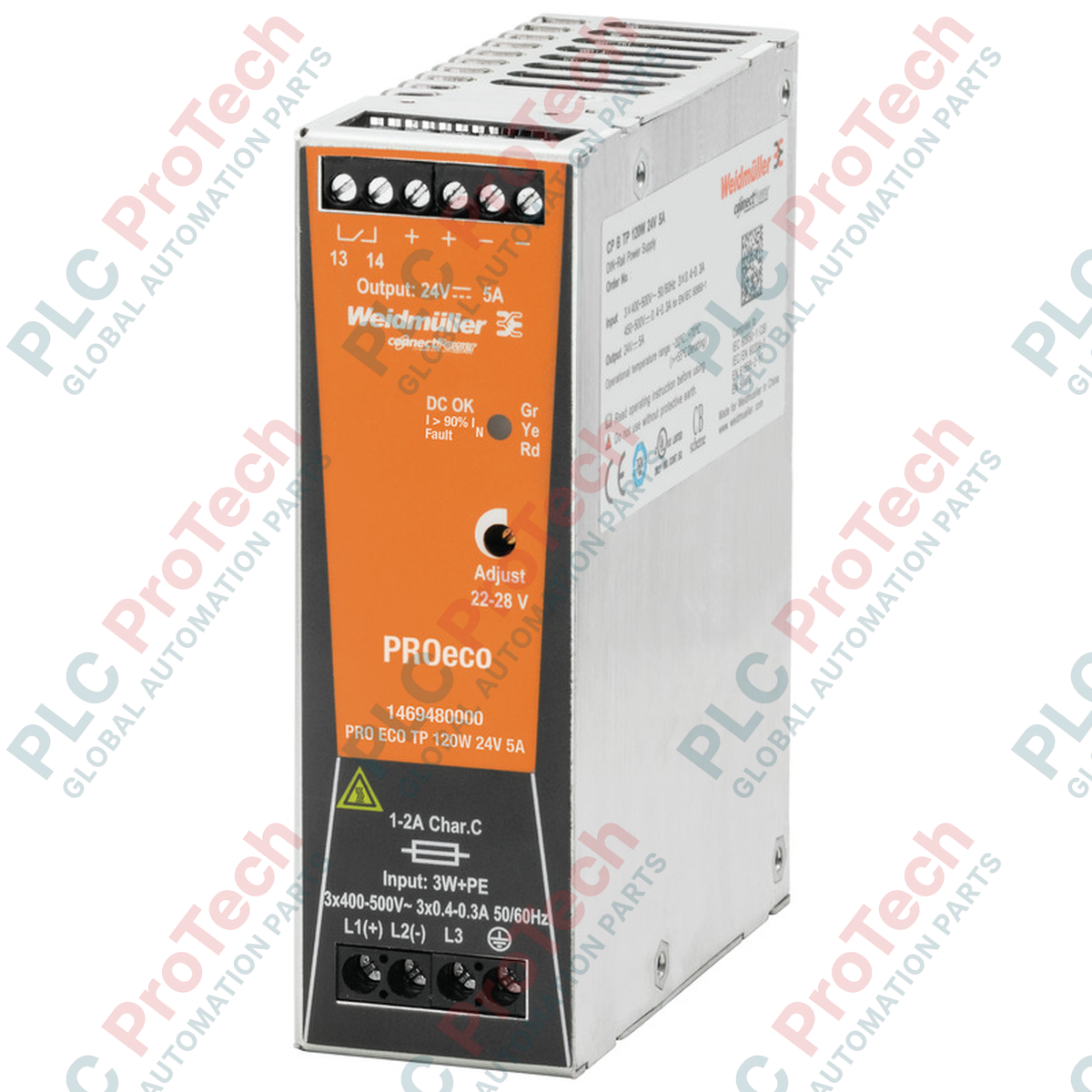

Engineered for reliable and space-saving power delivery in decentralized automation systems, the Weidmuller 1469480000 is a high-efficiency switch-mode power supply unit. Part of the robust PRO ECO series, this module delivers a regulated 24 V DC output at 5 A, providing a continuous 120 W of power. It features a wide-range input capable of accepting both AC and DC voltages, making it highly versatile for global industrial applications.

The unit is housed in a corrosion-resistant metal enclosure designed for TS 35 DIN rail mounting. It features an integrated potentiometer for output voltage adjustment, comprehensive diagnostic LEDs, and a floating status relay contact for remote monitoring. With built-in protection against overloads, short circuits, and over-temperature conditions, this power supply ensures high operational safety and system uptime in demanding environments.

Features

High operational efficiency of 87% to minimize thermal losses inside control cabinets.
Wide input voltage range supporting 85 to 264 V AC and 80 to 370 V DC.
Adjustable output voltage from 22 to 28 V DC via a front-panel potentiometer.
Tricolor LED diagnostics for real-time status indication (Green, Yellow, Red).
Integrated floating relay contact for remote monitoring of output status.
Robust, corrosion-resistant metal housing with a compact 40 mm width.
Support for parallel connection of up to 5 units to increase power capacity.

Applications

Industrial automation and control cabinet assembly.
Machine building and precision factory automation.
Process engineering and water treatment facilities.
Power distribution networks and wind energy systems.

Technical Specifications

Manufacturer	Weidmuller
Part Number/Model	1469480000 (PRO ECO 120W 24V 5A)
Input Voltage Range (AC)	85...264 V AC (derating at 100 V AC)
Input Voltage Range (DC)	80...370 V DC (derating at 120 V DC)
Input Frequency Range	47...63 Hz
AC Current Consumption	1.26 A @ 230 V AC / 2.24 A @ 110 V AC
DC Current Consumption	0.39 A @ 370 V DC / 1.16 A @ 120 V DC
Inrush Current	max. 40 A
Nominal Output Voltage	24 V DC +/- 1 %
Output Voltage Range	22...28 V DC (adjustable via potentiometer)
Continuous Output Current	5 A @ 55 degC, 3.75 A @ 70 degC
Output Power	120 W
Residual Ripple / Breaking Spikes	less than 50 mVPP @ 24 V DC, IN
AC Failure Bridging Time	greater than 80 ms @ 230 V AC / greater than 20 ms @ 115 V AC
Efficiency	87%
Power Loss (Idling / Nominal Load)	4 W / 15 W
Status Indication	Green LED (Uout > 21.6 V DC), Yellow LED (Iout > 90% nominal), Red LED (overload, overtemperature, short-circuit, Uout < 20.4 V DC)
Floating Contact / Relay	Yes (max. 30 V DC / 1 A), active when Uout > 21.6 V DC
Connection System	Screw connection
Conductor Cross-Section (Rigid)	0.5...6 mm² (AWG 26...12)
Conductor Cross-Section (Flexible, Input)	0.5...2.5 mm² (max)
Operating Temperature	-25 degC to 70 degC
Storage Temperature	-40 degC to 85 degC
Dimensions (W x H x D)	40 mm x 125 mm x 100 mm
Net Weight	675 g

Connections and Interfaces

Connection Type	Terminal Specification / Function
Input Terminals	Screw connection for L, N, and PE (0.5 to 6 mm² rigid)
Output Terminals	Screw connection for +24 V DC and -24 V DC
Status Relay	Floating contact (NO), max. 30 V DC / 1 A for remote diagnostics

Installation Guidelines

Mounting: Snap vertically onto a standard TS 35 DIN rail. Ensure the internal cooling vents are positioned at the top and bottom.
Clearance: Maintain adequate clearance above and below the module to facilitate natural convection cooling and prevent thermal derating.
Wiring: Use appropriate wire cross-sections (up to 6 mm² for rigid conductors) and ensure screw terminals are tightened to the recommended torque.
Grounding: Connect the PE (Protective Earth) terminal securely to the system ground to ensure proper electromagnetic compatibility (EMC) and electrical safety.

Key Features:

#Switch-Mode Power Supplies #Weidmuller Pro Eco

What is the output voltage range of the Weidmuller 1469480000?

The nominal output voltage is 24 V DC, which can be adjusted between 22 and 28 V DC via the front-facing potentiometer.

What are the LED status indicators on the PRO ECO 120W power supply?

The unit features three LEDs: a Green LED indicating output voltage is above 21.6 V DC, a Yellow LED indicating output current exceeds 90% of the rated current, and a Red LED indicating overload, overtemperature, short-circuit, or output voltage below 20.4 V DC.

Can multiple Weidmuller PRO ECO 120W units be connected in parallel?

Yes, up to a maximum of 5 units can be connected in parallel to increase power capacity or for redundancy.

What is the operating temperature range for this power supply?

The operating temperature range is -25 degC to 70 degC, with derating applied above 55 degC (continuous output is 5 A at 55 degC, and 3.75 A at 70 degC).
