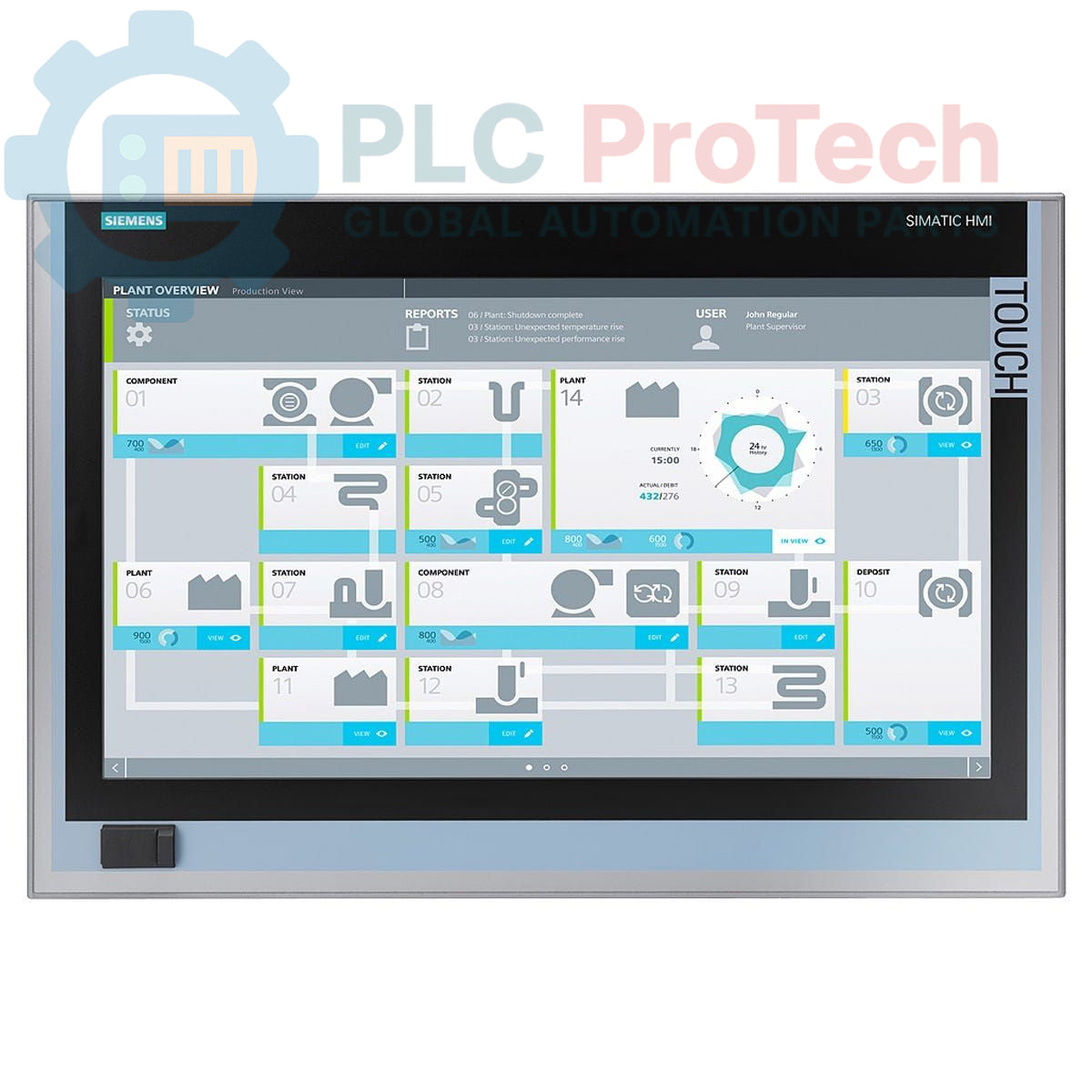

Siemens 6AV7260-1DA20-1BX6 SIMATIC IPC677D Panel PC

Description

The Siemens 6AV7260-1DA20-1BX6 is a SIMATIC IPC677D Panel PC designed for industrial applications, integrating a powerful computing platform with a user-friendly display. This unit features a 19-inch touch display with a resolution of 1366x768, making it suitable for human-machine interface (HMI) and visualization tasks. Internally, it is equipped with an Intel Core i3-4330TE processor (2 cores/4 threads, 2.4 GHz, 4 MB cache, VT-X), 4 GB of DDR3 1600 DIMM RAM, and a 500 GB SATA hard disk drive. Connectivity is robust, offering two 10/100/1000 Mbit/s Ethernet ports, four USB V3.0 ports, and one serial (COM1) interface. The system also includes a watchdog, temperature, and fan monitoring for enhanced reliability, along with an onboard RAID controller. It comes pre-installed with Windows 7 Ultimate 64-bit SP1, supporting multiple user interface languages (German, English, French, Spanish, Italian), and operates on a 24 V DC industrial power supply. This model is currently in a Phase-Out product lifecycle stage.

Features

• Integrated 19" Touch Display (1366x768 resolution)
• Intel Core i3-4330TE Processor (2C/4T, 2.4 GHz)
• 500 GB SATA Hard Disk Drive
• 4 GB DDR3 1600 DIMM RAM
• Dual 10/100/1000 Mbit/s Ethernet Interfaces
• Multiple USB V3.0 and Serial (COM1) Ports
• Watchdog, Temperature, and Fan Monitoring
• Onboard RAID Controller
• 2x PCI Expansion Slots (1 slot occupied by 2x USB additive)
• Pre-installed Windows 7 Ultimate 64-bit SP1 (MUI)
• 24 V DC Industrial Power Supply

Applications

The Siemens SIMATIC IPC677D Panel PC is suitable for a wide range of industrial automation and control applications, including:

• Human-Machine Interface (HMI) for machines and processes
• Visualization and operational control in manufacturing plants
• Data acquisition and processing in industrial environments
• Supervisory Control and Data Acquisition (SCADA) systems
• Embedded control systems requiring local processing and display

Technical Specifications

Connections / Interfaces

• Ethernet: 2x RJ45 ports for 10/100/1000 Mbit/s network connectivity.
• USB: 4x USB V3.0 ports (rear), 2x additional USB ports (front, occupying one PCI slot).
• Serial: 1x COM1 port for serial communication.
• Power: 24 V DC industrial power input.

Installation Guidelines

1. De-energization: Ensure all power to the installation area is disconnected and secured before beginning any work.
2. Mounting: The Panel PC is designed for panel mounting. Secure the unit firmly into a prepared panel cutout using appropriate mounting hardware to ensure stability and proper sealing.
3. Power Connection: Connect the 24 V DC industrial power supply to the designated power input terminals, observing correct polarity. Ensure the power supply meets the specified voltage and current requirements.
4. Grounding: Establish a reliable protective earth (PE) connection to the Panel PC chassis. Proper grounding is crucial for operational safety and electromagnetic compatibility (EMC).
5. Network Connections: Connect Ethernet cables to the RJ45 ports for network integration. Use shielded cables in industrial environments to minimize interference.
6. Peripheral Connections: Connect USB devices and serial peripherals (e.g., barcode scanners, printers) to the respective ports as required by the application.
7. Cable Routing: Route all cables to prevent strain, sharp bends, and interference with other components. Secure cables with ties or clips.
8. Environmental Considerations: Ensure the installation environment complies with the Panel PC's specified operating temperature, humidity, and vibration ratings. Provide adequate ventilation to prevent overheating.
9. Power-Up: After all connections are verified, re-energize the system and observe for proper boot-up and operation.
