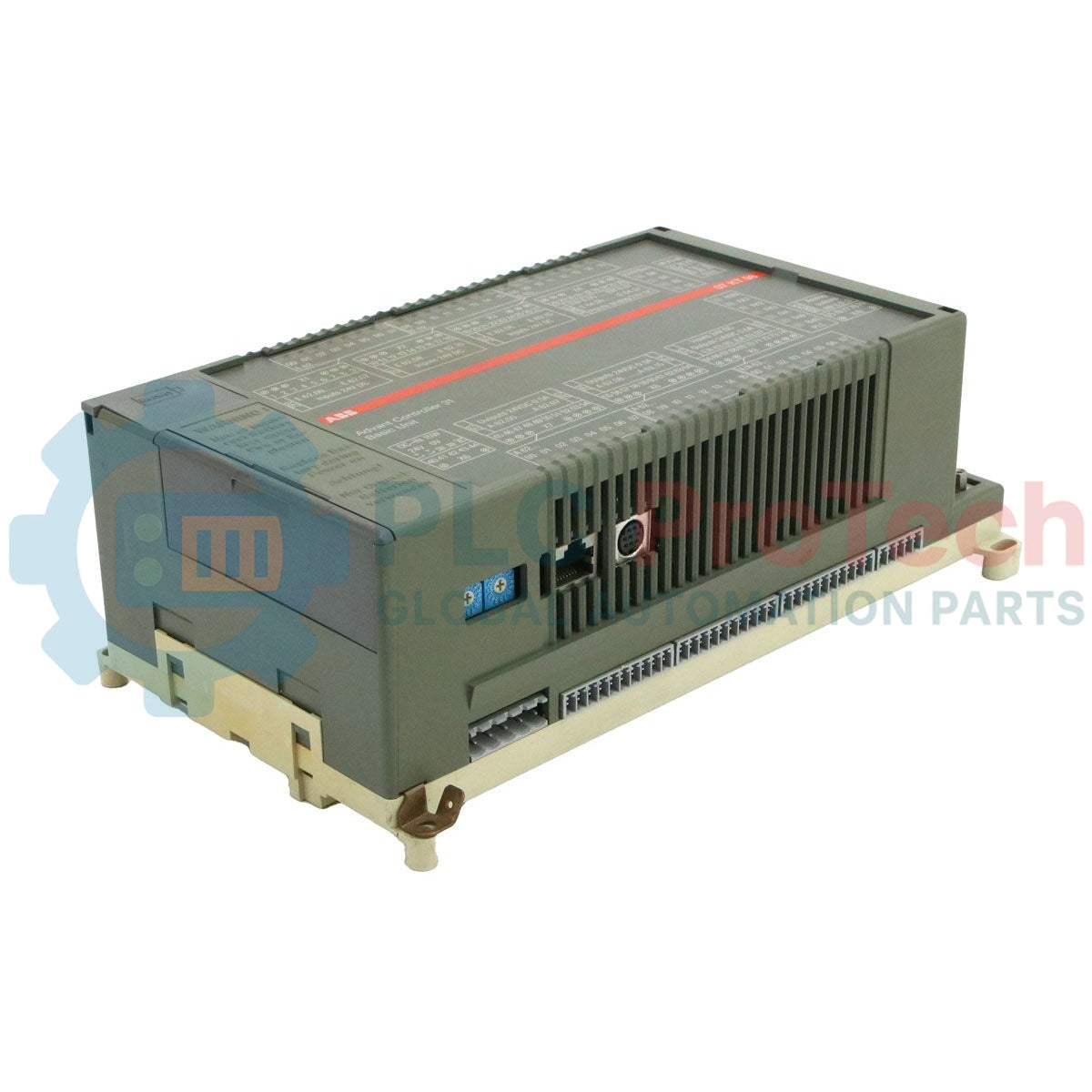

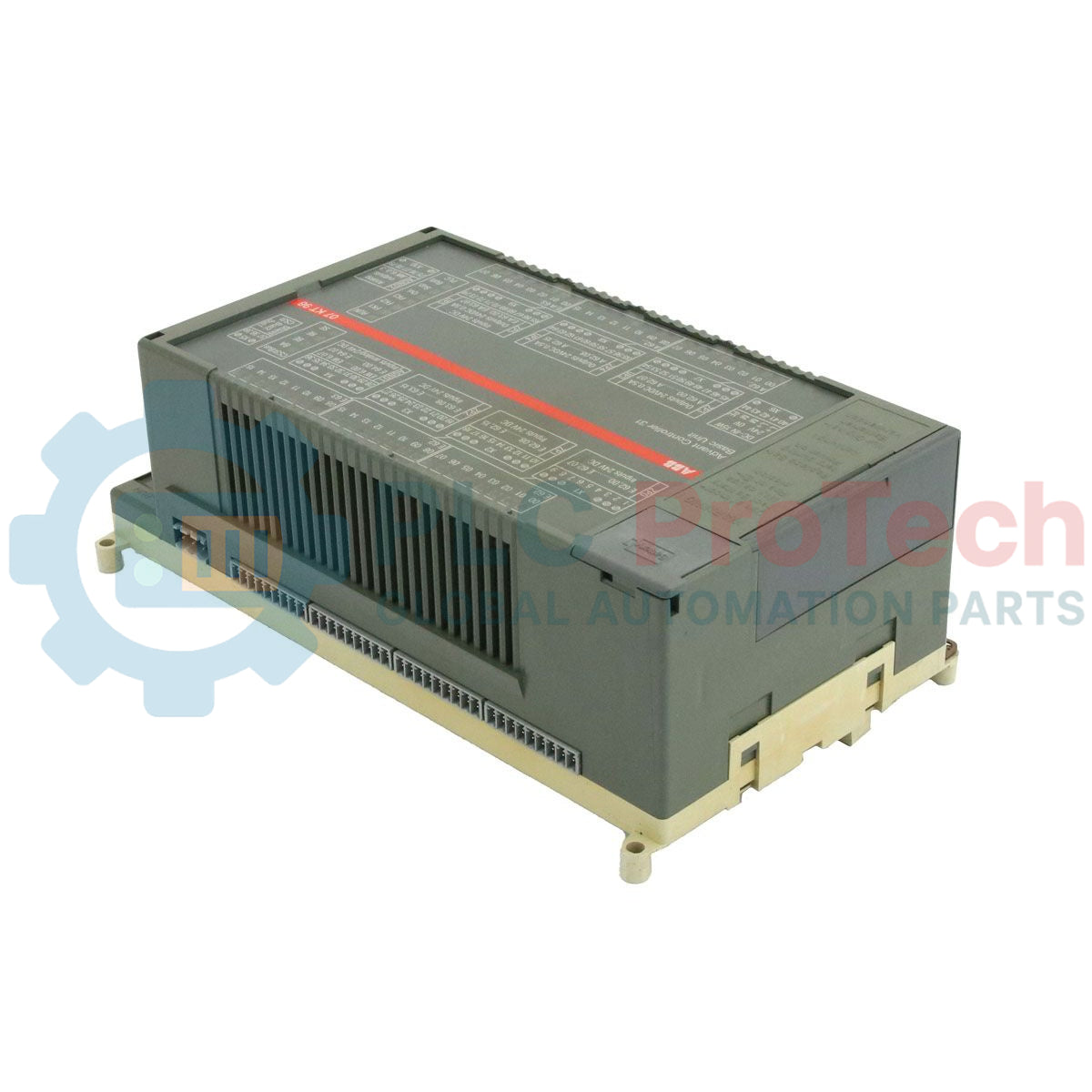

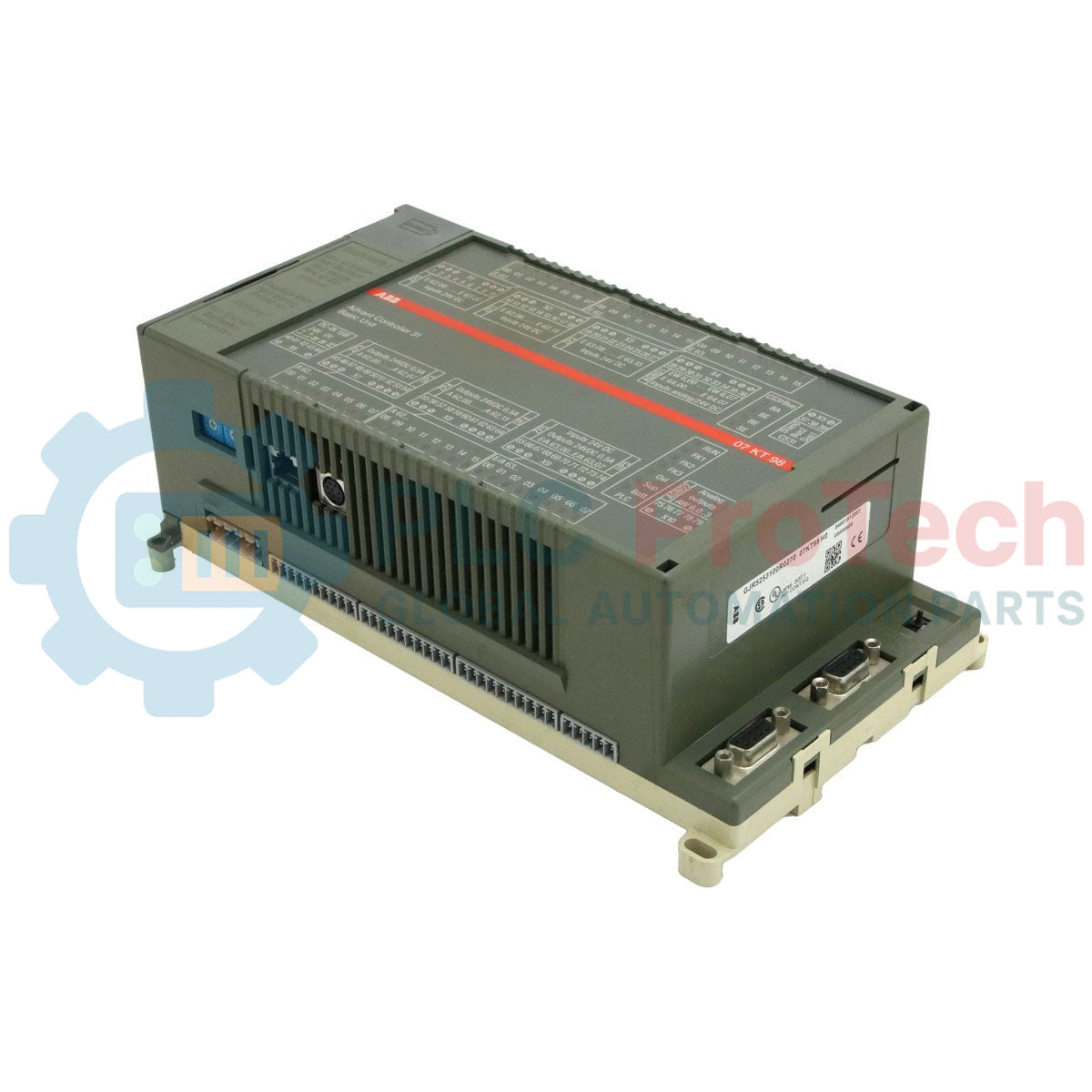

The ABB 07KT98-ETH is an AC31 series PLC basic unit with integrated Ethernet TCP/IP communication for industrial automation.
It provides 8 analog inputs and 4 analog outputs for precise signal processing and system control.
Moreover, it supports CS31 system bus and RS232 interfaces for flexible plant-level integration.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Type | PLC Basic Module |
| Model | 07KT98-ETH |
| Order Number | GJR5253100R0270 |
| Series | AC31 (Advant Controller 31) |
| Communication Interface | Ethernet TCP/IP |
| Additional Interface | RS232 |
| System Bus | CS31 |
| Analog Inputs | 8 channels |
| Analog Input Signals | 0…5 V, ±5 V, 0…10 V, ±10 V, 0/4…20 mA, PT100 |
| Analog Outputs | 4 channels |
| Analog Output Signals | ±10 V, 0…20 mA |
| Resolution | Up to 12-bit |
| Supply Voltage | 24 V DC |
| Operating Temperature | 0…+55 °C |
| Net Weight | 1.62 kg |
| Mechanical Configuration | Rack-mounted PLC module |
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: GJR5253100R0270
Country of origin:Sweden
Product Type: AC31 Basic Unit with Ethernet
Barcode: 85371091
Payment: T/T, Western Union
Weight: 500g
Dimensions: 25.40cm x 15.20cm x 10.20cm
Shipping port: Xiamen
Warranty: 12 months
