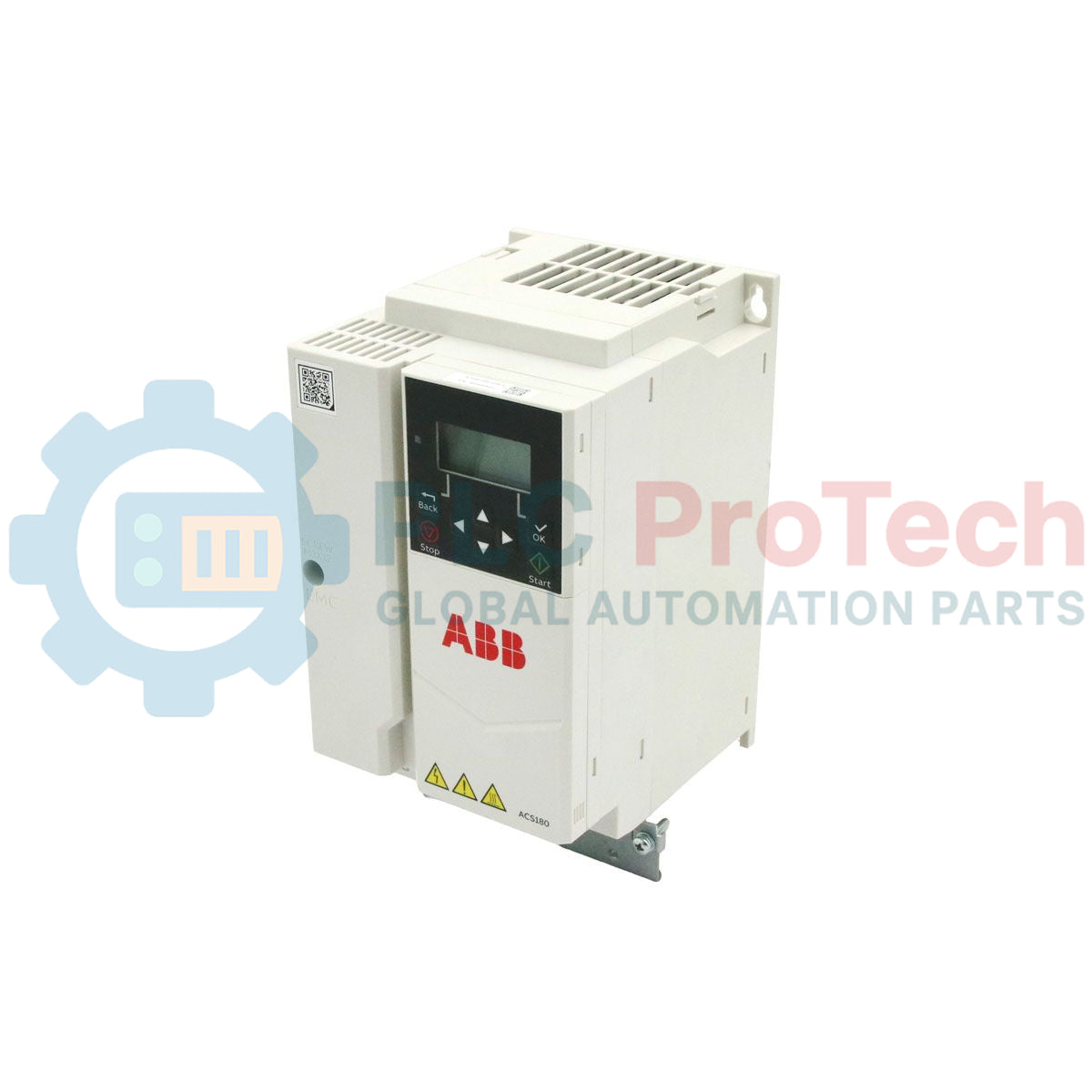

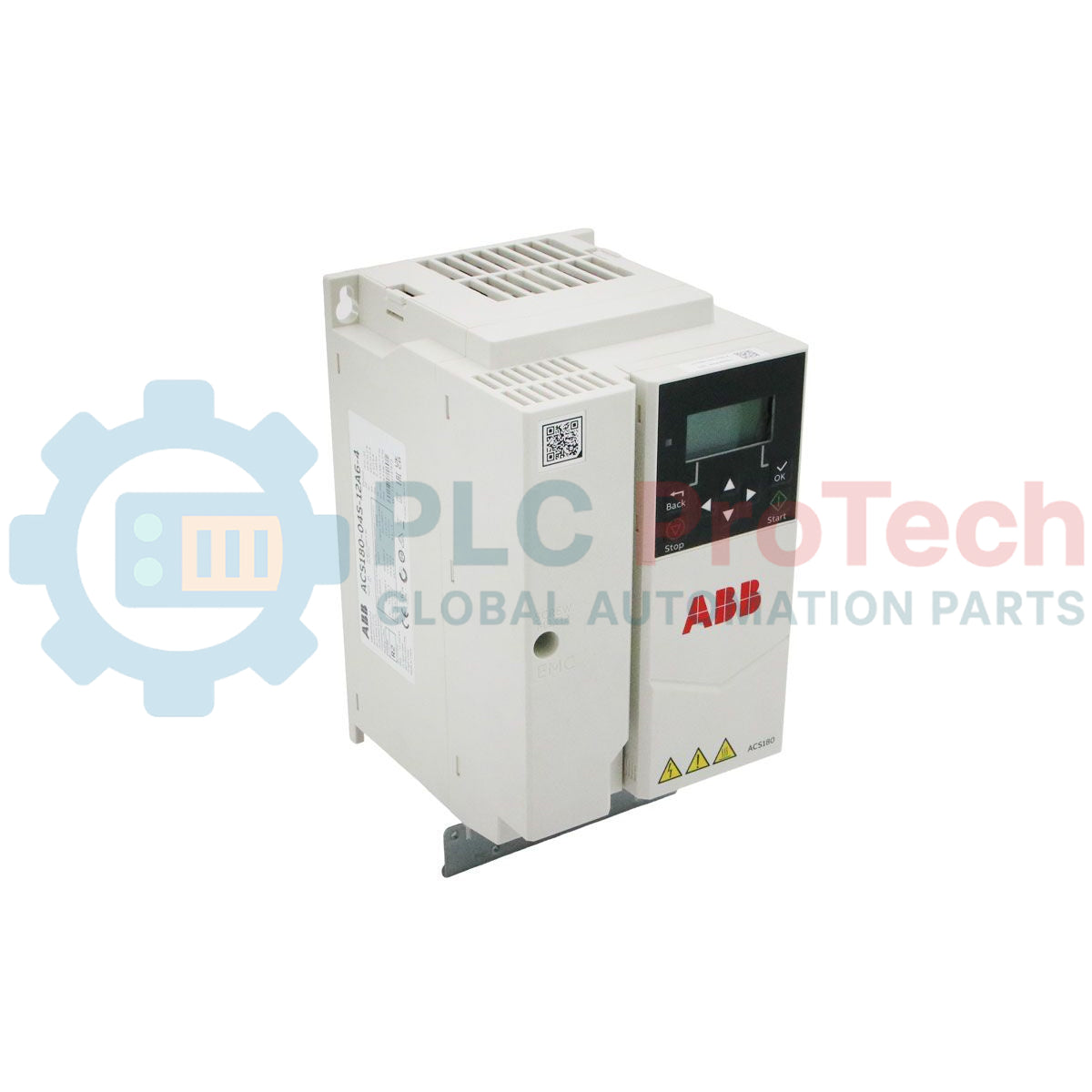

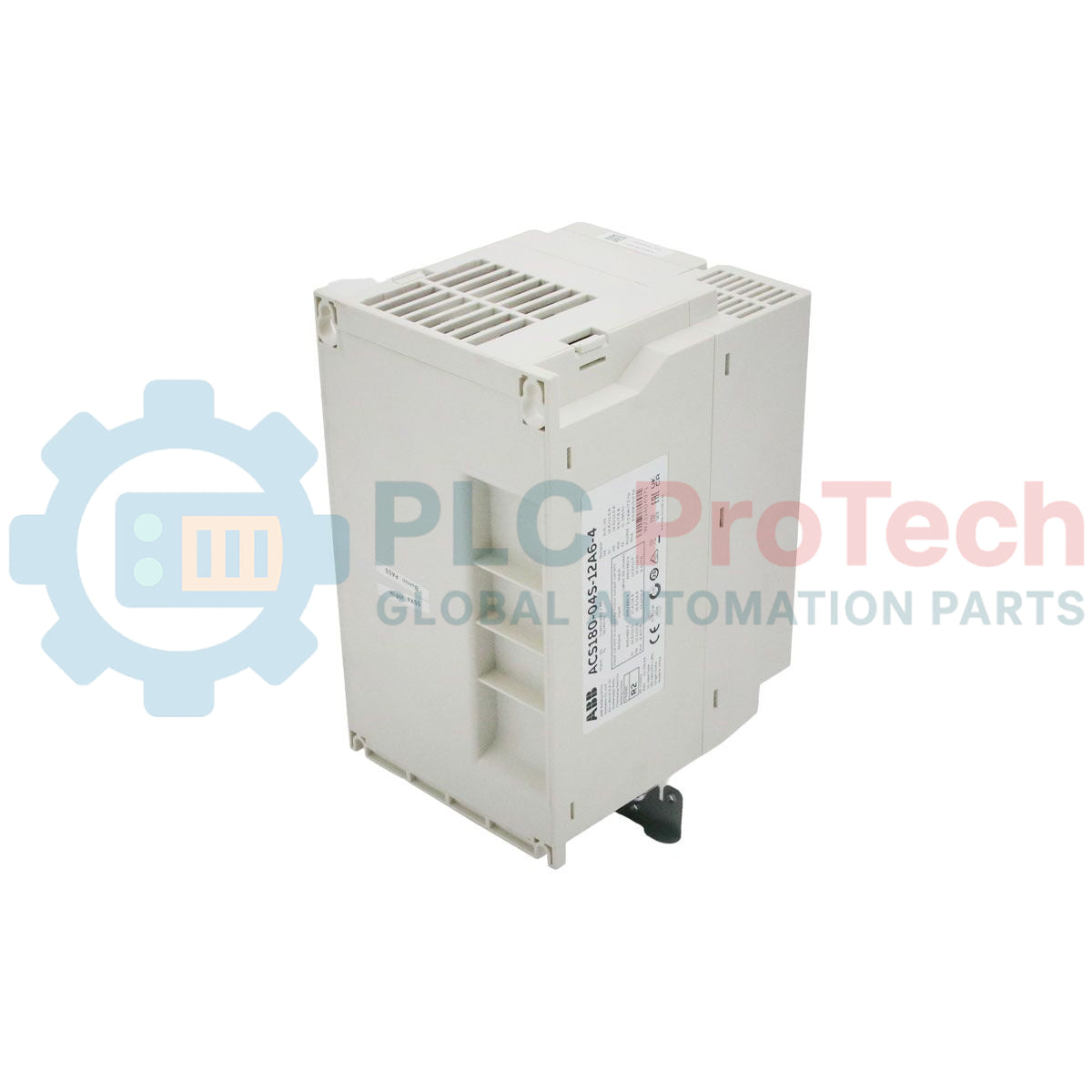

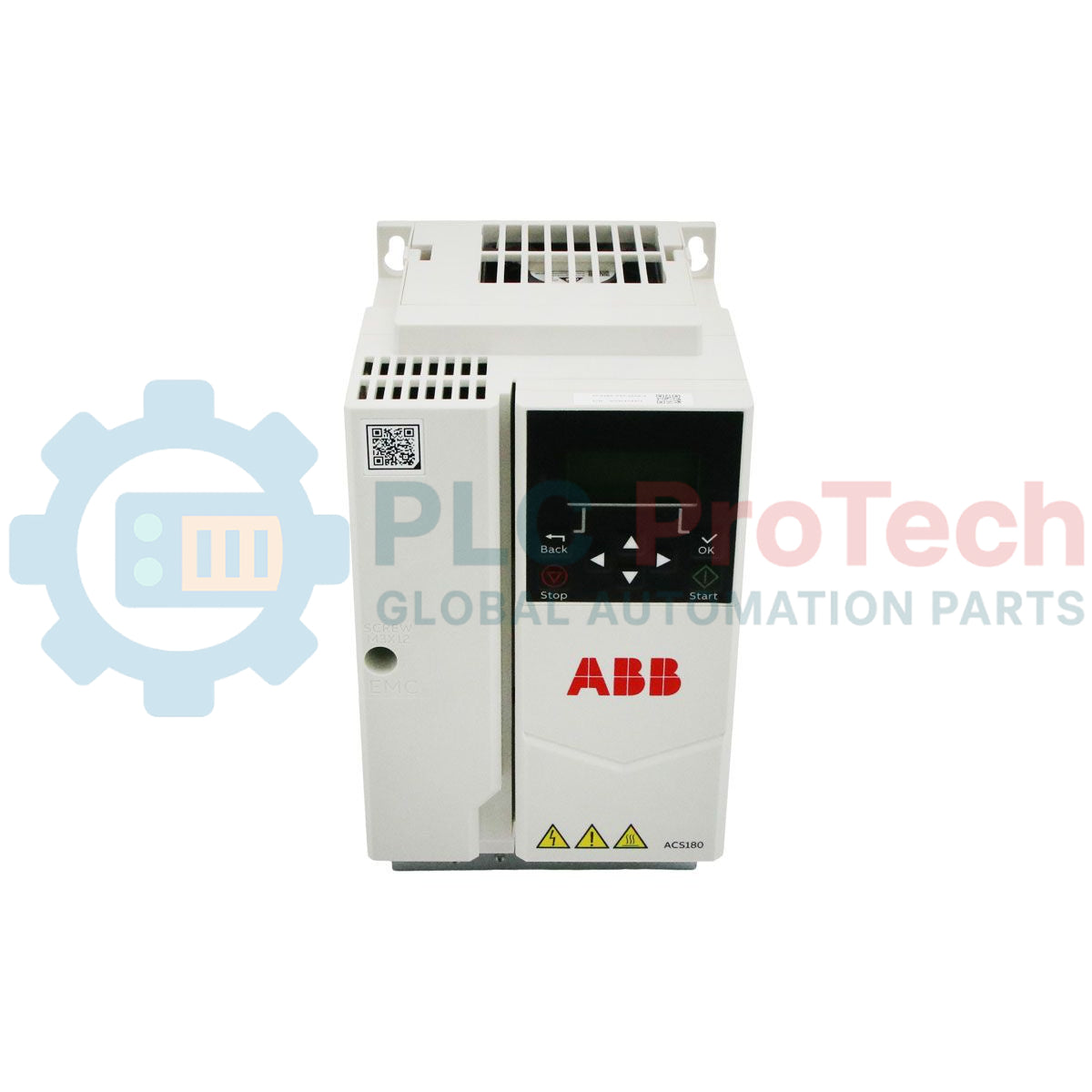

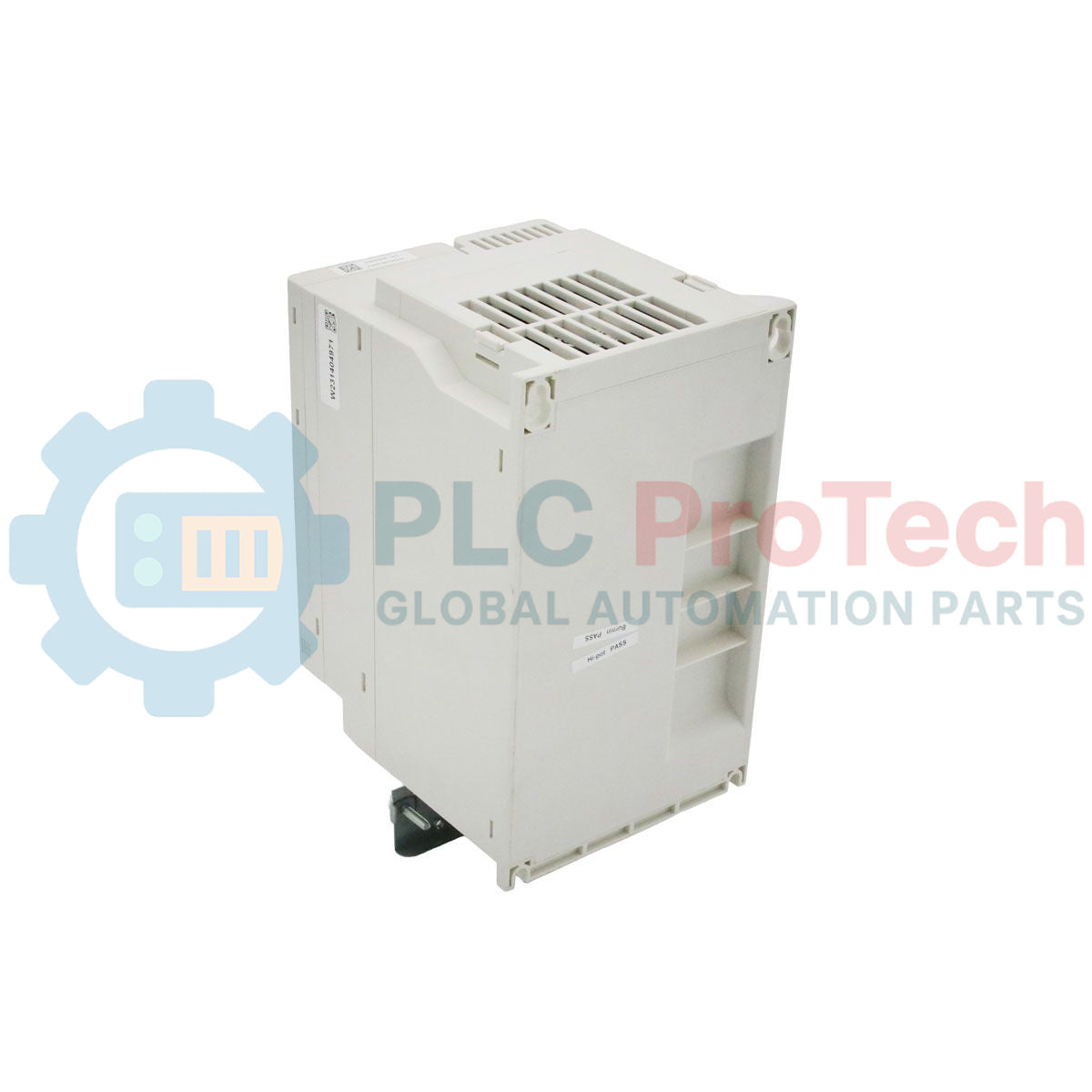

ABB 3AXD50000814077 ACS180-04S-12A6-4 ACS180 Variable Frequency Drive

SKU ACS180-04S-12A6-4

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: ACS180-04S-12A6-4
Origin Sweden
Product Type: Variable Frequency Drives
Barcode: 85044085
Payment: T/T, Western Union
Weight: 2.01 kg
Dimensions: 143 mm x 230 mm x 120 mm
Shipping port: Xiamen
Warranty: 12 months

Product Description

Description

Engineered for precise motor control in compact machinery applications, the ABB 3AXD50000814077 (model ACS180-04S-12A6-4) is a high-efficiency, low-voltage AC machinery drive module. Operating within the reliable ACS180 series, this variable frequency drive (VFD) delivers consistent speed and torque regulation for three-phase AC motors. It is designed to optimize energy consumption and process performance in space-constrained installations.

The unit features integrated Modbus RTU communication, allowing for straightforward integration into centralized PLC environments and industrial networks. Its robust architecture makes it well-suited for demanding mechanical environments, providing built-in protection mechanisms that safeguard both the drive and the connected motor from electrical faults.

Features

Space-saving mechanical design optimized for cabinet installation.
Embedded Modbus RTU serial communication interface.
Supports precise scalar and vector control modes.
Integrated protection functions including overcurrent, overvoltage, and thermal overload monitoring.
Simple commissioning parameters for fast configuration and deployment.

Applications

Industrial pump and water circulation systems.
HVAC ventilation fans and blower systems.
Air and gas compressors.
Material handling conveyors and automated feeders.
Agitators, mixers, and industrial winders.

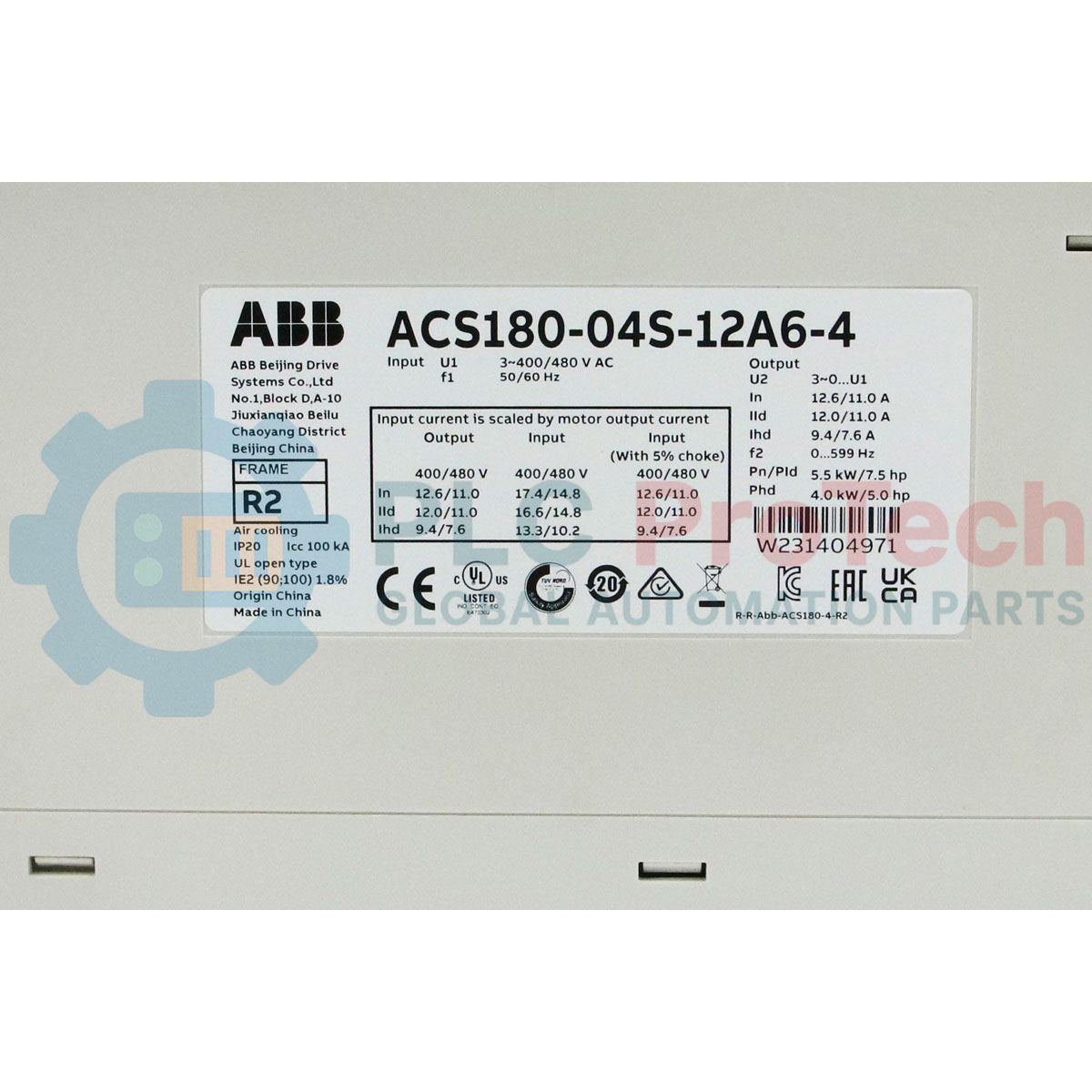

Technical Specifications

Manufacturer	ABB
Part Number / Model	ACS180-04S-12A6-4
Product ID	3AXD50000814077
Product Series	ACS180
Drive Type	Low-Voltage AC Machinery Drive
Nominal Output Power	5.5 kW
Rated Current	12.6 A
Input Voltage	400 V AC (Three-Phase)
Communication Protocol	Modbus RTU
Dimensions (W x H x D)	143 mm x 230 mm x 120 mm
Weight	2.01 kg
HS Code	85044086

Installation Guidelines

Mounting: Install the drive vertically inside a clean, dust-free control cabinet to ensure optimal cooling.
Clearance: Maintain specified minimum clearances above and below the drive module to allow unrestricted airflow through the heatsink.
Wiring: Utilize shielded motor cabling to suppress electromagnetic interference (EMI) and comply with local EMC regulations.
Grounding: Ensure the drive's protective earth (PE) terminal is securely bonded to the main system ground busbar.

Compliance and Certifications

RoHS Compliant

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the power rating of the ABB ACS180-04S-12A6-4 drive?

The drive has a nominal power rating of 5.5 kW with a rated current of 12.6 A at a 400 V input.

Which communication interfaces are built into the 3AXD50000814077 VFD?

The drive includes integrated Modbus RTU serial communication as standard for industrial control system integration.

What are the physical dimensions and weight of this module?

The module measures 143 mm in width, 230 mm in height, and 120 mm in depth, and has a net weight of 2.01 kg.
