ABB 3BHB002751R0102 SVA 3k3V, XV C722 A02 Voltage Measurement Scaling Board
ABB 3BHB002751R0102 SVA 3k3V, XV C722 A02 Voltage Measurement Scaling Board
1 / 5

ABB

ABB 3BHB002751R0102 SVA 3k3V, XV C722 A02 Voltage Measurement Scaling Board

SKU 3BHB002751R0102

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 3BHB002751R0102
  • Origin Switzerland
  • Product Type: Drive Control Boards
  • Payment: T/T, Western Union
  • Weight: 0.21 kg
  • Dimensions: 150 mm x 120 mm x 25 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ACS1000 Drive Control Boards Voltage Measurement Cards
Quantità
Call sales Contact

Product Description

Description

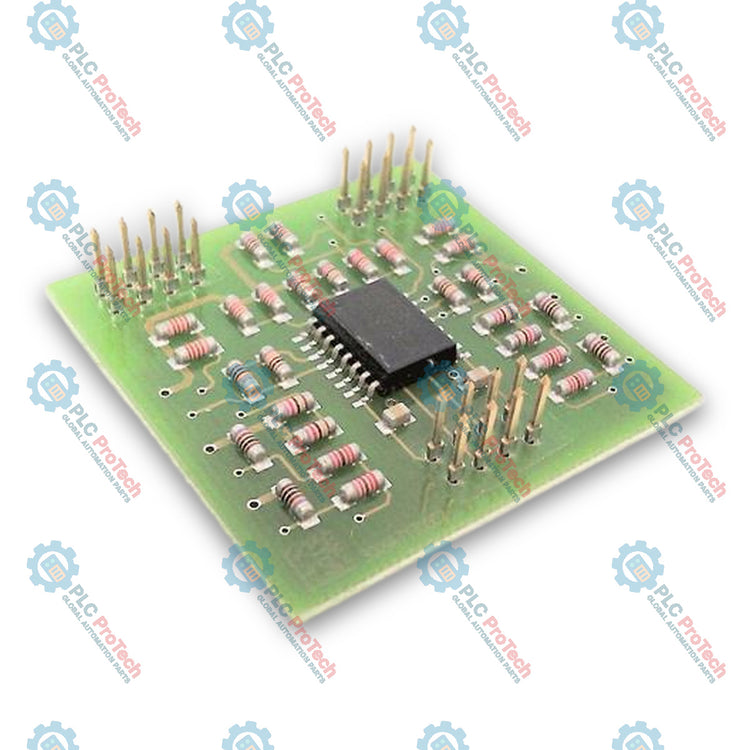

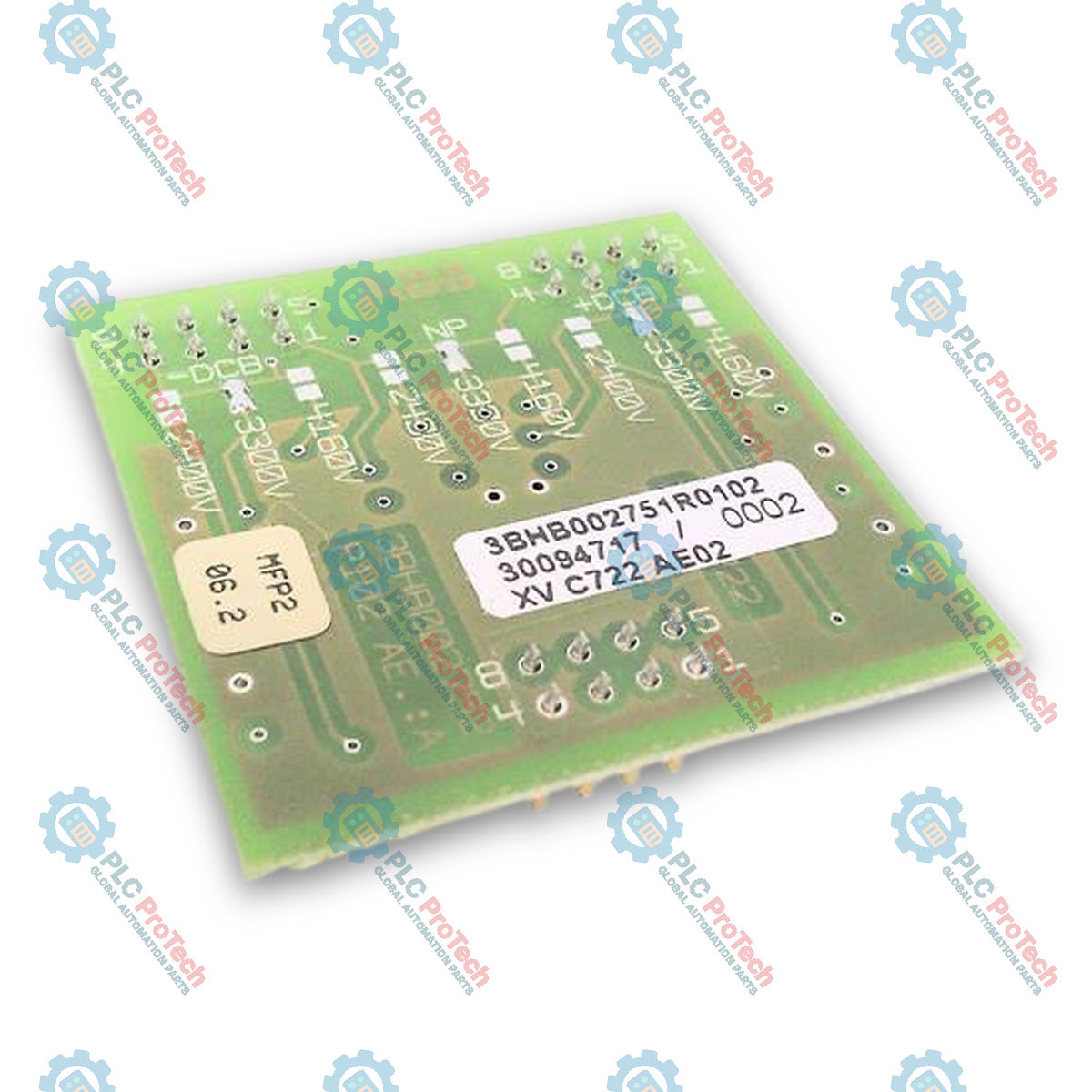

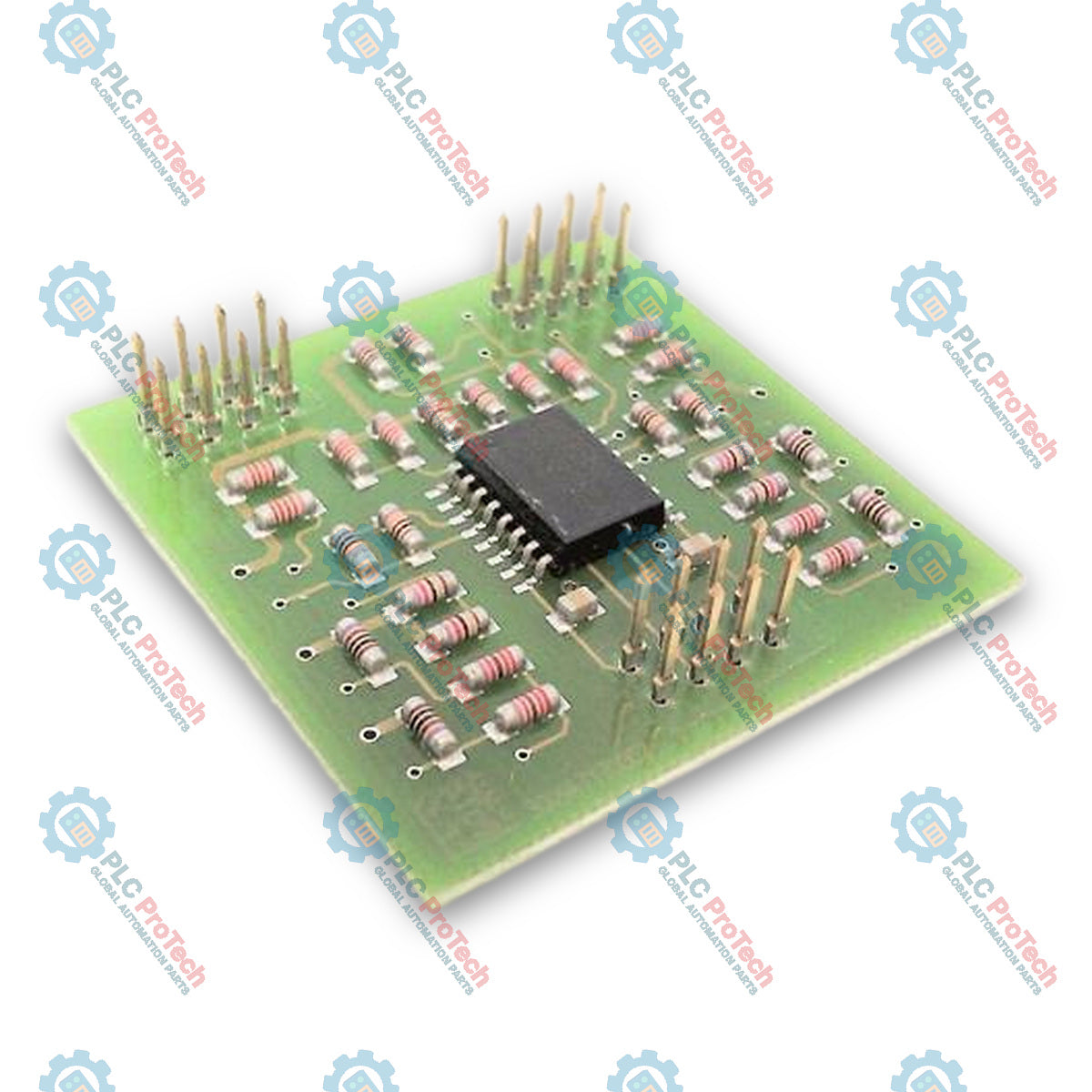

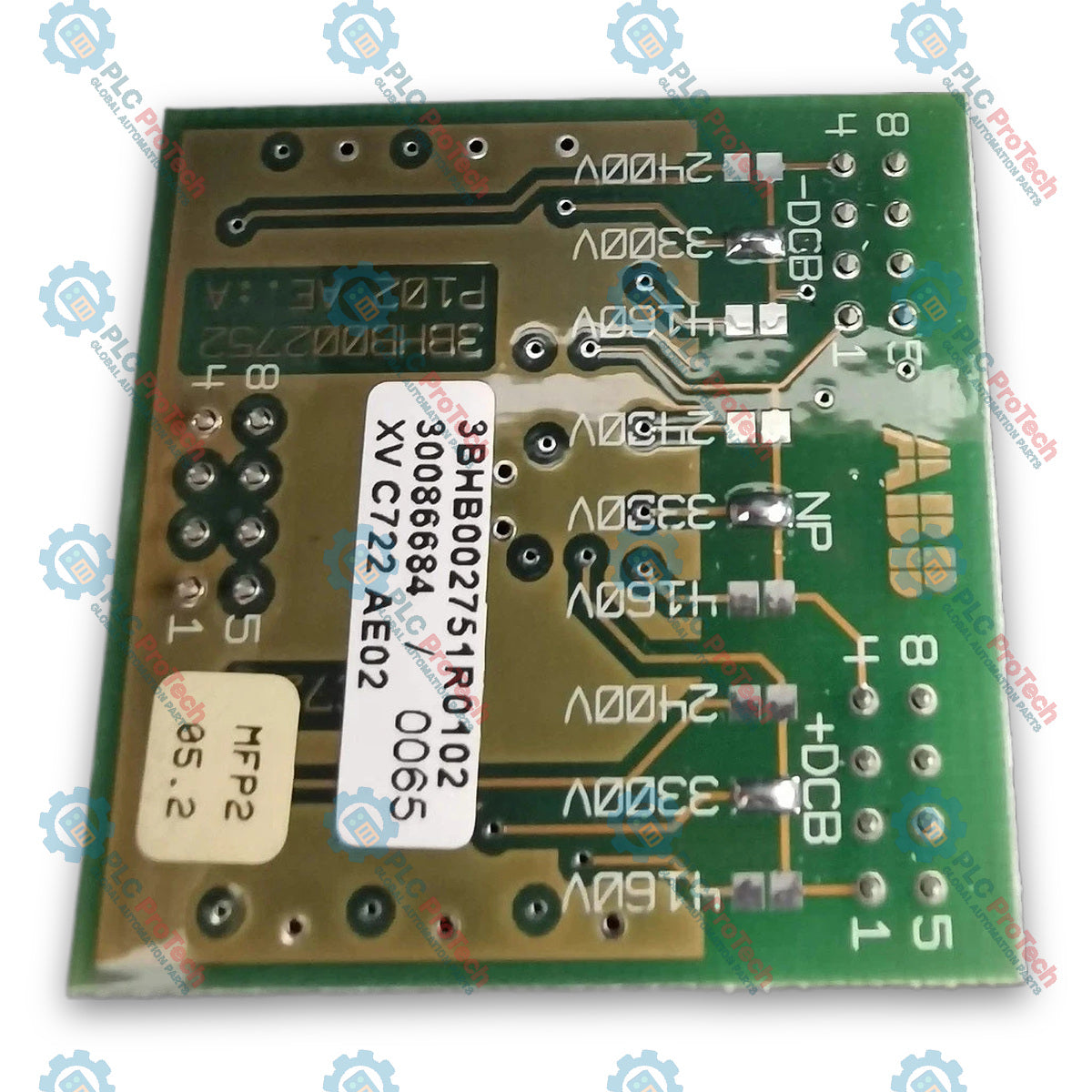

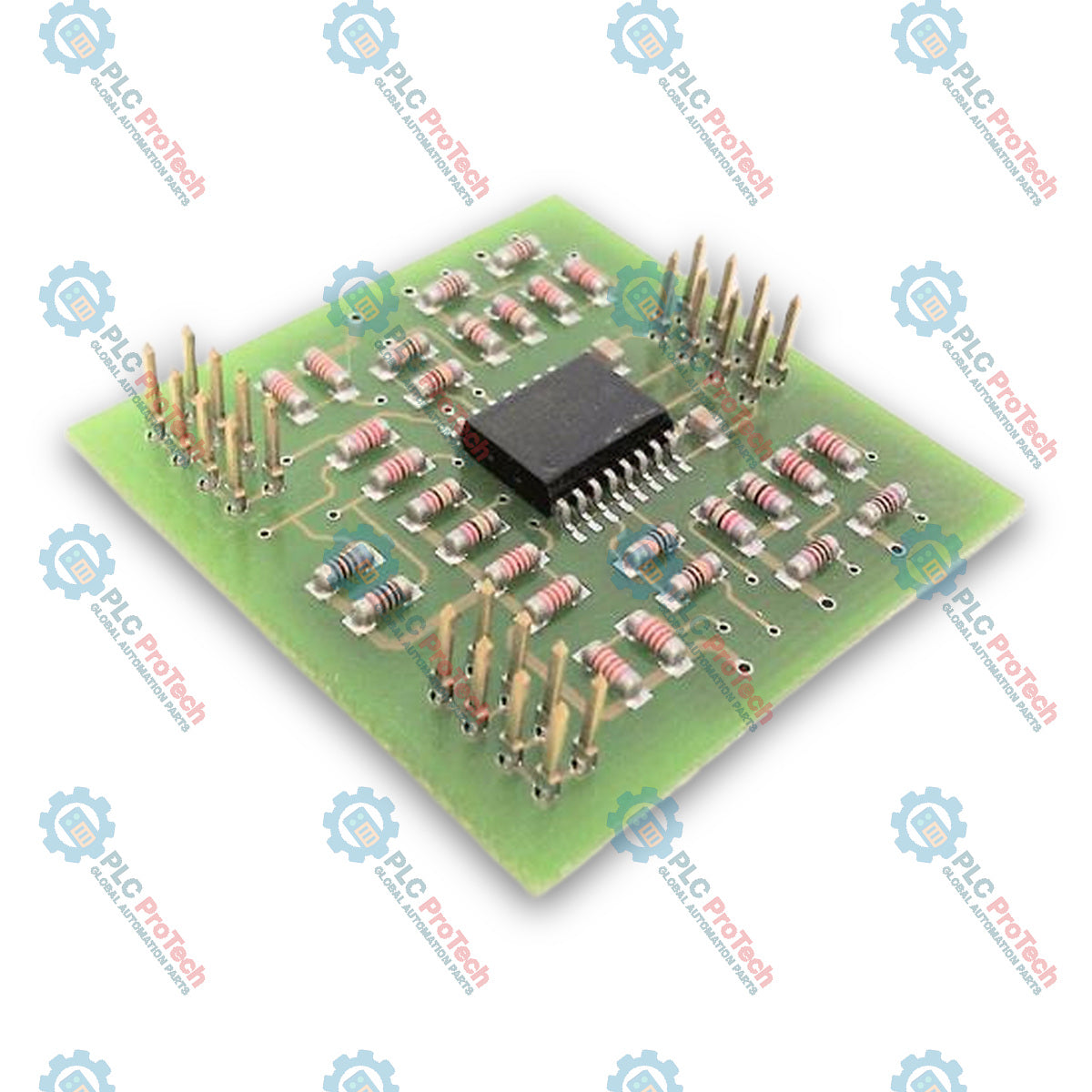

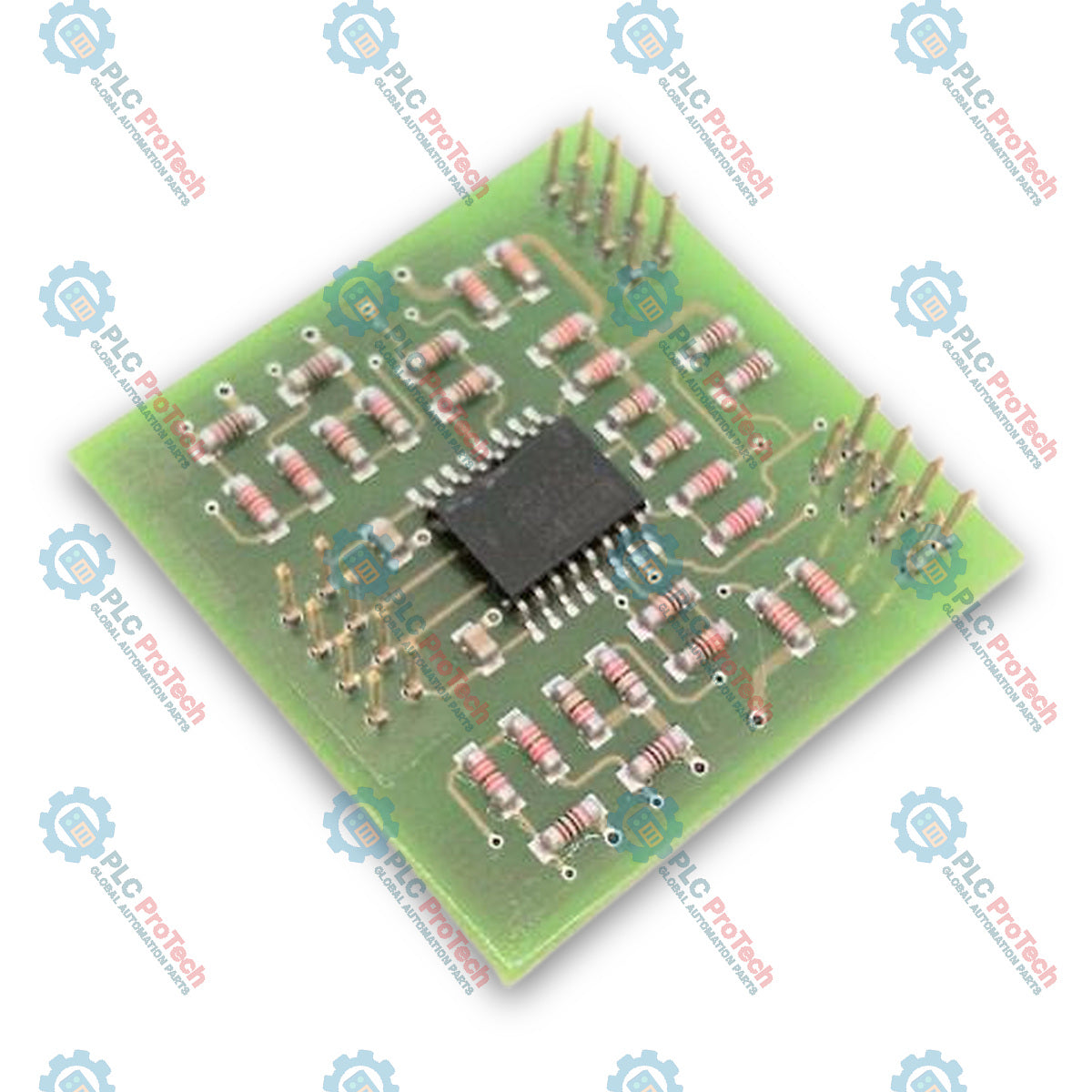

The ABB 3BHB002751R0102 (Type Designation SVA 3k3V, XV C722 A02) is a specialized voltage measurement scaling card designed for use in medium voltage AC drives, specifically within the ACS1000 drive system. This subprint module operates as a scaling component for high-voltage measurement, converting drive voltage signals for control and monitoring circuits.

Features

  • Dedicated voltage measurement scaling subprint for medium voltage drive applications
  • Direct compatibility with ABB ACS1000 medium voltage AC drives
  • Integrated circuit subprint assembly designed for high-accuracy voltage feedback

Applications

  • ABB ACS1000 Medium Voltage AC Drives
  • Industrial motor control systems and variable frequency drive (VFD) applications

Ordering Information

Product ID ABB Type Designation Replaced Product ID (OLD)
3BHB002751R0102 SVA 3k3V, XV C722 A02 HB002751R0102, 3BHB002751R0002, HB002751R0002

Technical Specifications

Parameter Specification
Manufacturer ABB
Product ID 3BHB002751R0102
ABB Type Designation SVA 3k3V, XV C722 A02
Product Name / Description VOLTAGE MEAS.SCALING CARD
Product Net Weight 0.21 kg
Country of Origin Switzerland (CH)
Customs Tariff Number 85049099
Stocked Warehouses FIPSEEXPU, US Drive Services, SGRDC002EXPU, CNIAB001EXPU, SGIND002EXPU, AUABB024EXPU

Installation Guidelines

  • Megastar W Upgrade Note: The subprint 3BHB002751R0102 (along with subprint 3BHB002953R0107 and ADCVI board 3BHE021889R0101) cannot be used in Megastar W upgrades without modification.
  • Modification for Megastar upgrades must be performed at the ABB Turgi Switzerland electronics laboratory. Contact MV Drives Supportline/CHIND/ABB prior to ordering for Megastar upgrade applications to ensure supply of the correct modified board.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What is the ABB 3BHB002751R0102 used for?
The ABB 3BHB002751R0102 is a voltage measurement scaling card (SVA 3k3V, XV C722 A02) used as a spare part in ABB ACS1000 medium voltage AC drives.
Which drive systems are compatible with the 3BHB002751R0102 module?
The module is designed for use as a spare part in ABB ACS1000 drives.
Can the ABB 3BHB002751R0102 be used in a Megastar W upgrade?
No. The 3BHB002751R0102 subprint cannot be used in Megastar W upgrades without modification performed at the ABB Turgi Switzerland laboratory.
What old part numbers are replaced by ABB 3BHB002751R0102?
The 3BHB002751R0102 replaces old product IDs HB002751R0102, 3BHB002751R0002, and HB002751R0002.
Reviews
