ABB 3BHE022333R0101 GV C713 A101 5SHX 0660F0002 5SXE 05-0158 IGCT Module

SKU 3BHE022333R0101 5SHX 0660F0002

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 3BHE022333R0101 5SHX 0660F0002
  • Origin Thailand
  • Product Type: IGCT Module
  • Barcode: 85049099
  • Payment: T/T, Western Union
  • Weight: 1.4 kg
  • Dimensions: 240 mm x 190 mm x 60 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Igct Modules

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB 3BHE022333R0101 GV C713 A101 5SHX 0660F0002 5SXE 05-0158 IGCT Module

Download Open in new tab
Quantità
Call sales Contact

Product Description

Description

The ABB 3BHE022333R0101 GV C713 A101 5SHX 0660F0002 is a complete, integrated IGCT Module assembly engineered for high-power electronic conversion systems. By combining the 3BHE022333R0101 GV C713 A101 gate driver board (0.5 kg) with the 5SHX 0660F0002 (3BHB018104R0001) 51mm reverse-conducting IGCT semiconductor (0.9 kg), this module provides an optimized, low-inductance power switching solution with a combined total net weight of 1.4 kg. The 3BHE022333R0101 GV C713 A101 5SHX 0660F0002 IGCT module ensures fast gate turn-off switching and high-current pulse control across medium-voltage drives, excitation panels, and energy conversion systems.

Features

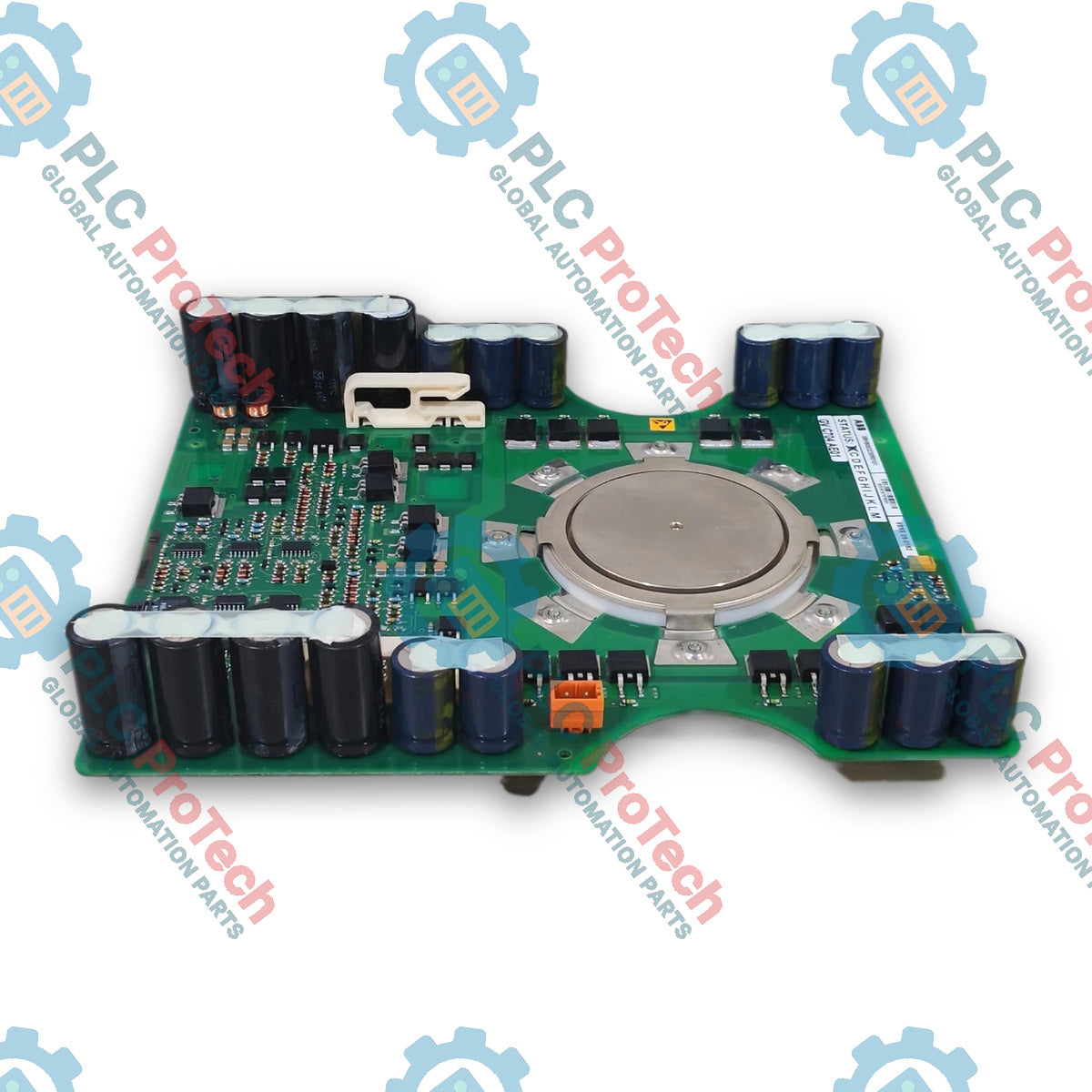

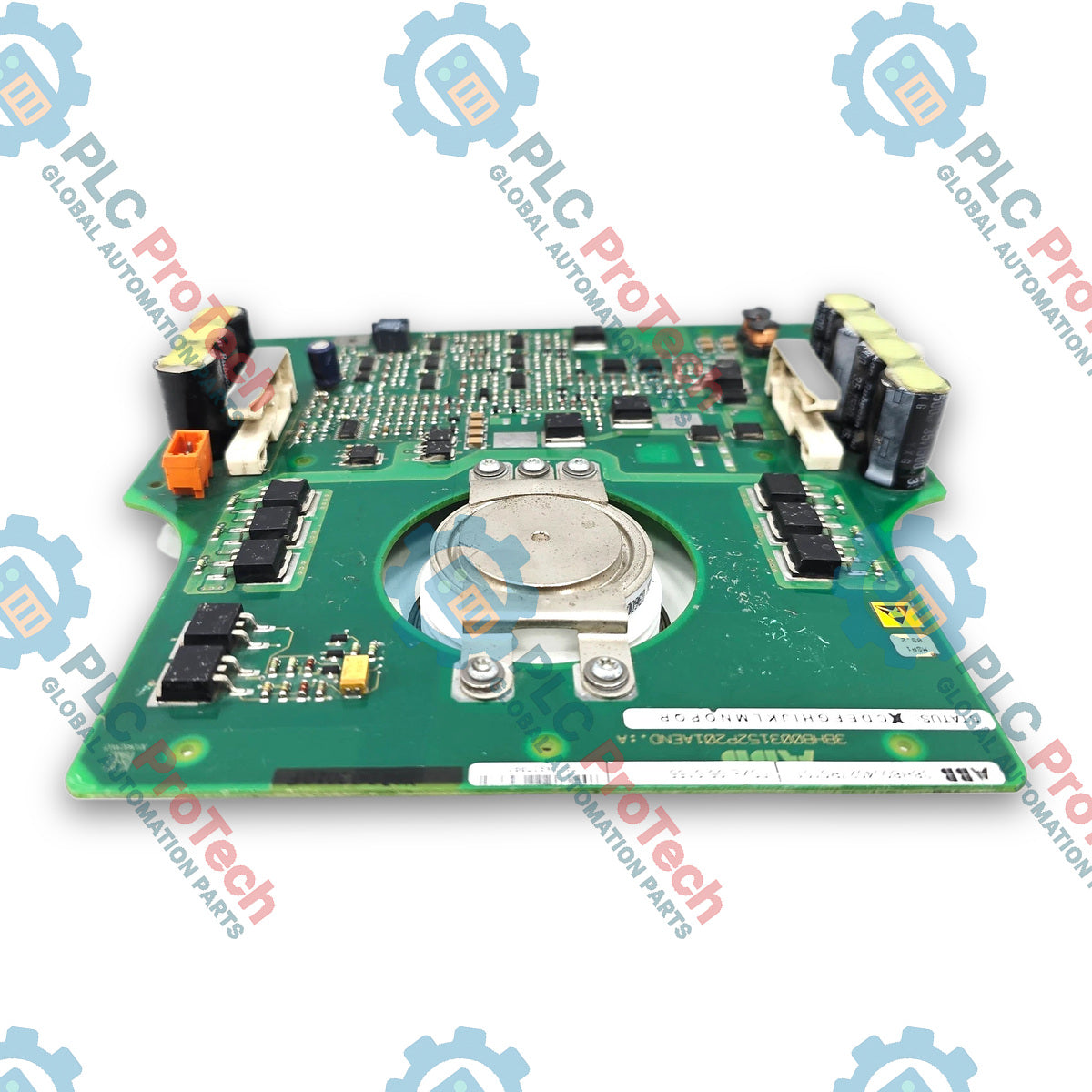

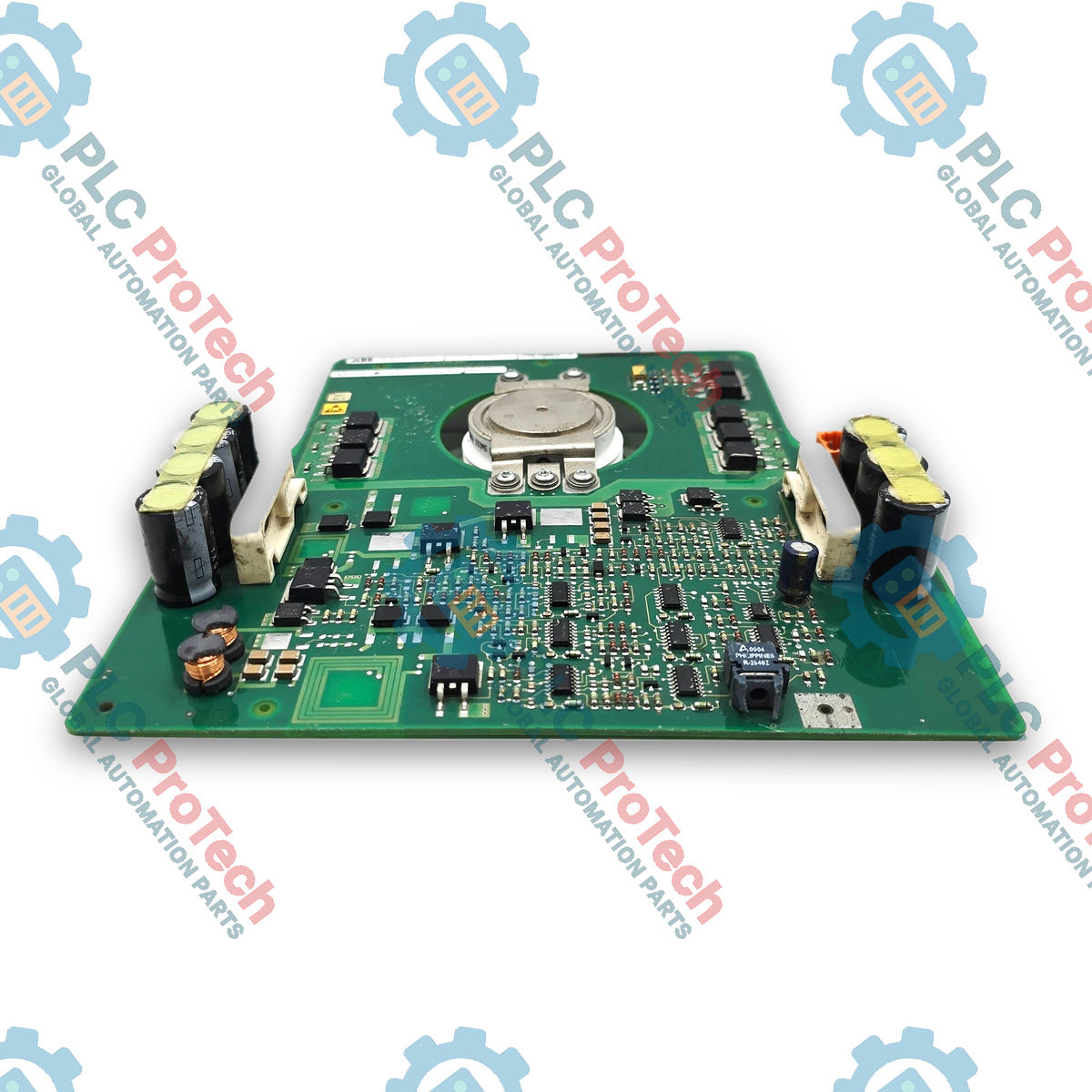

  • Fully integrated IGCT power module combining gate drive electronics with a 51mm RC-IGCT semiconductor.
  • Engineered for extremely low gate-circuit inductance to achieve rapid switching turn-off performance.
  • Direct board-to-semiconductor integration for optimal pulse current distribution.
  • Heavy-duty mechanical construction designed for medium-voltage power conversion environments.

Applications

  • Medium-voltage industrial frequency converters and AC drives.
  • Static VAR compensators (SVC) and flexible AC transmission systems (FACTS).
  • High-power excitation systems for generators and synchronous machines.
  • Grid-tied power converters and renewable energy inverters.

Technical Specifications

Parameter Value
Manufacturer ABB
Gate Unit Product ID 3BHE022333R0101
Gate Unit Type Designation GV C713 A101
Gate Unit Catalog Name Gate Unit 51mm
IGCT Semiconductor Part Number 3BHB018104R0001 / 5SHX 0660F0002
IGCT Technology 51mm Reverse-Conducting IGCT (RC-IGCT)
Country of Origin Thailand (TH)
Customs Tariff Number 85049099 / 85413000
Gate Unit Weight 0.5 kg
Combined Module Net Weight 1.4 kg
Part Type New
Minimum Order Quantity 1 piece

Installation Guidelines

  • Isolate all high-voltage DC link circuits and auxiliary control power before installing or servicing the module.
  • Observe strict electrostatic discharge (ESD) handling procedures when touching driver board components or semiconductor gate connections.
  • Ensure proper surface cleanliness and torque compliance during stack clamping to achieve optimal electrical and thermal contact.
  • Maintain clear ventilation paths around the driver circuit to prevent thermal buildup during continuous high-power operation.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What components form this complete assembly?
The assembly integrates the 3BHE022333R0101 GV C713 A101 gate unit board directly with the 5SHX 0660F0002 51mm RC-IGCT power semiconductor.
Why are the driver board and semiconductor combined into an IGCT module?
Integrating the gate unit directly onto the semiconductor minimizes gate circuit inductance, allowing extremely fast gate commutation and turn-off.
What is the total combined weight of the complete module?
The combined module has a total net weight of approximately 1.4 kg, combining the gate unit (0.5 kg) and the IGCT semiconductor (0.9 kg).
