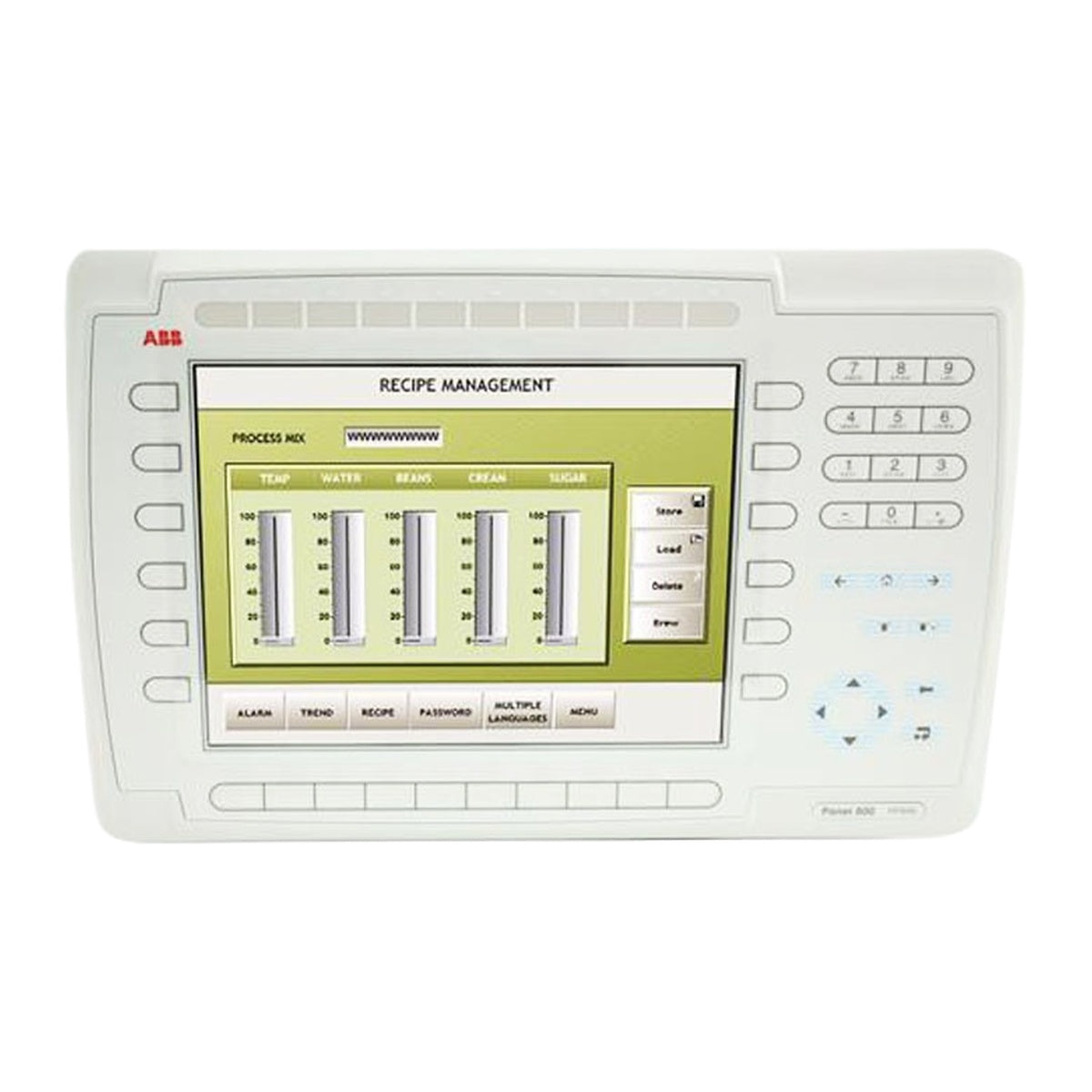

ABB 3BSE042238R1 PP846A Panel 800 Operator Panel

SKU 3BSE042238R1 PP846A

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: 3BSE042238R1 PP846A
  • Origin Sweden
  • Product Type: Operator Panel
  • Payment: T/T, Western Union
  • Weight: 2.0 kg
  • Dimensions: 60 mm x 310 mm x 230 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

HMI HMI Operator Panels Panel 800

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Technical Datasheet

ABB 3BSE042238R1 PP846A Panel 800 Operator Panel

Download Open in new tab
Quantità
Call sales Contact

Product Description

The ABB 3BSE042238R1 (PP846) is a dedicated HMI operator panel designed for industrial monitoring and automation control applications. Utilizing graphic and text display capabilities, this operator interface panel communicates with control systems to present real-time process data to system operators. The unit is equipped with updated CPU and power supply board assemblies.

Features

  • Display: 10.4-inch TFT color display with $800 \times 640$ pixels resolution supporting graphic and text presentation.
  • Hardware Design: Built-in updated CPU board and power board infrastructure.
  • Configuration: Configured and programmed via Panel Builder 800 Version 5 software.
  • Front Protection: Compatible with the optional RX846 Key Cover to protect the front interface.

Applications

  • Process monitoring and human-machine interaction in DCS/PLC environments.
  • Industrial control and operator workplaces.

Technical Specifications

Parameter Specification
Manufacturer ABB
Product ID / Order Code 3BSE042238R1
Model Number PP846 (PP846A)
Product Type Operator Panel / HMI
Display Size 10.4 inch
Display Type TFT Color
Resolution

800 x 640 pixels
Configuration Software Panel Builder 800 version 5

Installation Guidelines

  • Panel Mounting: Mount securely into the designated enclosure cutout ensuring adequate clearance for cable routing and heat dissipation.
  • Front Protection: It is recommended to use the RX846 Key Cover to protect the front surface against environmental wear and mechanical damage.
  • Grounding: Ensure proper frame grounding during physical mounting to mitigate EMI/RFI interference.

Compliance and Certifications

  • UL Certification Note: No UL 1604 certification.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
Which software is required to configure the operator panel?
Configuration requires Panel Builder 800 version 5 software.
What protection option is recommended for the front panel?
It is recommended to use the RX846 Key Cover to protect the front interface.
What are the display specifications of the device?
The device features a 10.4-inch TFT color display with a resolution of 800x640 pixels.
