ABB

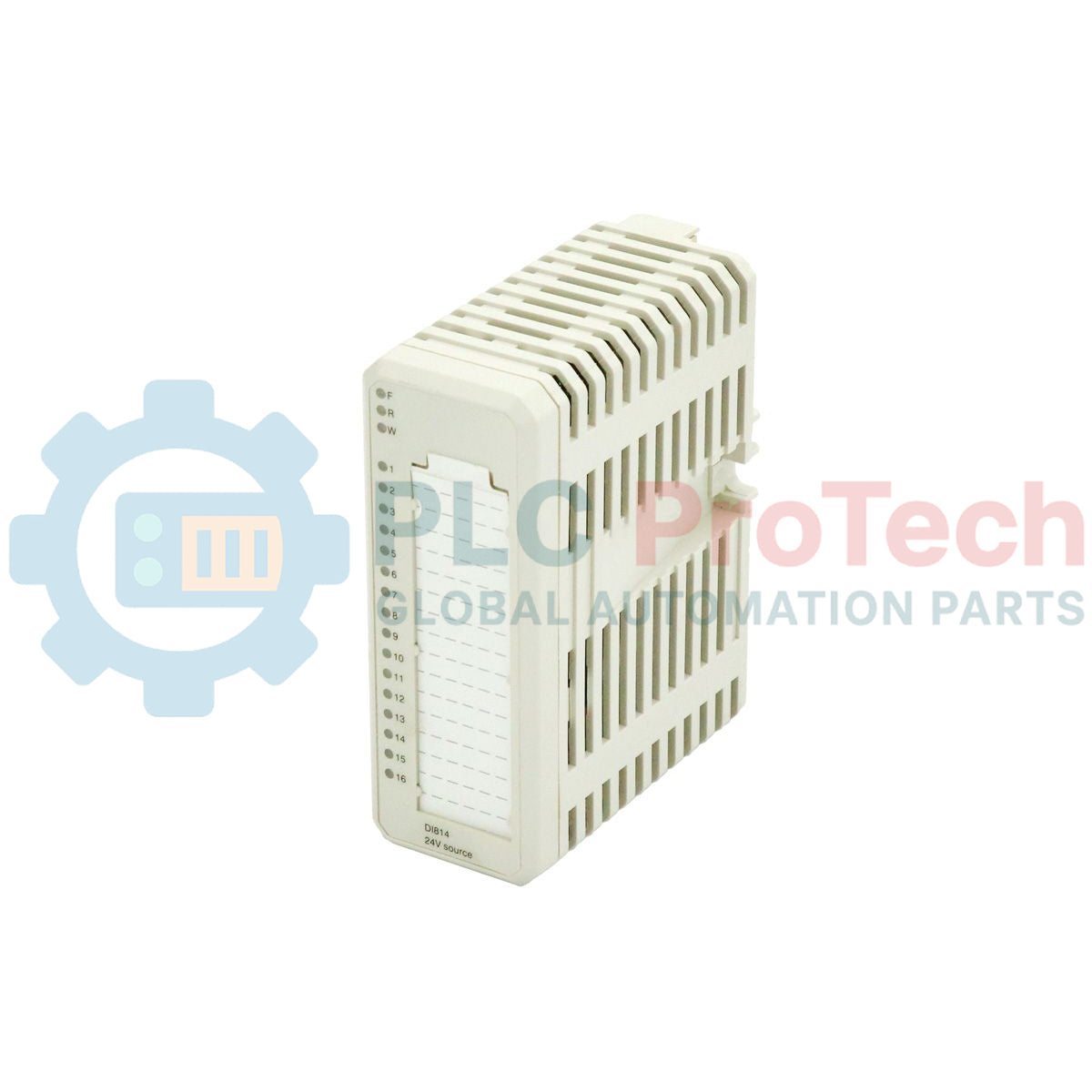

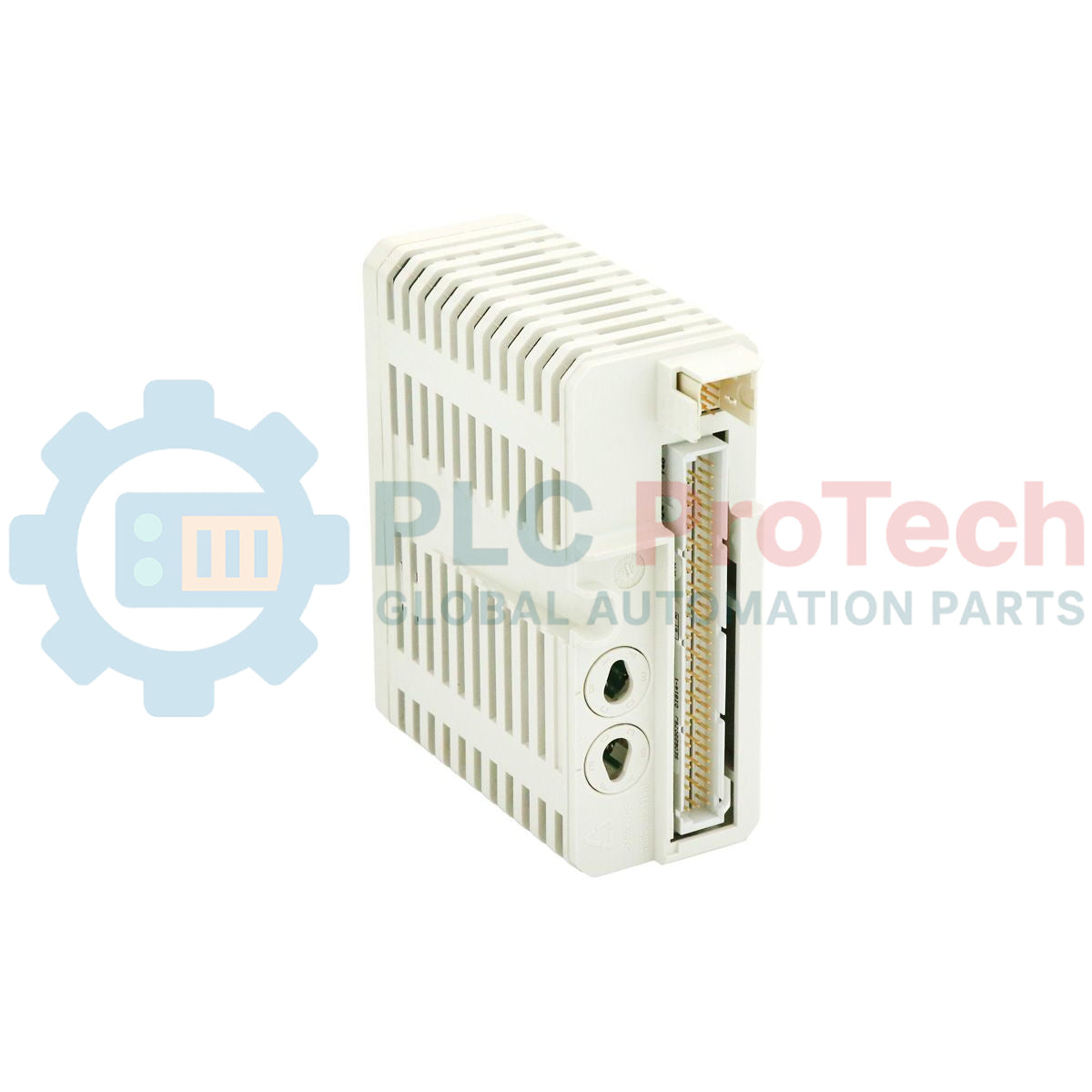

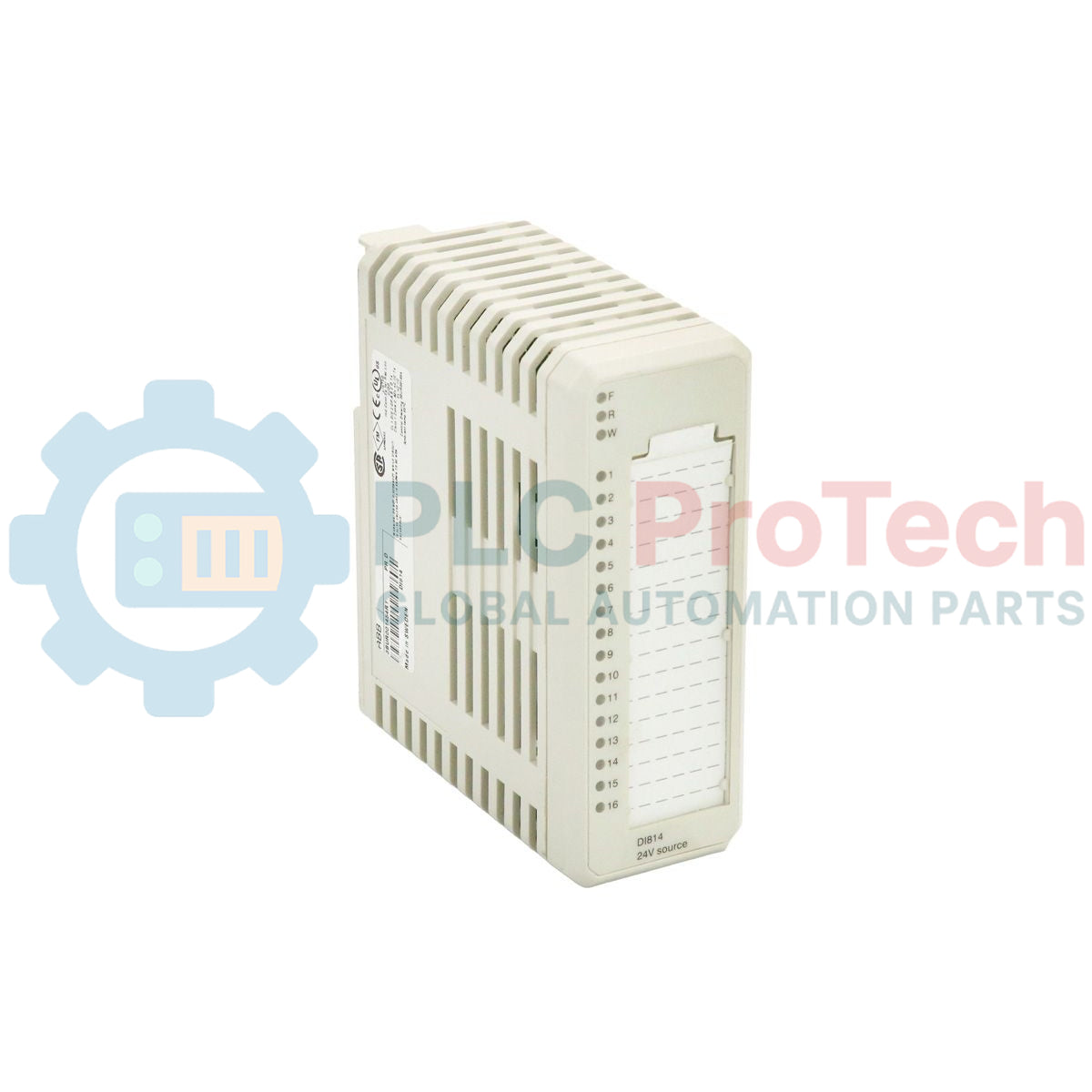

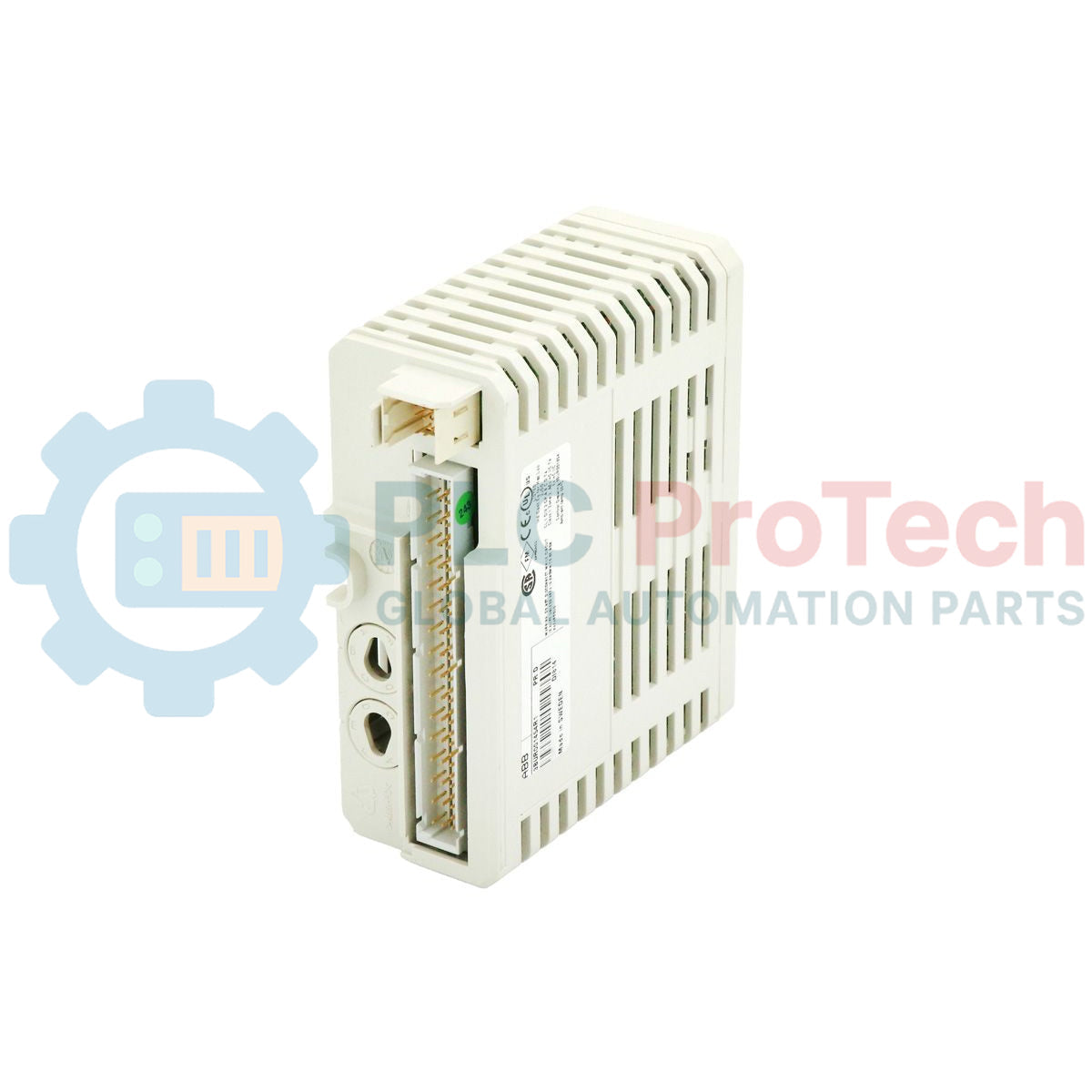

ABB 3BUR001454R1 DI814 S800 I/O Digital Input Module

SKU 3BUR001454R1 DI814

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: 3BUR001454R1 DI814
Origin Sweden
Product Type: Digital Input Module
Barcode: 85371091
Payment: T/T, Western Union
Weight: 0.15 kg
Dimensions: 45 mm x 119 mm x 102 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The ABB 3BUR001454R1 DI814 is a digital input module designed for process signal monitoring within the S800 I/O system. The 3BUR001454R1 DI814 provides 16 channels for 24 V d.c. current sourcing digital inputs divided into two individually isolated groups of eight channels each. The unit communicates process data via the ModuleBus interface and incorporates optical isolation barriers, current limiting components, EMC protection, and process voltage supervision.

Features

16 channels for 24 V d.c. inputs with current sourcing
2 isolated groups of 8 channels with voltage supervision per group
Optical isolation barrier and EMC protection components on every input channel
Selectable digital filter times of 2, 4, 8, or 16 ms

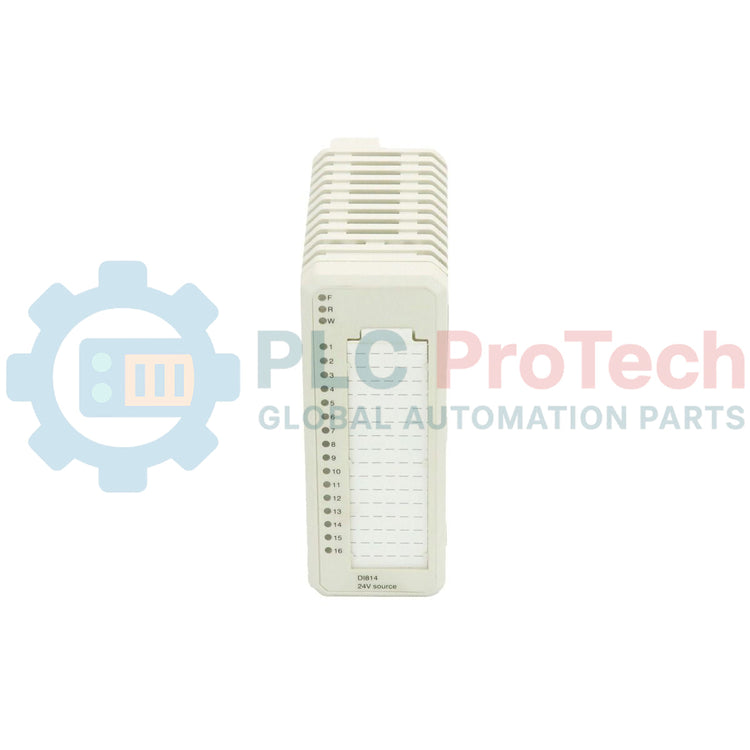

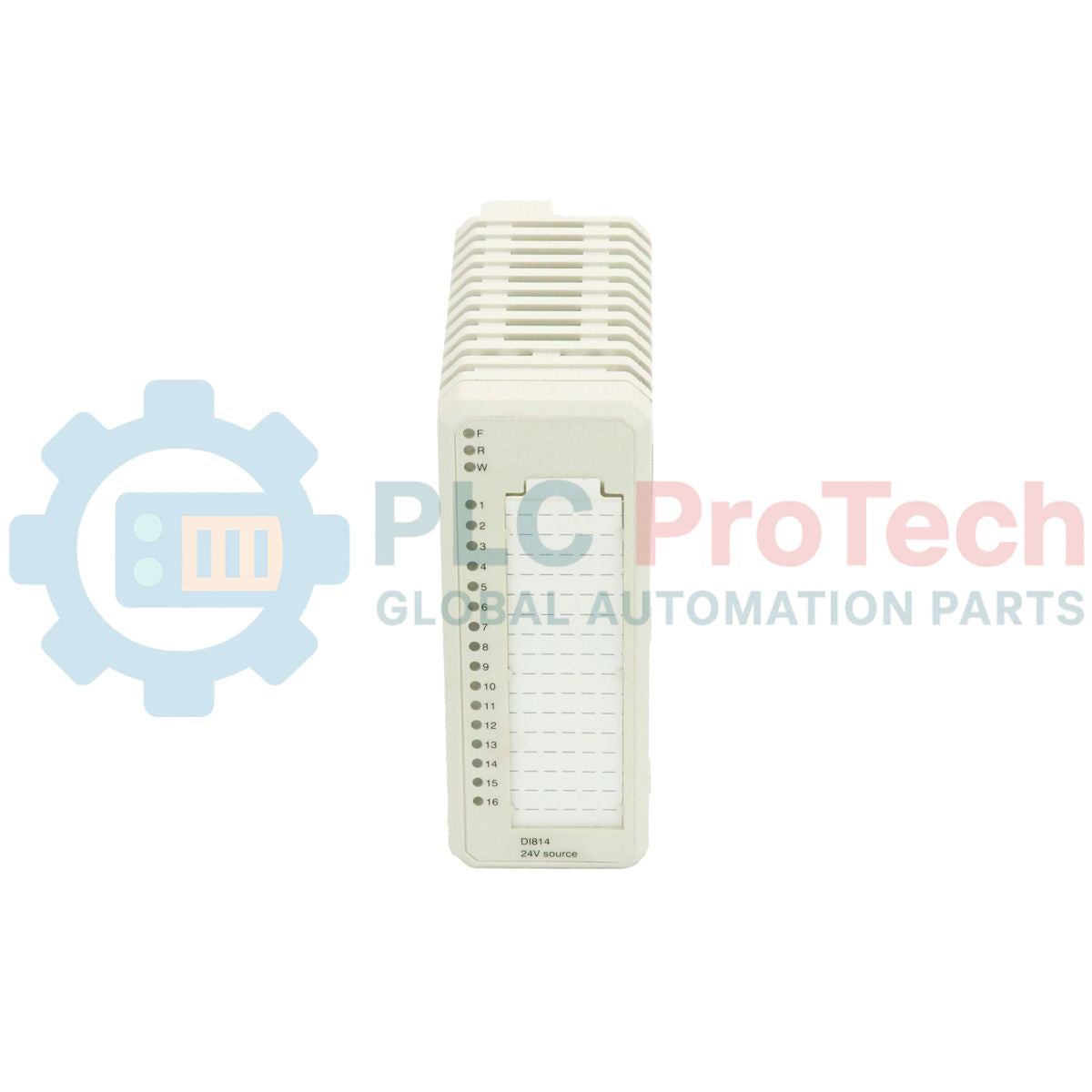

Front panel LED indicators for Fault, Run, Warning, and individual channel status ("0" or "1")
Process voltage supervision generating channel error signals over the ModuleBus

Applications

Industrial process control and automation systems
Distributed control systems (DCS) utilizing S800 I/O hardware
Marine and offshore automation applications

Technical Specifications

Category	Parameter	Specification
General Information	Article Number / Product ID	3BUR001454R1
General Information	Type / Model	DI814
General Information	Signal Type	Digital Input (Current sourcing)
General Information	Number of Channels	16
General Information	Module Series	S800
Electrical	Signal Specification	24 V d.c.
Electrical	Input Voltage Range, "0"	-30..5 V
Electrical	Input Voltage Range, "1"	15..30 V
Electrical	Input Impedance	3.5 kOhm
Electrical	Rated Insulation Voltage	50 V
Electrical	Dielectric Test Voltage	500 V a.c.
Power Requirements	Power Dissipation	Typ. 1.8 W
Power Requirements	Current Consumption (+5 V ModuleBus)	50 mA
Power Requirements	Current Consumption (+24 V ModuleBus)	0
Power Requirements	Current Consumption (+24 V external)	0
Performance	Digital Filter Times (Selectable)	2, 4, 8, 16 ms
Performance	Maximum Field Cable Length	600 meters (656 yards)
Mechanical	Dimensions (W x H x D)	45 mm x 119 mm x 102 mm (1.77" x 4.7" x 4.01"), 111 mm (4.37") including connector
Mechanical	Weight	0.15 kg (0.33 lbs.)
Compatibility	Use with MTU	TU810, TU812, TU814, TU830, TU838
Compatibility	Keying Code	BE
Environmental	Operating Temperature	0 to +55 degC (+32 to +131 degF), approvals issued for +5 to +55 degC
Environmental	Storage Temperature	-40 to +70 degC (-40 to +158 degF)
Environmental	Relative Humidity	5 to 95%, non-condensing
Environmental	Max Ambient Temperature	55 degC (131 degF), for vertical mounting in compact MTU 40 degC (104 degF)
Environmental	Protection Class	IP20 according to IEC 60529
Environmental	Pollution Degree	Degree 2, IEC 60664-1
Environmental	Corrosion Protection	ISA-S71.04: G3
Diagnostics	Front LEDs	F(ault), R(un), W(arning), Channel 1-16 ("0" or "1")
Diagnostics	Supervision	Process voltage, 1 per group
Diagnostics	Status Indication of Supervision	Module Error, Module Warning, Channel error

Connections/Interfaces

Connection Parameter	Description / Assignment
Isolation Structure	Groupwise isolated from ground, 2 groups with 8 channels
Module Termination Units (MTU)	Compatible with TU810, TU812, TU814, TU830, and TU838
Keying Assignment	Mechanical keying code BE

Installation Guidelines

Mount the module onto a compatible Module Termination Unit (MTU) such as TU810, TU812, TU814, TU830, or TU838.
Ensure the mechanical keying code BE is set correctly on the MTU prior to module insertion.
Limit maximum field cabling distance to 600 meters (656 yards).
Respect the maximum ambient operating temperature of 40 degC when vertically mounted in a compact MTU, or 55 degC for standard mounting configurations.

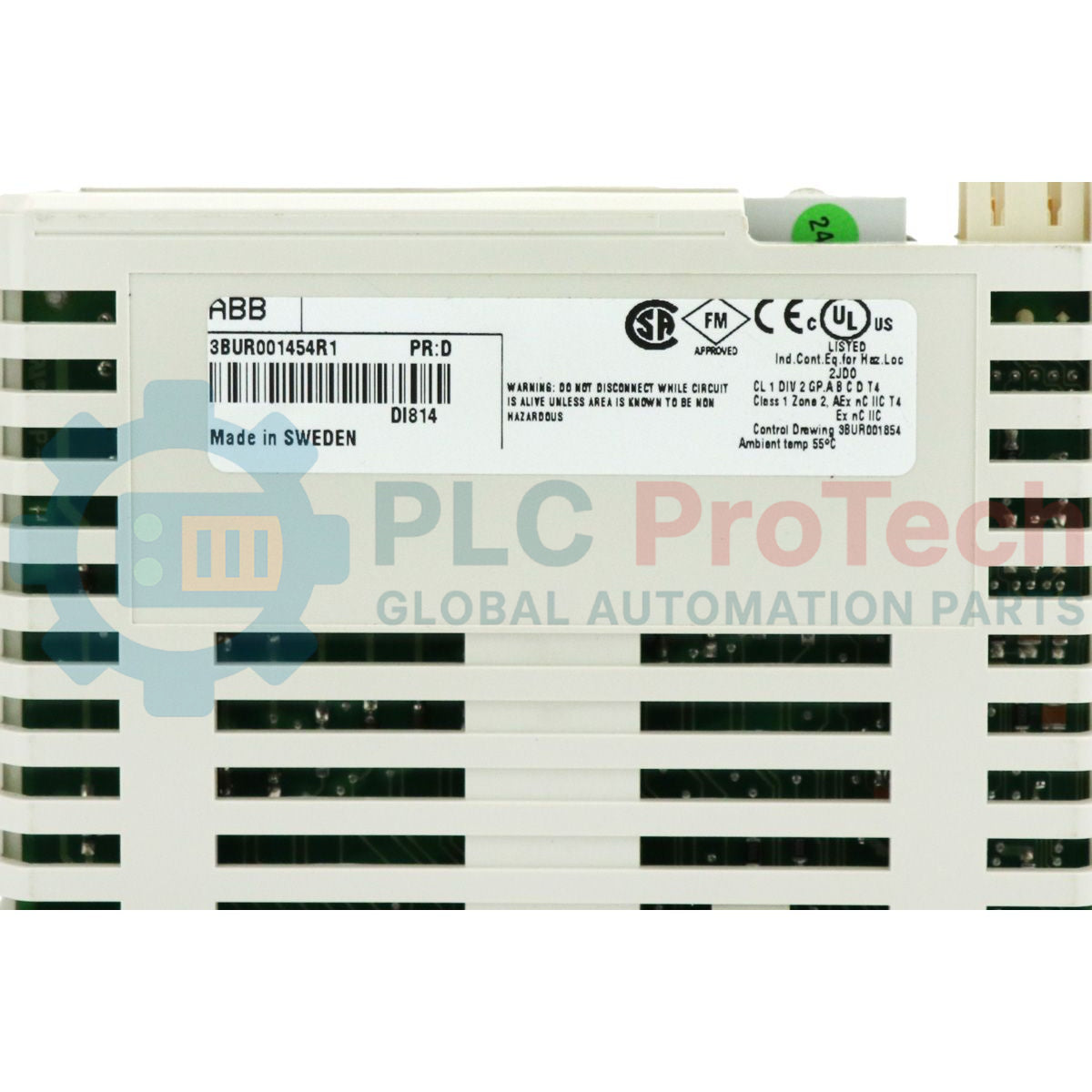

Compliance and Certifications

CE mark
Electrical Safety: EN 61010-1, UL 61010-1, EN 61010-2-201, UL 61010-2-201
Hazardous Location: C1 Div 2 cULus, C1 Zone 2 cULus, ATEX Zone 2
Marine Certification: ABS, BV, DNV, LR
EMC: EN 61000-6-4 and EN 61000-6-2
Overvoltage Categories: IEC/EN 60664-1, EN 50178
Equipment Class: Class I according to IEC 61140 (earth protected)
Mechanical Operating Conditions: IEC/EN 61131-2
Environmental Compliance: EU RoHS, UAE RoHS, CN RoHS, WEEE DIRECTIVE/2012/19/EU

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

Which module termination units are compatible with the module?

The module mounts directly on TU810, TU812, TU814, TU830, and TU838 module termination units.

What is the maximum field cable length allowed for the channel inputs?

The maximum field cable length for the input channels is 600 meters.

How are the 16 digital input channels configured for electrical isolation?

The 16 channels are divided into two individually isolated groups of eight channels each.
