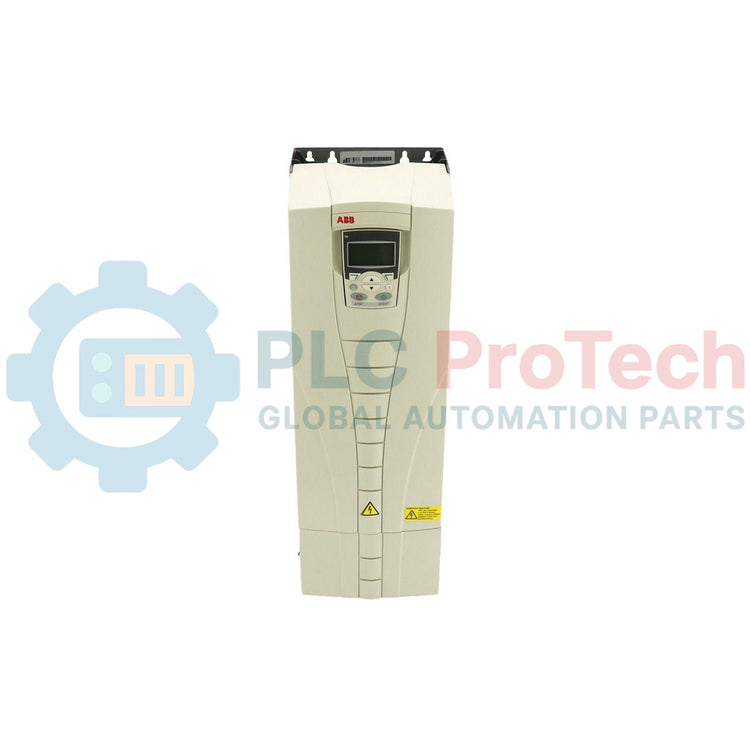

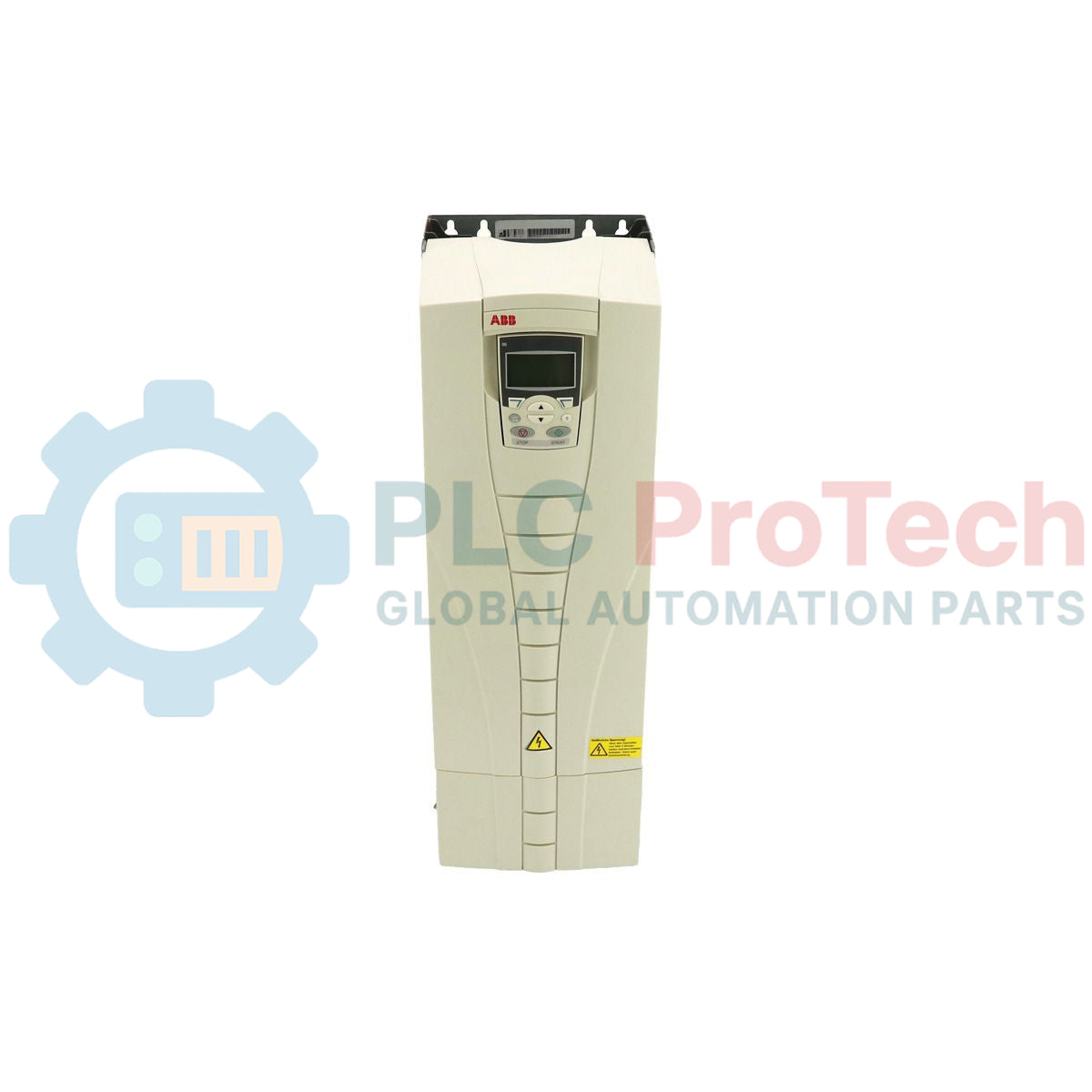

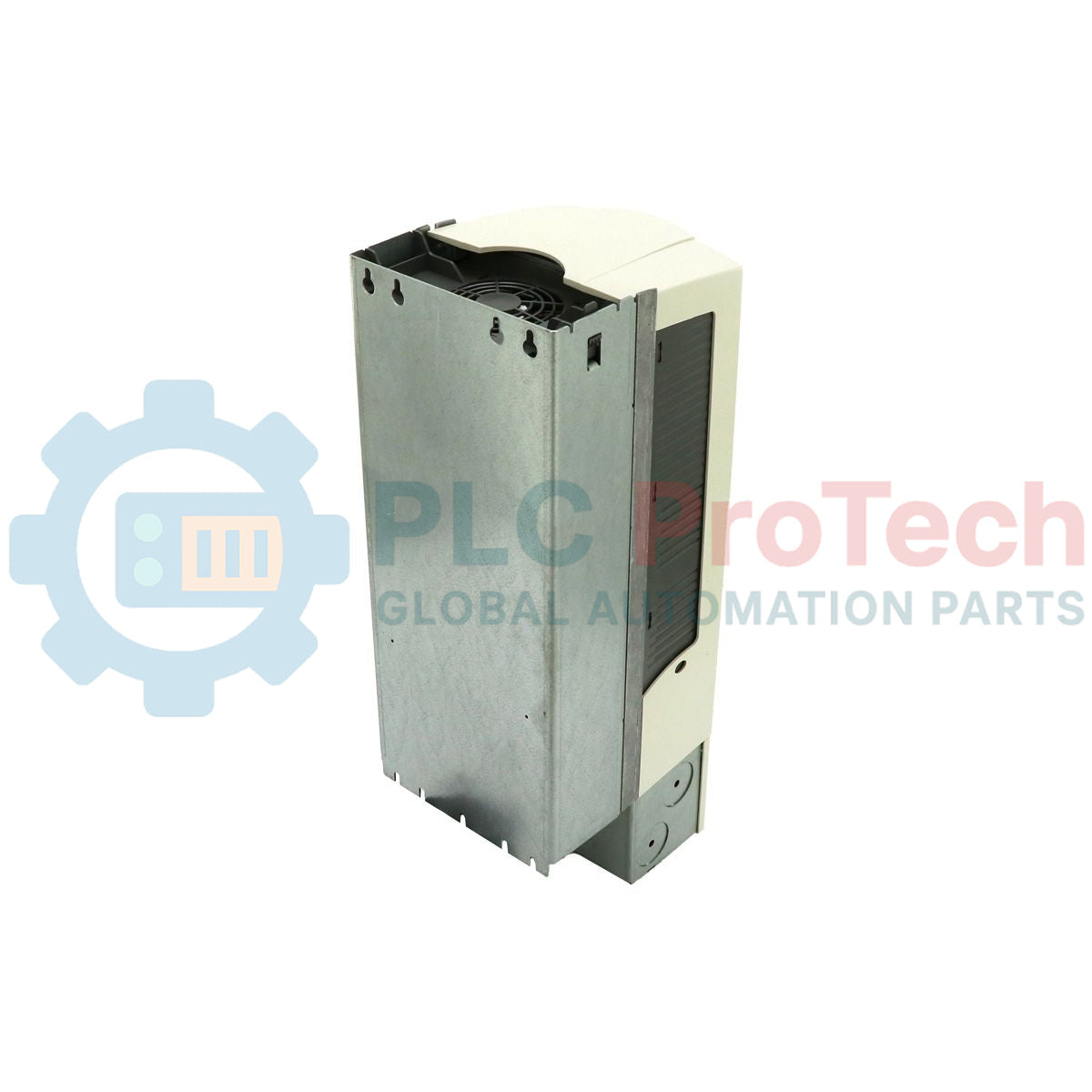

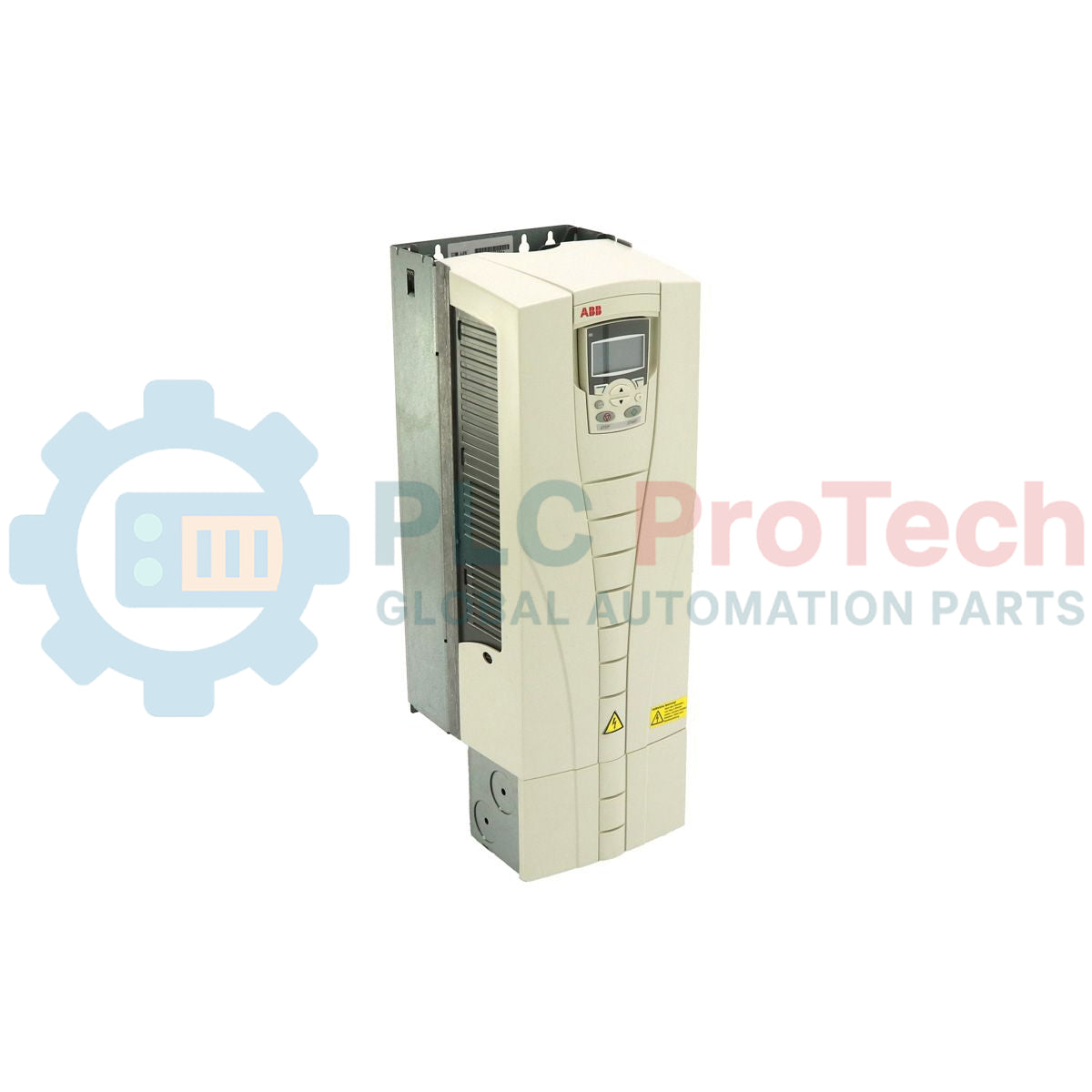

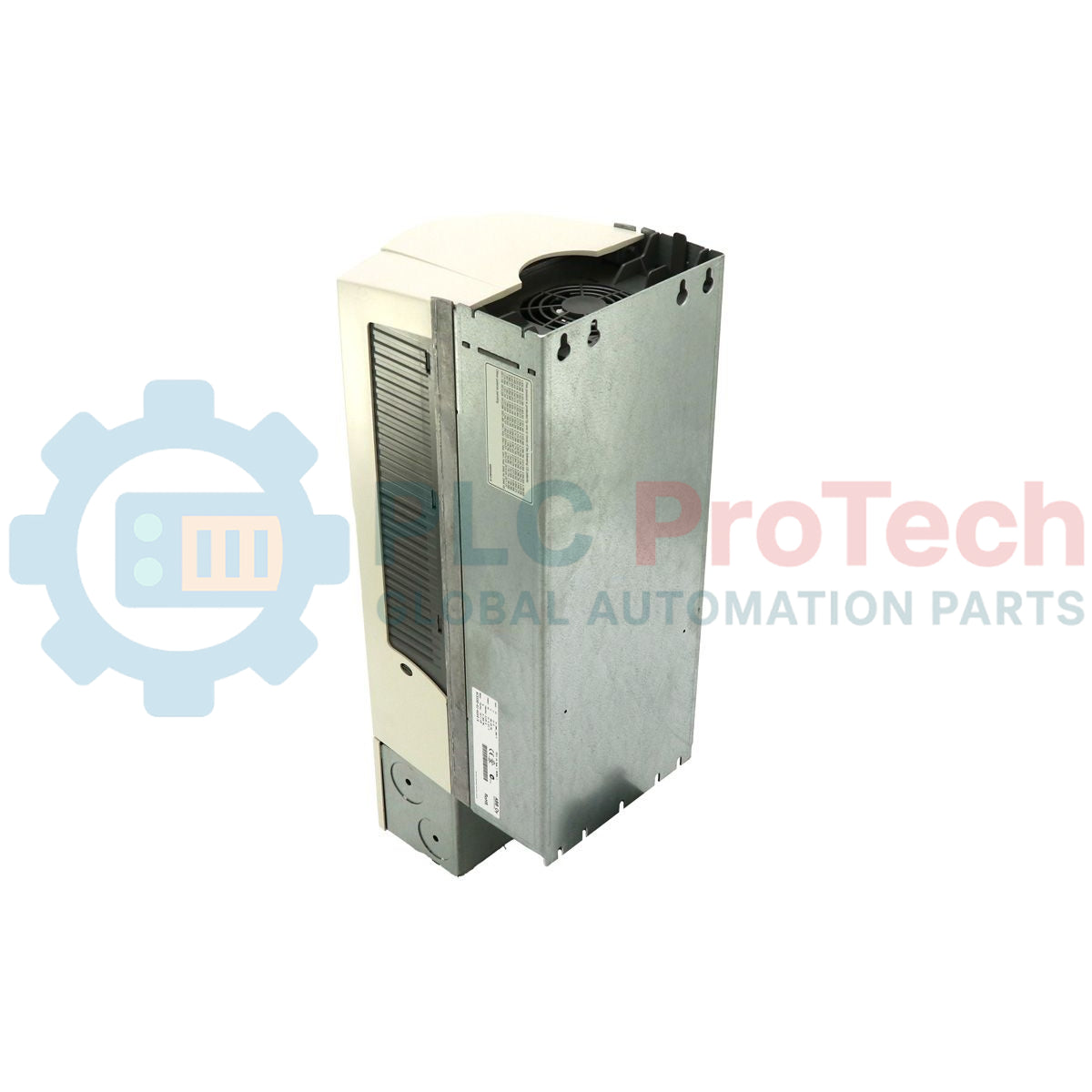

The ABB ACS550-01-059A-4 is a proven general-purpose AC drive engineered for reliable motor control in industrial environments.
Designed for pumps, fans, conveyors, and compressors, this wall-mounted drive delivers 30 kW (40 HP) of power with excellent energy efficiency and ease of commissioning.
As part of ABB’s well-established ACS550 series, it combines robust hardware, intuitive operation, and built-in features that reduce installation time and lifecycle costs.
Reliable performance for variable and constant torque applications
Simplified commissioning with ABB Start-up Assistants
Reduced harmonics and improved power quality
High energy efficiency and stable process control
Ideal for both new installations and system upgrades
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Product Series | ACS550 |
| Product ID | ACS550-01-059A-4 |
| ABB Part No. | 3AUA0000002546-D |
| Drive Type | Standard AC Variable Frequency Drive |
| Rated Power (Normal Duty) | 30 kW / 40 HP |
| Rated Current (I2n) | 59 A |
| Input Voltage | 3-phase, 380…480 V AC |
| Control Methods | Scalar (V/Hz), Vector Control |
| Output Frequency Range | 0…500 Hz |
| Frame Size | R4 |
| Enclosure Class | IP21 (UL Type 1) |
| Harmonic Reduction | Integrated Swinging Choke |
| EMC Filter | Built-in |
| Communication | Modbus RTU (RS-485) |
| Mounting | Wall-mounted |
| Item | Value |
|---|---|
| Width | 203 mm |
| Height | 596 mm |
| Depth | 262 mm |
| Net Weight | 18.2 kg |
| Shipping Weight | Approx. 20.0 kg |
Swinging Choke Technology: Minimizes current harmonics at partial and full loads
Assistant Control Panel: Step-by-step setup with Start-up Assistants
Built-in EMC Filter: Meets industrial EMC requirements without external components
PID Control Macros: Optimized for pump and fan applications
Energy Optimization: Reduces motor losses and operating costs
Comprehensive Diagnostics: Improves uptime and simplifies troubleshooting
Industrial pumps and fans
HVAC systems
Conveyors and material handling
Compressors
Water and wastewater treatment plants
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: ACS550-01-059A-4
Country of origin:Sweden
Product Type: Standard AC Drive
Barcode: 85044086
Payment: T/T, Western Union
Weight: 24000g
Dimensions: 70.00cm x 25.00cm x 21.00cm
Shipping port: Xiamen
Warranty: 12 months
