Product Overview

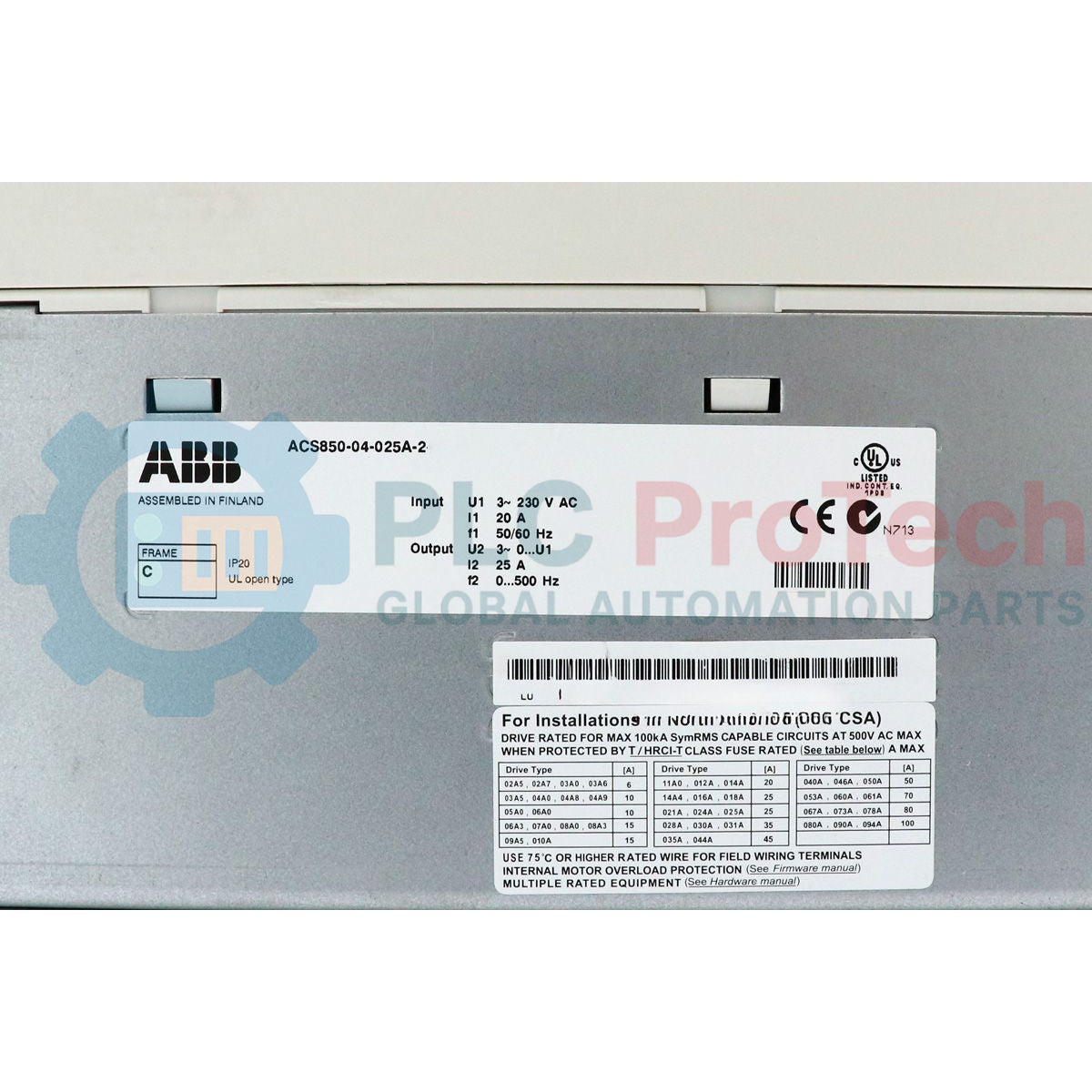

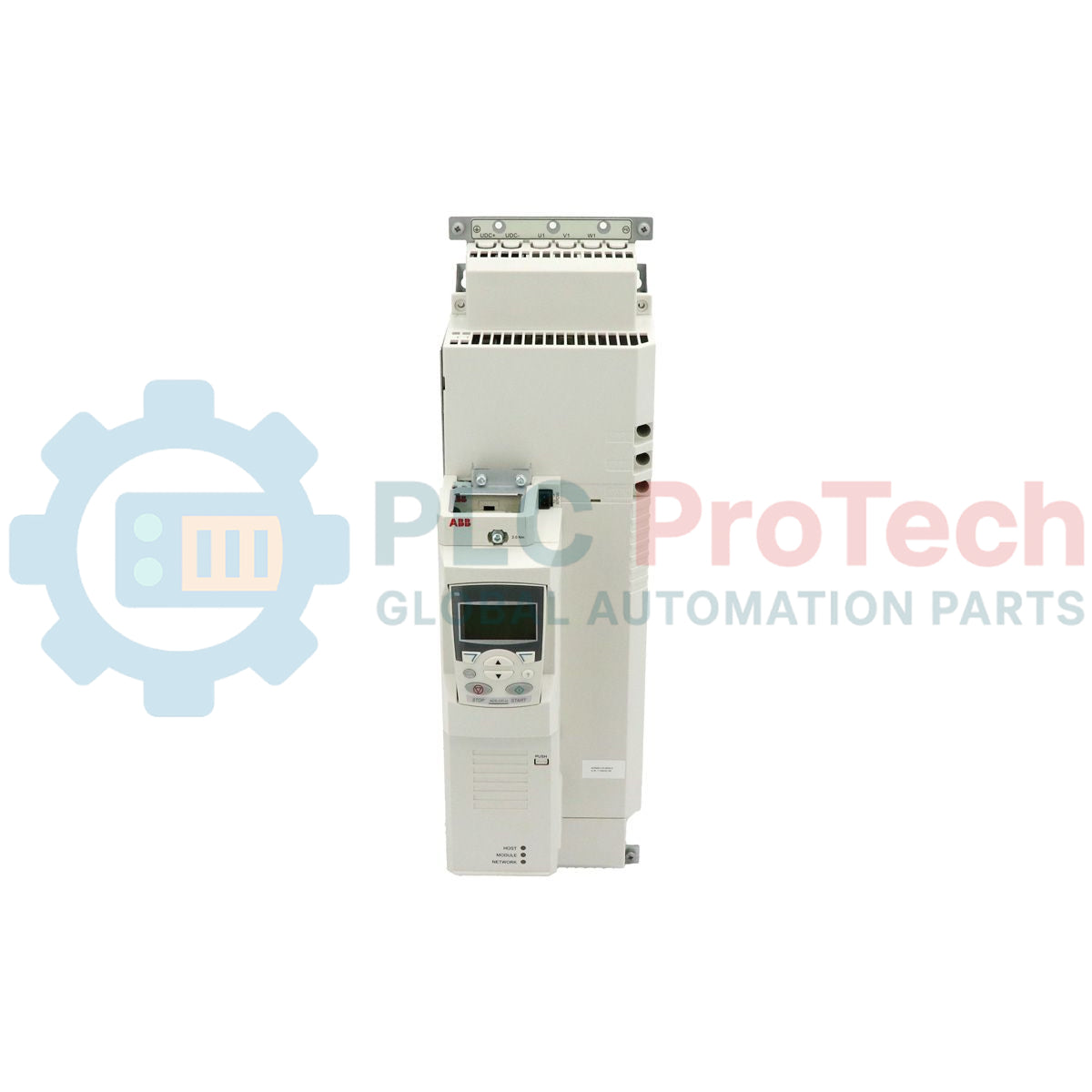

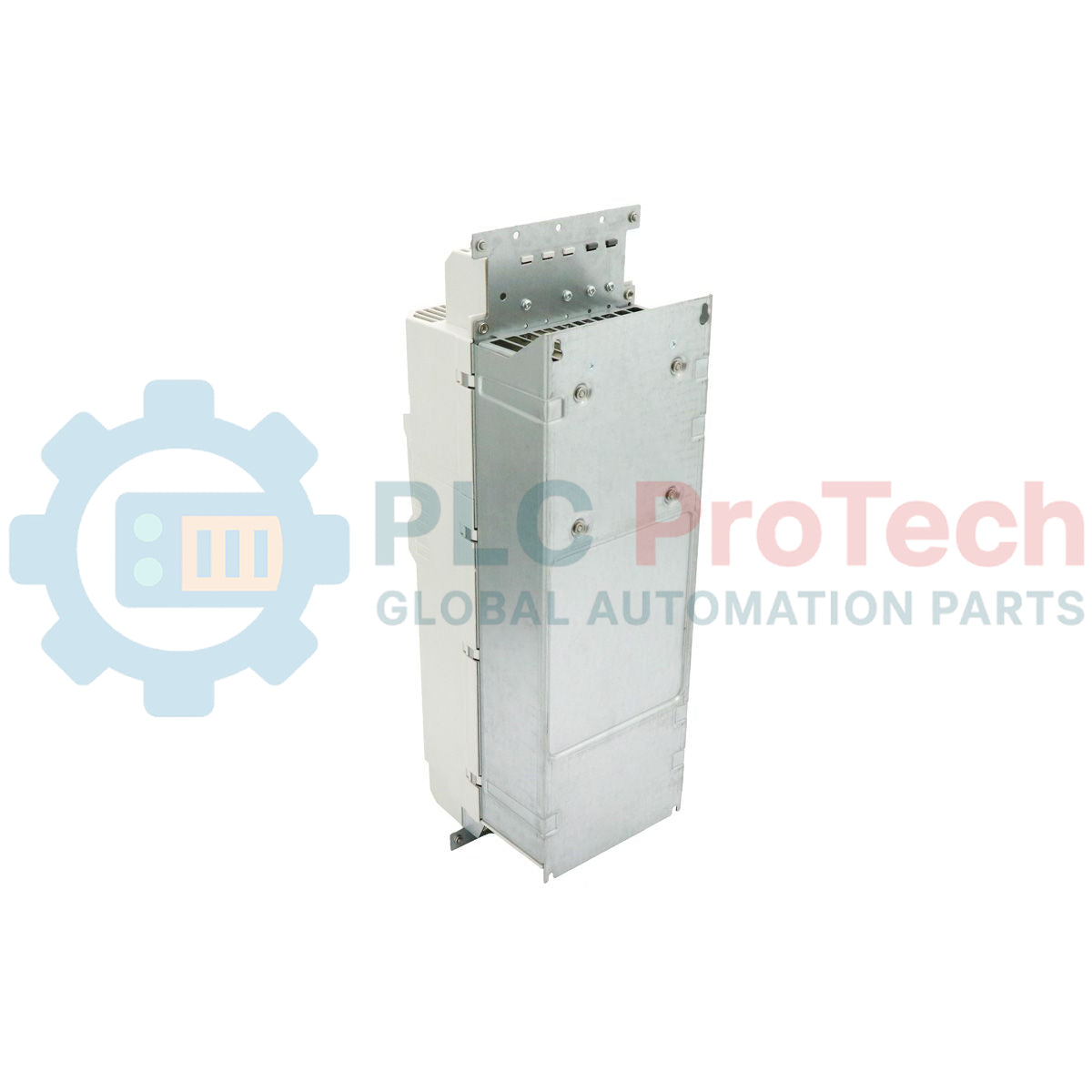

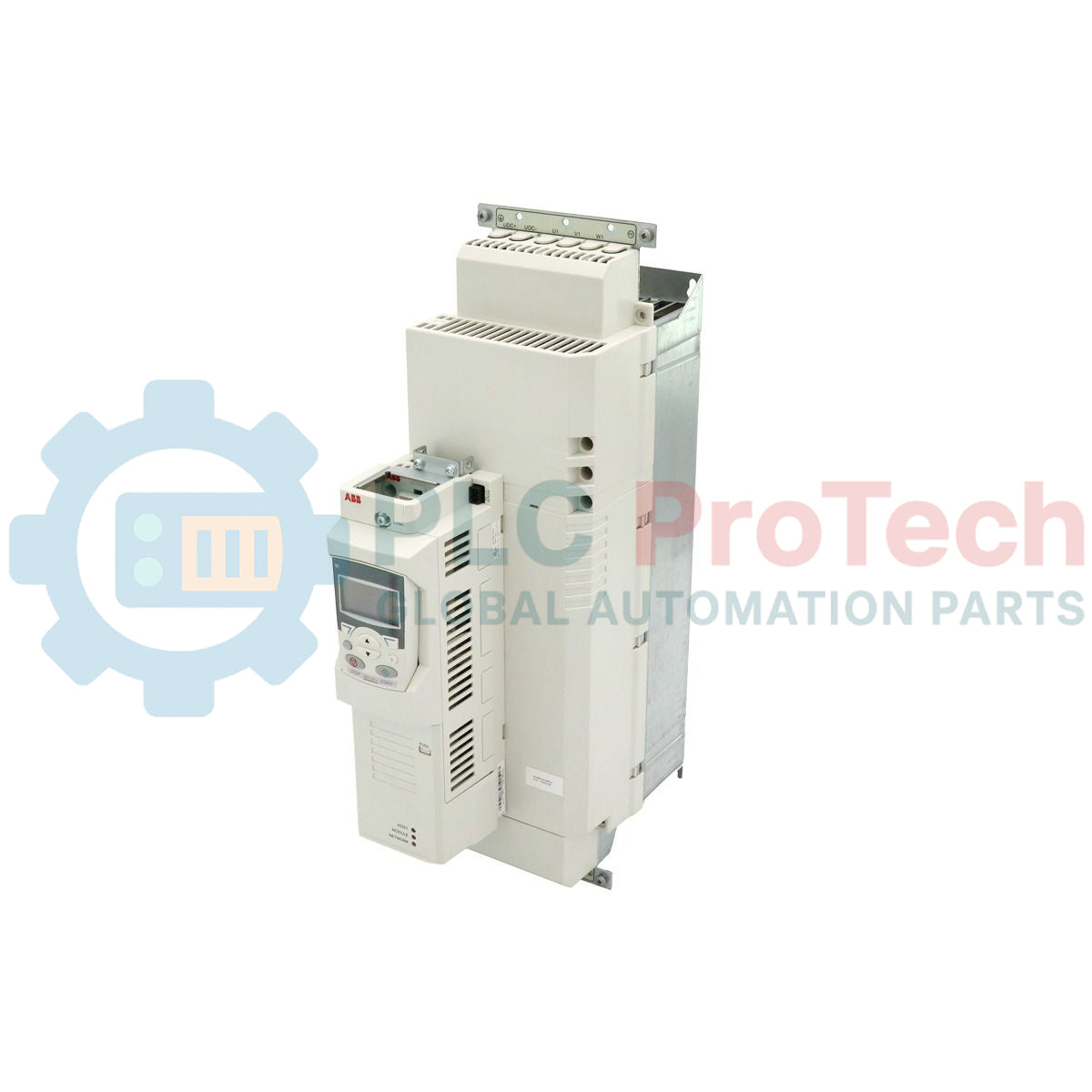

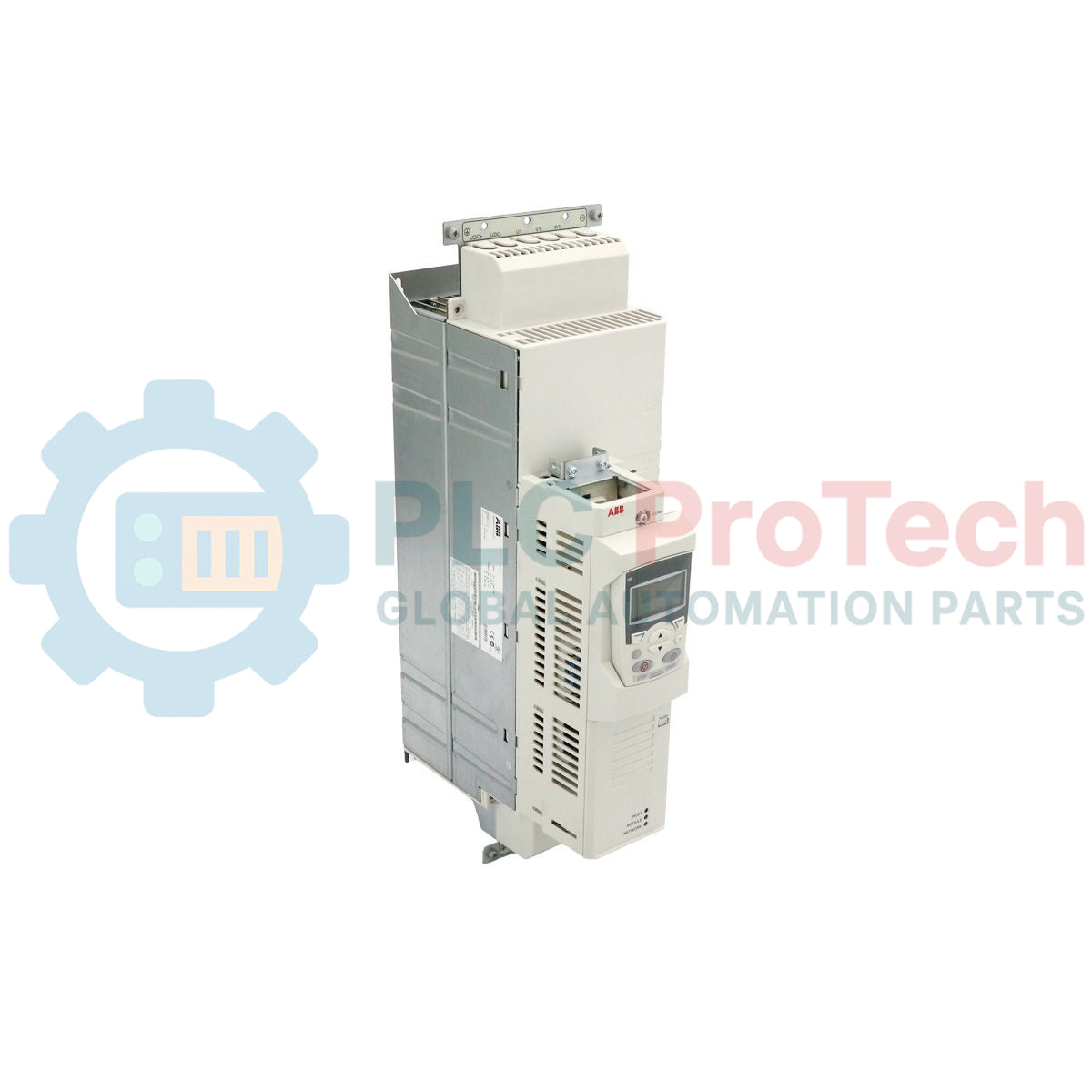

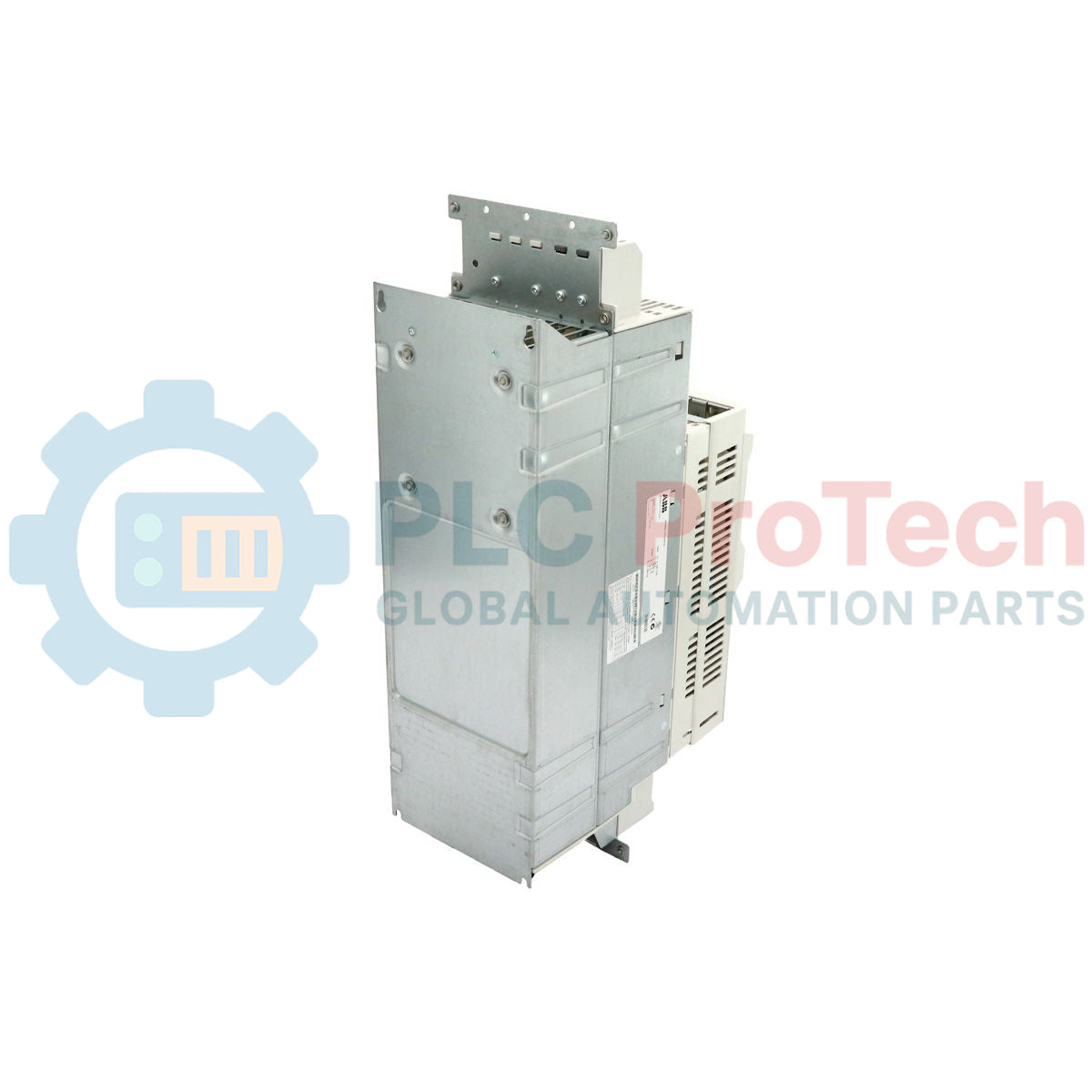

The ACS850-04-025A-2 is a high-performance machinery drive module designed to meet the rigorous demands of system integrators and machine builders. Rated at 5.5 kW with a 25 A output capacity for 230 V three-phase systems, this module excels in applications requiring precision torque and speed control, such as material handling in mining, high-speed centrifuges in chemical processing, and complex crane operations in power generation. Its compact footprint and cabinet-ready design facilitate seamless integration into modular control architectures. By leveraging advanced motor control algorithms, the ACS850-04-025A-2 significantly mitigates mechanical stress on drivetrains, effectively reducing unplanned downtime and optimizing energy consumption in heavy-industrial 24/7 cycles.

Technical Specifications

Technical FAQs

Does the ACS850-04-025A-2 support regenerative braking capabilities?

The module includes a built-in brake chopper as standard. For high-inertia applications requiring energy dissipation, you must connect an external braking resistor to the R+ and R- terminals.

Is this drive compatible with both induction and permanent magnet motors?

Yes. The ACS850 series utilizes Direct Torque Control (DTC) technology, allowing it to control standard squirrel cage induction motors, permanent magnet motors, and synchronous reluctance motors without requiring encoder feedback in most scenarios.

What should I check if the drive reports a DC Overvoltage fault?

Verify the deceleration ramp time; if the ramp is too short, the motor acts as a generator. Additionally, inspect the braking resistor circuit and ensure the supply voltage does not exceed 240 VAC + 10%.

Can this module be mounted side-by-side with other drives?

Yes, the ACS850-04 modules are designed for side-by-side cabinet installation. However, ensure that the airflow is not obstructed and that the ambient temperature inside the enclosure remains within the specified Celsius limits.

Engineering & Installation Guide

• Thermal Management & Airflow: Since this is an IP20 module intended for cabinet assembly, you must ensure a minimum of 200 mm clearance above and below the unit. The cooling fan pulls air from the bottom; failing to provide adequate cabinet ventilation will lead to thermal derating or premature component failure in high-cycle applications.

• EMC and Shielding: To prevent electromagnetic interference in sensitive PLC or DCS environments, use symmetrical shielded motor cables. The shield must be grounded 360 degrees at both the drive end (using the provided EMC clamps) and the motor terminal box to mitigate high-frequency noise.

• Input Protection: Always install high-speed semiconductor fuses rather than standard circuit breakers to protect the internal DC bus and IGBT power stage. Refer to the ABB hardware manual for specific fuse ratings corresponding to the 25 A input profile.
