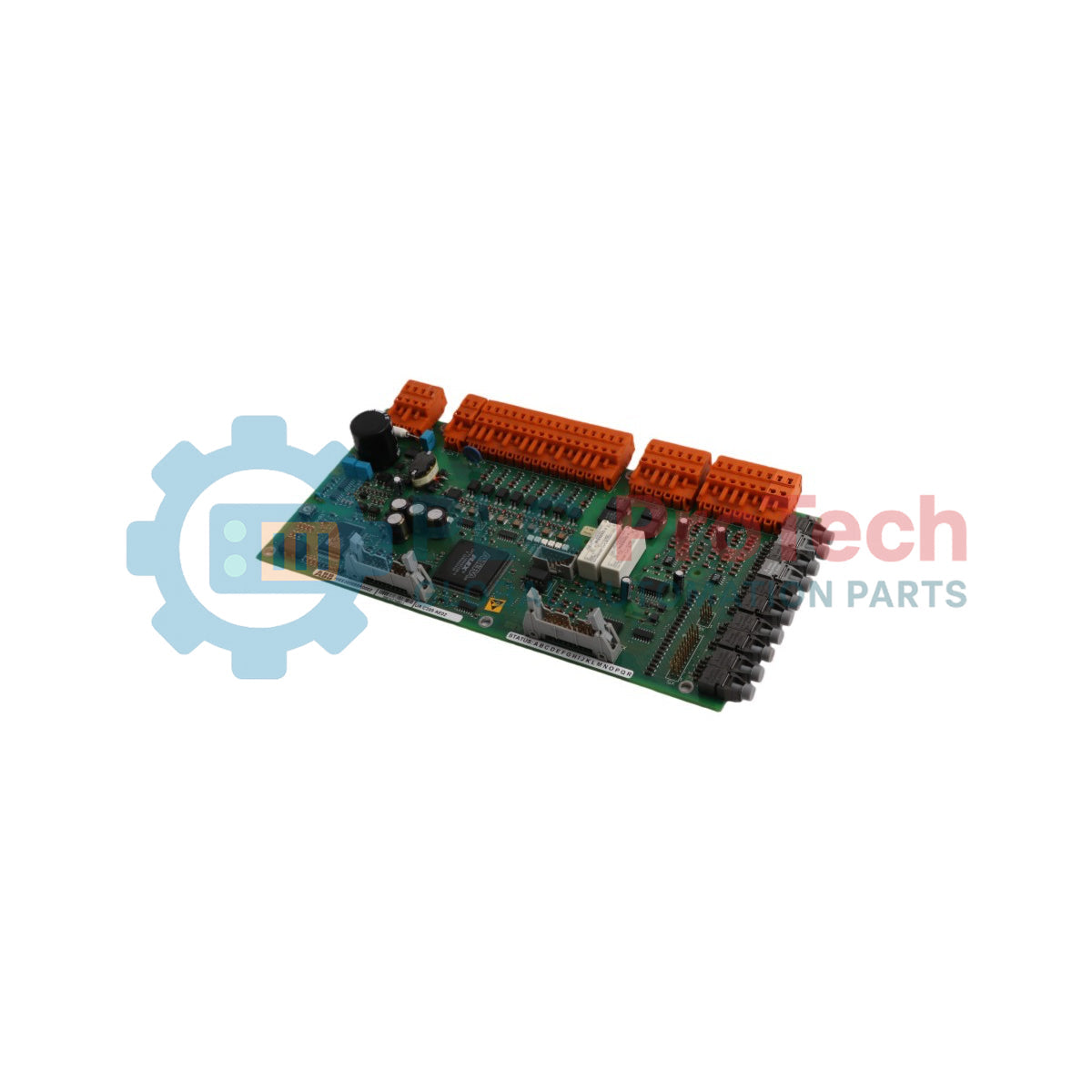

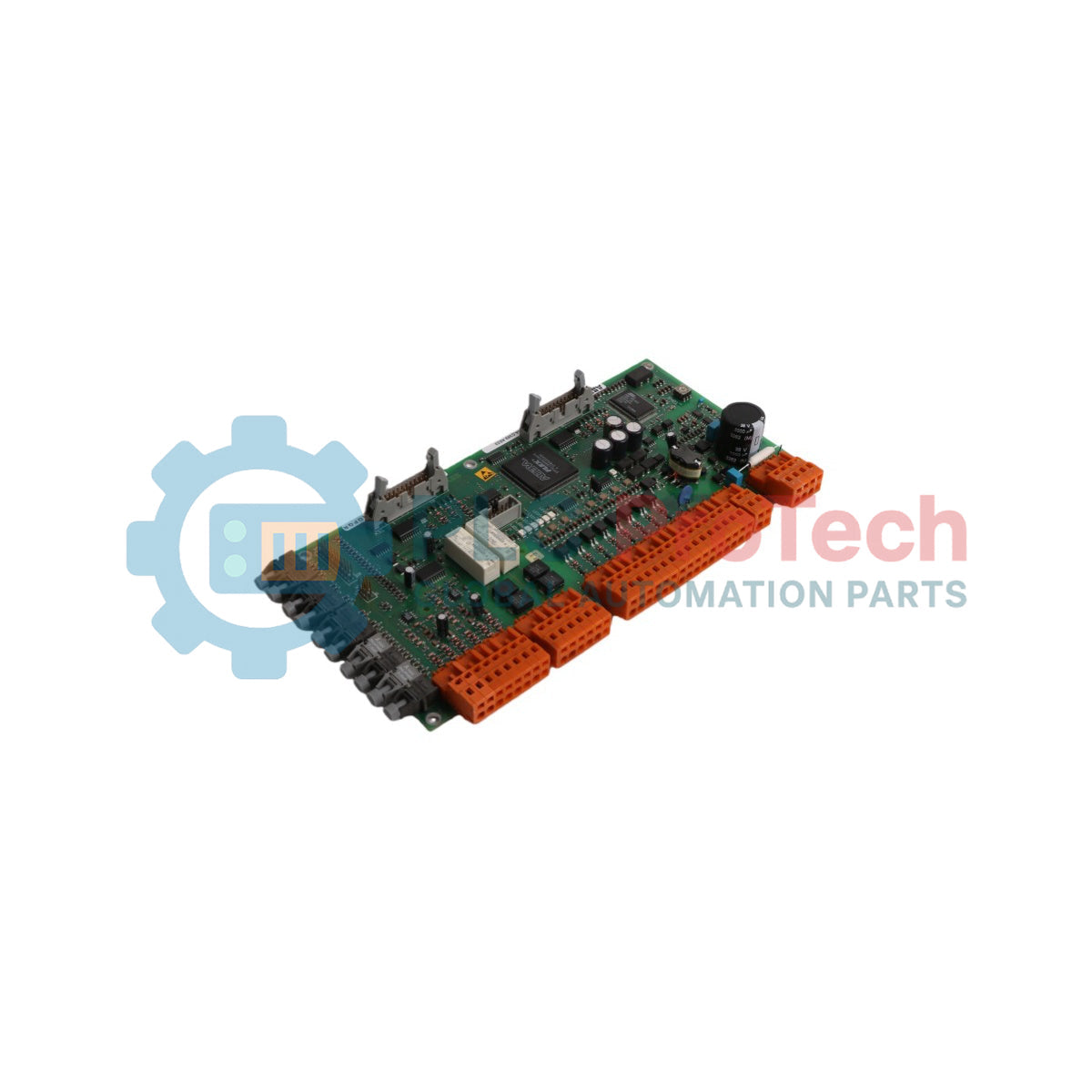

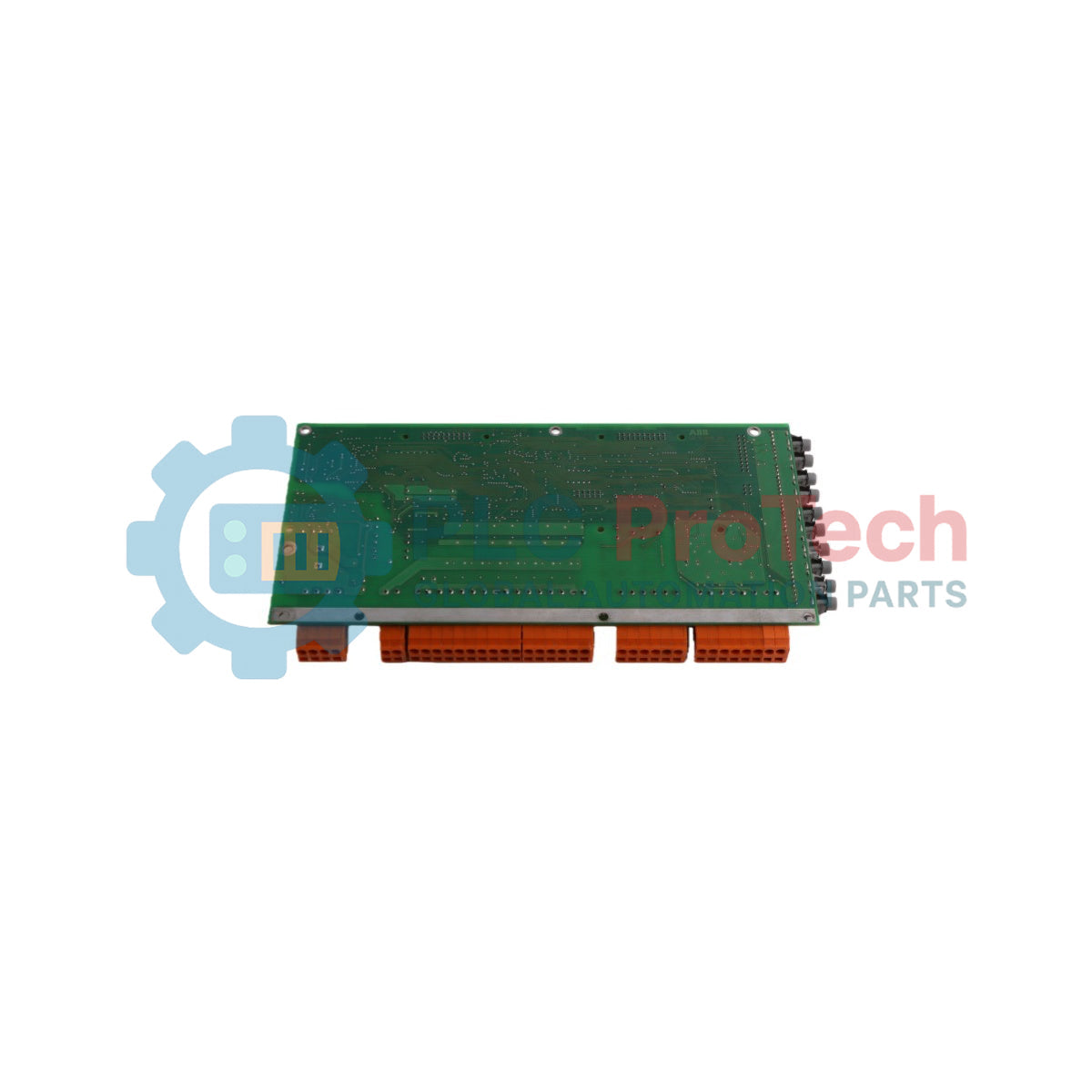

ABB HIEE300888R0002 UA C389 AE02 ACS 6000 Pulse Amplifier

SKU HIEE300888R0002 UAC389AE02

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: ABB
  • Product No.: HIEE300888R0002 UAC389AE02
  • Origin Switzerland
  • Product Type: Pulse Amplifier
  • Barcode: 85049099
  • Payment: T/T, Western Union
  • Weight: 0.547 kg
  • Dimensions: 24 cm x 19 cm x 5.3 cm
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

ACS 6000 Pulse Amplifier Boards
Quantità
Call sales Contact

Product Description

Description

The ABB HIEE300888R0002 is a high-reliability industrial hardware subassembly designated as the UA C389 AE02 pulse amplifier board. Operating as a critical signal amplification and conditioning layer within medium voltage AC drives, this module interfaces between the central control logic and the high-power semiconductor switching components. It functions to boost low-power digital trigger commands into robust, high-current drive pulses capable of precisely modulating large thyristor or IGBT configurations. Engineered to meet the strict timing and synchronization performance required by complex electric drive systems, the UA C389 AE02 ensures fast control loop response times, reliable gate firing execution, and electrical isolation to prevent feedback disturbances from affecting core processor tracks.

Features

  • Integrates high-speed pulse amplification paths tailored for mid-voltage power semiconductor firing control.
  • Formulated for direct backplane or sub-chassis mounting within medium voltage special purpose drive enclosures.
  • Supplied as a brand-new factory component to fulfill critical hardware maintenance and overhaul specifications.

Applications

  • ACS 6000 medium voltage special purpose AC drives and related power electronics control loops.
  • Synchronous and asynchronous large-scale industrial motor drive regulation networks.

Technical Specifications

Parameter Specification
Manufacturer ABB
Product ID HIEE300888R0002
Model Designation UA C389 AE02
Module Type Pulse Amplifier
System Compatibility ACS 6000 Medium Voltage Drives
Country of Origin Switzerland (CH), Finland (FI), Spain (ES), Singapore (SG), South Africa (ZA)
Customs Tariff Number 85049099
Product Net Weight 0.547 kg
Part Type New
Minimum Order Quantity 1 piece
Replaced Product ID (OLD) EE300888R0001, HIEE300888R0001

Installation Guidelines

  • System De-energization: Before extracting or mounting the board, verify that the host drive rack is completely de-energized, isolated from all high-voltage feeder paths, and standard lockout/tagout procedures are enforced.
  • ESD Mitigation Protocols: The semiconductor circuits on this pulse amplification module are sensitive to electrostatic events. Technicians must use a certified, grounded ESD wrist strap and handle the card strictly by its outer edges.
  • Interface Alignment: Slide the card firmly into its designated chassis guide paths, ensuring the multi-pin backplane interface seats completely before securing any physical retention fasteners.
  • Wiring Mapping Check: Confirm all control leads and output gate firing links are securely attached to prevent signal distortion or contact friction during operational machinery vibration.
