ABB

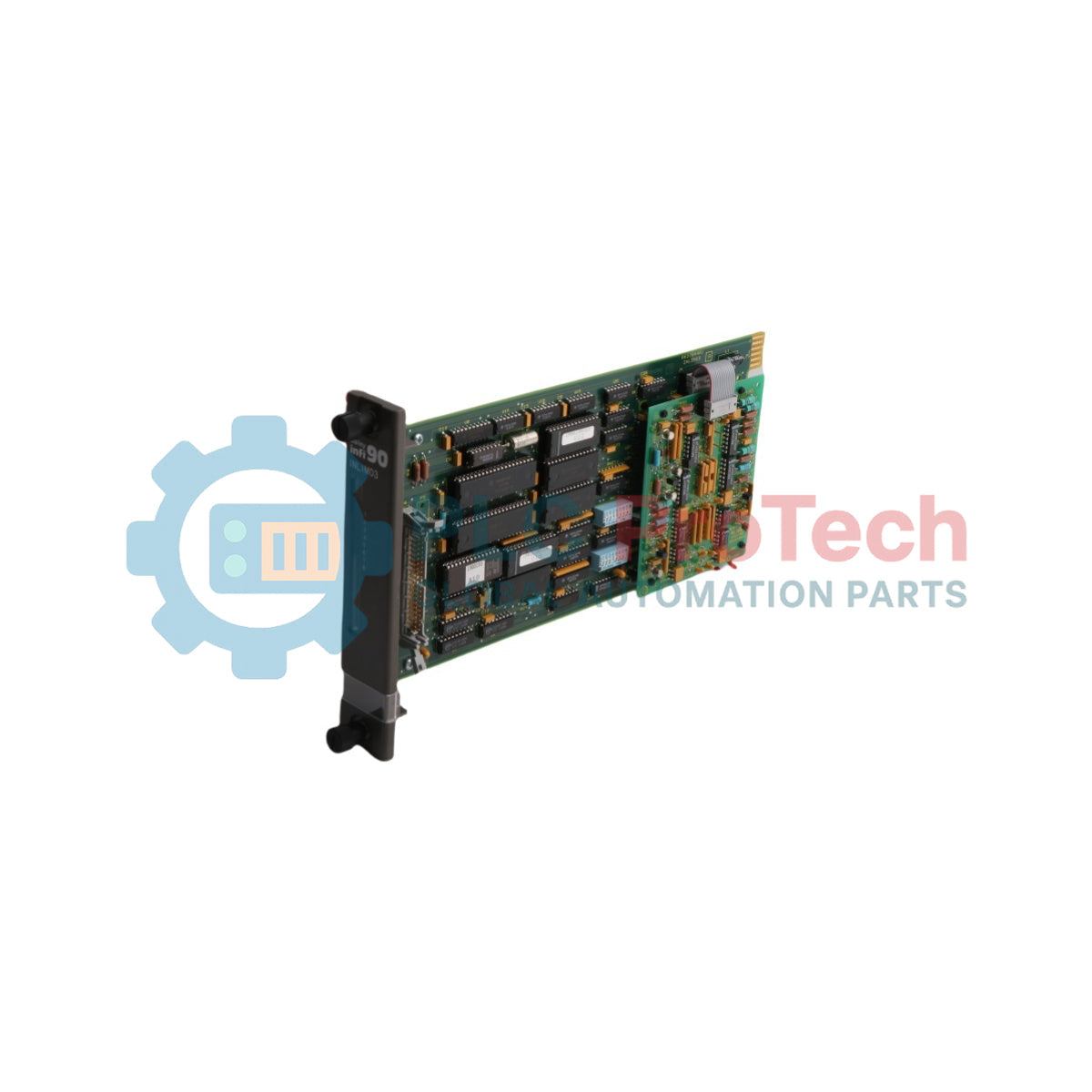

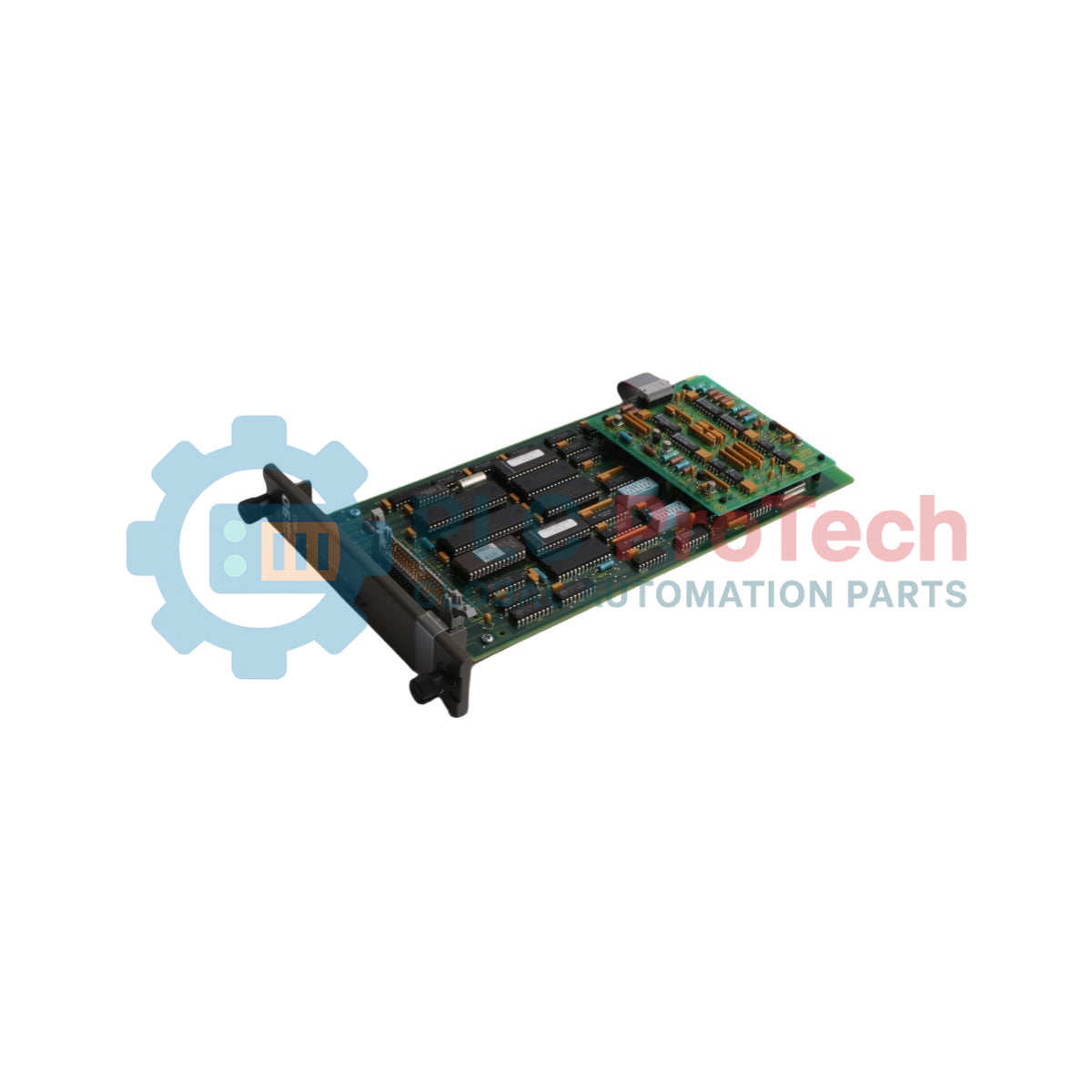

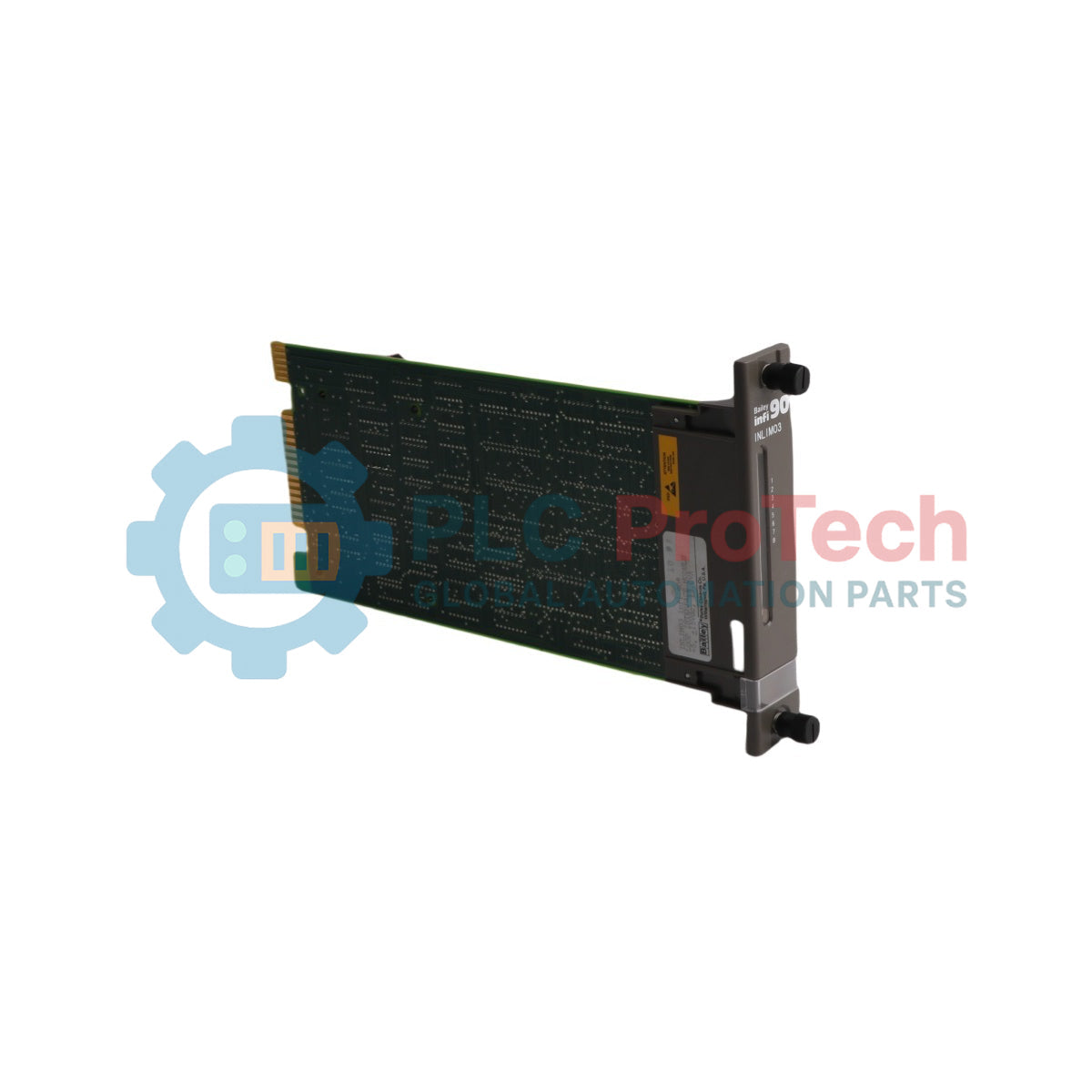

ABB INLIM03 Bailey Infi 90 Loop Interface Module

SKU INLIM03

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: INLIM03
Origin United States
Product Type: Loop Interface Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.45 kg
Dimensions: 3.5 cm x 17.8 cm x 29.8 cm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The ABB INLIM03, a component of the Bailey Infi 90 system, is a specialized Loop Interface Module designed to manage critical data routing and transmission between individual process control equipment and the primary communication backbone. Operating in tandem with an accompanying Bus Interface Module (INBIM02) via a dedicated ribbon cable link, this device handles complex multi-node orchestration tasks without relying on a centralized master traffic controller. By serving as a localized gateway, the module helps isolate high-throughput automated adjustments from macro-level loop congestion.

Applications

Process Control Units (PCU) communication bridging
High-speed serial data transmission within industrial Plant Loops
Redundant network topology orchestration in process management setups
Distributed multi-node process architecture data routing

Technical Specifications

Parameter	Specification
Manufacturer	ABB / Elsag Bailey
Model	INLIM03
Series	Infi 90
Module Type	Loop Interface Module
Memory Capacity	2 kbytes RAM, 4 kbytes ROM
Power Consumption	+5 VDC @ 2.0 Amps (10 Watts nominal); ±15 VDC @ 80 mA (1.2 Watts nominal)
Communication Speed	500 kbaud
Maximum System Capacity	Up to 63 nodes per loop
Maximum Data Throughput	800 messages/second maximum
Maximum Synchronization Time	100 milliseconds
Operating Temperature Range	0 to 70 degC (32 to 158 Fahrenheit)
Operating Relative Humidity	0% to 95% up to 55 degC; 0% to 45% up to 70 degC (non-condensing)
Atmospheric Pressure Range	Sea level to 3 km
Maximum Node-to-Node Distance	2000 meters (6561 feet)
Maximum Module-to-Termination Distance	61 meters (200 feet)

Connections/Interfaces

Connector Pin	Function
P1 - Pin 1	+5 VDC Power Input
P1 - Pin 2	+5 VDC Power Input
P1 - Pin 5	Power Common
P1 - Pin 6	Power Common
P1 - Pin 7	+15 VDC Power Input
P1 - Pin 8	-15 VDC Power Input
P3 - Pin 1	Loop 2 In (+)
P3 - Pin 2	Loop 2 In (-)
P3 - Pin 3	Cable Shield
P3 - Pin 4	Loop 1 Out (+)
P3 - Pin 5	Loop 1 Out (+)
P3 - Pin 6	Loop 1 In (+)
P3 - Pin 7	Loop 1 In (-)
P3 - Pin 8	Cable Shield
P3 - Pin 9	Loop 2 Out (+)
P3 - Pin 10	Loop 2 Out (+)
P3 - Pin 11	Cable Shield
P3 - Pin 13	Loop 2 Bypass Control
P3 - Pin 14	Cable Shield
P3 - Pin A	Shield
P3 - Pin D	Loop 1 Out (-)
P3 - Pin E	Loop 1 Out (-)
P3 - Pin F	Cable Shield
P3 - Pin H	Loop 2 Bypass Control Cable
P3 - Pin K	Loop 2 Out (-)
P3 - Pin L	Loop 2 Out (-)
P3 - Pin M	Cable Shield
P3 - Pin S	Cable Shield
P4	Ribbon Cable Connection to Bus Interface Module (BIM)

Installation Guidelines

Static Dissipative Measures: Technicians must utilize grounded wrist straps and appropriate static dissipative work surfaces prior to handling to safeguard internal circuitry from electrostatic discharge.
Dipswitch Configurations: Set the S1 option dipswitch to the desired event tracking address (default position: Hex 30) and configure the S2 address dipswitch to establish a unique node designation from 1 to 63.
Module Interconnection: Securely connect the ribbon cable between the P4 slot of the device and the corresponding P4 slot of the partner module before inserting the joined assembly into the frame.
Physical Slot Mount: Slide the unit directly along the plastic guide rails within the designated Module Mounting Unit (MMU) slot until the front faceplate rests flush with the upper and lower framing edges.
Faceplate Locking: Hand-tighten the dual captive faceplate screws by rotating each a 1/2 turn to lock the hardware firmly into position within the chassis card cage.
Cable Orientation Warning: When completing termination paths using the dedicated cabling assembly, confirm that the designated J1 cable ending attaches to the terminal card edge (P1 connector) and the J2 ending seats properly directly onto the device module. Incorrect configuration can cause immediate electrical damage.

Compliance and Certifications

CSA certified for use as process control equipment in ordinary, non-hazardous environments.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the module within the system?

The module serves as the primary communication interface between the Process Control Units (PCU) and the high-speed serial Plant Loop communication highway.

What data rates does the communication interface support?

The communication network operates at a rate of 500 kbaud, handling a maximum transmission capacity of up to 800 messages per second.

Can the module be inserted or removed while the rack is energized?

Yes. The device can be inserted or removed under live power conditions, as there are no hazardous voltage levels present on the module interface.

How are hardware events and transmission metrics monitored on the module?

The device contains internal event and error counters whose specific cumulative byte-wide values can be output directly onto the front faceplate LEDs by setting the S1 option dipswitch to the target hexadecimal counter address.
