ABB

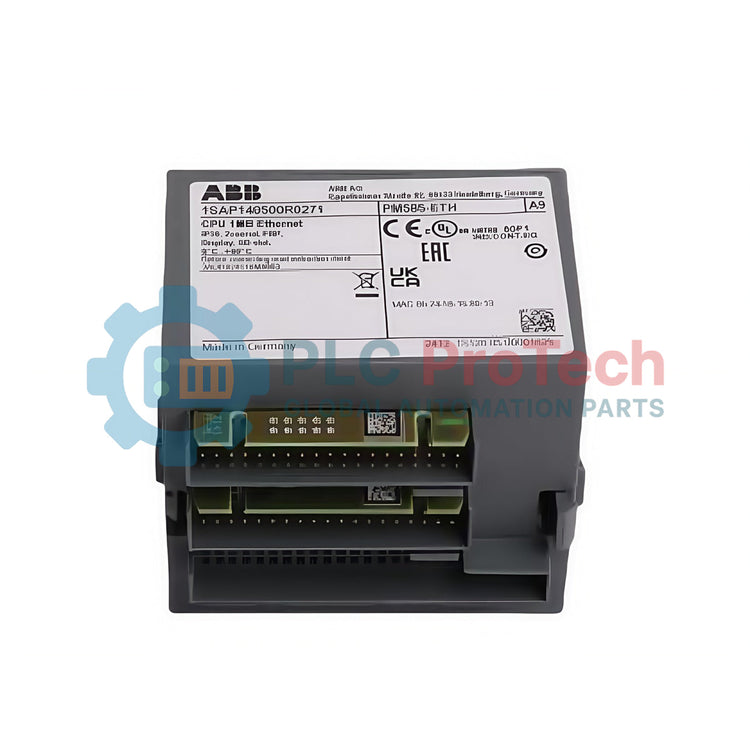

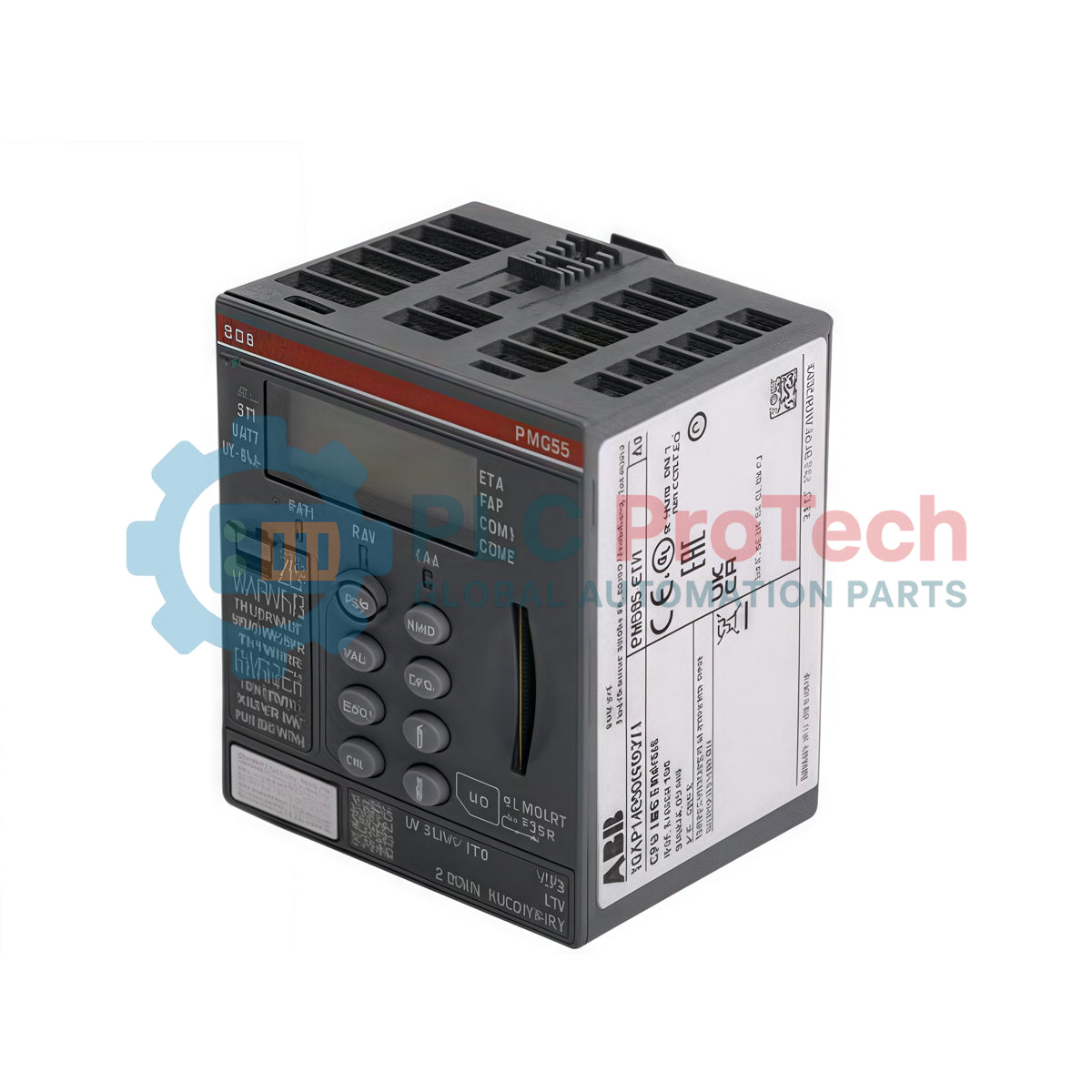

ABB PM585-ETH 1SAP140500R0271 AC500 Processor Module

SKU PM585-ETH 1SAP140500R0271

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: PM585-ETH 1SAP140500R0271
Origin Switzerland
Product Type: Central Processing Unit Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.137 kg
Dimensions: 62 mm x 76 mm x 67.5 mm (L x H x W)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The ABB PM585-ETH (Product ID: 1SAP140500R0271) is a high-performance central processing unit module engineered for the AC500 programmable logic controller (PLC) family. Integrated with a core memory size of 3584 kB, this processor module supports dedicated automation control architectures through a high-efficiency controller processing time of 0.000004 ms. The front face incorporates a structured hardware interface setup including one Industrial Ethernet port, two multi-protocol serial communication ports configurable for RS232/RS485 networks, and an integrated FieldBusPlug (FBP) interface to coordinate communication topologies. With its front display panel designed for immediate status updates and local system feedback, the PM585-ETH functions effectively within distributed automation systems to maintain steady logic flow over connected operational instrumentation.

Features

High-Speed Execution: Operates with a precise controller processing time of 0.000004 ms for synchronized machine-level logic execution.
Integrated Communications: Built-in array comprising 1 Industrial Ethernet port, 2 multi-configuration serial interfaces, and 1 dedicated FBP network hookup.
Onboard Diagnostic Screen: Designed with an integrated module display for immediate hardware feedback and field errors overview.
Optimized Storage Architecture: Houses a standard memory size of 3584 kB utilizing RAM for safe processing of ongoing user data.
Industrial Grade Casing: Formed inside an IP20-rated compact housing suitable for clean mounting across standardized enclosure rails.

Applications

Distributed automation PLCs networks
Complex multi-device integration through network fieldbus protocols
Automated process loops and processing line architectures

Ordering Information

Extended Product Type	Product ID	ABB Type Designation	Invoice Description	Minimum Order Quantity
PM585-ETH	1SAP140500R0271	PM585-ETH	Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM585-ETH)	1 piece

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product Main Type	PM585
Product Name	Distributed Automation PLCs
Catalog Description	Processor module. Memory 1MB. Interfaces: Ethernet, 2x RS232/485, FBP. Display (PM585-ETH)
Total Memory Size	3584 kB
Memory Type User Data	RAM
Controller Processing Time	0.000004 ms.
Number of Hardware Interfaces	Industrial Ethernet: 1, Other: 2, Parallel/RS-232/RS-422/RS-485/Serial TTY/USB/Wireless: 0
Number of Digital Configurable I/Os	0
Rated Voltage (Ur)	24 V DC
Supply Voltage	20.4 ... 28.8 V DC
Degree of Protection	IP20
Product Net Weight	0.137 kg
Gross Weight	0.162 kg
Product Net Depth / Length	62 mm
Product Net Height	76 mm
Product Net Width	67.5 mm
Package Level 1 Depth / Length	84 mm
Package Level 1 Height	72 mm
Package Level 1 Width	71 mm
Package Level 1 Units	carton 1 piece
Customs Tariff Number / CN8	85389091

Installation Guidelines

Enclosure Installation: Secure the processor unit in an enclosed mounting space keeping inline with its IP20 rating to ensure no foreign moisture or dust infiltrates the open circuitry.
Supply Voltage Limits: Connect the external direct current supply keeping strictly within the operational boundaries of 20.4 V DC to 28.8 V DC (Nominal 24 V DC).
Network Wiring: Connect network instrumentation over the specialized Ethernet and serial interfaces using industrial-grade shielded twisted-pair cables to filter nearby electronic interference.
System Grounding: Keep system buses terminated and grounded to protect internal logical processors from floating potential differences.

Compliance and Certifications

Declaration of Conformity - CE: 3ADR980140
RoHS Directive: Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
REACH Declaration: 3ADR980139 (REACH Date: 20241206 / Contains substances > 0.1 mass percentage)

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the processing speed of the module?

The module achieves a high-efficiency controller processing time of 0.000004 milliseconds.

What communication ports are natively available on the device?

The device includes one Industrial Ethernet interface, two serial interfaces for RS232/485 communication, and a dedicated FieldBusPlug interface.

What are the precise power requirements for this processor?

The processor operates on a nominal rated voltage of 24 V DC and requires an active input supply voltage spanning between 20.4 V DC and 28.8 V DC.

What are the physical dimensions and weight of the module?

The module has a net width of 67.5 mm, a net height of 76 mm, a net depth of 62 mm, and a total net weight of 0.137 kg.
