Description

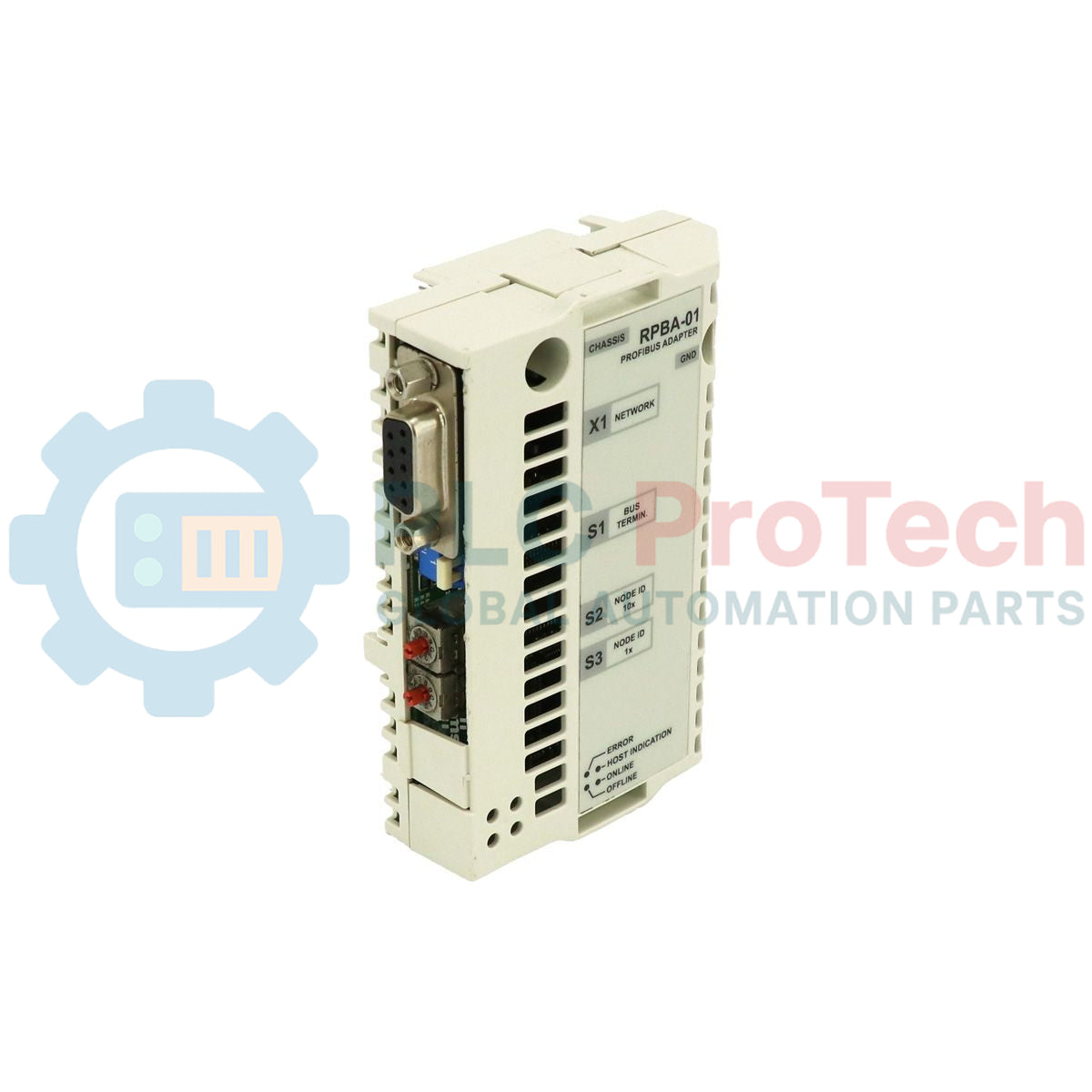

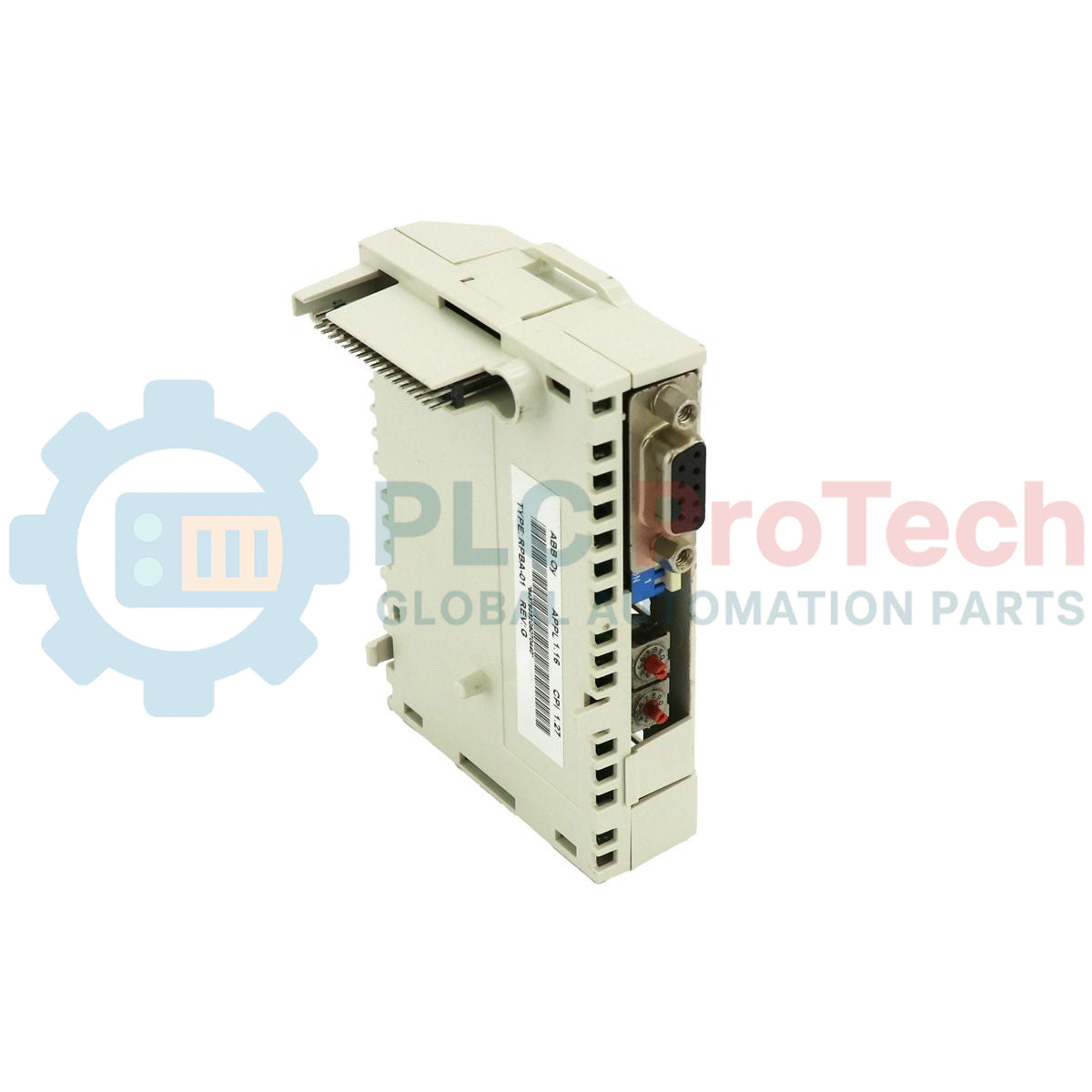

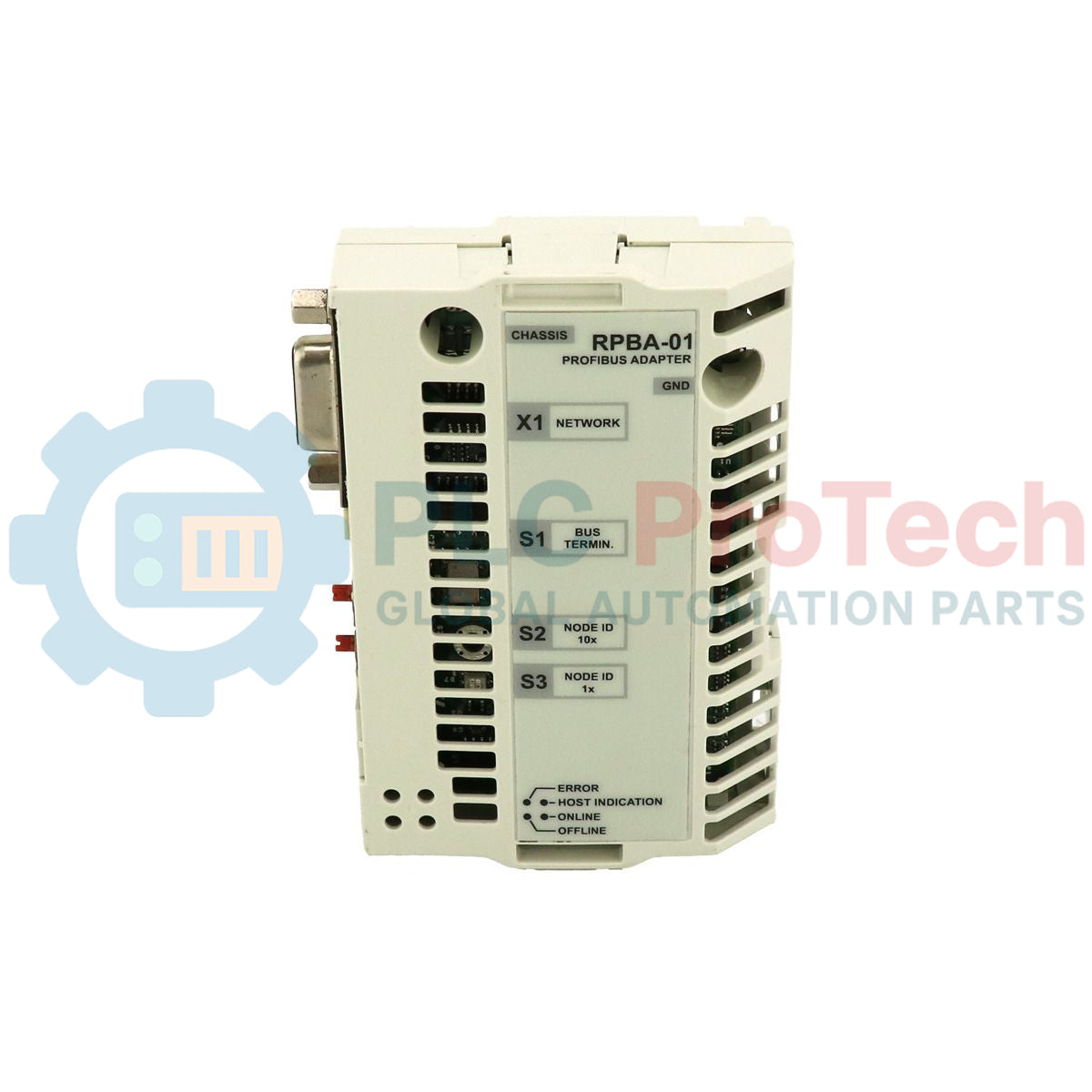

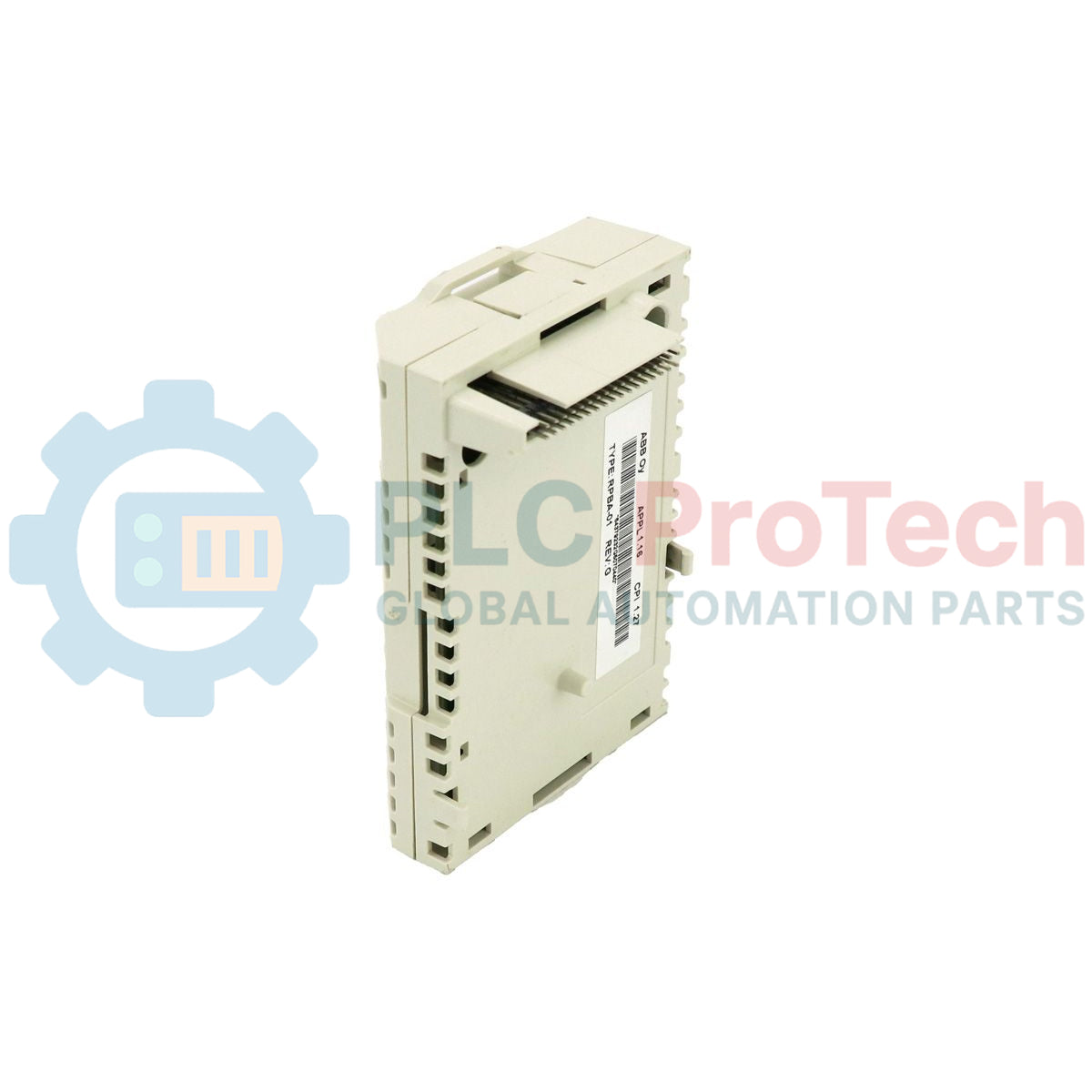

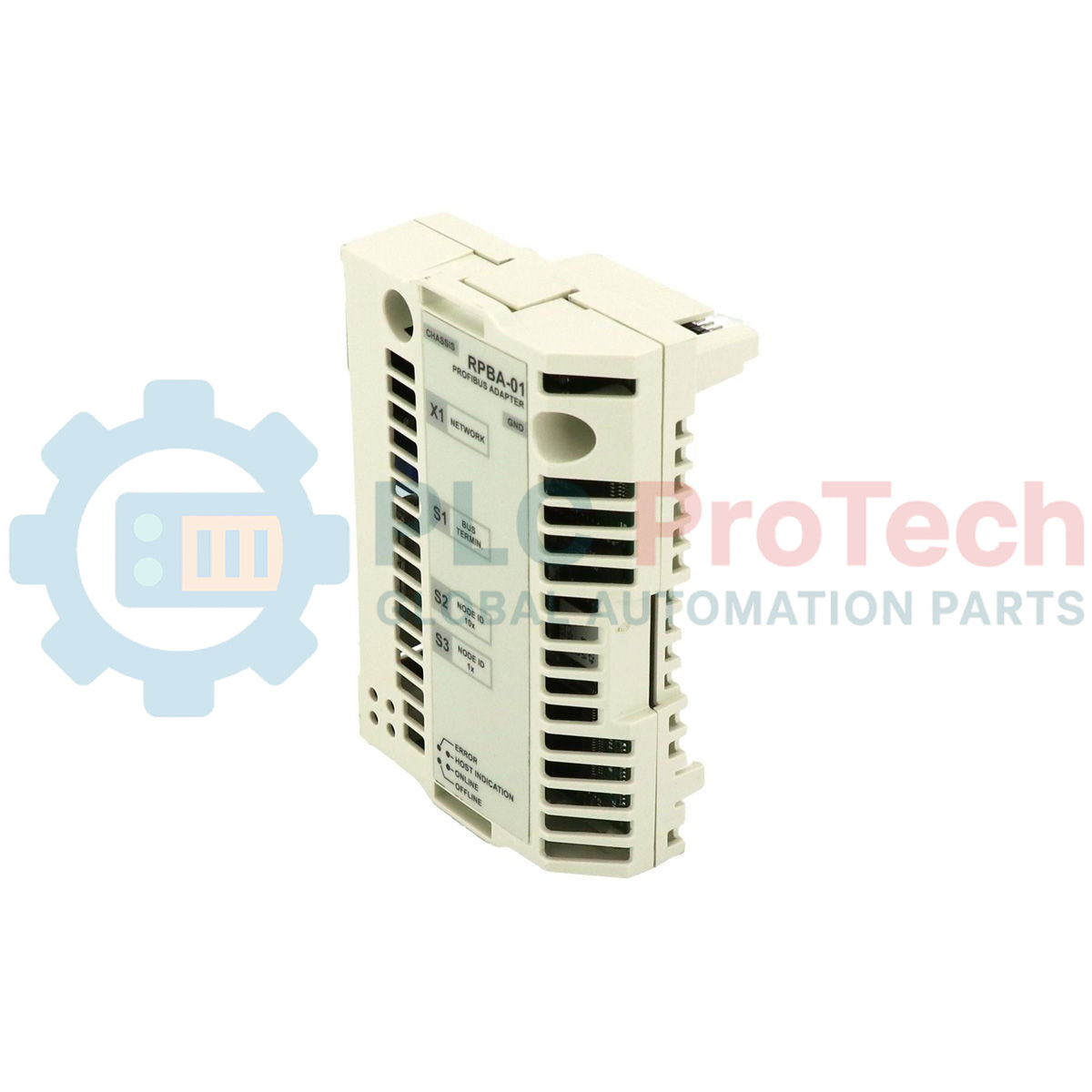

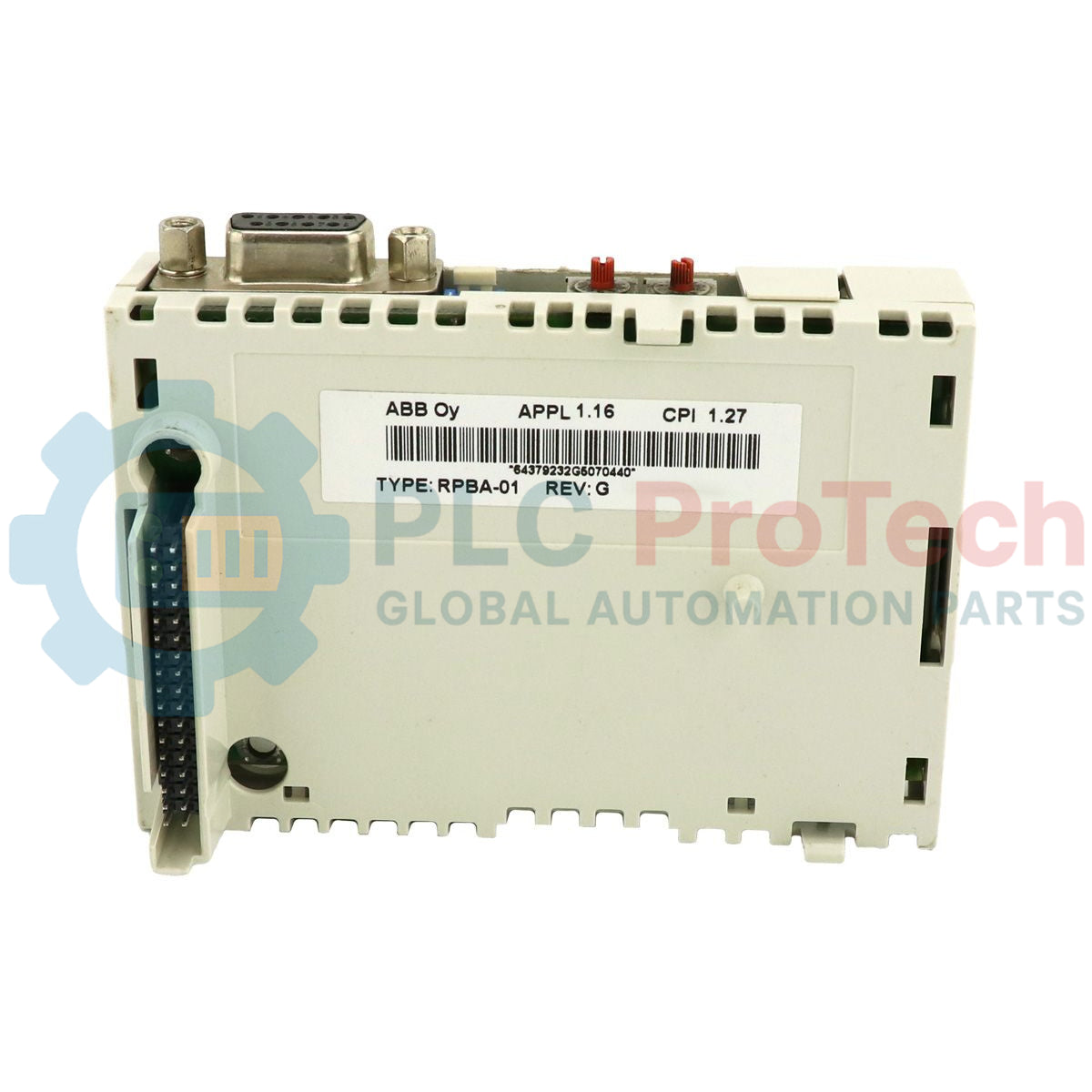

The RPBA-01 is a fieldbus connectivity solution designed to interface industrial drive units directly with an external communication network utilizing the open serial standard. This 3ABD64606859 option board functions as a dedicated PROFIBUS Adapter that plugs into the specialized option expansion channels of compatible machinery controllers. By facilitating a cyclic, high-speed exchange of system control vectors, parameter variables, and multi-range status diagnostics, the module permits real-time supervisory execution from centralized automation platforms. Built specifically to comply with the ACS600_option frame size specification, this board integrates active internal logic to execute complex master-slave token profiles without degrading the operational timing cycles or load protection loops of the motor drive host. It provides vital galvanic isolation across network channels, preventing ground loops and ensuring industrial communication stability across harsh factory environments.

Features

• Cyclic Data Interfacing: Supports reliable high-speed data transmission for real-time process control parameters, tracking, and operational feedback.
• Active Bus Termination: Equipped with integrated hardware termination circuitry that stabilizes the network path when powered.
• Comprehensive Transfer Rate Detection: Automatically detects network baud rates ranging from 9.6 kbit/s up to 12 Mbit/s for seamless configuration alignment.
• Direct Option Slot Mounting: Mechanically sized to slide directly into the specialized option interface slots of the host control frame.

Applications

• High-Speed Decentralized Control and Monitoring of Drive Fleets via Centralized Network Architectures
• Real-Time Speed Regulation, Torque Modification, and Diagnostics in Automated Production lines
• Distributed Node Telemetry and Bulk Parameter Backup Routing for Large-Scale Variable Frequency Drive Networks

Technical Specifications

Mechanical

Environmental

Connections/Interfaces

Installation Guidelines

• Electrostatic Discharge Protection: Technicians must utilize a grounded grounding strap when handling or moving the module to protect micro-logic systems from discharge failure.
• Option Card Slot Mounting Sequence: Slide the board into its dedicated slot alignment tracks inside the converter frame, ensuring internal pin rails click securely before tightening the locking screw anchors.
• Network Cable Shield Earthing: Ensure all network cable shields are tied directly to an external earth ground path at every system node to reduce high-frequency electrical noise.
• Active Termination Management: Confirm that the module remains powered when utilizing the built-in active termination circuit; if node power down is required, substitute an external passive 220 ohm network resistor.

Compliance and Certifications

• Complies with EMC standards EN 50081-2 and EN 50082-2
