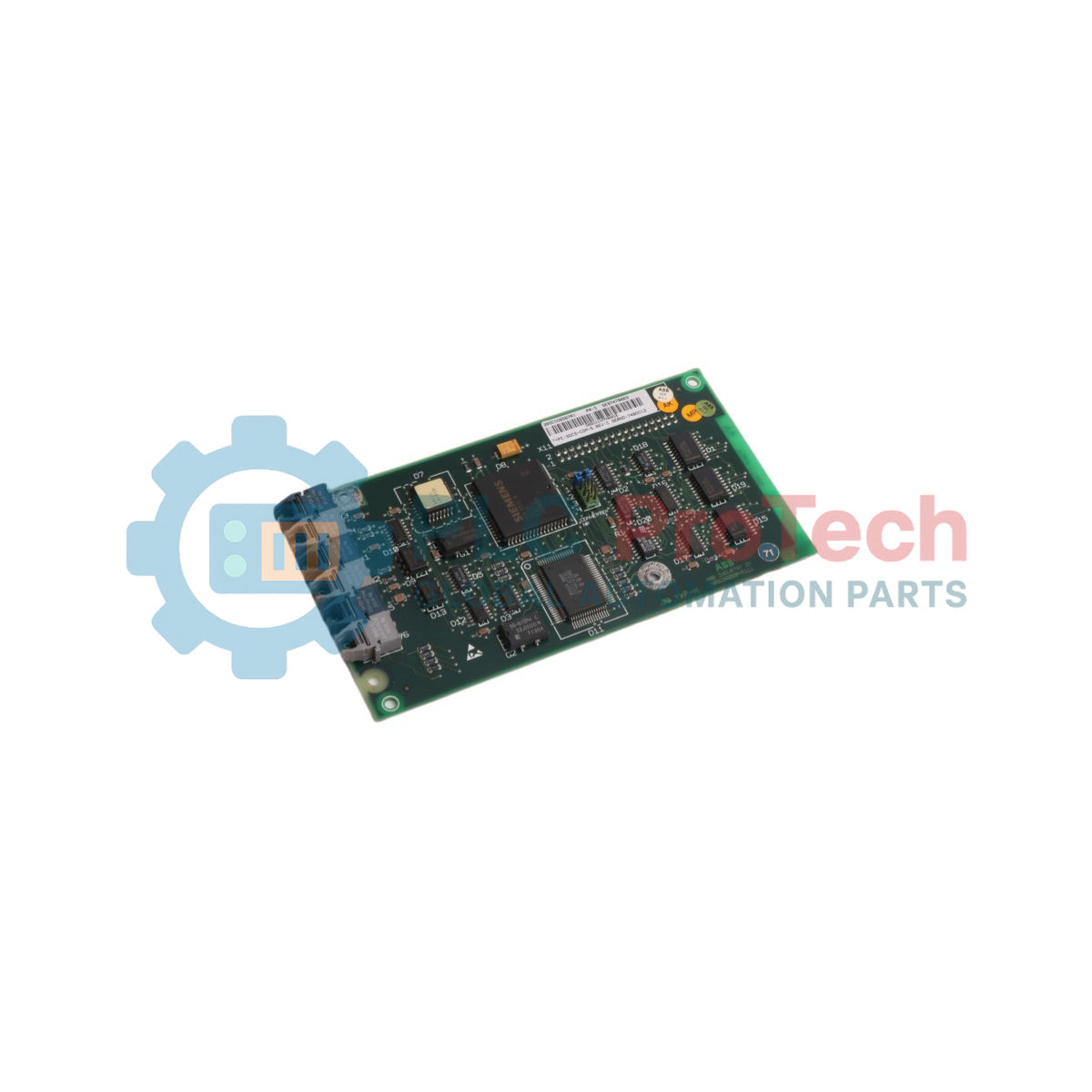

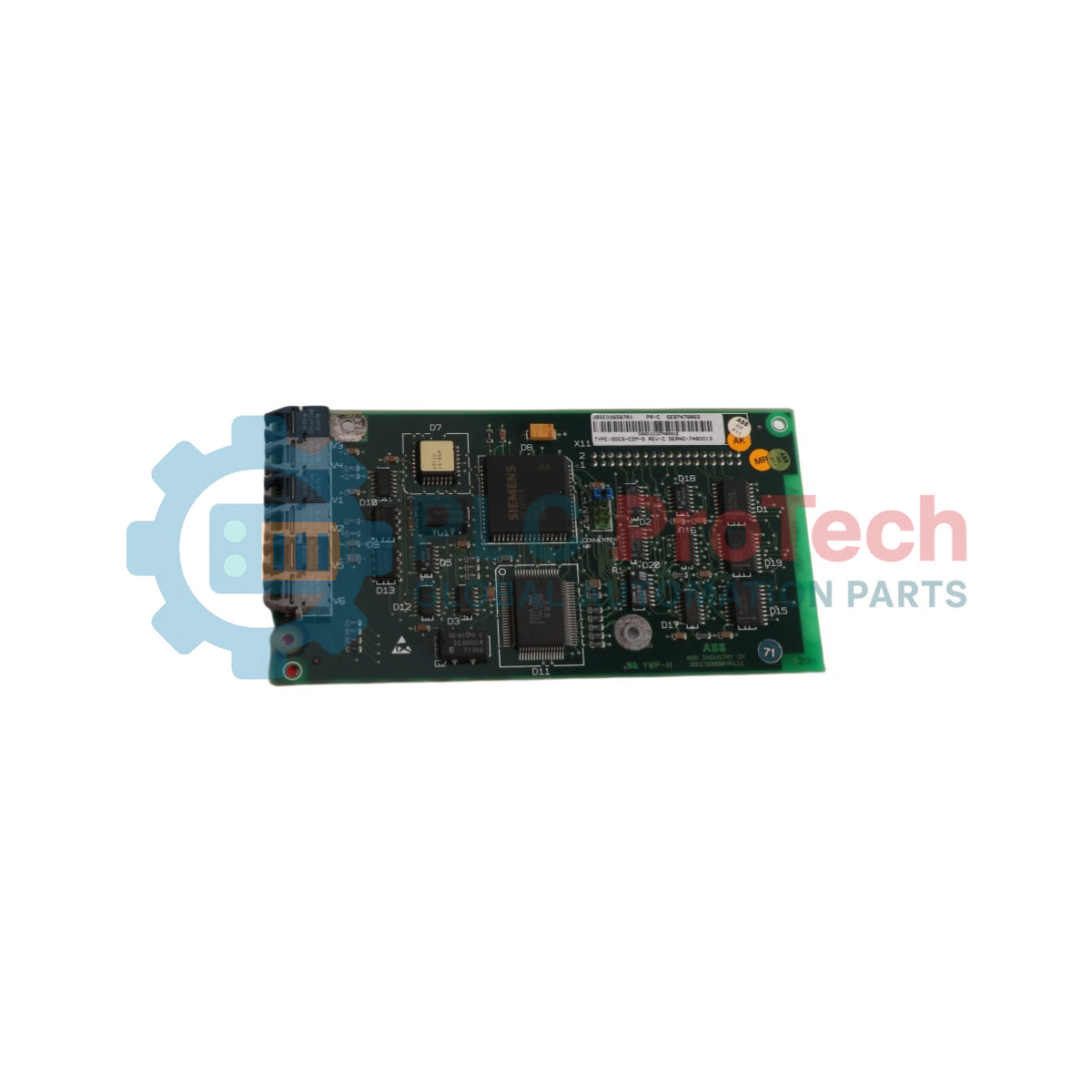

ABB DCS 500 3BSE006567R1 SDCS-COM-5 TC Link Communication Board

SKU SDCS-COM-5 3BSE006567R1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: SDCS-COM-5 3BSE006567R1
Origin Sweden
Product Type: Communication Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 0.5 kg
Dimensions: 15.8 cm x 2 cm x 8.3 cm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

The SDCS-COM-5 (Product ID: 3BSE006567R1) is a dedicated TC Link communication board manufactured by ABB specifically for integration within DCS 500 converter modules. This module provides specialized hardware processing for three independent serial communication channels, allowing a reliable, high-speed interface link between converter setups, PCs, and distributed industrial control systems. The board links directly via the designated X11 system connector interface, utilizing an engineered arrangement of grey transmitter (TxD) and blue receiver (RxD) fiber-optic ports to establish clean electrical isolation across active processing channels.

Features

Three distinct communication channels enabling concurrent data path transfers
High-speed HDLC system interfacing peaking at a 1.5 Mbits/s rating on Channel 1
Broadband DDCS processing capacity scaling up to 4 Mbits/s on Channel 3
Color-coded optical ports separating transmission (grey) and reception (blue) loops
Integrated 4-position onboard S1 coding jumper block to define multi-converter configurations

Applications

ABB DCS 500 converter module link infrastructures
High-speed industrial drive PC monitoring connections
PROFIBUS, CS31, and MODBUS hardware adaptations

Technical Specifications

Parameter	Specification
Manufacturer	ABB
Product ID	3BSE006567R1
ABB Type Designation	SDCS-COM-5
Component Class	TC Link Communication Board
System Compatibility	DCS 500 Converter Modules with software up to S21.1xx
Incompatible Software	Version S21.xxx
Channel 1 Spec	HDLC protocol channel, 1.5 Mbits/s (PC interface)
Channel 2 Spec	Dedicated data link channel
Channel 3 Spec	DDCS channel, up to 4 Mbits/s (PROFIBUS/CS31/MODBUS)
Interface Port Type	Fiber-Optic RxD / TxD Plug and Socket

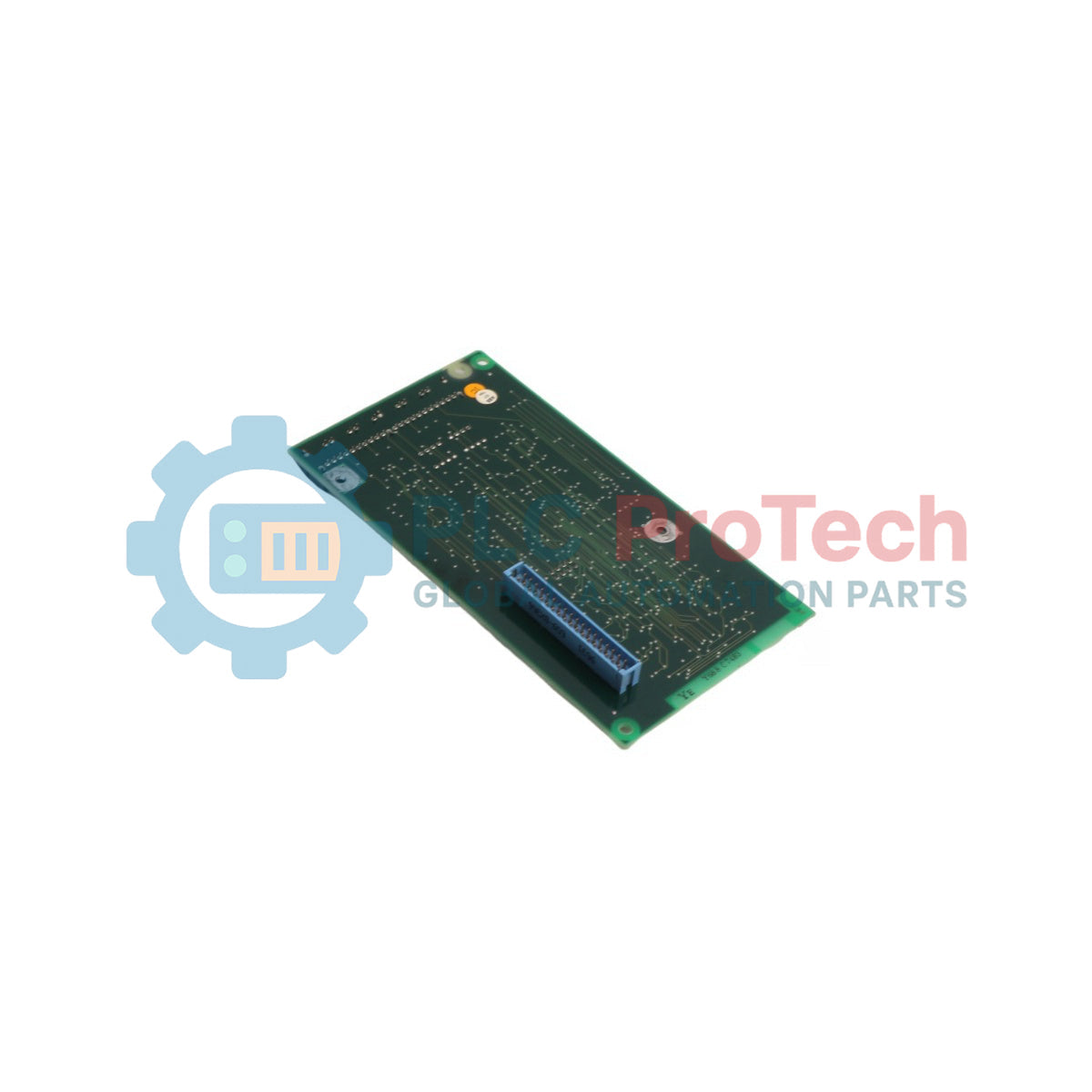

Main System Connector	X11 Interface
Board Length	156.5 mm
Board Width	83.5 mm

Connections/Interfaces

Connector Pin / Port	Function
V3 / CH2 RxD	Channel 2 Optical Receiver Port (Blue Socket)
V4 / CH2 TxD	Channel 2 Optical Transmitter Port (Grey Socket)
V1 / CH1 RxD	Channel 1 Optical Receiver Port (Blue Socket)
V2 / CH1 TxD	Channel 1 Optical Transmitter Port (Grey Socket)
V5 / CH3 RxD	Channel 3 Optical Receiver Port (Blue Socket)
V6 / CH3 TxD	Channel 3 Optical Transmitter Port (Grey Socket)
X11 Block	Primary System Converter Connection Interface

Installation Guidelines

Disconnect all primary converter supplies and auxiliary power inputs before matching the board onto the system carrier.
Ensure matching plug and socket colors are aligned during fiber-optic link up (always connect blue to blue and grey to grey).
Verify that software loaded within the target DCS 500 converter module scales up to version S21.1xx maximum to ensure runtime protocol compatibility.
Adjust the 4-position S1 inline slide switch block to match your specific converter line network destination layout (Positions 1 through 4 correlate to converter numbers 1 to 4 respectively, with position 1 serving as default).
Check that both board mounting standoffs and the designated conductive support pad align firmly with the metallic chassis to guarantee electrical path continuity.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What configuration rules must be followed when plugging in the fiber-optic lines?

Optical fibers must consistently follow the layout colors. Ensure the blue cable plug connects directly to the blue receiver (RxD) socket, and the grey cable plug connects directly to the grey transmitter (TxD) socket.

What are the protocol limits and speeds supported on Channel 3?

Channel 3 runs a DDCS architecture scaling up to 4 Mbits/s. It is designed to bridge serial systems operating over PROFIBUS, CS31, or MODBUS network hardware via an adaptation module.

How is the communication interface board configured for multi-converter setups?

The board features an onboard S1 jumper coding block. Sliding the selection pin changes the address routing based on the target converter line number (values 1 through 4).
