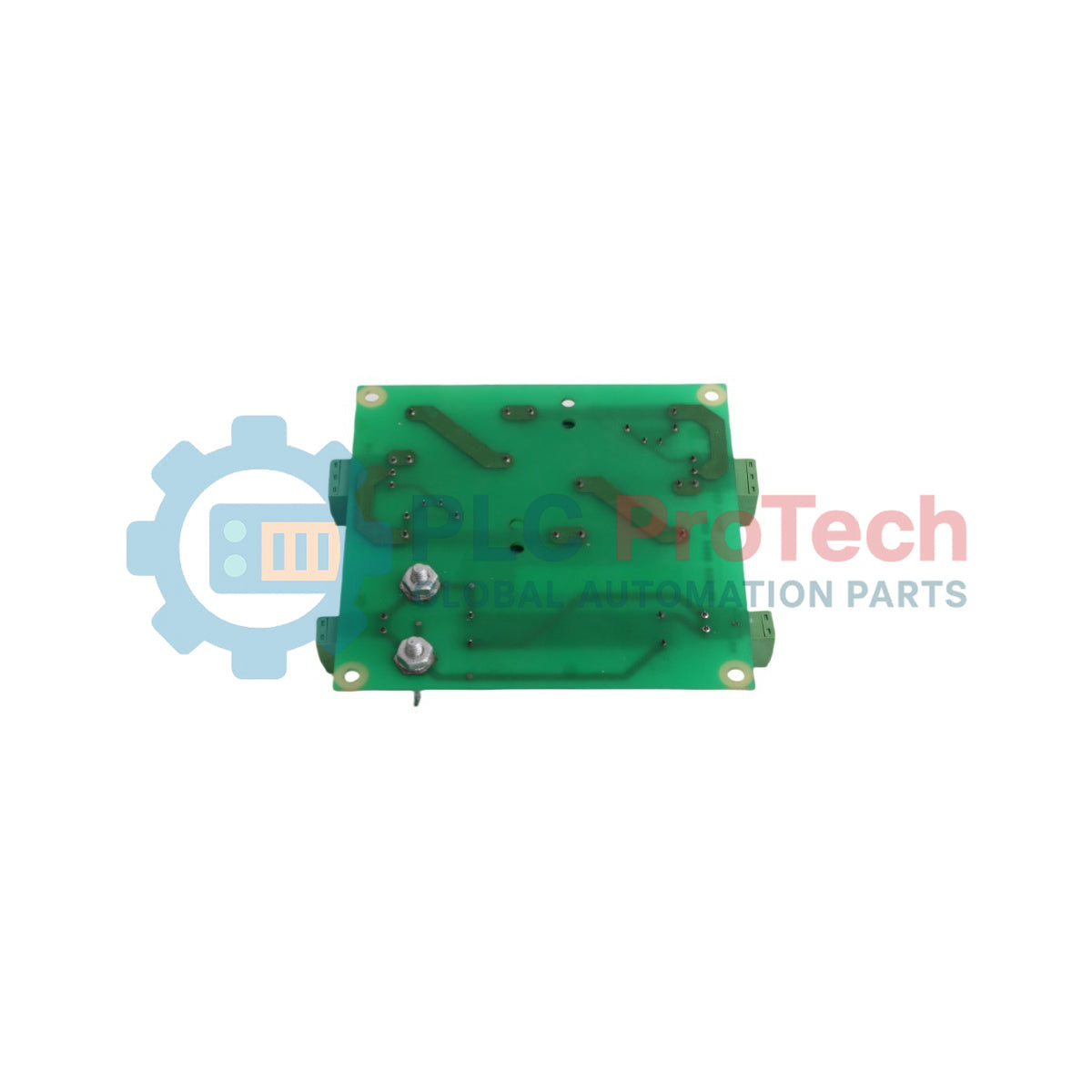

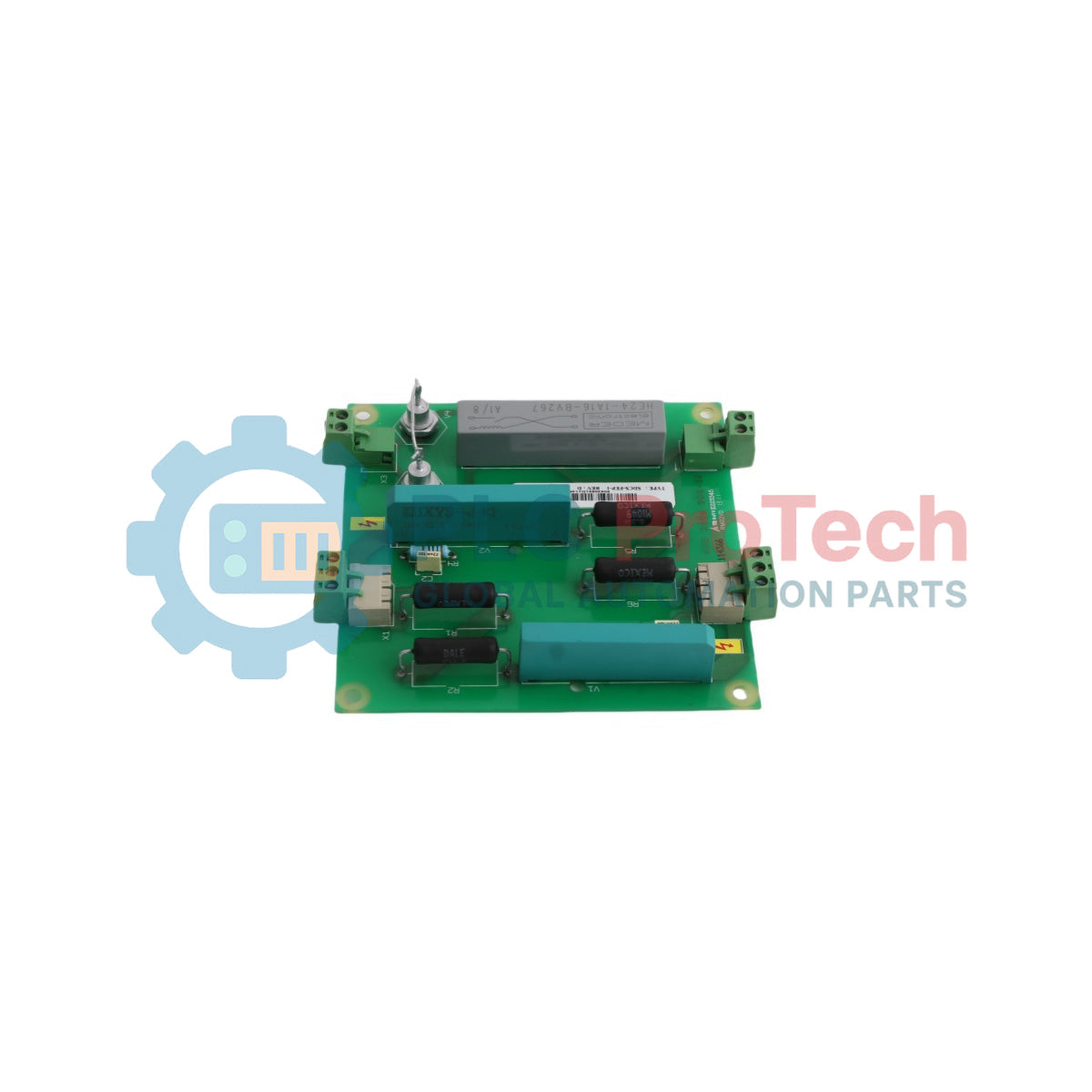

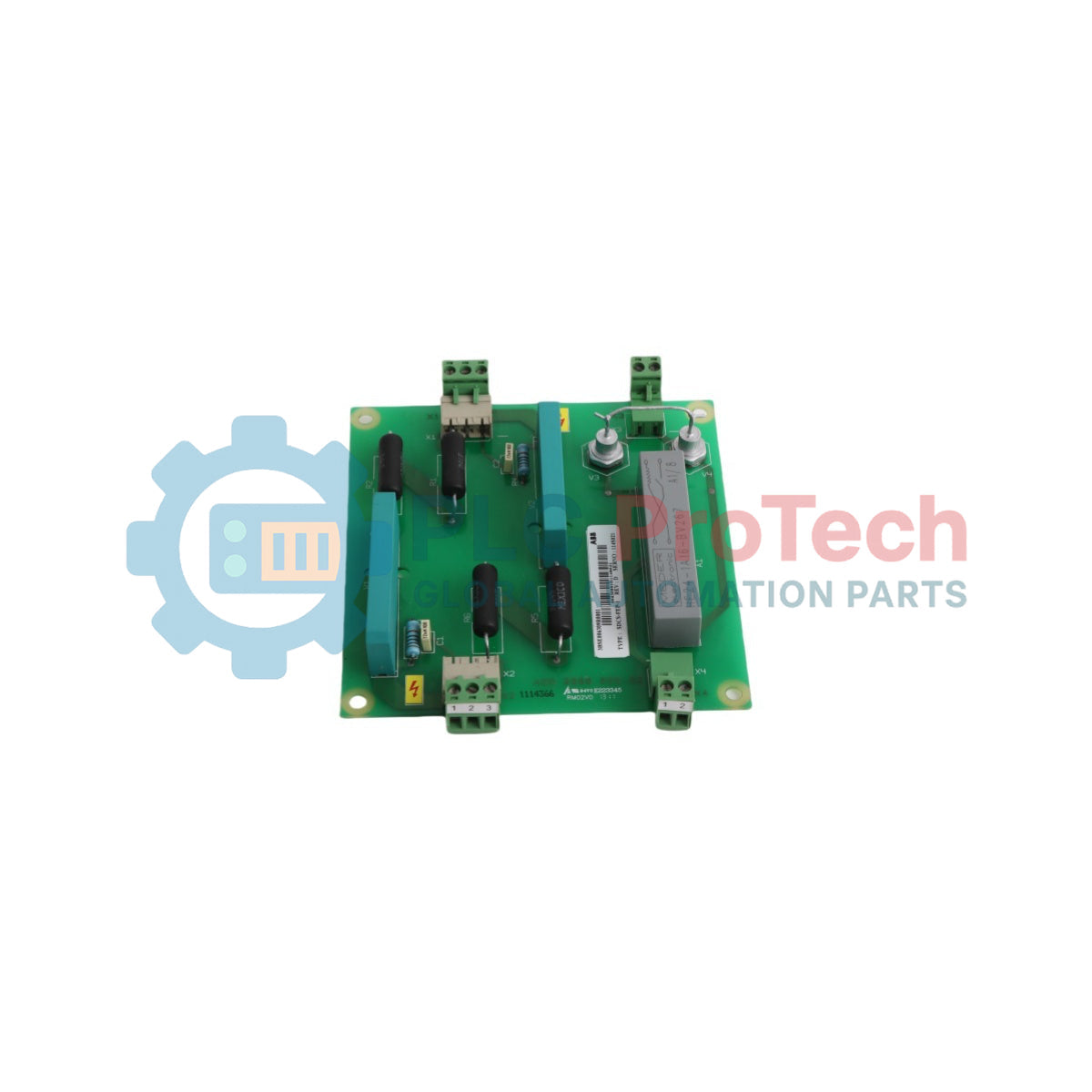

The ABB SDCS-FEP-1 is a dedicated overvoltage and overcurrent safeguarding interface assembly engineered for thyristor power converters and multi-drive industrial DC distribution networks. Functioning as a high-integrity field protection unit within the converter matrix, this electronic component acts as a defensive buffer between external motor field windings and the internal control electronics.
The SDCS-FEP-1 actively clamps high-voltage surges, transient field feedback, and inductive voltage spikes common in large DC machine control loops. The hardware module, registered under part number 3BSE006309R0001, uses specialized industrial varistors and dedicated decoupling pathways to isolate delicate processing infrastructure from field circuit breakdowns, preventing fault propagation across shared internal power buses.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-FEP-1 |
| Product ID / Order Number | 3BSE006309R0001 |
| Functional Grouping | Field Protection Unit |
| Part Type Status | Original / New |
| Country of Origin | Thailand (TH) |
| Shipping Weight (Calculated) | 0.148 kg |
| Package Dimensions (Calculated) | 185 mm x 120 mm x 45 mm |
The SDCS-FEP-1 unit directly substitutes the legacy component cataloged as 3BSE007486R0001. For systems requiring updated field-side interfaces, this board is also functionally replaced by parts group 3ADT220090R0021. Always verify the physical terminal envelope configurations and trace spacing constraints when performing live swap upgrades on legacy converter structures.
When field excitation loops discharge during emergency shutdown sequences, the energy absorbed by protective suppression boards can generate rapid thermal spikes. Ensure that uninsulated control cabling running nearby does not contact the high-energy suppression paths. If a persistent field ground fault occurs, these clamping elements can undergo structural breakdown, resulting in low-impedance shorts across the supply rails.
CRITICAL WARNING: HIGH VOLTAGE AND DE-ENERGIZATION REQUIREMENTS
Completely disconnect, isolate, and lock out all upstream main three-phase AC pathways and secondary DC auxiliary lines feeding the drive converter bay. Inductive field circuits generate high residual inductive potentials after system de-energization. Wait at least 15 minutes for complete energy dissipation, and use a certified testing device to confirm an absolute unpowered status before attempting terminal interaction.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: SDCS-FEP-1 3BSE006309R0001
Country of origin:Thailand
Product Type: Field Protection Unit
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 148g
Dimensions: 185 mm x 120 mm x 45 mm
Shipping port: Xiamen
Warranty: 12 months
