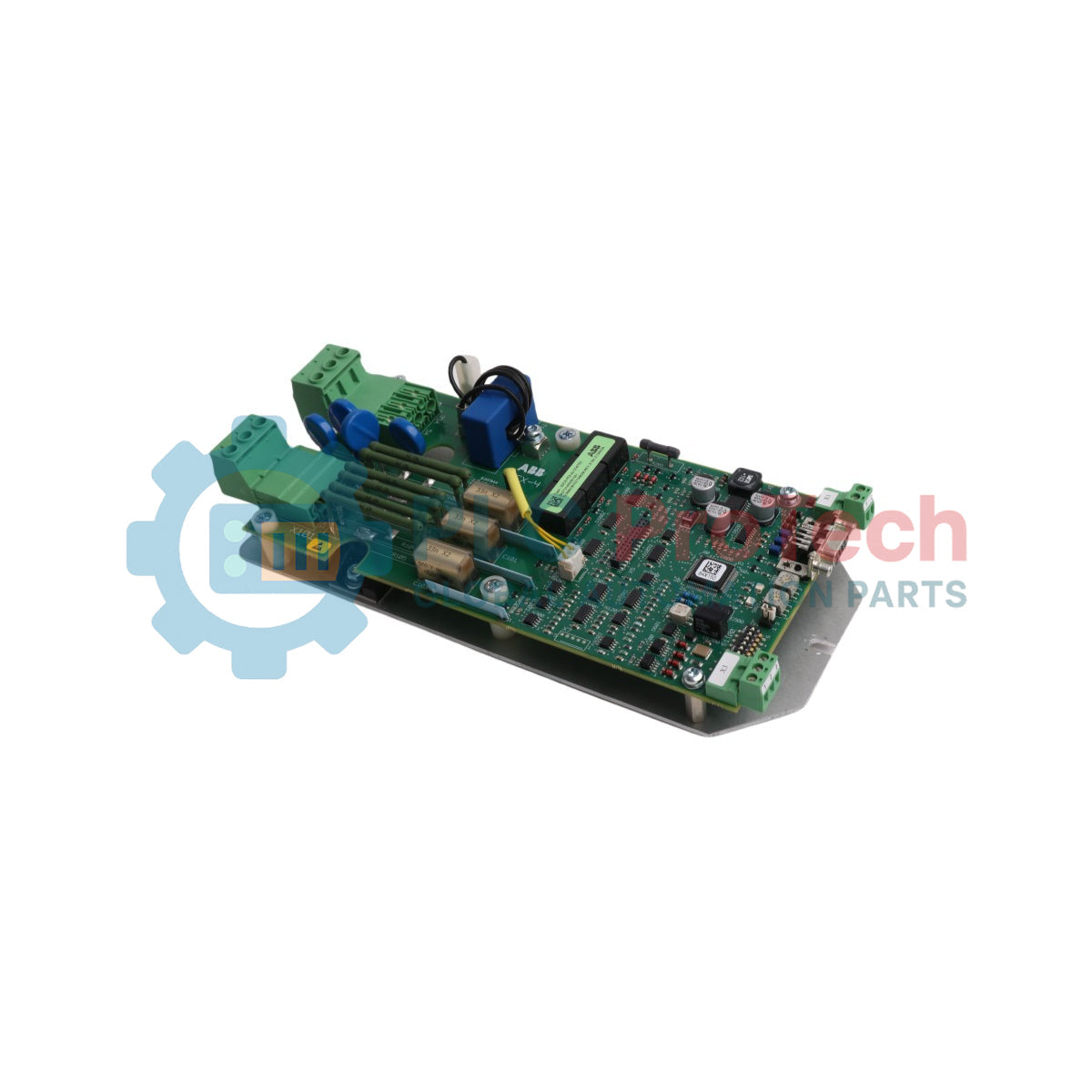

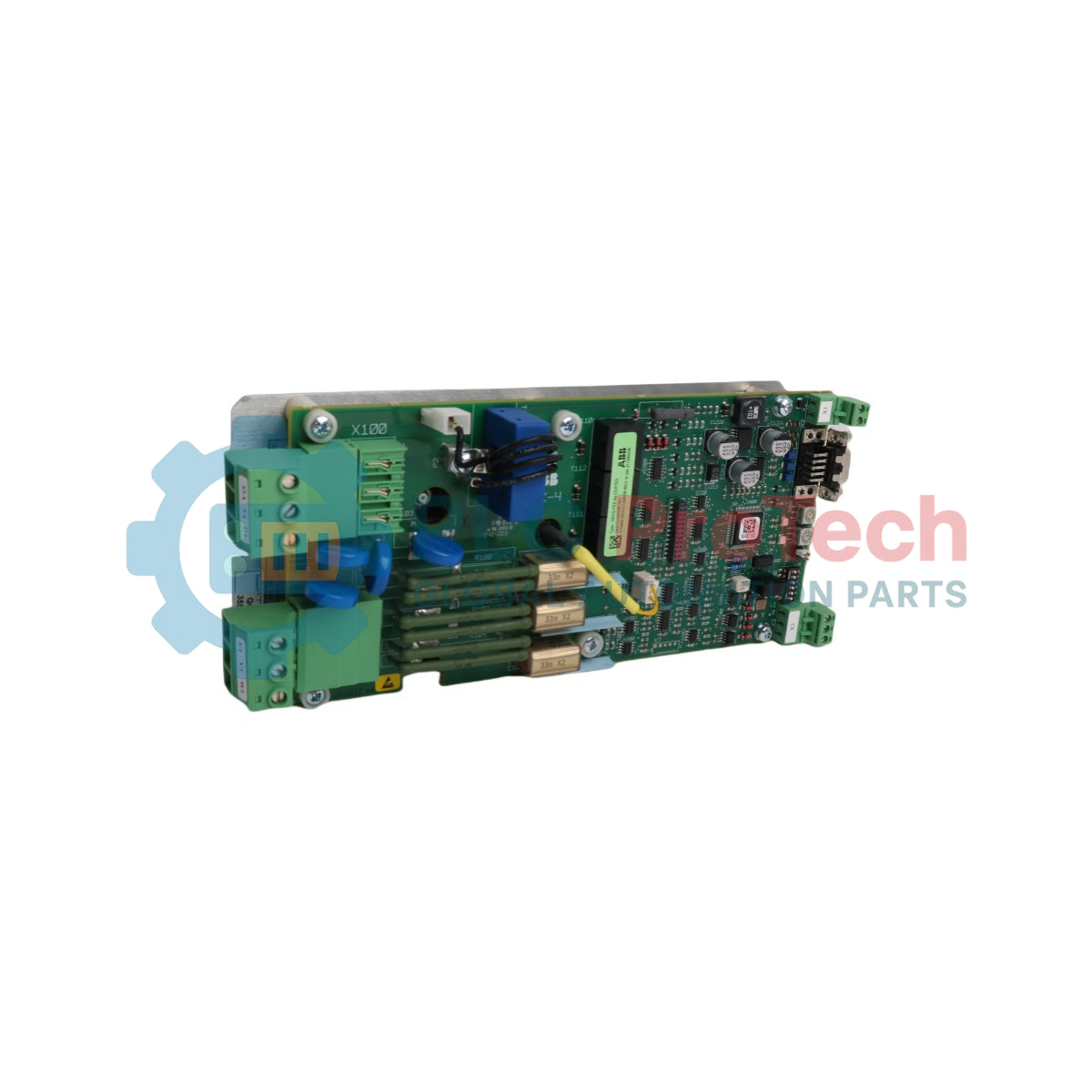

The ABB SDCS-FEX-4A is an integrated internal thyristor bridge assembly engineered to manage commutation and voltage induction paths inside DC drive field topologies. Operating as a dedicated excitation plate, this specialized electronics card provides precise, variable current regulation profiles to individual field winding arrangements, matching dynamic load conditions across low-to-medium-capacity drive frames.
The SDCS-FEX-4A assembly integrates direct firing vector synchronization lines with internal processor paths to provide instantaneous computational current feedback loops. Designated under product identifier 3ADT314500R1501, this internal field exciter module balances supply deviations and thermal drift variances within industrial processing networks, ensuring operational current maintenance and avoiding localized core magnetic degradation.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-FEX-4A |
| Product ID / Order Number | 3ADT314500R1501 |
| Input Voltage Range (U1) | 3-phase, 110 to 500 V AC |
| Maximum Input Current (I1) | 25 A AC |
| Output Voltage Range (U2) | 0 to 500 V DC |
| Maximum Output Current (I2) | 25 A DC |
| Line Frequency (F1) | 50/60 Hz |
| Part Type Status | Original / New |
| Product Net Weight | 0.680 kg |
| Shipping Weight (Calculated) | 0.950 kg |
| Package Dimensions (Calculated) | 255 mm x 120 mm x 50 mm |
The SDCS-FEX-4A plate serves as the direct dimensional and technical successor to legacy internal field exciter versions. It features an integrated 25A maximum loop current framework that must match the configuration offsets parameters inside the core control module. Verify firmware parameters compatibility and cross-check your existing drive ribbon layout before drop-in installation, as improper mapping will limit excitation control fields.

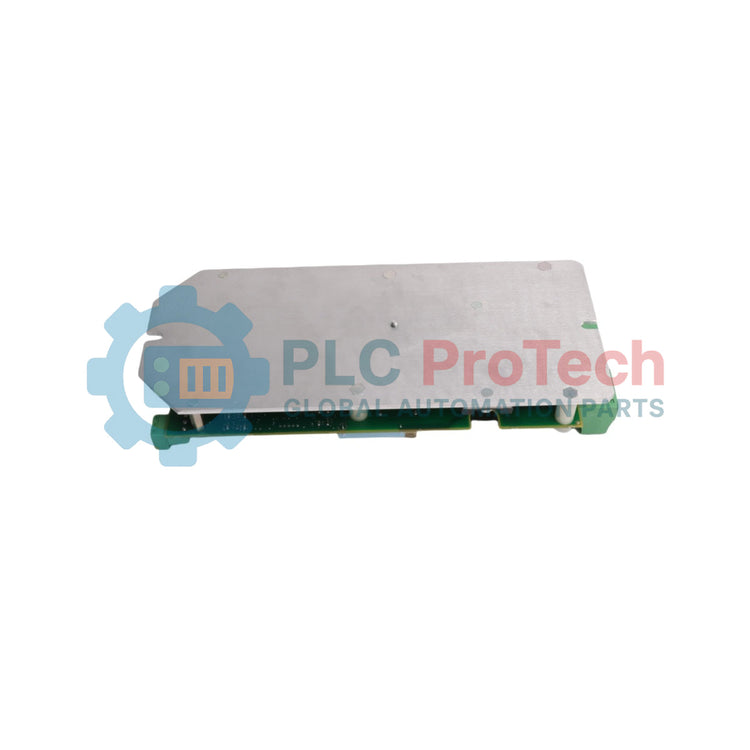

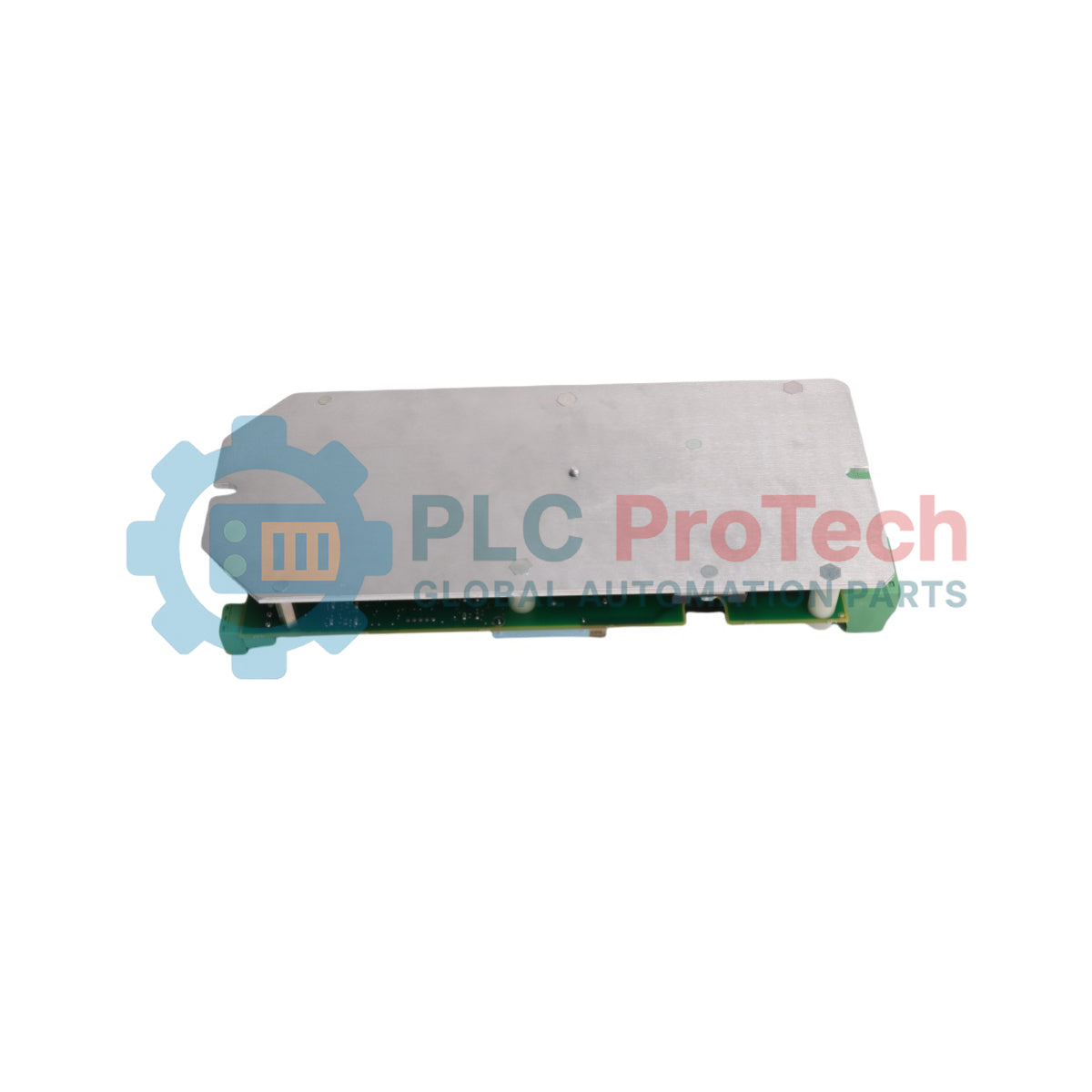

Because this excitation module relies entirely on natural convection through its metal backplate structure, deploying this card in spaces with high surrounding air parameters or clogged cooling paths can induce localized thermal breakdown in the thyristor junction paths. This breakdown frequently triggers irregular induction fields or unexpected field overcurrent trips. Ensure terminal insulation barriers are clear of conductive soot or grease accumulation during routine maintenance.
When replacing this assembly, confirm the auxiliary ribbon cable connector is locked into its matching header slot. Loose pins can lead to missing gate pulses, causing sudden excitation failure or phase imbalances under heavy motor load profiles. Shield all external power cables to the field terminals away from high-noise encoder feedback or data lines to prevent inductive cross-talk.
CRITICAL WARNING: HIGH-VOLTAGE DISCHARGE HAZARD
Isolate all incoming main line supplies, phase connections, and auxiliary control lines feeding the converter unit before starting service. Wait at least 15 minutes for the internal bus network capacitors to drain completely. Use a validated voltage meter to ensure all incoming and field connection terminals are completely de-energized.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: SDCS-FEX-4a
Country of origin:Finland
Product Type: Excitation plate
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 680g
Dimensions: 255 mm x 120 mm x 50 mm
Shipping port: Xiamen
Warranty: 12 months
