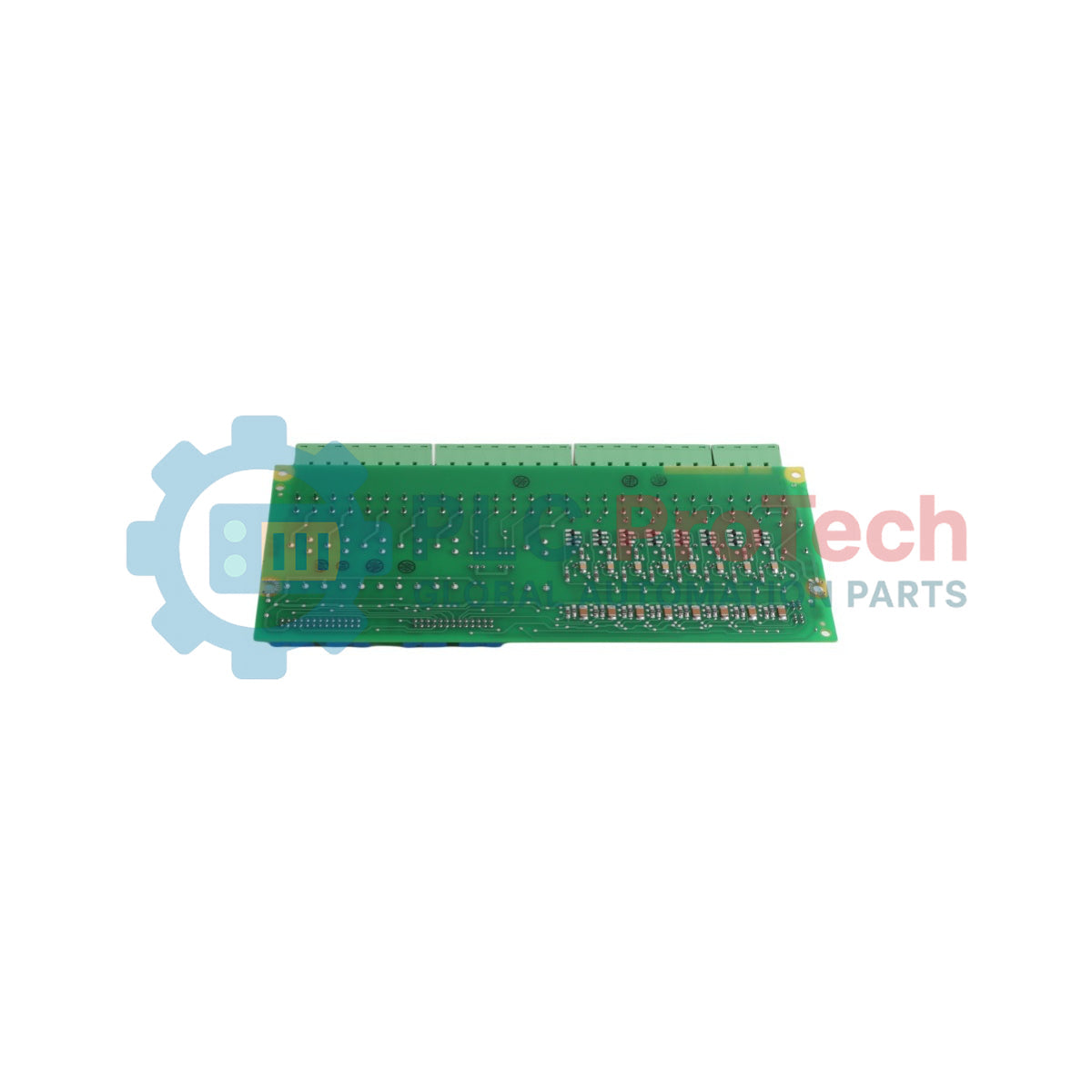

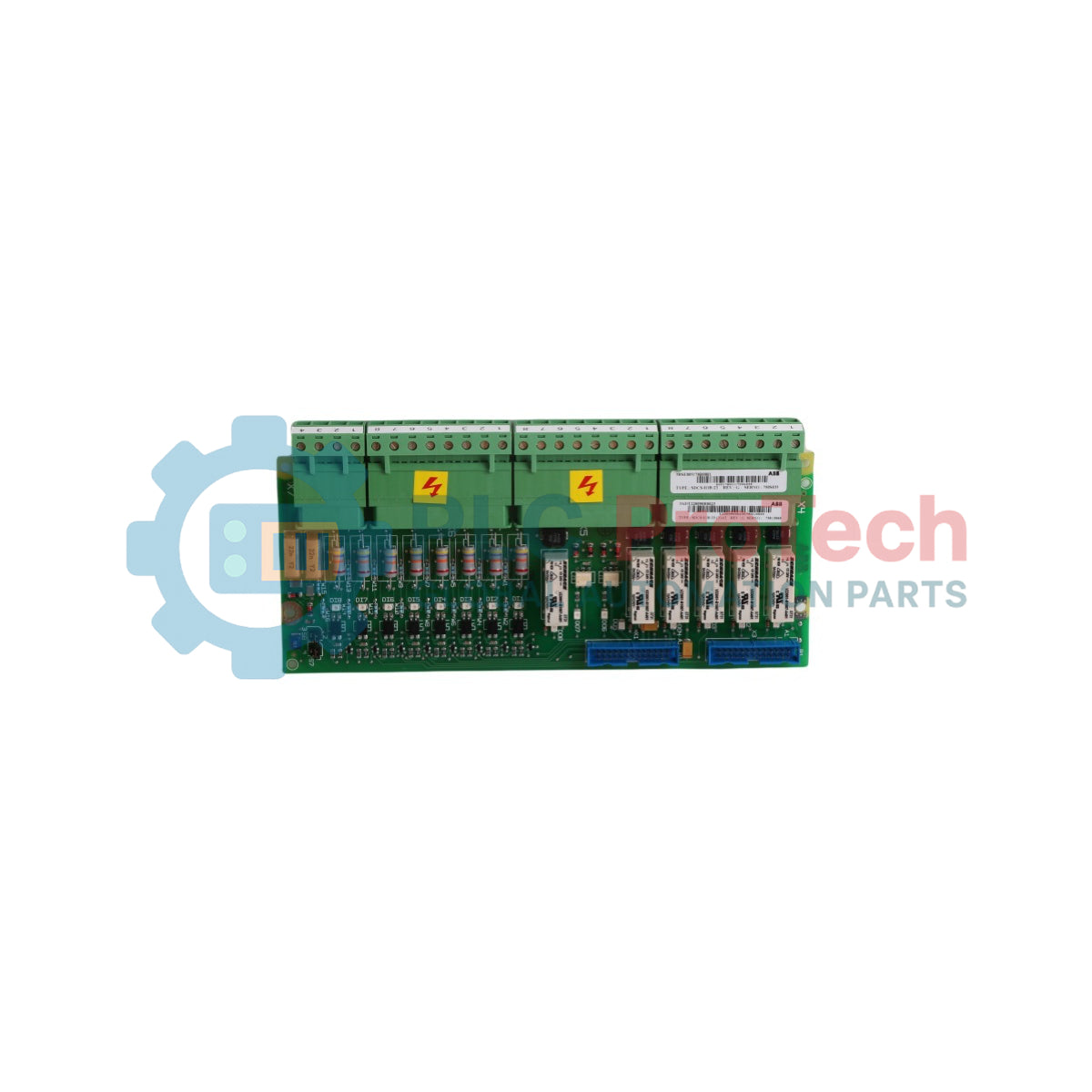

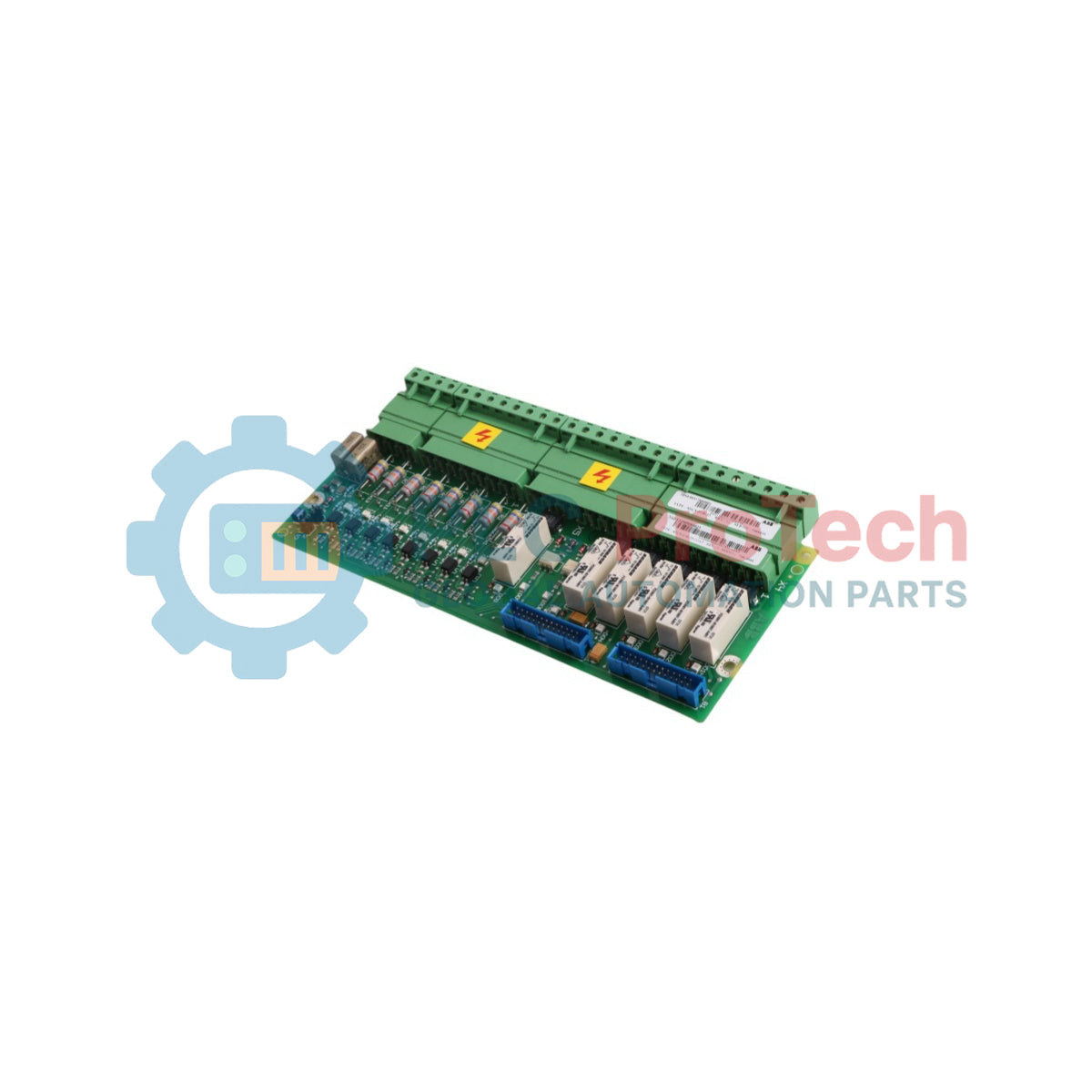

The ABB SDCS-IOB-23 is a dedicated galvanic isolation and hardware interface card engineered for heavy-duty industrial DC power converters within the DCS system portfolio. Operating as a specialized digital I/O board, this device bridges the central control processing unit and external field circuits by filtering, mapping, and managing high-density discrete status indications and alarm inputs.
To safeguard system integrity, the SDCS-IOB-23 utilizes comprehensive multi-channel optocoupler circuits to block high-voltage spikes, transient surges, and earth-loop errors common to rough industrial process units. The architecture interfaces with standard communication backplanes via native ribbon connectors, guaranteeing synchronous binary signal processing and minimizing internal transmission delays. Its high-integrity construction withstands continuous electrical strain, assuring reliable parameter tracking during major commutation adjustments.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-IOB-23 |
| Product ID / Order Number | 3ADT220090R0023 |
| Device Type | Digital I/O Interface Board |
| Frame Size Code | A |
| Customs Tariff Number | 85049090 |
| Harmonized System (HS) Code | 853710 |
| Part Type Status | Original / New |
| Country of Origin | Germany (DE) / Thailand (TH) |
| Product Net Weight | 0.39 kg |
| Shipping Weight (Calculated) | 0.41 kg |
| Package Dimensions (Calculated) | 260 mm x 150 mm x 55 mm |
The SDCS-IOB-23 (3ADT220090R0023) serves as the official, directly backward-compatible upgrade and component replacement for the legacy ABB part identification code 3BSE005178R0001 (or 3BSE005178R1). When substituting an aging 3BSE series board, the form factor and mounting matrix align cleanly with existing control trays; however, field engineers must visually verify the wire terminal assignment matrix to ensure auxiliary wiring lines match exactly.
During live plant modifications, a common source of system failure stems from noise coupling when unshielded flat ribbon cables are run adjacent to primary high-voltage thyristor bridges. To maintain proper operation and avoid erratic trip faults inside the converter control loop, the high-density ribbon links joining the SDCS-CON-4 processor to the interface terminal block must be kept physically separated from three-phase input buses and DC armature conductors.
CRITICAL WARNING: HIGH VOLTAGE ENERGIZATION HAZARD
Completely isolate, disconnect, and lock out the main power source, shunt lines, and independent external digital power inputs before handling the unit. Power converters maintain severe capacitive voltage loads for several minutes following a main switch break. Wait a minimum of 15 minutes for safety discharge loops to bleed down, and execute a cross-terminal check with a certified voltmeter to verify absolute dead-circuit conditions before touching connections.
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: 3ADT220090R0023
Country of origin:Germany,Thailand
Product Type: Digital I/O Board
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 390g
Dimensions: 260 mm x 150 mm x 55 mm
Shipping port: Xiamen
Warranty: 12 months
