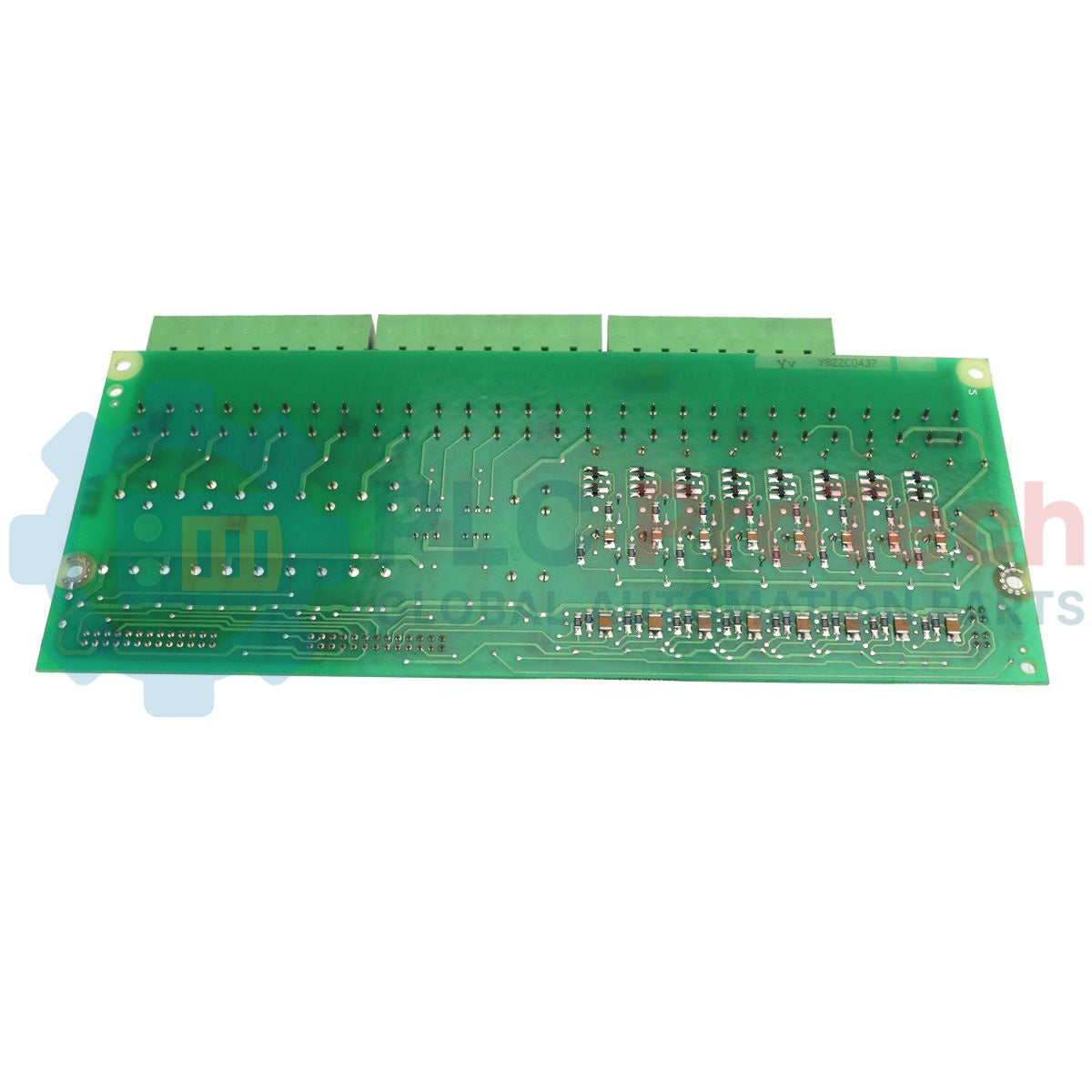

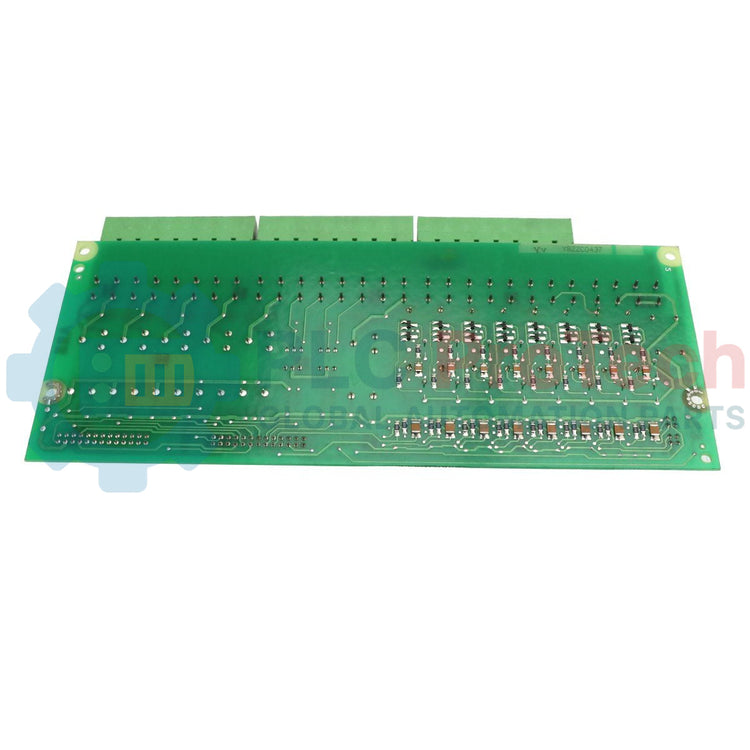

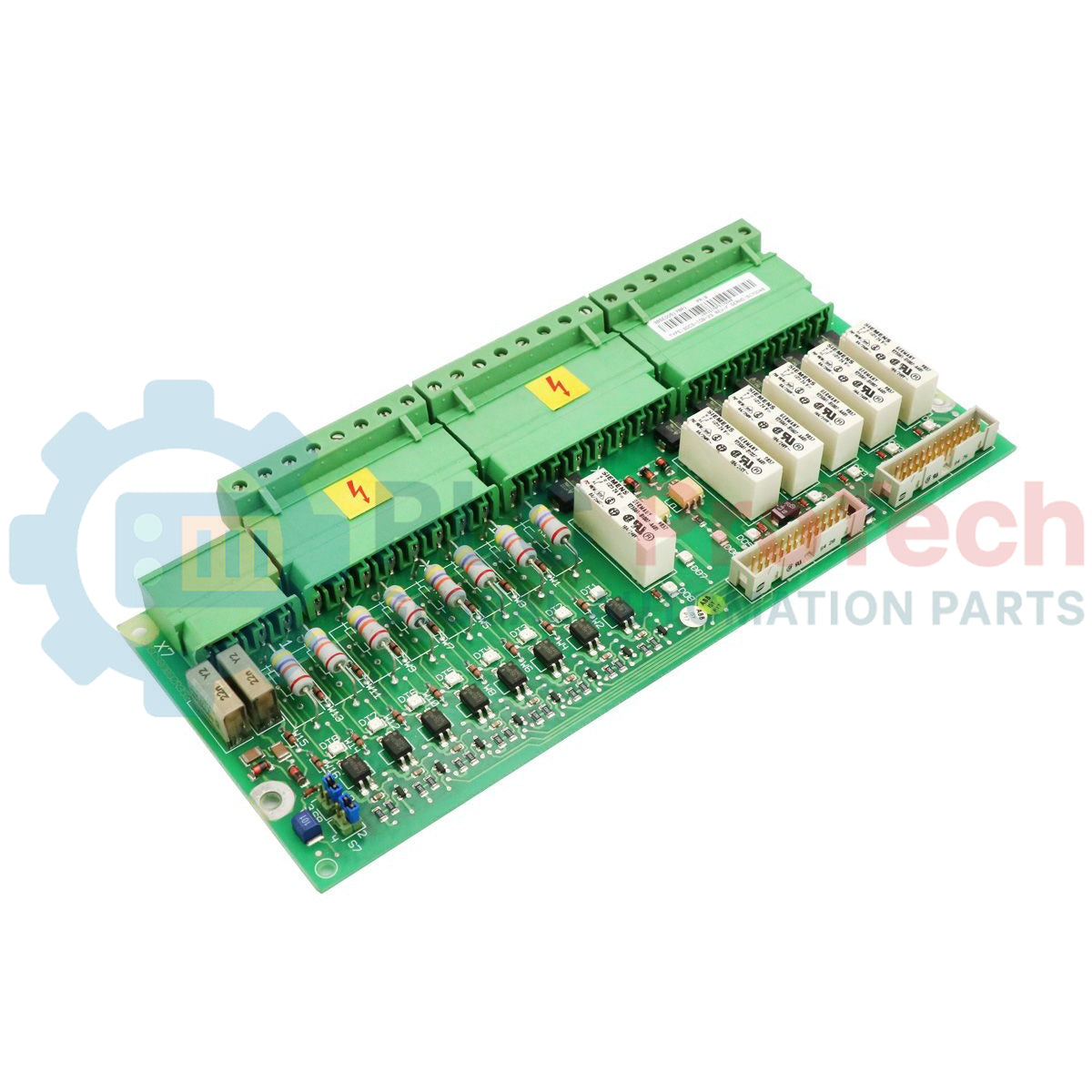

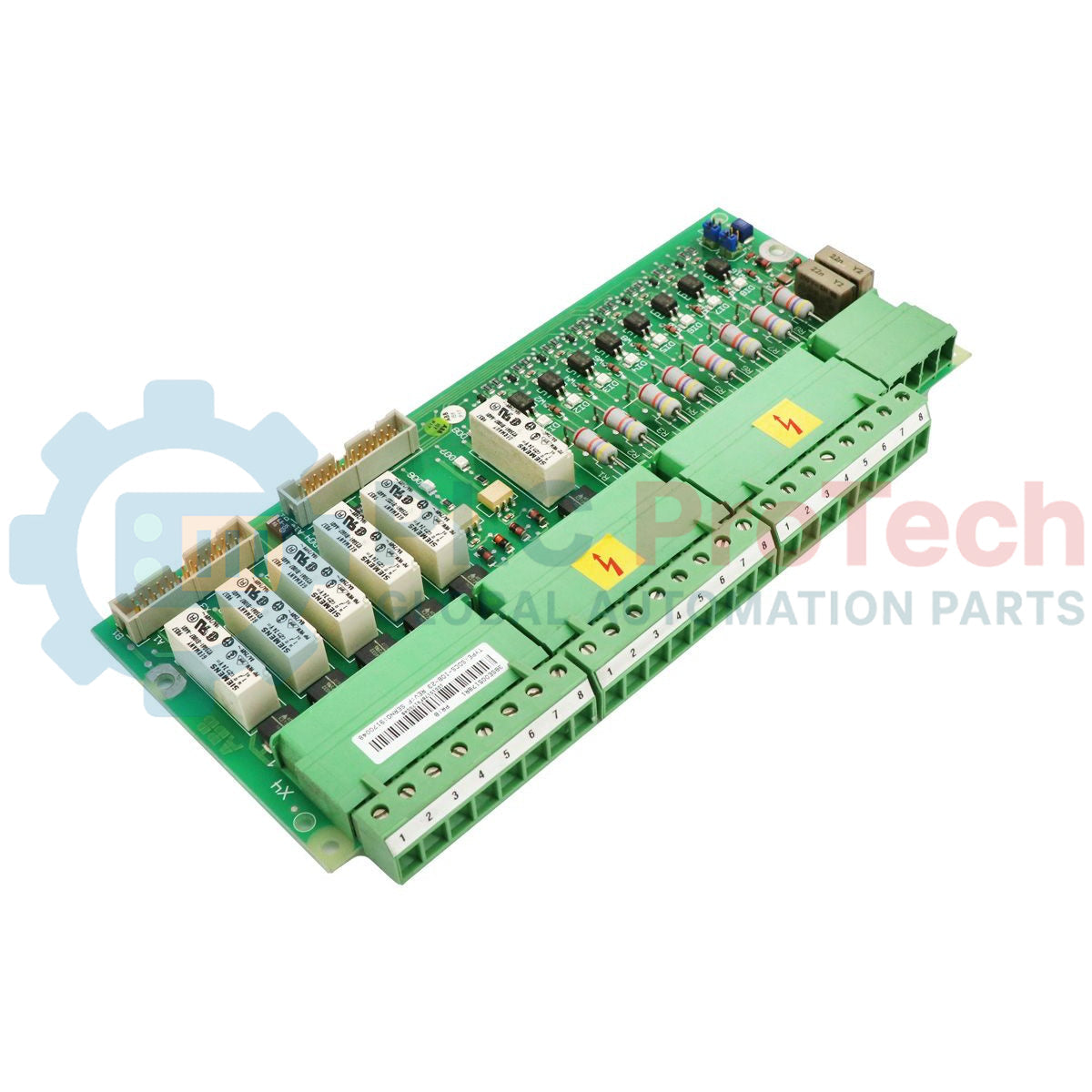

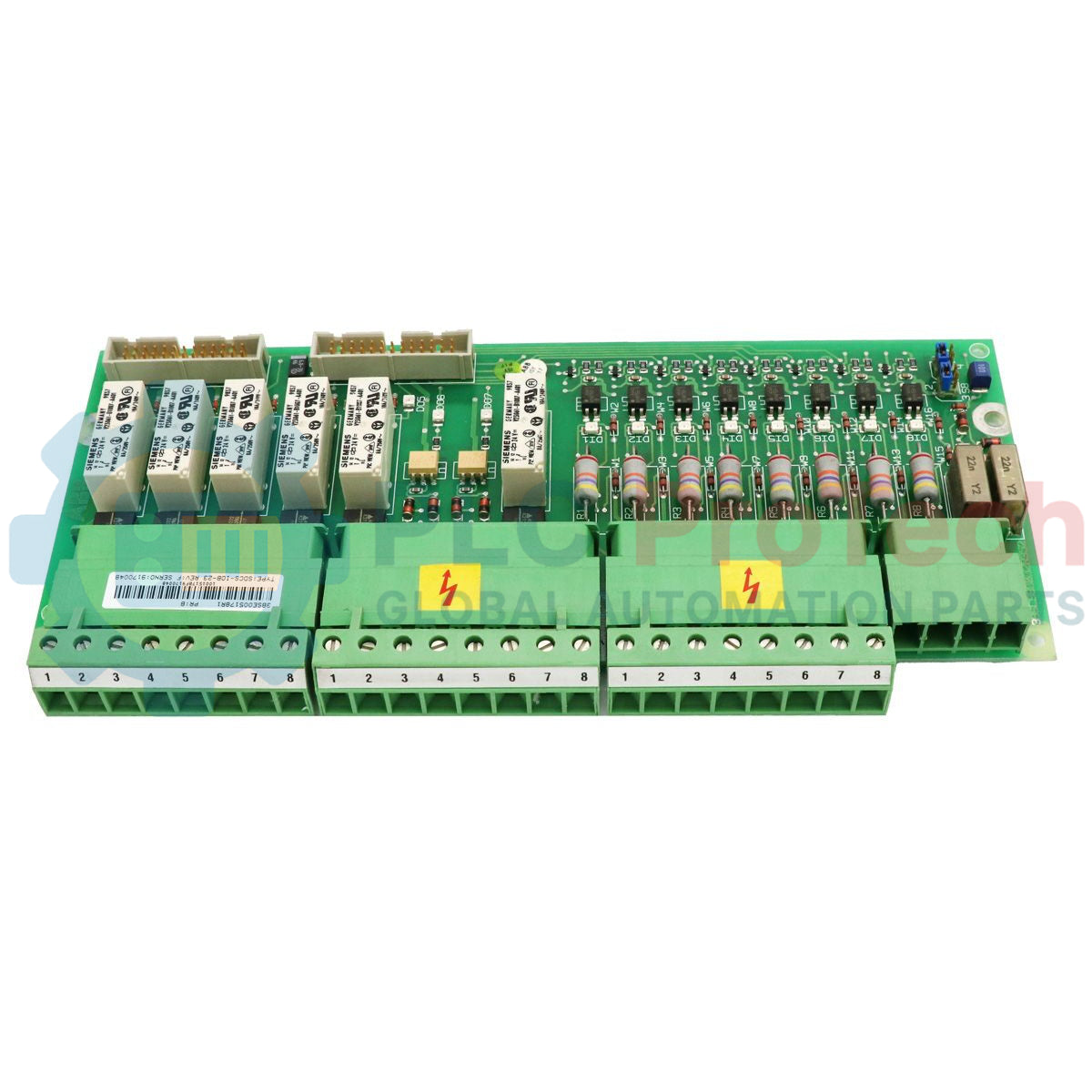

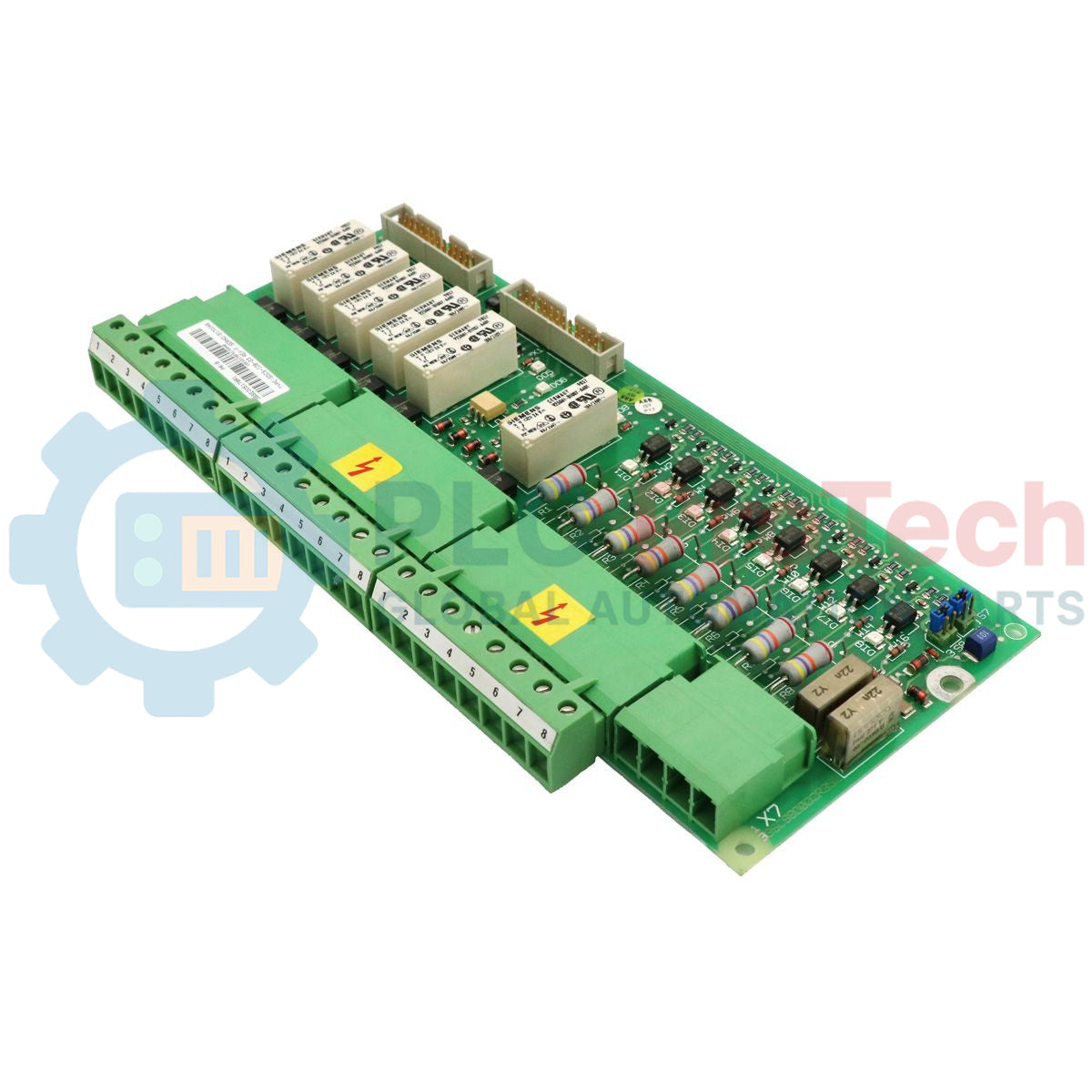

The ABB SDCS-IOB-23 KIT/C is a high-integrity discrete interface assembly engineered for variable speed motor controls and electrical distribution cabinets within the ACS800-X04 system portfolio. Operating as a specialized digital connection board rated for 230V applications, this hardware assembly delivers reliable galvanic isolation and signal conditioning between the primary controller electronics and external field contact circuits.
To maintain stable runtime data tracking in severe industrial layouts, the SDCS-IOB-23 KIT/C features an advanced protective coated circuit architecture that shields components from airborne particulate layout drift and humidity. This comprehensive component kit includes a heavy-duty 3 meter interface cable, allowing for immediate deployment and flexible installation inside separate low-voltage control cubicles. The robust tracking design minimizes binary transmission latency, ensuring continuous logic protection and interlocking safety.
| Parameter | Specification |
|---|---|
| Manufacturer | ABB |
| Model Designation | SDCS-IOB-23 KIT/C |
| Product ID / Order Number | 64349708 |
| ABB Type Designation | Digital connection board, 230V |
| Product Main Type | ACS800-X04 |
| Voltage Rating | 230V |
| Included Accessories | 3 meter cable / Coated board version |
| CN8 Code | 85049099 |
| Customs Tariff Number | 85049090 |
| Part Type Status | Original / New |
| Country of Origin | Finland (FI) |
| Shipping Weight (Calculated) | 1.25 kg |
| Package Dimensions (Calculated) | 320 mm x 240 mm x 85 mm |
CRITICAL WARNING: 230V ELECTROCUTION HAZARD
Isolate, switch off, and lock out all primary and auxiliary 230V control potential voltages feeding this interface terminal grid before starting work. Drive bus capacitors store hazardous potential voltages after main terminal breaks. Wait at least 15 minutes for safety discharge paths to actuate, and use a certified voltmeter to confirm a completely dead electrical state before touching trace layouts or wiring connectors.
