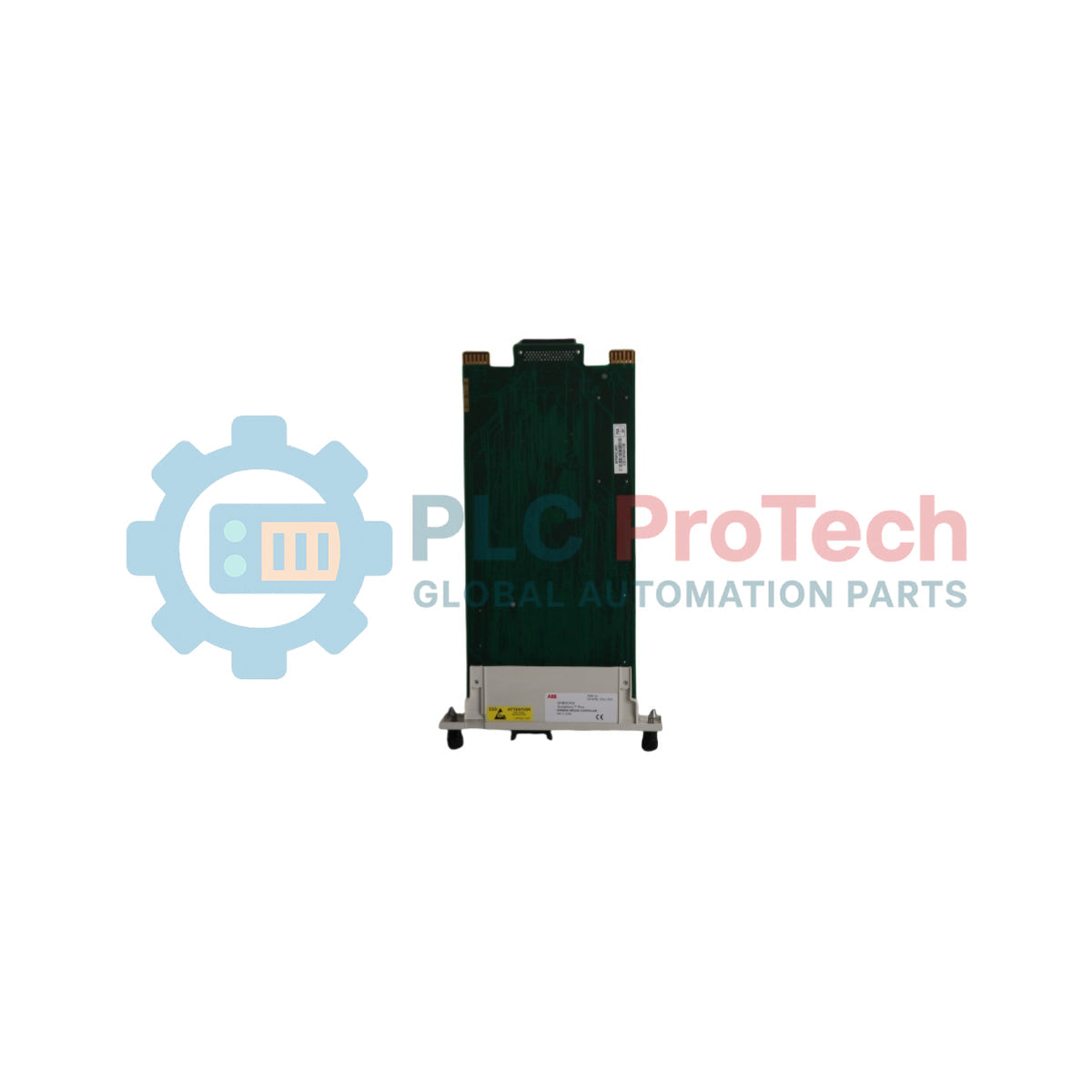

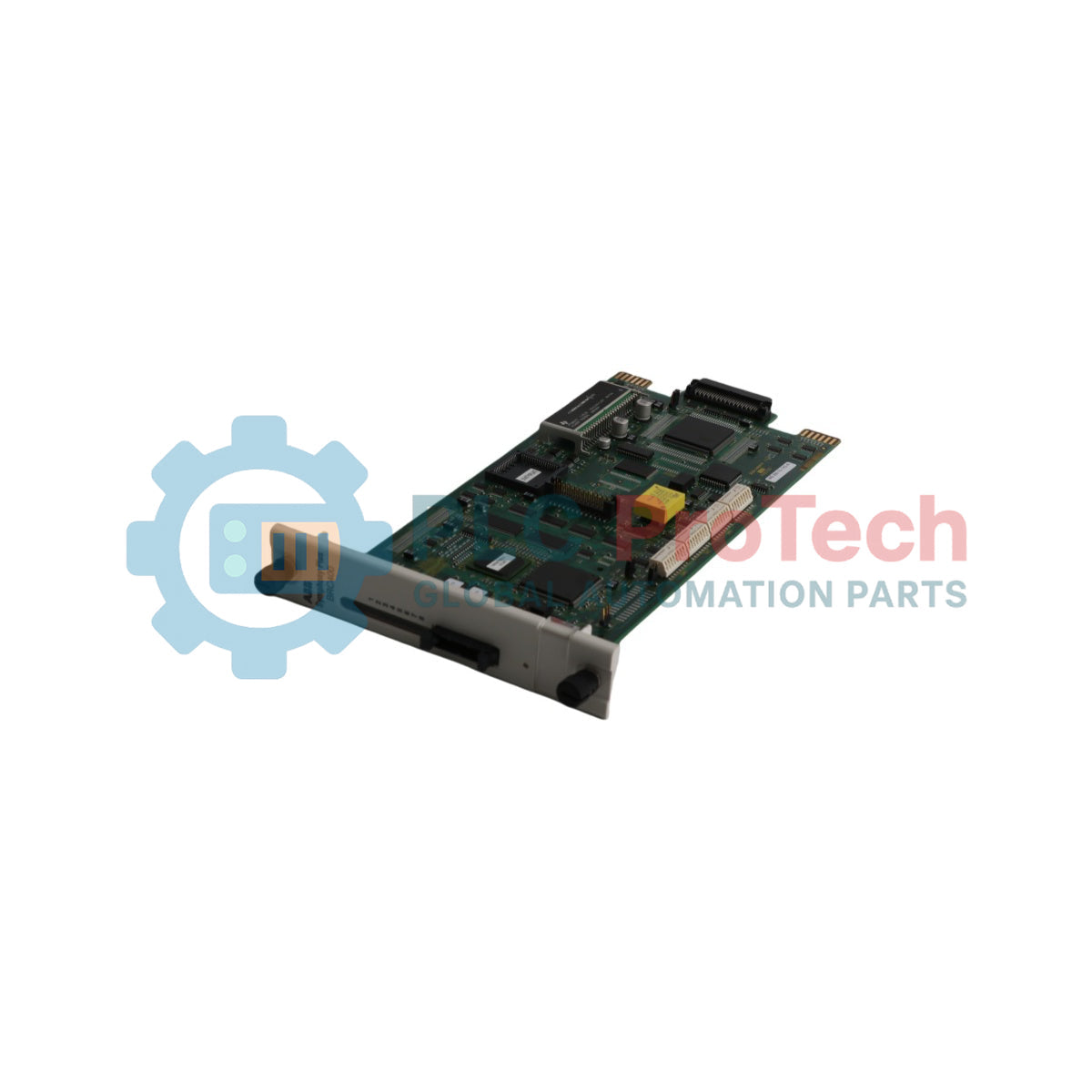

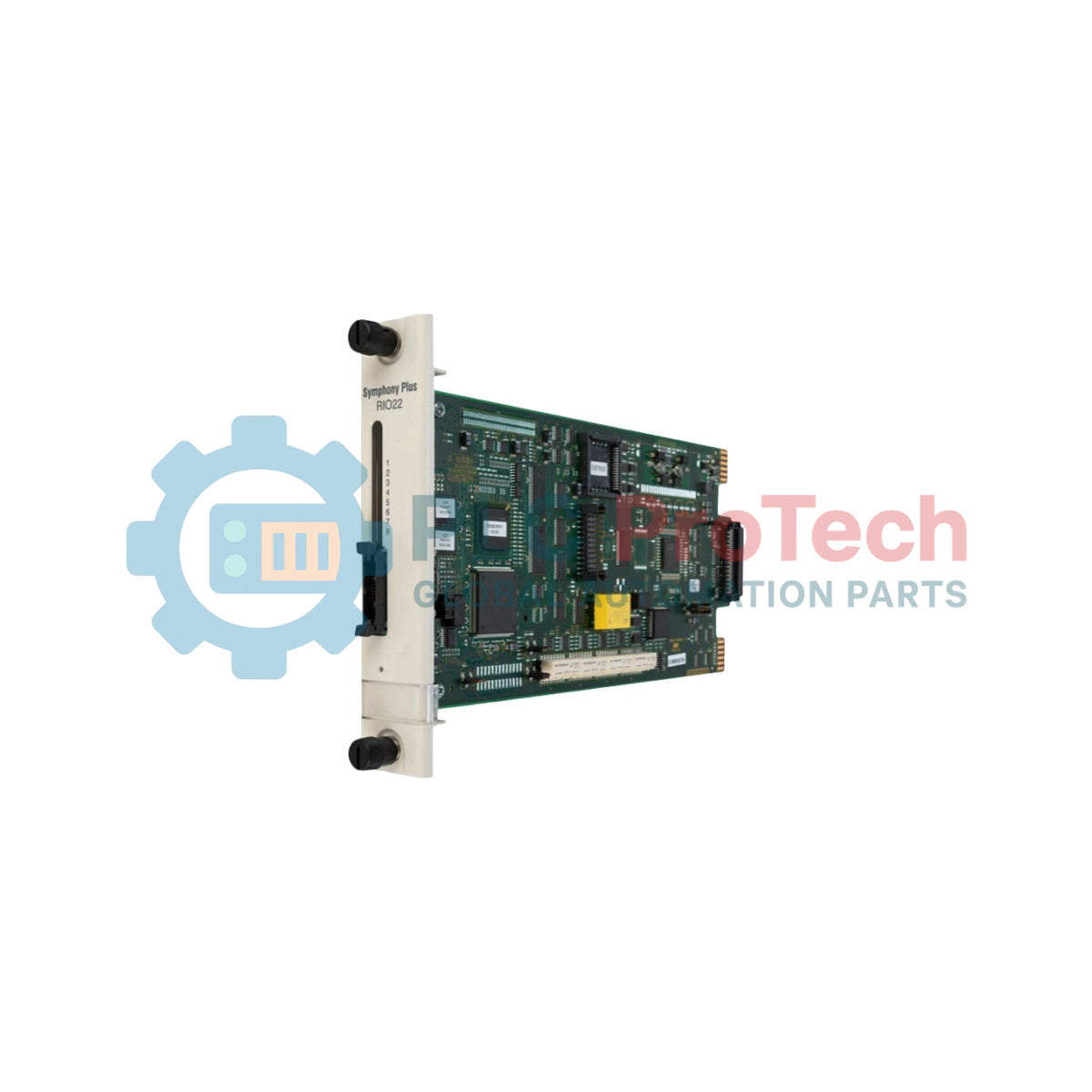

The ABB SPRIO22 is a high-integrity communication interface module designed for the Symphony Plus distributed control system architecture to coordinate distributed subrack grouping. Operating within the HR Series (Harmony Rack) hardware ecosystem, this module manages deterministic data aggregation and multi-node polling between centralized processing units and distant field termination assemblies over dedicated remote networks. By providing a rugged localized bridge on the I/O expander bus, it ensures high-speed, synchronized data transfer across complex power generation and continuous process plants without signal attenuation or loop latency.

Features

• Remote Rack Synchronization: Establishes long-distance communication links to tie localized instrument clusters directly into the master controller backplane.
• Expander Bus Traffic Management: Orchestrates bidirectional signal transactions across the local bus segment to prevent communication data collisions.
• Integrated Power Backup: Equipped with an internal lithium button cell battery to safeguard persistent configuration memory and network node settings during sudden plant blackouts.
• Rugged Hardware Form Factor: Built in a standard 19-inch rack-ready design to withstand heavy electromagnetic fields and thermal stress on the plant floor.
• Fault-Tolerant Isolation: Protects upstream backplane processing lines from field-side electrical surges and dynamic ground potential differences.

Applications

• Wide-area remote input and output expansion enclosures in thermal power stations.
• Distributed utility control networks including long-distance water pipelines and pumping stations.
• Offshore drilling platforms and petrochemical processing fields requiring decentralized hardware layouts.

Technical Specifications

Installation Guidelines
