ABB

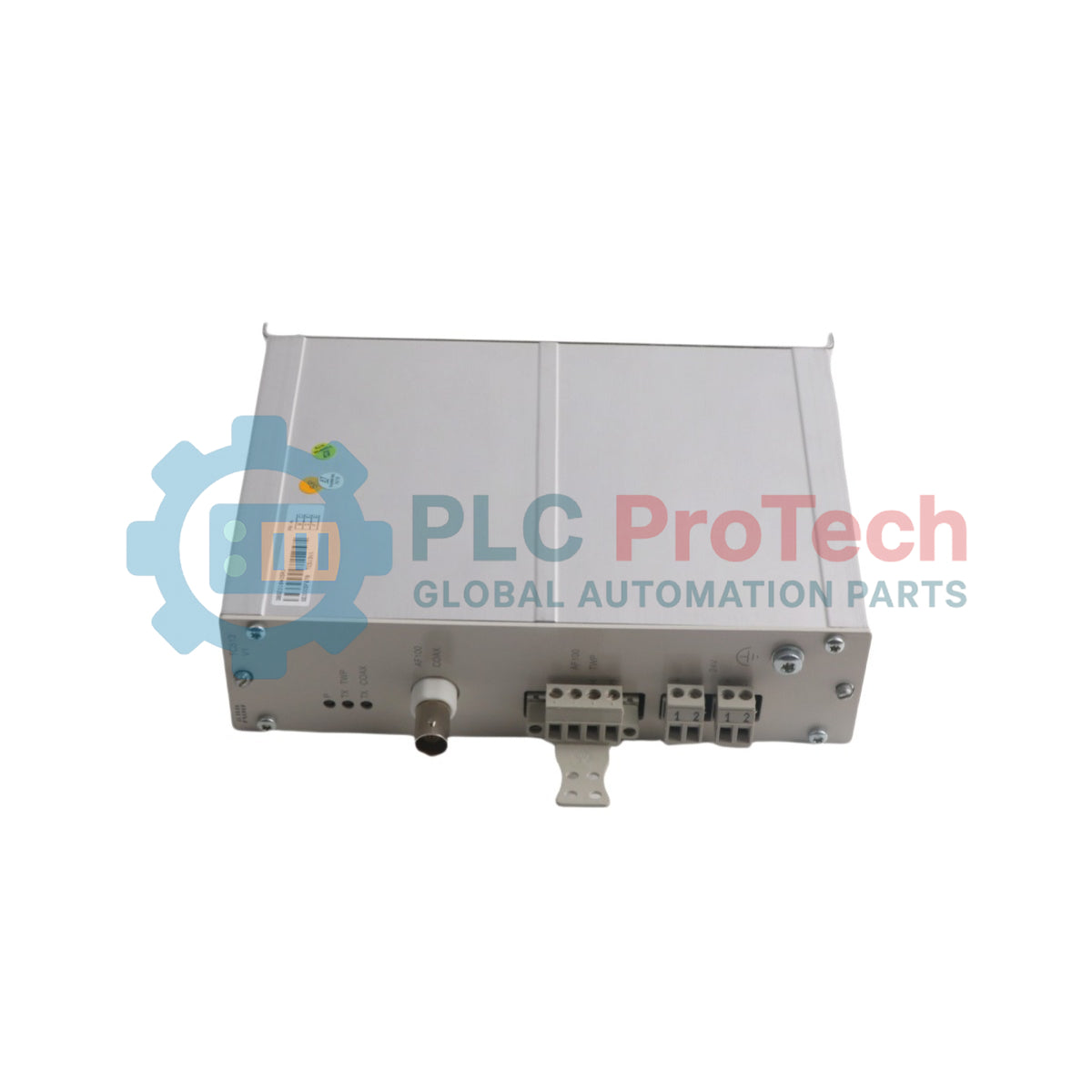

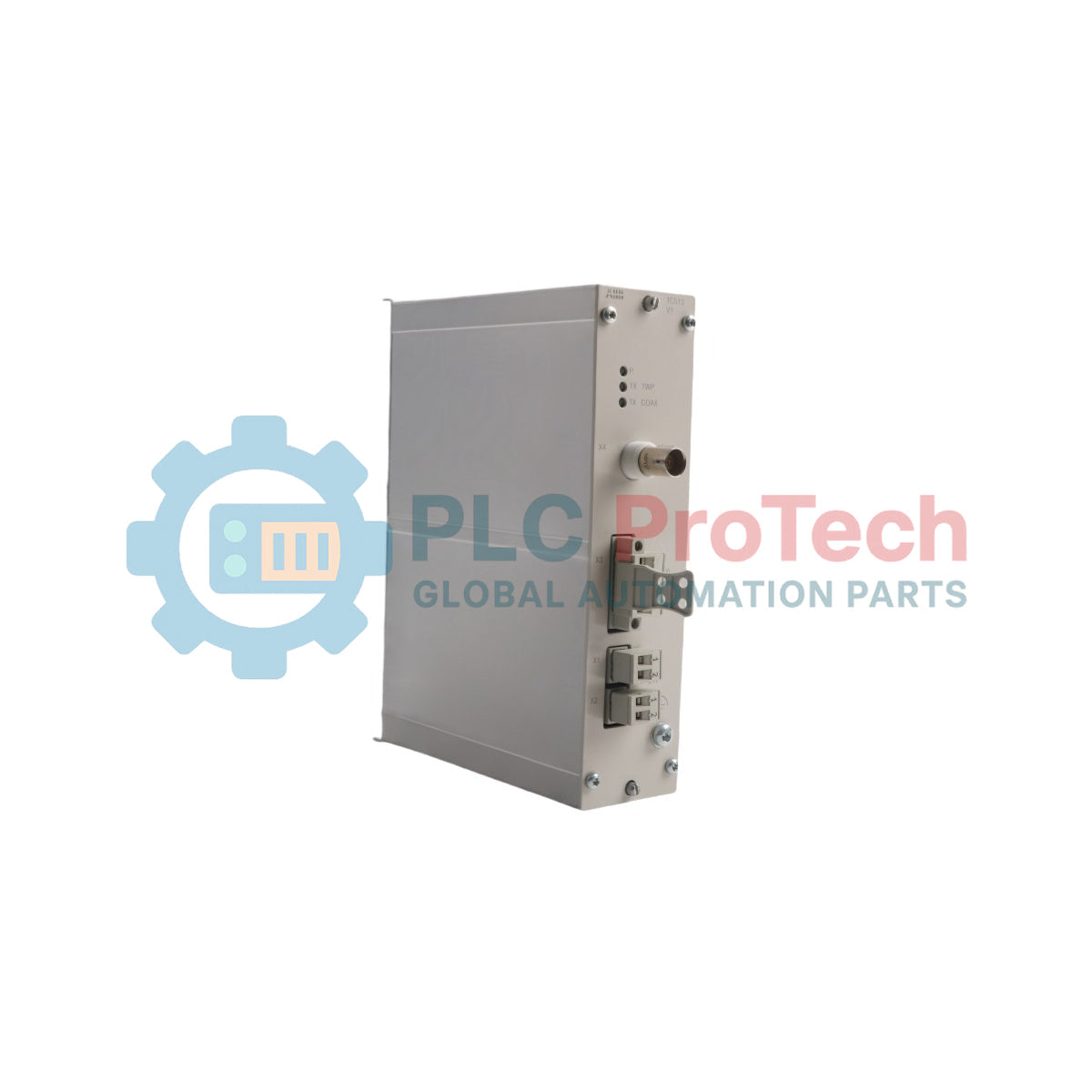

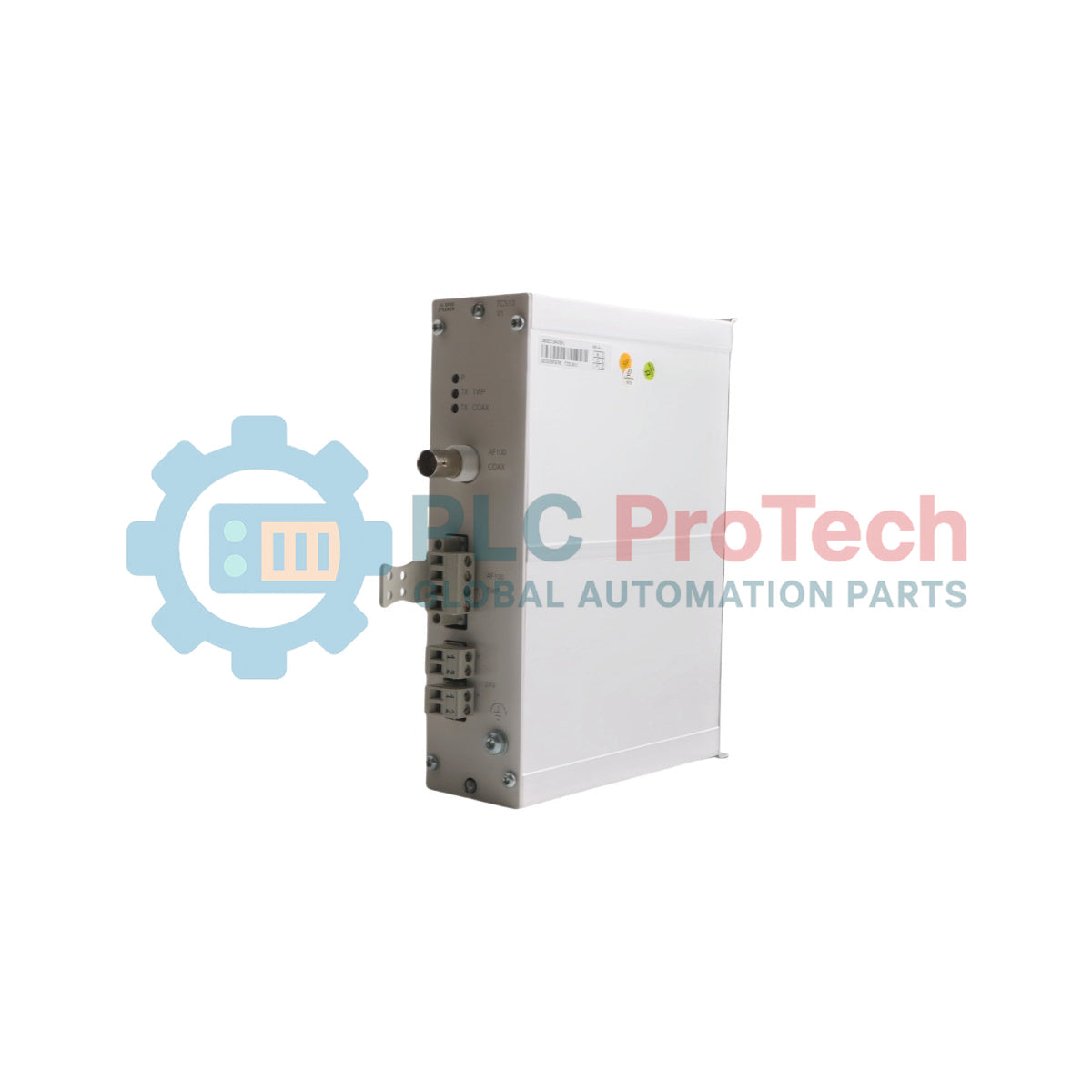

ABB TC513V1 3BSE018405R1 AF100 Twisted Pair Coax Modem

SKU TC513V1 3BSE018405R1

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: ABB
Product No.: TC513V1 3BSE018405R1
Origin Sweden
Product Type: Coaxial Modem
Barcode: 85176200
Payment: T/T, Western Union
Weight: 0.725 kg
Dimensions: 30 mm x 30 mm x 150 mm
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

The ABB 3BSE018405R1 TC513V1 is a high-reliability Advant Fieldbus 100 (AF100) media converter designed for seamless data transmission between twisted pair and coaxial cables in industrial process control environments. This communication module ensures secure, real-time signal conversion across critical network topologies, supporting bidirectional coax-to-twisted pair or twisted pair-to-coax routing configurations.

Key Features

Dual-Media Conversion: Provides reliable interfacing for Advant Fieldbus 100 twisted pair/coax or coax/twisted pair network segments.
Galvanic Isolation: Features a rated isolation voltage of 50V to protect sensitive control hardware from ground loops and electrical noise.
Industrial Power Design: Engineered to operate efficiently on a standard 24V d.c. industrial power supply.
Compact Form Factor: Classified as small equipment with no external dimension exceeding 50 cm, optimizing cabinet space.
RoHS Exemption Compliance: Documented as exempted from the scope of 2011/65/EU (RoHS) under Article 2(4)(c), (e), (f), and (j) provisions.

Applications

ABB System 800xA Integrations: Acts as a critical communication node within S800 I/O 4.0, 4.1, 5.0, and 5.1 systems.
Advant OCS with Master SW: Fully compatible with Advant Controller 160 (Version 2.2), Advant Controller 410 (Version 1.5), Advant Controller 450 (Version 2.3), and Advant Controller 450RMC.
Advant OCS with MOD 300 SW: Deployed in specialized communication networks utilizing AC410 and AC460 controllers.
Engineering Workstations: Interfaces directly with Advant Station 100 Engineering Boards via PCI communication modules.

Technical Specifications

Specification Parameter	Value / Detail
Product ID	3BSE018405R1
ABB Type Designation	TC513V1
Product Type	Communication Module / Media Converter
Network Compatibility	Advant Fieldbus 100 (AF100)
Rated Operational Power	24V d.c.
Rated Isolation Voltage	50V
WEEE Category	Product Category 5 - Small Equipment (No External Dimension More Than 50 cm)
Number of Batteries	0
HS Code / Customs Tariff Number	85176200
Product Net Width	30 mm
Product Net Height	150 mm
Product Net Depth / Length	200 mm
Product Net Weight	0.725 kg
Manufacturer	ABB
Country of Origin	Sweden
Shipping Weight (Calculated)	0.950 kg
Package Dimensions (Calculated)	250 mm x 180 mm x 50 mm

Installation Guidelines

CRITICAL WARNING: De-energize all power distribution sources prior to starting installation or servicing. Working on active systems poses severe risks of electrical shock, device destruction, or unpredicted control network disruption. Verify that the 24V d.c. power line matches rated voltage specifications before completing connections.

Mount the modem securely inside a clean, grounded industrial enclosure, ensuring correct physical vertical orientation to allow efficient heat convection.

Connect the dedicated functional ground system to the designated terminal block to guarantee 50V galvanic isolation integrity and suppress EMI/RFI interference.

Attach the standard 24V d.c. power supply cables, keeping polarity strictly correct to prevent internal fuse degradation.

Terminate the Advant Fieldbus 100 media lines by attaching the coaxial BNC connector and wiring the twisted pair segment. Confirm that proper bus termination resistors are enabled at the physical boundaries of the network loop.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What is the primary function of the TC513V1 module?

It serves as a media converter and modem on an Advant Fieldbus 100 network, executing seamless bidirectional signal conversion between twisted pair and coaxial cabling segments.

What are the input power and isolation ratings for this communication modem?

The module operates on an industrial 24V d.c. power supply and features a rated galvanic isolation of 50V to safeguard network segments.

Which specific ABB control platforms support this module?

It is natively compatible with ABB System 800xA (S800 I/O), Advant OCS with Master SW (including AC160, AC410, and AC450 controllers), and Advant OCS with MOD 300 SW (AC410/AC460).

Is this product compliant with standard EU RoHS directives?

The module is explicitly documented as exempted from the scope of the 2011/65/EU (RoHS) directive under the provisions of Article 2(4)(c), (e), (f), and (j).
