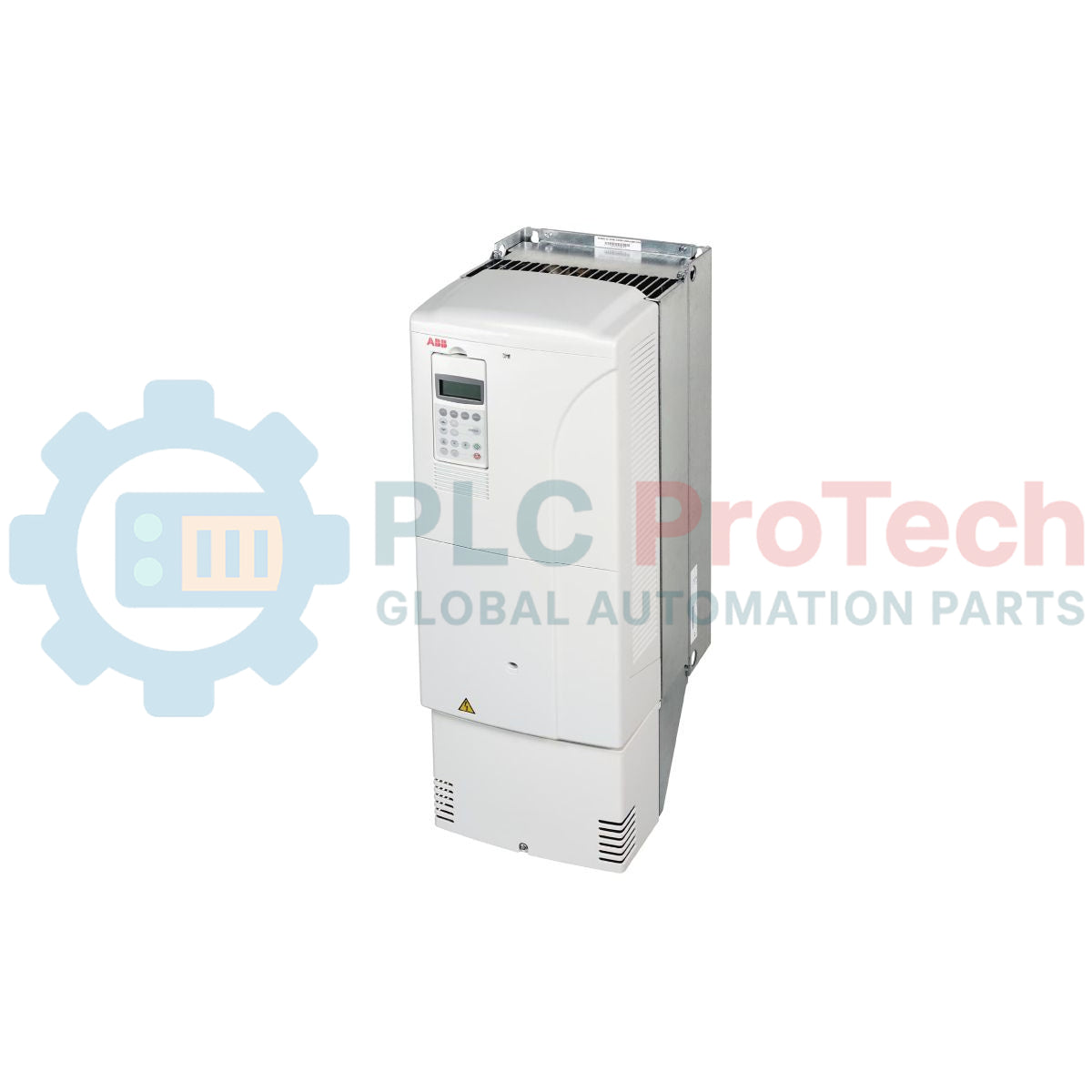

ACS800-01-0011-3 is a high-performance wall-mounted AC drive designed for precise industrial motor control in demanding environments such as oil and gas, power generation, and mining. The drive uses an R3 frame design and supports three-phase input voltages of 380 V, 400 V, and 415 V.
With advanced motor control technology, the ACS800-01-0011-3 improves process reliability while reducing mechanical stress on connected equipment. It is suitable for both variable torque and constant torque applications where stable performance and reduced downtime are critical.
The ACS800-01-0011-3 features a compact high-power-density design with efficient thermal management. Its internal cooling system provides 69 m³/h airflow and supports heat dissipation up to 250 W during operation.
The drive supports both light-overload and heavy-duty operating conditions. It delivers stable performance for industrial AC motor systems ranging from 5.5 kW to 7.5 kW applications.
| Characteristic | Specification |
|---|---|
| Model | ACS800-01-0011-3 |
| Brand | ABB |
| Origin | Finland |
| Nominal Ratings (Icont.max / Pcont.max) | 19 A / 7.5 kW |
| Light-Overload Use (I2N / PN) | 18 A / 7.5 kW |
| Heavy-Duty Use (I2hd / Phd) | 14 A / 5.5 kW |
| Input Voltage (Uin) | 3-Phase 380 V / 400 V / 415 V |
| Frame Size | R3 |
| Heat Dissipation | 250 W |
| Air Flow | 69 m³/h |
| Maximum Current (Imax) | 24 A |
What are the main output ratings of the ACS800-01-0011-3?
The drive provides a continuous output rating of 7.5 kW and 19 A under nominal operating conditions. In heavy-duty applications, it supports 5.5 kW and 14 A output.
Does the ACS800-01-0011-3 support dynamic braking?
Yes. The drive supports resistor braking and can operate with compatible braking resistors such as the SACE15RE22 for high-inertia applications.
What protection requirements are recommended for this drive?
The recommended input protection is a 20 A fuse, including compatible models such as ABB OFAF000H20 (IEC size 000).
Global Express Shipping
Returns & Warranty
Manufacturer: ABB
Product No.: ACS800-01-0011-3
Country of origin:Finland
Product Type: Single Drive Wall-Mounted Module
Barcode: 85044095
Payment: T/T, Western Union
Weight: 1400g
Dimensions: 17.30cm x 47.10cm x 26.50cm
Shipping port: Xiamen
Warranty: 12 months
