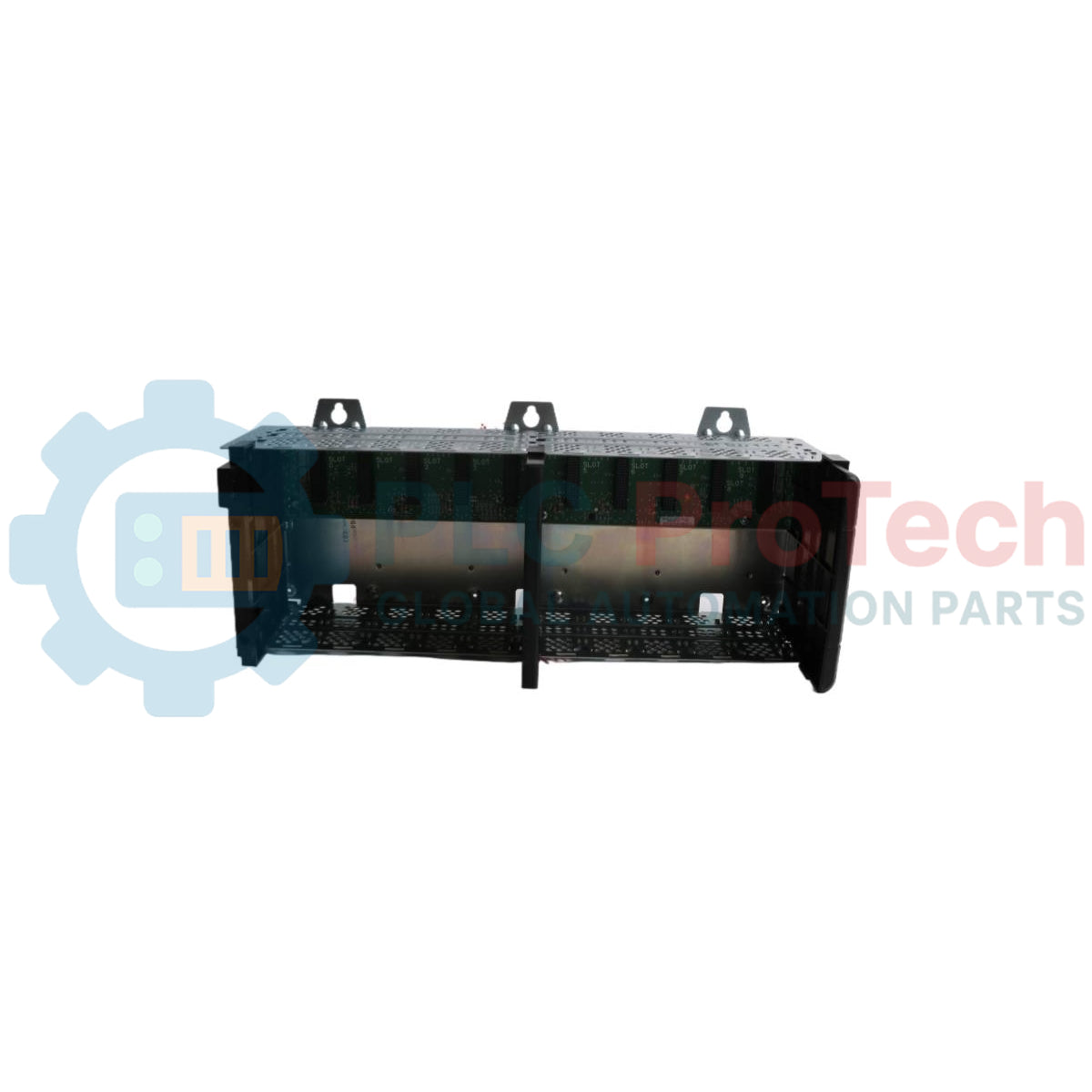

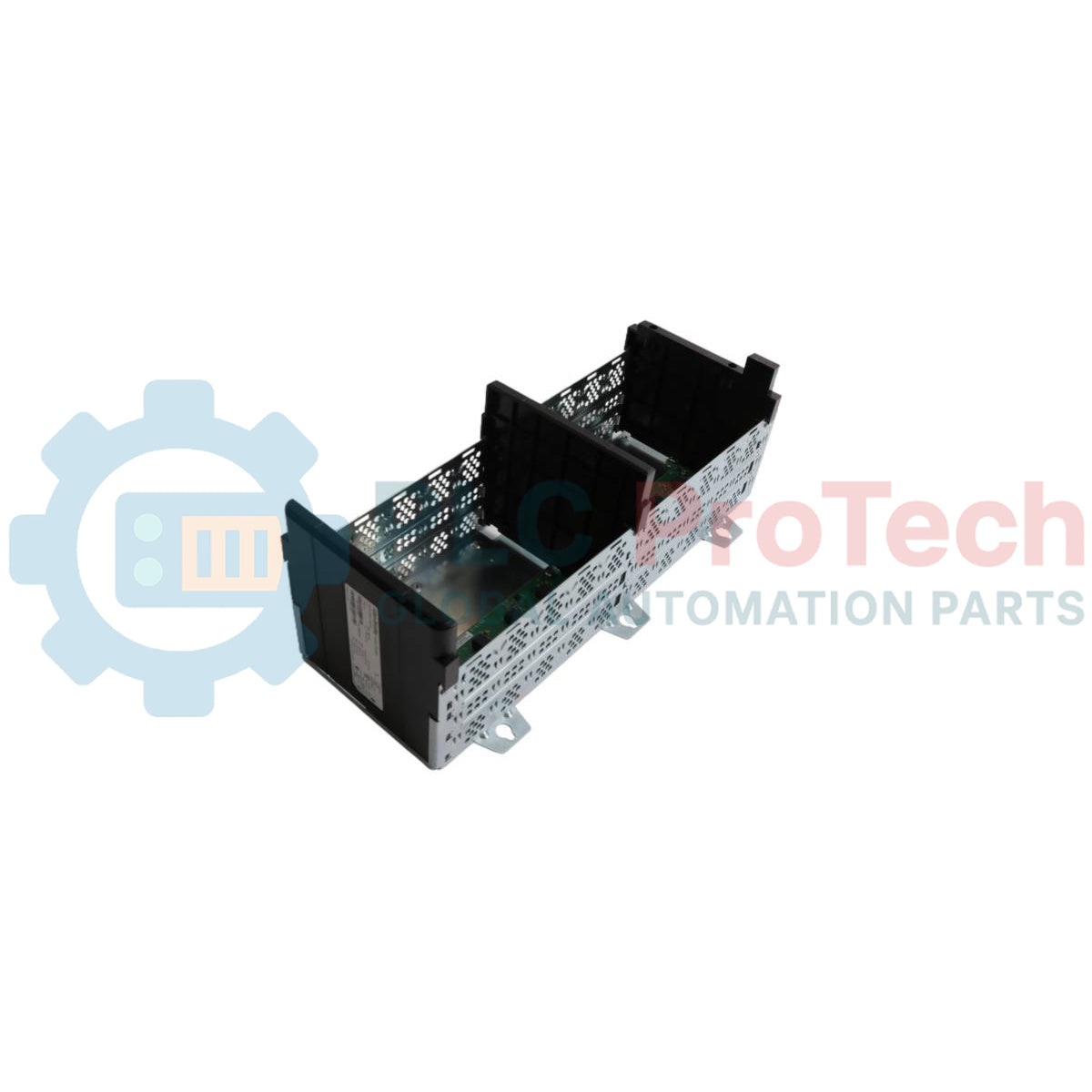

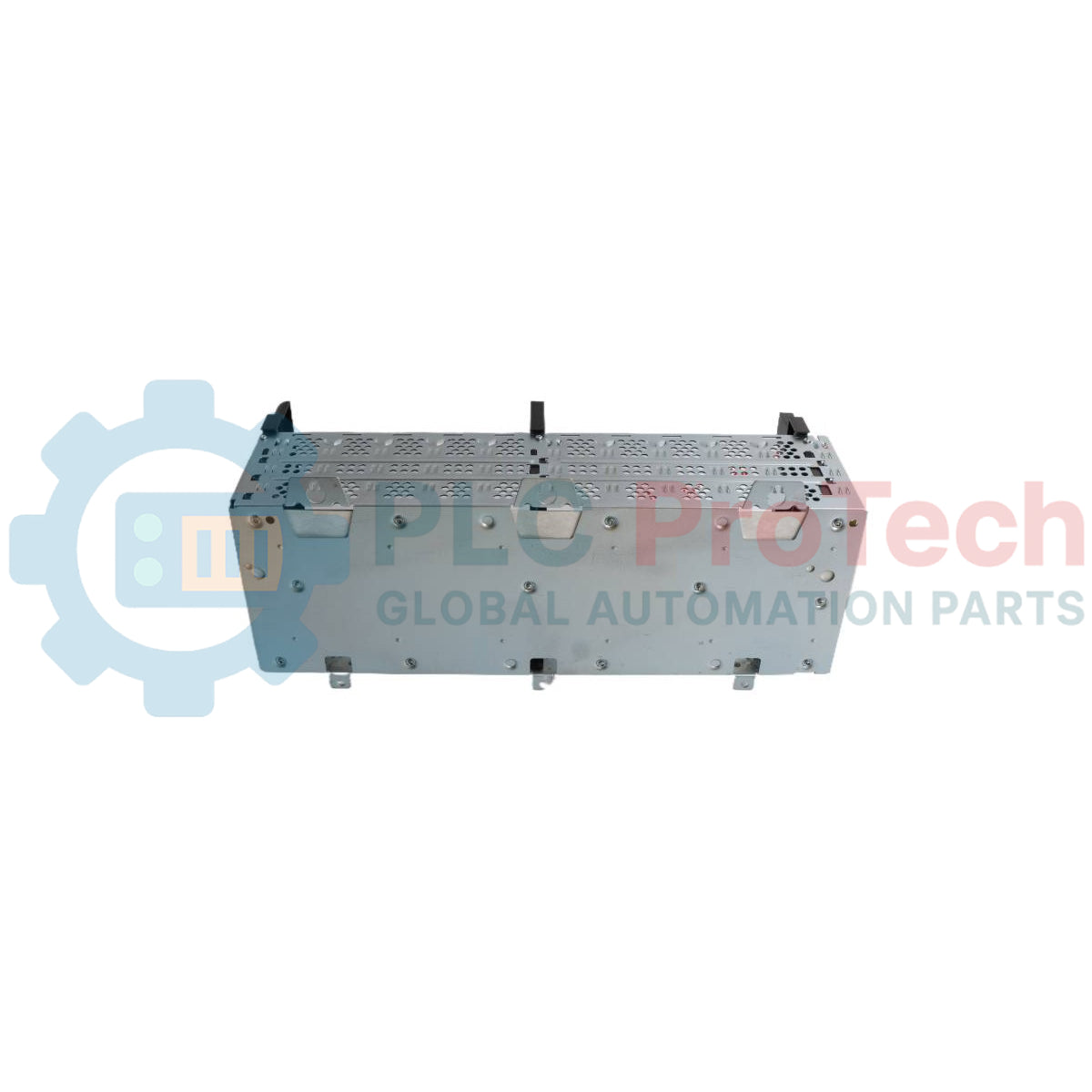

The Allen-Bradley 1756-A10 is a 10-slot chassis designed for horizontal back-panel mounting within a ControlLogix system. It provides a high-speed communication path backplane between installed modules and distributes operational DC power to each card position.
| Attribute | Value |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1756-A10 |
| Number of Slots | 10 |
| Mounting Method | Only horizontal |
| Location | Panel |
| Backplane Current (Max) @ 1.2V DC | 1.5 A |
| Backplane Current (Max) @ 3.3V DC | 4 A / 4 A (chassis/slot) |
| Backplane Current (Max) @ 5.1V DC | 15 A / 6 A (chassis/slot) |
| Backplane Current (Max) @ 24V DC | 2.8 A / 2.8 A (chassis/slot) |
| Power Dissipation (Max) | 5 W |
| Functional Earth Ground Wire Size | 8.3 mm2 (8 AWG) solid or stranded copper wire rated at 90 degC (194 degF) or greater |
| Protective Earth Ground Wire Size | 2.1 mm2 (14 AWG) solid or stranded copper wire rated at 90 degC (194 degF) or greater |
| North American Temperature Code | T5 (Series B), T4 (Series C) |
| IEC Temperature Code | T5 (Series B), T4 (Series C) |
| Enclosure Type Rating | None (open-style) |
| Operating Temperature (Series B) | 0 to +60 degC (32 to +140 degF) |
| Operating Temperature (Series C) | -25 to +60 degC (-13 to +140 degF) |
| Surrounding Air Temperature (Max) | 60 degC (140 degF) |
| Nonoperating Temperature | -40 to +85 degC (-40 to +185 degF) |
| Relative Humidity | 5 to 95% noncondensing |
| Operating Vibration | 2 g @ 10 to 500 Hz |
| Operating Shock | 30 g |
| Nonoperating Shock | 50 g (Series B), 30 g (Series C) |
| Minimum Cabinet Size (HxWxD) | 50.8 x 71.1 x 20.3 cm (20 x 28 x 8 in.) |
| Weight (Approx.) | 1.45 kg (3.2 lb) |
