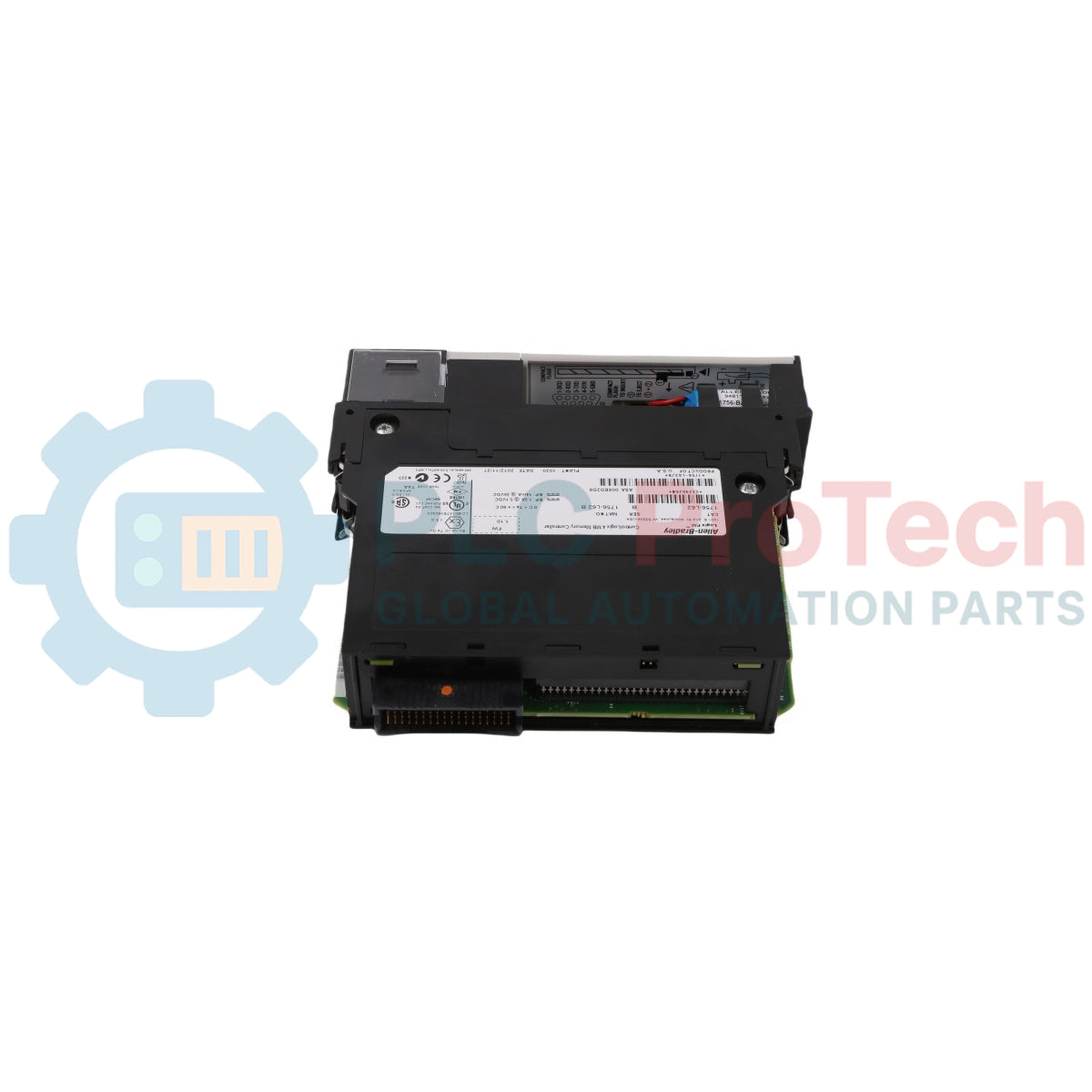

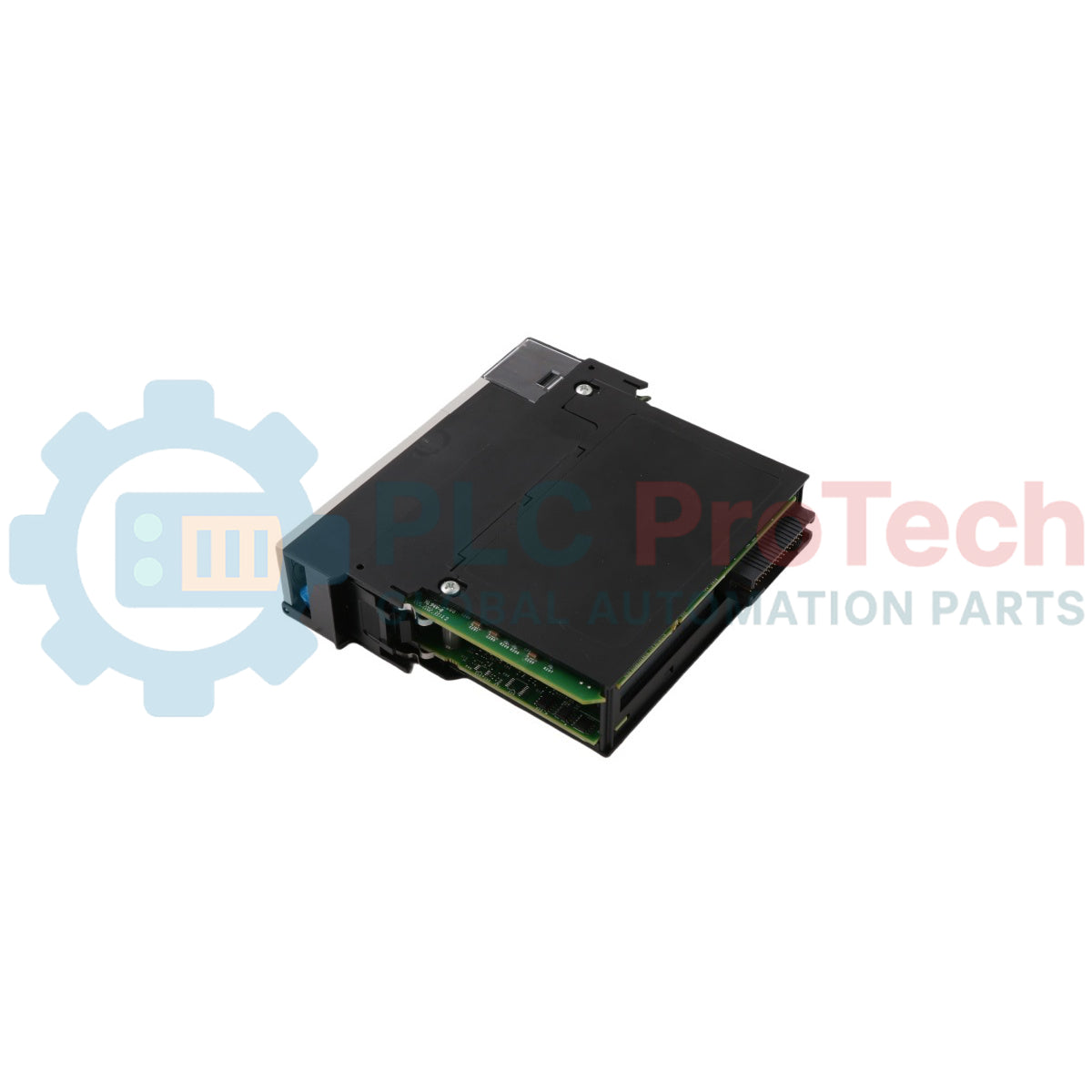

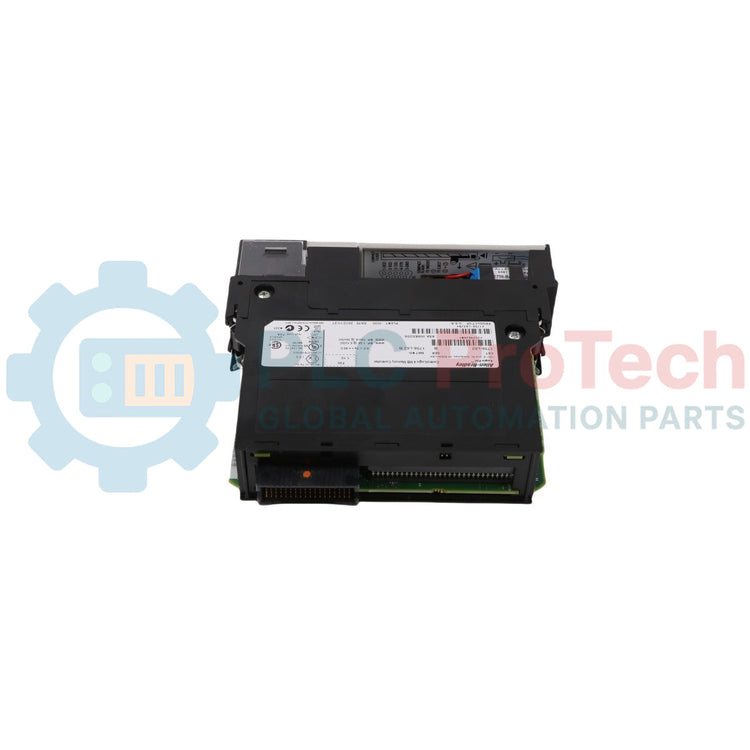

The Allen-Bradley 1756-L62S is a safety controller belonging to the GuardLogix family designed for integrated safety and standard control applications within ControlLogix systems. Featuring 4 MB of standard user memory and 2 MB of safety memory, the 1756-L62S provides dual-controller architecture capability when paired with a safety partner module to achieve high-integrity functional safety. The unit includes one built-in RS232 local programming port for direct communication, configuration, and diagnostics. It supports up to 100 motion axes for complex motion control tasks across automated industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1756-L62S |
| Product Type | GuardLogix Safety Controller |
| Standard Memory | 4 MB |
| Safety Memory | 2 MB |
| Local Programming Port | 1 RS232 |
| Embedded Network Port | None |
| Motion Axis Supported | 100 |
| Replacement Battery | 1756-BA2 |
| Country of Origin | United States of America |
| Connector Pin | Function |
|---|---|
| 1 | DCD (Data Carrier Detect) |
| 2 | RXD (Receive Data) |
| 3 | TXD (Transmit Data) |
| 4 | DTR (Data Terminal Ready) |
| 5 | GND (Signal Ground) |
| 6 | DSR (Data Set Ready) |
| 7 | RTS (Request to Send) |
| 8 | CTS (Clear to Send) |
| 9 | NC (Not Connected) |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 1756-L62S
Country of origin:United States
Product Type: Safety Controller Module
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 350g
Dimensions: 145 x 35 x 130 mm (W x H x D)
Shipping port: Xiamen
Warranty: 12 months
The Allen-Bradley 1756-L62S is a safety controller belonging to the GuardLogix family designed for integrated safety and standard control applications within ControlLogix systems. Featuring 4 MB of standard user memory and 2 MB of safety memory, the 1756-L62S provides dual-controller architecture capability when paired with a safety partner module to achieve high-integrity functional safety. The unit includes one built-in RS232 local programming port for direct communication, configuration, and diagnostics. It supports up to 100 motion axes for complex motion control tasks across automated industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley / Rockwell Automation |
| Model | 1756-L62S |
| Product Type | GuardLogix Safety Controller |
| Standard Memory | 4 MB |
| Safety Memory | 2 MB |
| Local Programming Port | 1 RS232 |
| Embedded Network Port | None |
| Motion Axis Supported | 100 |
| Replacement Battery | 1756-BA2 |
| Country of Origin | United States of America |
| Connector Pin | Function |
|---|---|
| 1 | DCD (Data Carrier Detect) |
| 2 | RXD (Receive Data) |
| 3 | TXD (Transmit Data) |
| 4 | DTR (Data Terminal Ready) |
| 5 | GND (Signal Ground) |
| 6 | DSR (Data Set Ready) |
| 7 | RTS (Request to Send) |
| 8 | CTS (Clear to Send) |
| 9 | NC (Not Connected) |
