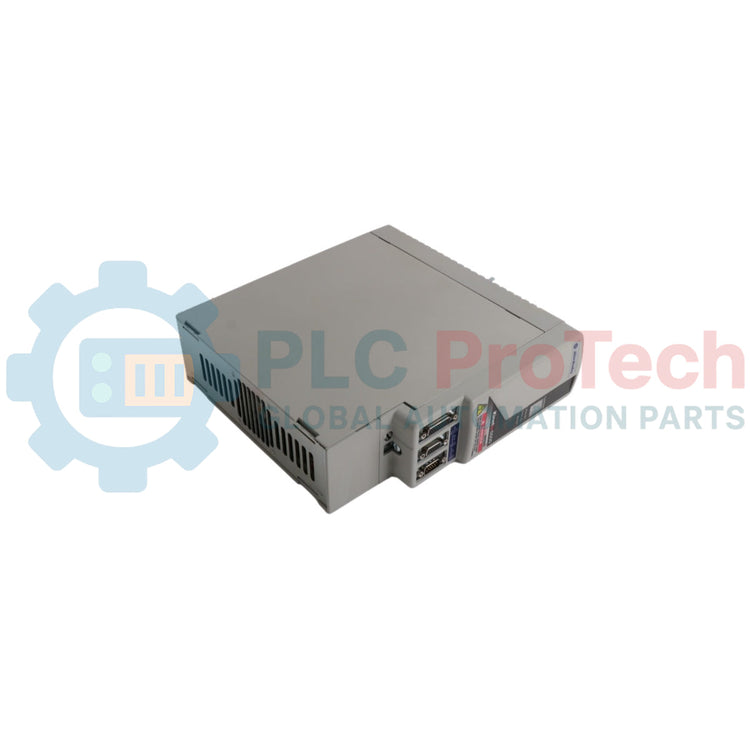

Allen-Bradley 2094-BM01-S Kinetix 6500 Multi-axis EtherNet/IP Servo Drive

SKU 2094-BM01-S

Disponibile

12-month warranty
Free returns within 30 days

Manufacturer: Allen-Bradley
Product No.: 2094-BM01-S
Origin United States
Product Type: Multi-axis EtherNet/IP Servo Drives
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 2.49 kg
Dimensions: 287 mm x 70 mm x 272 mm (H x W x D)
Shipping port: Xiamen
Warranty: 12 months

Product Documentation

Technical Datasheet (PDF) Complete specifications and technical drawings.

Quantità

Call sales Contact

Product Description

Description

2094-BM01-S is a multi-axis servo drive designed for the Kinetix 6500 motion control platform. It operates as a 480 V servo inverter with a nominal output current of 8.6 A, providing integrated motion capability for EtherNet/IP-based machine control systems.

The drive is intended for modular multi-axis architectures where coordinated motion and network integration are required. According to the supplied product datasheet, the Kinetix 6500 Multi-axis EtherNet/IP Servo Drives provide machine flexibility and functionality when combined with high-performance integrated motion over an EtherNet/IP network. Available options include safe speed monitoring and safe torque-off. The modular design supports future machine enhancements while simplifying single-network machine integration.

Features

Modular multi-axis servo drive architecture
Designed for Kinetix 6500 motion systems
Integrated motion over EtherNet/IP network
Supports safe speed monitoring options
Supports safe torque-off options
Modular design for future machine expansion
Suitable for single-network machine support
Nominal output current of 8.6 A

Applications

Packaging machinery
Material handling systems
Assembly automation
Converting equipment
Robotic motion control
Multi-axis manufacturing machines
Industrial production lines

Technical Specifications

Category	Specification
Manufacturer	Allen-Bradley
Model	2094-BM01-S
Product Family	Kinetix 6500
Product Type	Multi-axis EtherNet/IP Servo Drive
Component Type	Frequency converter <= 1 kV
Range	Kinetix 6000/6200/6500
Nominal Output Current (I2N)	8.6 A
Number of Input Phases	Other
Integrated Motion Function	Yes
Operating Temperature	0 to 50 degC
Storage Temperature	-50 to 70 degC
Height	287 mm
Width	70 mm
Depth	272 mm
Weight	2.49 kg

Installation Guidelines

Mount the drive securely on the specified power rail.
Maintain sufficient clearance below the connectors to accommodate the recommended cable bend radius.
Route power and feedback cables separately where practical to minimize electrical interference.
Ensure adequate panel ventilation to maintain the specified operating temperature range.
Verify all field wiring before applying power.
Follow the recommended mounting orientation shown in the dimensional diagram.

Shipping & Returns

Global Express Shipping

Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
12-Month Warranty: Every industrial component is backed by our technical warranty.

FAQ

What network is supported by the device?

The drive is designed for integrated motion over an EtherNet/IP network.

What is the nominal output current?

The nominal output current is 8.6 A.

What operating temperature range is specified?

The specified operating temperature range is 0 to 50 degC.

Does the device support integrated motion?

Yes. Integrated motion functionality is specified in the product data.

What mounting consideration should be observed?

Provide sufficient clearance below the connectors to allow the recommended cable bend radius.
