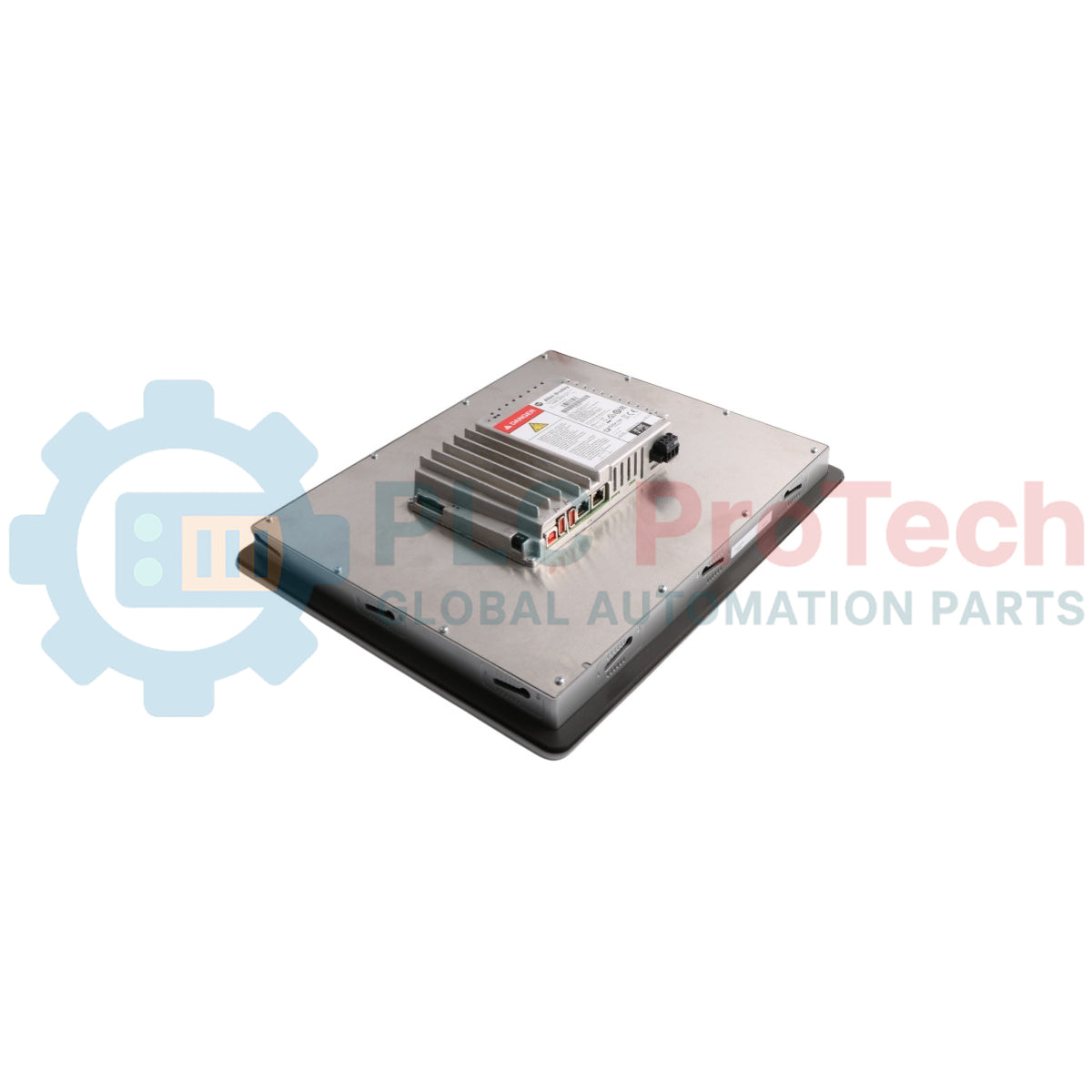

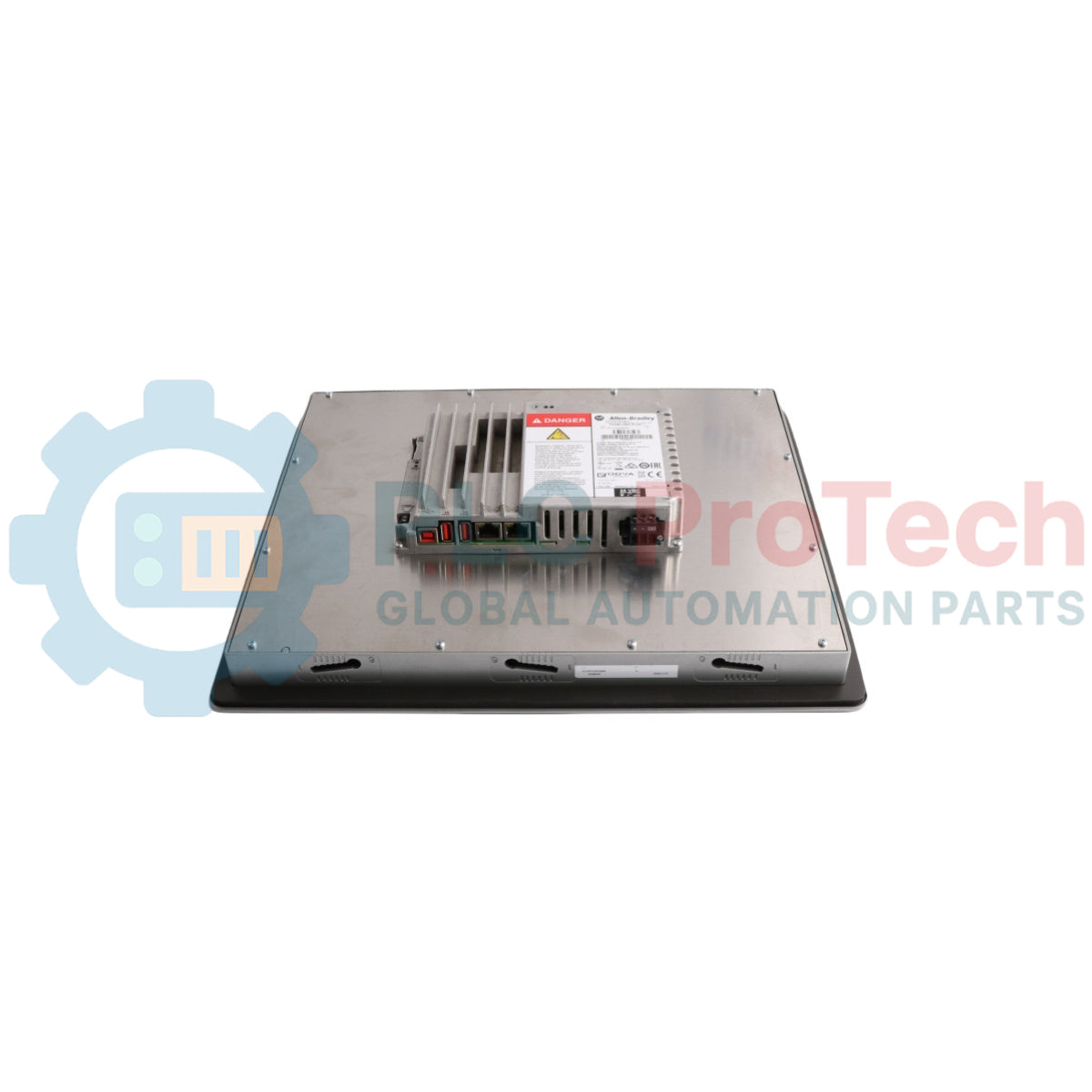

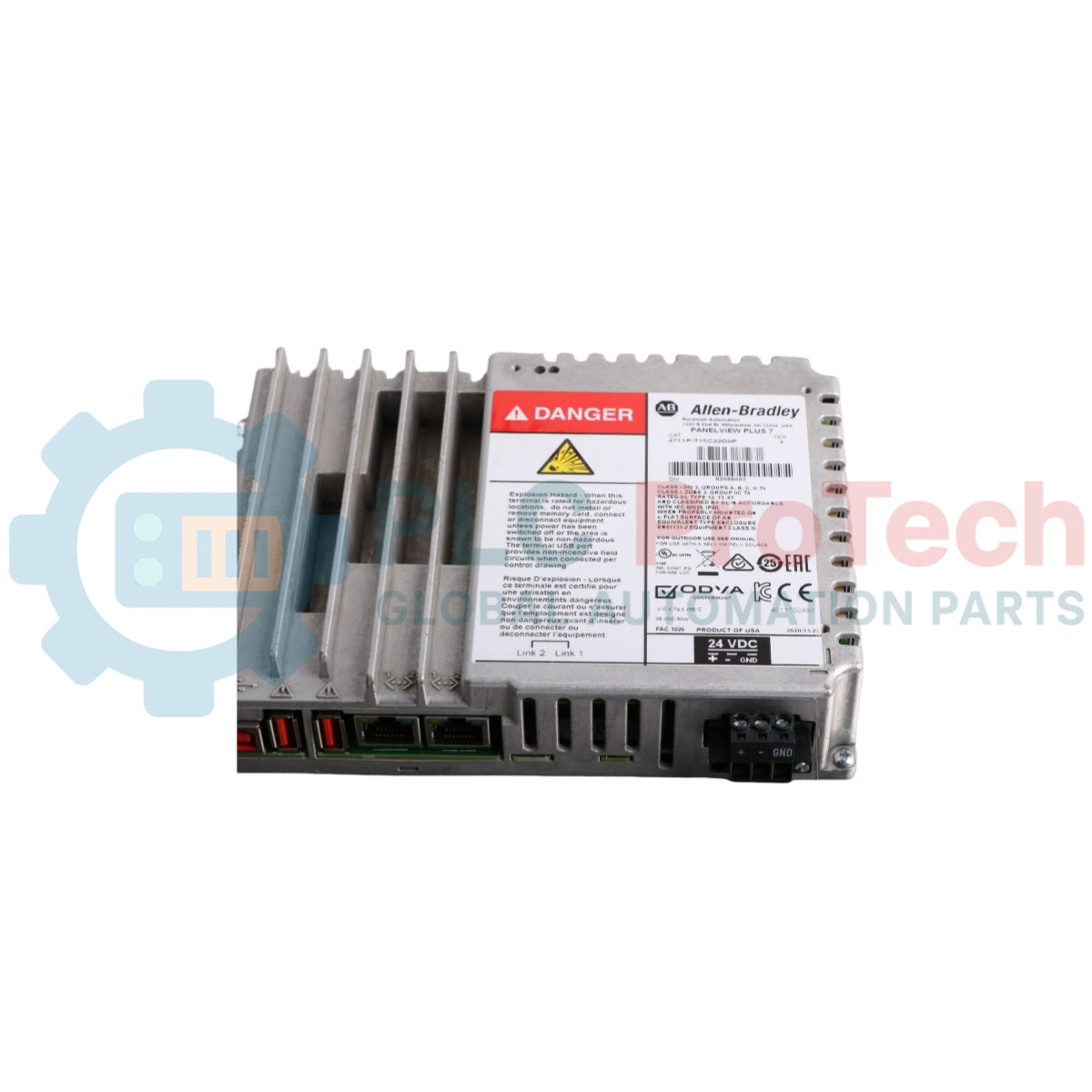

2711P-T15C22D9P is a 15-inch touch-operated human machine interface (HMI) terminal from the PanelView Plus 7 Performance family. The terminal is designed to monitor and control industrial equipment connected to ControlLogix and CompactLogix 5370 controllers through an EtherNet/IP network.
The terminal provides animated graphical displays and text-based process visualization for machine and process operation. Operators interact with the control system through an analog resistive touch screen interface. HMI applications are developed using FactoryTalk View Studio Machine Edition software and executed through the integrated FactoryTalk View Machine Edition Station runtime environment.
2711P-T15C22D9P supports Device Level Ring (DLR), linear, and star Ethernet network topologies. The terminal includes dual Ethernet ports, USB host connectivity, an SD card slot for external storage, and Windows 10 IoT Core operating system support for Series B units.
| Product Family | Catalog Number |
|---|---|
| PanelView Plus 7 Performance | 2711P-T15C22D9P |
| PanelView Plus 7 Performance Brandless | 2711P-T15C22D9P-B |
| PanelView Plus 7 Performance Conformal Coated | 2711P-T15C22D9PK |
| Parameter | Specification |
|---|---|
| Manufacturer | Allen-Bradley |
| Product Family | PanelView Plus 7 Performance |
| Catalog Number | 2711P-T15C22D9P |
| Product Type | Graphic Terminal |
| Operator Input | Touch |
| Display Type | TFT Color |
| Display Size | 15 in. |
| Viewing Area (W x H) | 304 x 228 mm |
| Display Resolution | 1024 x 768 XGA |
| Color Graphics | 24-bit |
| Aspect Ratio | 4:3 |
| Brightness | 300 cd/m² typical or more |
| Touch Technology | Analog Resistive |
| Touch Actuation Rating | 1 million presses |
| Operating Force | 100 grams |
| Backlight Type | White LED |
| Backlight Life | 50,000 h minimum at 40 degC to half-brightness |
| System Memory | 4 GB RAM |
| Storage Capacity | 19.87 GB |
| User Application Storage | Approximately 2 GB nonvolatile |
| SD Card Slot | One |
| Supported SD Cards | 1784-SDx, 1784-SDHCx |
| USB Host Ports | One USB 3.0 and one USB 2.0 Type A |
| USB Device Port | One USB 2.0 Type B |
| Ethernet Ports | Two 10/100Base-T Auto MDI/MDIX |
| Network Topologies | DLR, Linear, Star |
| Operating System | Windows 10 IoT Core |
| HMI Software | FactoryTalk View Studio Machine Edition |
| Remote Viewing Software | FactoryTalk ViewPoint |
| Input Voltage | 24V DC nominal (18...30V DC) |
| Power Consumption | 39 W max |
| Power Supply | SELV and PELV 24V DC supplies |
| Battery Type | CR2032 lithium coin cell |
| Battery Accuracy | ±2 minutes per month |
| Battery Life | 4 years minimum at 25 degC |
| Operating Temperature | 0...55 degC |
| Storage Temperature | -25...+70 degC |
| Relative Humidity | 5...95% non-condensing |
| Operating Altitude | 2000 m |
| Shock, Operating | 15 g at 11 ms |
| Shock, Nonoperating | 30 g at 11 ms |
| Vibration | 0.006 pk-pk, 10...57 Hz; 1 g peak at 57...640 Hz |
| Enclosure Rating | NEMA Type 12, 13, 4X; IP66 |
| Weight | 3.69 kg |
| Dimensions (H x W x D) | 318 x 381 x 69.6 mm |
| Panel Cutout (H x W) | 290 x 353 mm |
Global Express Shipping
Returns & Warranty
Manufacturer: Allen-Bradley
Product No.: 2711P-T15C22D9P
Country of origin:United States
Product Type: Industrial HMI Graphic Terminal
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 3690g
Dimensions: 318 x 381 x 69.6 mm
Shipping port: Xiamen
Warranty: 12 months
