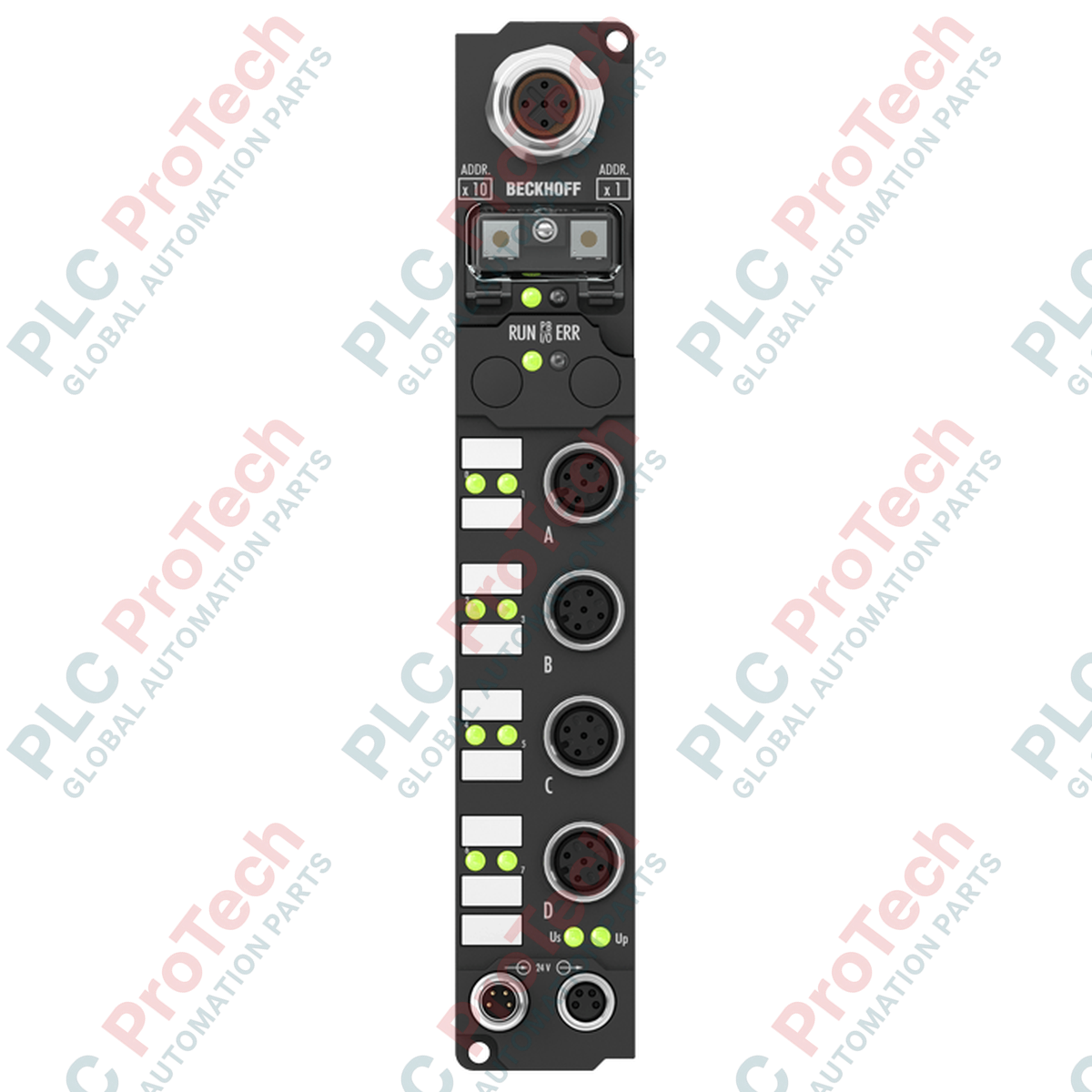

Designed for high-speed pulse processing and count-rate evaluation directly in harsh industrial environments, the BECKHOFF IP1502-B510 is a CANopen-compatible Fieldbus Box featuring dual high-frequency counter channels. This decentralised module operates independently of control cabinets, collecting and processing rapid digital signals directly on the machinery. With two independent 32-bit counter inputs, integrated gate controls, and direction-switching inputs, it provides highly responsive feedback for motion and flow tracking systems.
The unit integrates seamlessly into CANopen networks using standard M12 industrial connections, offering automatic baud rate detection from 10 kbaud up to 1 Mbaud. Enclosed in a robust polyamide housing with IP65/66/67 ingress protection, this module stands up to dust, moisture, and high vibration, facilitating reliable performance in demanding material handling and manufacturing installations.
| Manufacturer | BECKHOFF |
| Part Number / Model | IP1502-B510 |
| Product Type | Fieldbus Box (Counter Module) |
| Fieldbus Protocol | CANopen |
| Number of Counter Inputs | 2 |
| Additional Inputs | 2 gate inputs, 2 up/down switches |
| Counter Depth | 32 bits per channel |
| Maximum Counting Frequency | 100 kHz (2 kHz for up/down switching) |
| Nominal Input Voltage | 24 V DC (-15% / +20%) |
| 0 Signal Voltage | -3 to +5 V (EN 61131-2, type 2) |
| 1 Signal Voltage | 11 to 30 V (EN 61131-2, type 2) |
| Number of Outputs | 2 x 24 V DC, 0.5 A (short-circuit proof) |
| Sensor Supply | Max. 0.5 A total (short-circuit proof) |
| Power Connections | Feed: 1 x M8 male (4-pin); Downstream: 1 x M8 female (4-pin) |
| Bus Connection | 1 x M12 plug (5-pin) |
| Internal Box Supply Current | 45 mA + sensor current |
| Electrical Isolation | Control voltage/fieldbus: 500 V |
| Operating Temperature | 0 to +55 degC |
| Storage Temperature | -25 to +85 degC |
| Ingress Protection Rating | IP65/66/67 (conforms to EN 60529) |
| Vibration/Shock Resistance | Conforms to EN 60068-2-6 / EN 60068-2-27 |
| Housing Material | Polyamide (PA6) |
| Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Shipping Weight | 2.0 kg |
| Connector Type | Function |
|---|---|
| M12 (5-pin plug) | CANopen network interface |
| M12 (Screw-type) | Signal connections (Counters, gate inputs, and switches) |
| M8 (4-pin male) | Incoming 24 V DC power supply feed |
| M8 (4-pin female) | Downstream power distribution loop |
