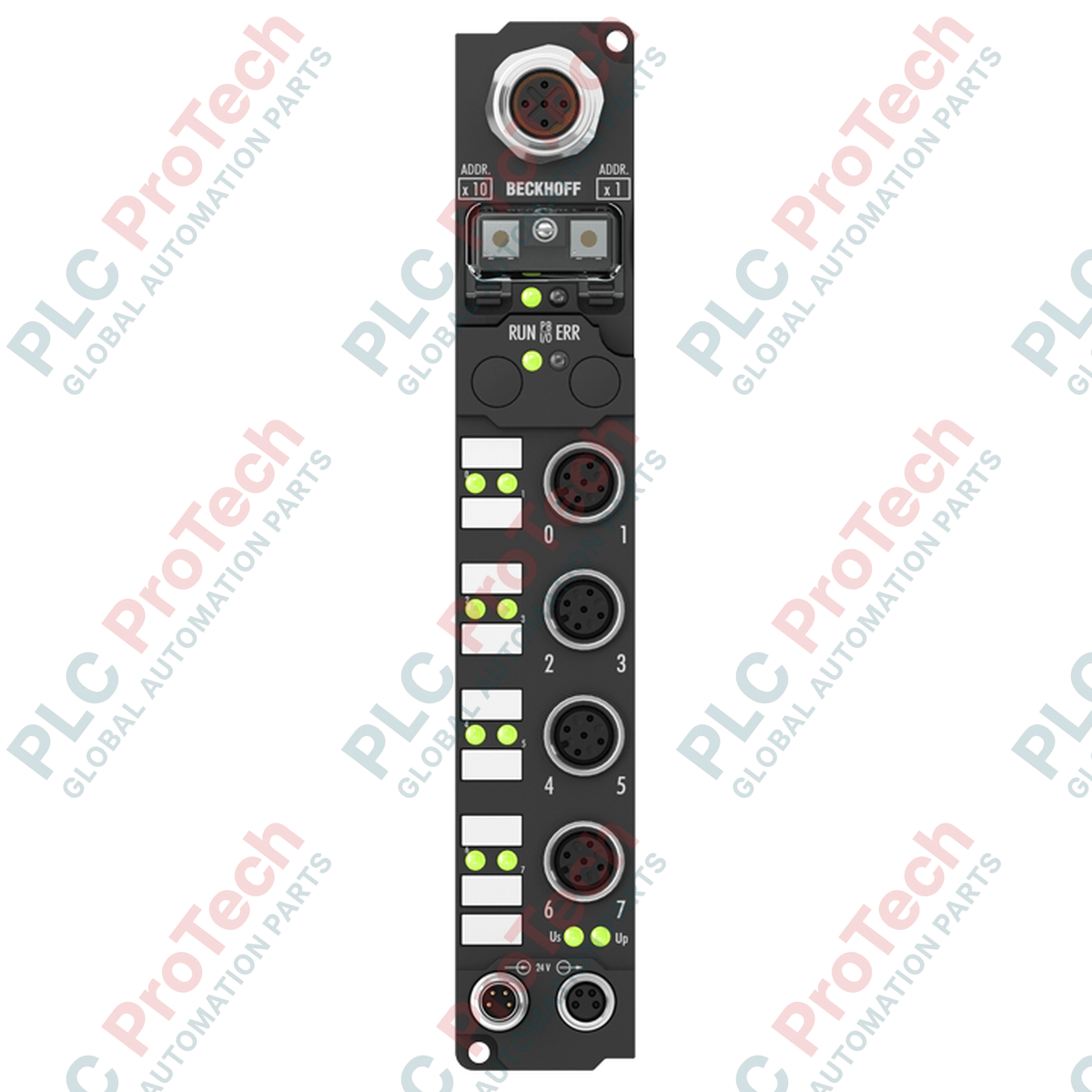

The BECKHOFF IP2002-B810 is a decentralized Fieldbus Box designed to extend industrial control architectures directly into demanding field environments. Equipped with an integrated RS232 serial interface and eight digital output channels, this module acts as a robust point-to-point communication and control node. It enables direct interfacing between control computers, industrial PCs, or serial controllers and field-level actuators without requiring intermediate cabinets.
Operating on a 24 V DC auxiliary and control supply, the BECKHOFF IP2002-B810 distributes control signals efficiently across its eight digital channels. Designed for extreme durability, the standard polyamide housing offers outstanding resistance to moisture, dust, and mechanical stress, making it an excellent choice for distributed installations in modern automated production lines, material handling systems, and assembly machinery.
The module facilitates straightforward integration via a standard RS232 connection with support for multiple baud rates, providing highly configurable serial communications through standard software tools. Standardized M12 and M8 connections secure reliable physical wiring for fieldbus signals, control power, and digital outputs.
| Parameter | Specification |
|---|---|
| Manufacturer | BECKHOFF |
| Exact Model | IP2002-B810 |
| Product Type | Fieldbus Box |
| Housing Material | PA6 (Polyamide) |
| Dimensions (W x H x D) | 30 mm x 175 mm x 26.5 mm |
| Weight | Approx. 210 g |
| Protection Class | IP65, IP66, IP67 (conforms to EN 60529) |
| Operating Temperature | 0 to +55 Celsius |
| Storage Temperature | -25 to +85 Celsius |
| Parameter | Specification |
|---|---|
| Number of Outputs | 8 |
| Output Connection Type | M12, screw type |
| Nominal Output Voltage | 24 V DC (-15% / +20%) |
| Max. Output Current | 0.5 A per channel (individually short-circuit proof) |
| Load Types | Ohmic, inductive, lamp load |
| Short-Circuit Current | Typ. 1.5 A |
| Process Image Bit Width | 8 outputs |
| Parameter | Specification |
|---|---|
| Fieldbus Interface | RS232 (IPxxxx-B810, IL230x-B810) |
| Physical Connection | 1 x M12 socket, 5-pin, B-coded |
| Data Transfer Rates | 9.6 kbaud, 19.2 kbaud, 38.4 kbaud (default) |
| Data Transfer Medium | Shielded copper cable, 2 x 0.25 mm² |
| Configuration Software | Via KS2000 serial interface software |
| Parameter | Specification |
| Control Voltage Supply | 24 V DC (-15% / +20%) |
| Power Supply Connection | Feed: 1 x M8 male, 4-pin; Downstream: 1 x M8 female, 4-pin |
| Current Consumption (Box) | 45 mA + sensor current (max. 0.5 A) |
| Electrical Isolation | Control voltage/fieldbus: Yes |
| Interface or Terminal | Function |
|---|---|
| M12 Socket (5-pin, B-coded) | RS232 communication interface connection |
| M8 Male Connector (4-pin) | Feed-in socket for 24 V DC control and auxiliary power supply |
| M8 Female Connector (4-pin) | Downstream loop-through power supply for neighboring modules |
| M12 Screw Connectors | 8 digital output channel connections for actuator wiring |
