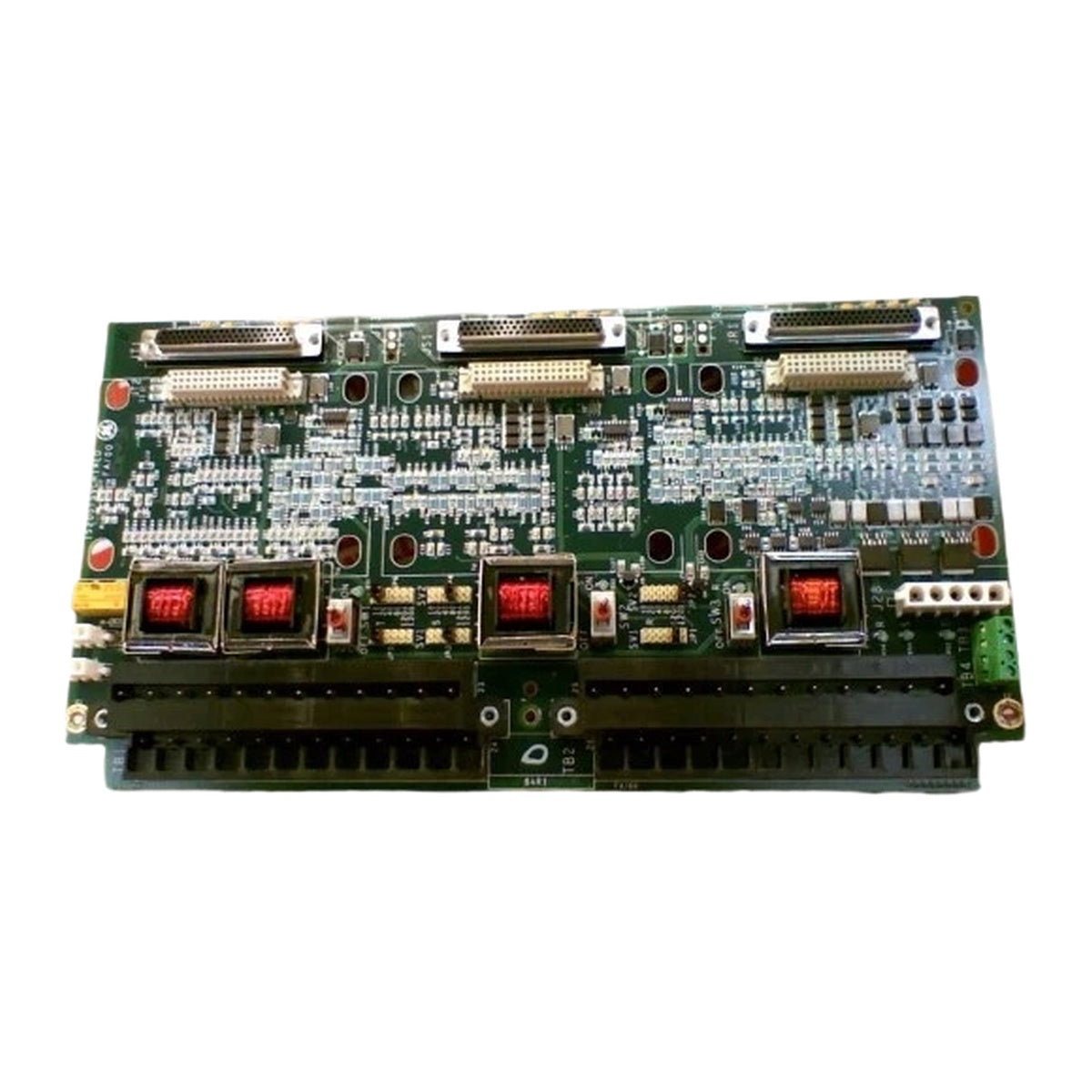

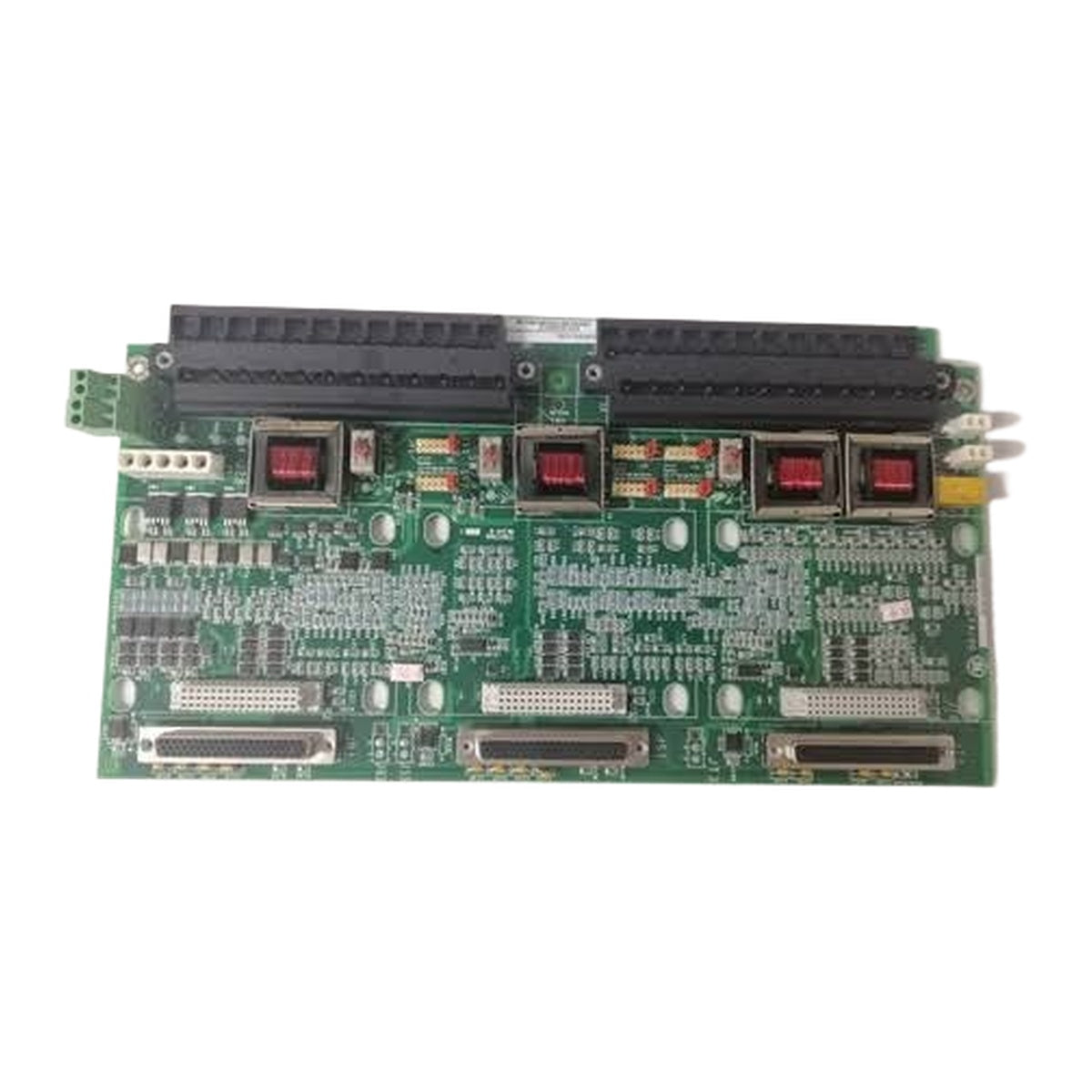

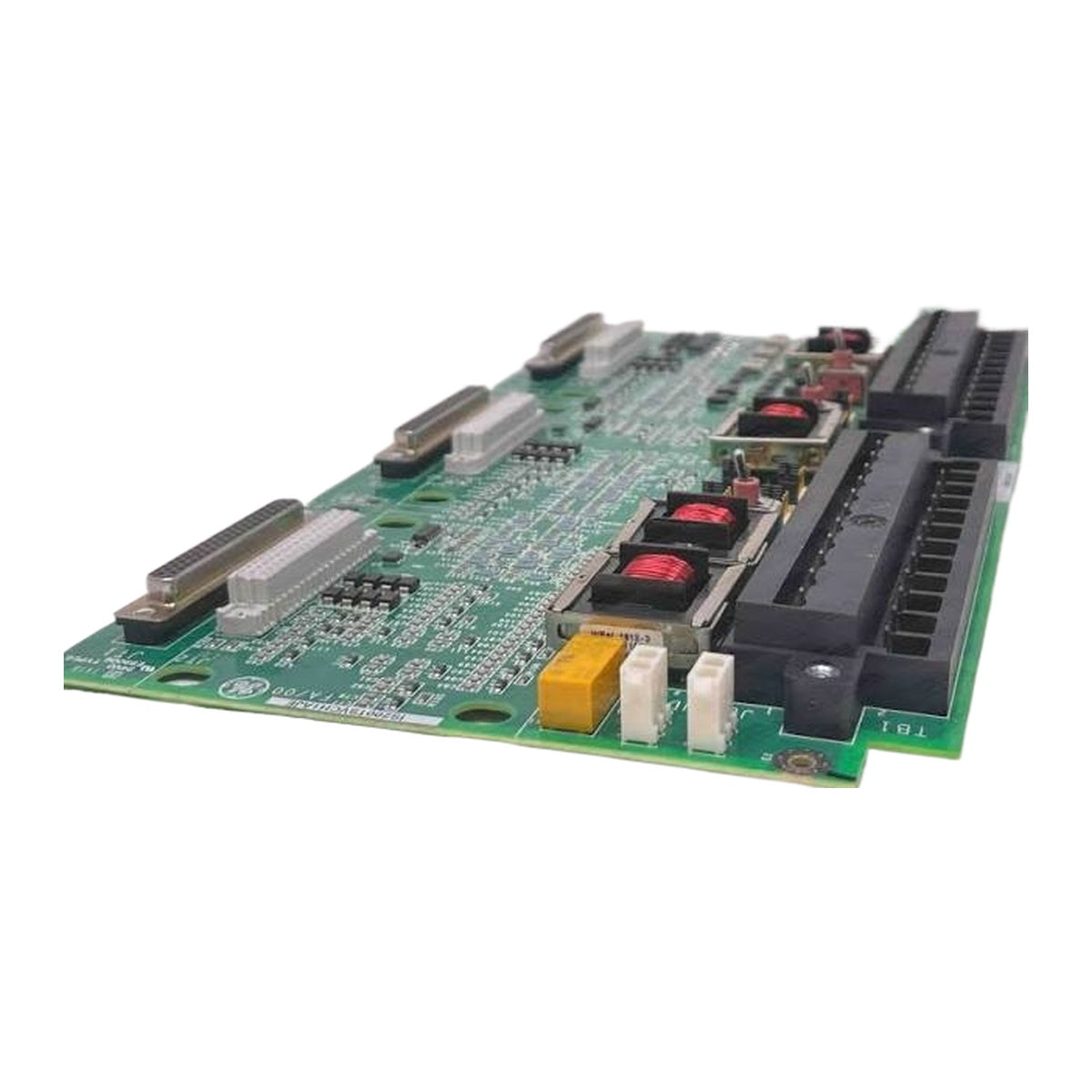

GE Energy IS200TSVCH1A Mark VIe Servo I/O Terminal Board

SKU IS200TSVCH1A

Disponibile
  • 12-month warranty
  • Free returns within 30 days
  • Manufacturer: General Electric
  • Product No.: IS200TSVCH1A
  • Origin United States
  • Product Type: Servo I/O Terminal Board
  • Payment: T/T, Western Union
  • Weight: 0.85 kg
  • Dimensions: 50 mm x 330 mm x 178 mm (H x W x D)
  • Shipping port: Xiamen
  • Warranty: 12 months

Tags

Quantità

Product Description

Description

The GE Energy IS200TSVCH1A is a Servo Input/Output Terminal Board designed for the Mark VIe Turbine Control System series. It provides interface connections for two electro-hydraulic servo valves used to actuate steam and fuel valves in turbine drive assemblies. The board accepts inputs from up to eight Linear Variable Differential Transformers (LVDTs) for valve position measurement and integrates two pulse rate signals for gas turbine fuel flow monitoring. Designed with conformal coating on its PCB assembly, the unit supports simplex, dual, and TMR control configurations and communicates with the WSVO servo driver and PSVO I/O pack.

Features

  • Interfaces with two electro-hydraulic servo valves
  • Supports up to eight LVDT winding inputs for valve position feedback
  • Includes two pulse rate signal inputs (magnetic or TTL)
  • Provides 28 V dc internal power supply capacity with socket J28 connections
  • Incorporates a K1 trip override relay driven by the protection pack
  • Equipped with conformal coating on circuit board assembly
  • Supports simplex, dual, and Triple Modular Redundant (TMR) control modes
  • Includes an integrated shield bar on the left side connected to chassis ground

Applications

  • Gas Turbine Control Systems
  • Steam Turbine Control Systems
  • Wind Turbine Control Systems
  • Electro-Hydraulic Servo Valve Management
  • Fuel Flow Monitoring Systems

Technical Specifications

Parameter Value
Original Manufacturer GE Energy
Series Mark VIe
Part Number IS200TSVCH1A
Functional Acronym TSVC
Functional Description Servo I/O Terminal Board
PCB Coating Conformal Coating
Functional Revision A
Assembly Type Normal Assembly
Power Supply Voltage 28 V dc
Terminal Blocks 2 barrier type terminal blocks with optional pluggability
Terminal Block Connections 24 terminal connections per block
Wiring Capacity Up to #12 AWG wiring
LVDT Windings Input Count 8 total
Pulse Rate Signal Inputs 2 inputs (magnetic or TTL)
Servo Current Outputs 10, 20, 40, 80, 120 mA (three coils each)
LVDT Excitation Sources 4 sources (transformer isolation), 2 sources (no transformer isolation)
Transducer Excitation Sources Two 24 V dc sources for pulse rate transducers
System Compatibility PSVO I/O pack, WSVO servo driver (Not compatible with VSVO)
Operating Temperature -30 degC to 65 degC
Dimensions (H x W) 33.02 cm x 17.8 cm
Installation Type Surface-mount

Connections/Interfaces

Connector Pin Function
TB1 / TB2 Main I/O terminal blocks (24 connections each for sensors and servo valves)
TB4/3 Two excitation outputs located to the left of the internal power supply
J28 Socket for three 28 V dc power supply inputs
JD1 / JD2 External trip plugs for protection module connection / external trip wiring
JP1 Servo 1 coil current select jumper (Simplex)
JP4 Servo 2 coil current select jumper (Simplex)
JP 1-3 Servo 1 coil current select jumpers (TMR system)
JP 4-6 Servo 2 coil current select jumpers (TMR system)

Installation Guidelines

  • Mounting: Designed for surface-mount installations inside protective enclosures.
  • Wiring Connection: Connect field sensors and servo valves using up to #12 AWG wiring to the two 24-terminal barrier blocks, securing each block with its two screws.
  • Shielding: Terminate shield wiring to the dedicated shield terminal strips located on the left side of each terminal block, which connect directly to chassis ground.
  • Trip Wiring: Route external trip wiring through the JD1 or JD2 connectors for integration with the protection module.
  • Configuration: Select appropriate coil currents for simplex or TMR systems via jumpers JP1 through JP6 before powering the unit.
Shipping & Returns

Global Express Shipping

  • Standard Delivery: 4–6 business days via DHL, FedEx, and UPS.
  • Express Dispatch: Same-day dispatch for in-stock orders placed before 2:00 PM (GMT+8).
  • Worldwide Coverage: Serving over 150 countries.

Returns & Warranty

  • 30-Day Guarantee: Returns accepted for in-stock products in original, factory-sealed packaging.
  • 12-Month Warranty: Every industrial component is backed by our technical warranty.
FAQ
What system components is this servo I/O terminal board compatible with?
The board is compatible with the WSVO servo driver and PSVO I/O pack within the Mark VIe system. It is not compatible with the VSVO processor.
What wire gauge is supported by the terminal blocks?
The terminal blocks feature 24 terminals each and accept wiring sizes up to #12 AWG.
What is the operating temperature range for this device?
The operating temperature range for the board is from -30 degC to 65 degC.
How are servo coil currents configured on the board?
Servo coil currents are configured using hardware jumpers JP1 and JP4 for simplex configurations, or jumpers JP 1-3 and JP 4-6 for TMR system configurations.
Reviews

IS200TSVCH1A

Stock & lead time on request

Call
1 su 3

GE Energy IS200TSVCH1A Mark VIe Servo I/O Terminal Board

Only 2 item(s) left in stock
  • Manufacturer: General Electric

  • Product No.: IS200TSVCH1A

  • Country of origin:United States

  • Product Type: Servo I/O Terminal Board

  • Payment: T/T, Western Union

  • Weight: 850g

  • Dimensions: 50 mm x 330 mm x 178 mm (H x W x D)

  • Shipping port: Xiamen

  • Warranty: 12 months

Quantità
Visualizza dettagli completi

Product Description

Description

The GE Energy IS200TSVCH1A is a Servo Input/Output Terminal Board designed for the Mark VIe Turbine Control System series. It provides interface connections for two electro-hydraulic servo valves used to actuate steam and fuel valves in turbine drive assemblies. The board accepts inputs from up to eight Linear Variable Differential Transformers (LVDTs) for valve position measurement and integrates two pulse rate signals for gas turbine fuel flow monitoring. Designed with conformal coating on its PCB assembly, the unit supports simplex, dual, and TMR control configurations and communicates with the WSVO servo driver and PSVO I/O pack.

Features

  • Interfaces with two electro-hydraulic servo valves
  • Supports up to eight LVDT winding inputs for valve position feedback
  • Includes two pulse rate signal inputs (magnetic or TTL)
  • Provides 28 V dc internal power supply capacity with socket J28 connections
  • Incorporates a K1 trip override relay driven by the protection pack
  • Equipped with conformal coating on circuit board assembly
  • Supports simplex, dual, and Triple Modular Redundant (TMR) control modes
  • Includes an integrated shield bar on the left side connected to chassis ground

Applications

  • Gas Turbine Control Systems
  • Steam Turbine Control Systems
  • Wind Turbine Control Systems
  • Electro-Hydraulic Servo Valve Management
  • Fuel Flow Monitoring Systems

Technical Specifications

Parameter Value
Original Manufacturer GE Energy
Series Mark VIe
Part Number IS200TSVCH1A
Functional Acronym TSVC
Functional Description Servo I/O Terminal Board
PCB Coating Conformal Coating
Functional Revision A
Assembly Type Normal Assembly
Power Supply Voltage 28 V dc
Terminal Blocks 2 barrier type terminal blocks with optional pluggability
Terminal Block Connections 24 terminal connections per block
Wiring Capacity Up to #12 AWG wiring
LVDT Windings Input Count 8 total
Pulse Rate Signal Inputs 2 inputs (magnetic or TTL)
Servo Current Outputs 10, 20, 40, 80, 120 mA (three coils each)
LVDT Excitation Sources 4 sources (transformer isolation), 2 sources (no transformer isolation)
Transducer Excitation Sources Two 24 V dc sources for pulse rate transducers
System Compatibility PSVO I/O pack, WSVO servo driver (Not compatible with VSVO)
Operating Temperature -30 degC to 65 degC
Dimensions (H x W) 33.02 cm x 17.8 cm
Installation Type Surface-mount

Connections/Interfaces

Connector Pin Function
TB1 / TB2 Main I/O terminal blocks (24 connections each for sensors and servo valves)
TB4/3 Two excitation outputs located to the left of the internal power supply
J28 Socket for three 28 V dc power supply inputs
JD1 / JD2 External trip plugs for protection module connection / external trip wiring
JP1 Servo 1 coil current select jumper (Simplex)
JP4 Servo 2 coil current select jumper (Simplex)
JP 1-3 Servo 1 coil current select jumpers (TMR system)
JP 4-6 Servo 2 coil current select jumpers (TMR system)

Installation Guidelines

  • Mounting: Designed for surface-mount installations inside protective enclosures.
  • Wiring Connection: Connect field sensors and servo valves using up to #12 AWG wiring to the two 24-terminal barrier blocks, securing each block with its two screws.
  • Shielding: Terminate shield wiring to the dedicated shield terminal strips located on the left side of each terminal block, which connect directly to chassis ground.
  • Trip Wiring: Route external trip wiring through the JD1 or JD2 connectors for integration with the protection module.
  • Configuration: Select appropriate coil currents for simplex or TMR systems via jumpers JP1 through JP6 before powering the unit.

What system components is this servo I/O terminal board compatible with?

The board is compatible with the WSVO servo driver and PSVO I/O pack within the Mark VIe system. It is not compatible with the VSVO processor.

What wire gauge is supported by the terminal blocks?

The terminal blocks feature 24 terminals each and accept wiring sizes up to #12 AWG.

What is the operating temperature range for this device?

The operating temperature range for the board is from -30 degC to 65 degC.

How are servo coil currents configured on the board?

Servo coil currents are configured using hardware jumpers JP1 and JP4 for simplex configurations, or jumpers JP 1-3 and JP 4-6 for TMR system configurations.
