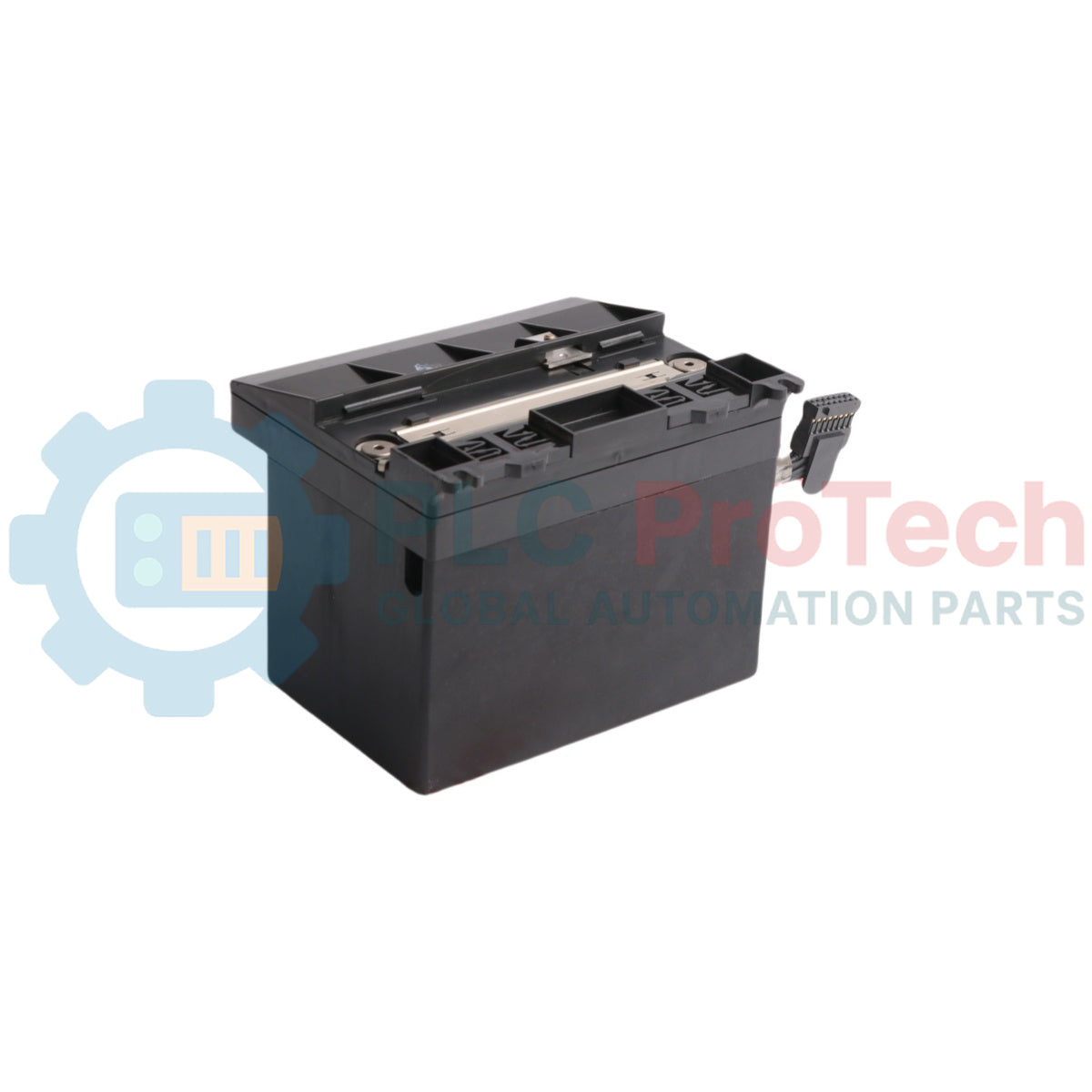

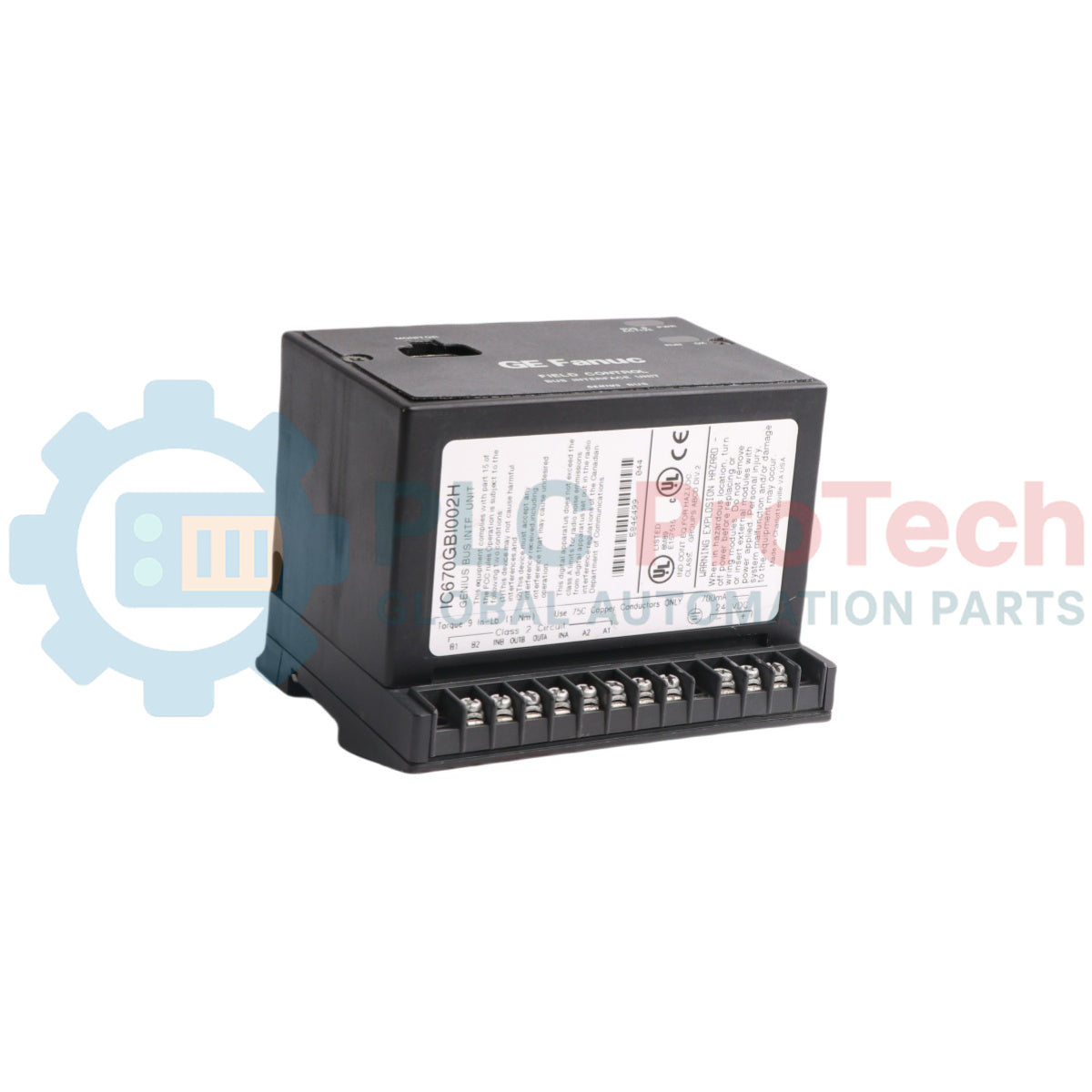

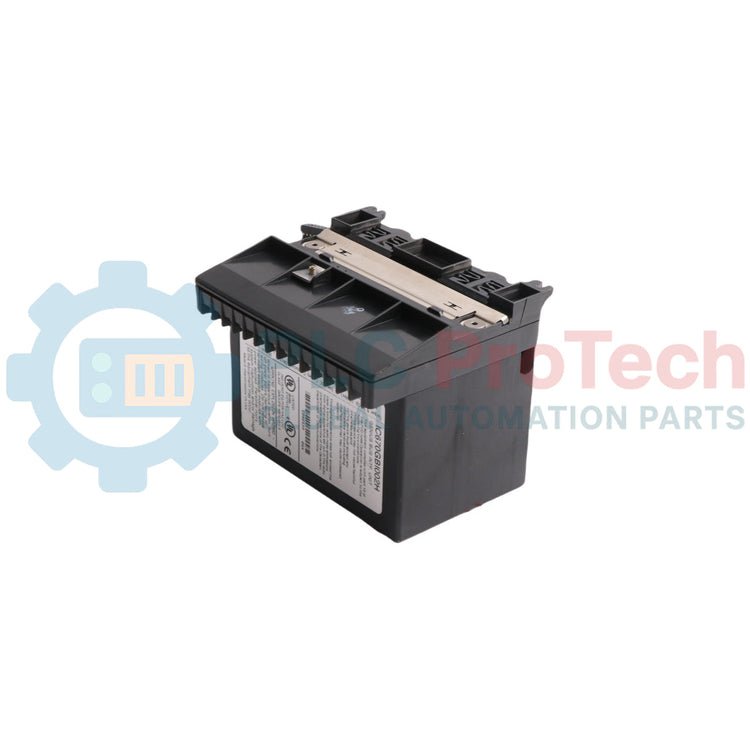

The GE IC670GBI002 (IC670GBI002) functions as a high-performance Bus Interface Unit (BIU) within the GE Field Control decentralized I/O architecture. Engineered for mission-critical industrial automation, this module acts as the intelligent gateway between the Genius Bus and local I/O modules. It is widely deployed in power generation plants, heavy manufacturing facilities, and water treatment systems where distributed intelligence is vital. By facilitating rapid data exchange and providing localized diagnostics, the IC670GBI002 significantly reduces system downtime and minimizes wiring complexity, ensuring robust signal integrity in electromagnetically noisy environments.
The IC670GBI002 is built on a modular hardware architecture designed for seamless integration with the Genius network. It manages the communication timing and data mapping for up to 8 Field Control I/O modules per station. A key feature of this unit is its internal non-volatile memory, which stores configuration parameters, allowing for "hot" replacement of I/O modules without reconfiguring the entire node. The unit supports comprehensive diagnostic reporting, including loss of I/O module detection and bus parity errors. Its physical design focuses on heat dissipation and signal isolation, featuring a rugged housing that clips securely onto a standard DIN rail or specialized mounting base.
| Attribute | Specification |
| Model | IC670GBI002 |
| Brand | GE (General Electric) |
| Series | Field Control |
| Module Type | Genius Bus Interface Unit |
| Network Protocol | Genius Bus |
| Origin | USA |
| Weight | 0.45 kg |
| Dimensions | 135 x 45 x 100 mm |
| Operating Temp | 0-60 deg C |
| Power Consumption | 250 mA at 5 VDC (Internal) |
| Max I/O Modules | 8 per BIU |
How do I set the Genius Bus address for the IC670GBI002?
The bus address is configured via the handheld monitor or through the PLC software configuration tool. Ensure each node on the Genius network has a unique serial bus address (0-31).
Does this module support redundancy for critical control loops?
The IC670GBI002 can be utilized in redundant Genius Bus architectures where dual cables are used, but the unit itself represents a single point of interface for its local I/O bank.
What are the primary LED indicators signaling during a fault?
The unit features an "OK" LED and a "Bus Presence" LED. A flashing OK LED typically indicates a hardware self-test failure or a configuration mismatch between the BIU and the attached I/O modules.
Network Termination: To prevent signal reflection and data corruption on the Genius Bus, you must install a termination resistor at both physical ends of the daisy-chained network. The resistor value should match the characteristic impedance of the cable, typically 75, 100, or 150 ohms.
Shielding and Grounding: Always use high-quality shielded twisted-pair cable (e.g., Belden 9841). Ensure the shield is continuous across the network but grounded at only one point to avoid ground loops which can introduce EMI into the high-speed data stream.
Heat Management: When mounting the unit within an enclosure, maintain a minimum clearance of 50 mm above and below the module to allow for natural convection. In high-ambient environments, forced-air cooling is recommended to keep the internal chassis below 60 deg C.
Global Express Shipping
Returns & Warranty
Manufacturer: General Electric
Product No.: IC670GBI002
Country of origin:United States
Product Type: Bus Interface Unit
Barcode: 8537101190
Payment: T/T, Western Union
Weight: 450g
Dimensions: 135 x 45 x 100 mm
Shipping port: Xiamen
Warranty: 12 months
