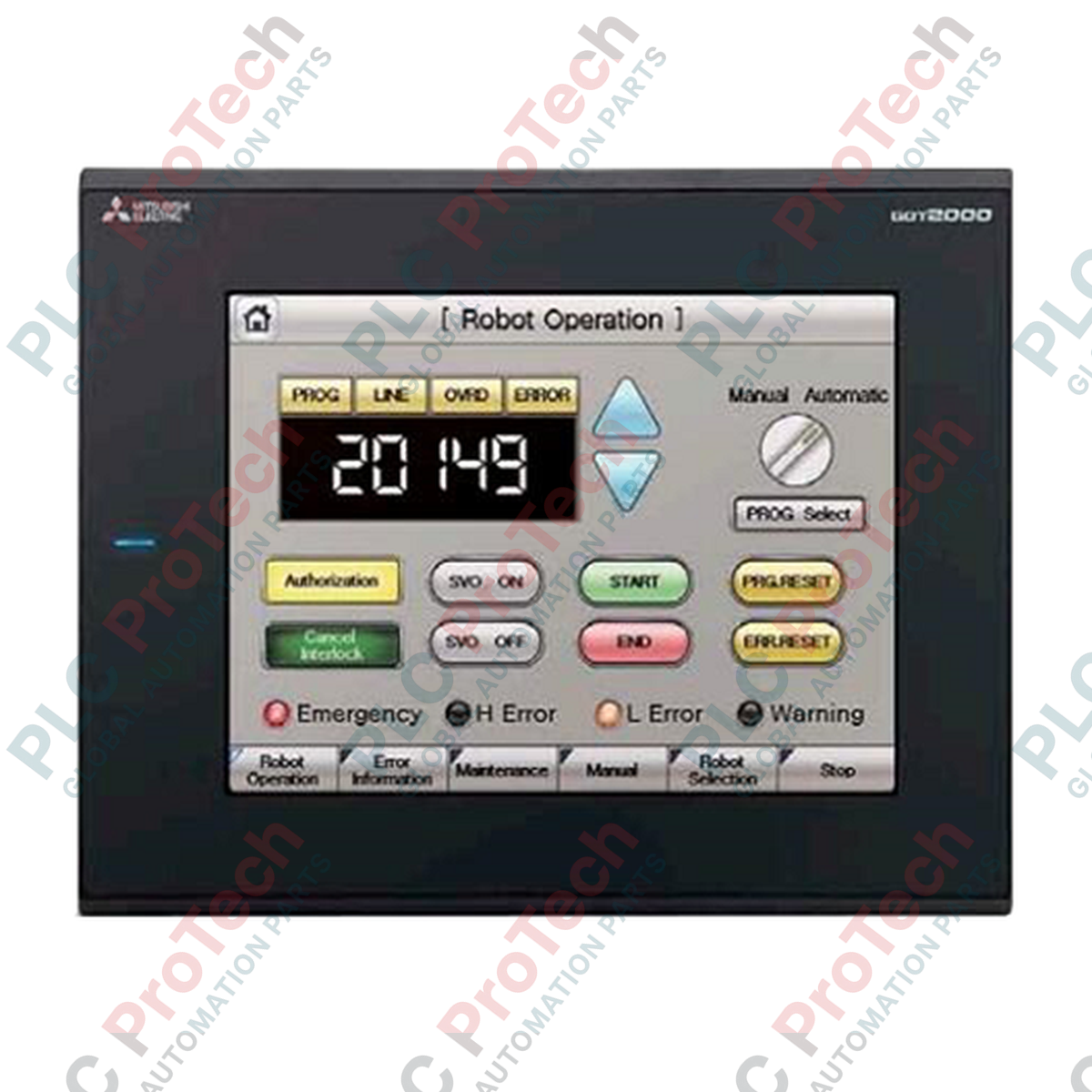

Designed to streamline industrial process control and machine-level visualization, the Mitsubishi Electric GT2308-VTBA operates as a high-performance operator terminal within the GOT2000 Series. Featuring an 8.4-inch TFT color display, this Human-Machine Interface (HMI) delivers clear diagnostic data and system controls to plant floor operators, running on a 100 to 240VAC input power supply. The integration of high-resolution graphics and responsive analog resistive touch control ensures exact parameter adjustment in demanding environments.
| Parameter | Value / Rating |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | GT2308-VTBA |
| Series | GOT2000 Series |
| Display Type | TFT Color LCD |
| Screen Size | 8.4 inches |
| Resolution | 640 x 480 Dots (VGA) |
| Input Supply Voltage | 100 to 240VAC (+10%, -15%) |
| Supply Frequency | 50/60Hz (plus/minus 5%) |
| Max Power Consumption | 11W or less (9W standalone, 6W backlight off) |
| Memory Capacity | 9MB Flash ROM (Storage), 9MB RAM (Operation) |
| Inrush Current | 40A or less (4ms duration at 25 degC ambient) |
| Battery Type | GT11-50BAT Lithium Battery (approx. 5 years life) |
| Front Panel Protection | IP67F |
| Rear Protection (Cabinet) | IP2X |
| Dimensions (W x H x D) | 241 x 194 x 56 mm |
| Panel Cutout Dimensions | 227 x 176 mm |
| Net Weight | 1.5 kg |
| Shipping Weight (Calculated) | 2.2 kg |
| Interface Channel | Connector Shape & Specification |
|---|---|
| Ethernet | 1ch RJ-45 modular jack, 10BASE-T/100BASE-TX transfer speeds |
| RS-232 Serial | 1ch D-sub 9-pin male connector (speeds up to 115,200 bps) |
| RS-422 / RS-485 Serial | 1ch D-sub 9-pin female connector (speeds up to 115,200 bps) |
| USB Host | 1ch USB Type-A port (Full-Speed 12 Mbps) |
| USB Device | 1ch USB Mini-B port for PC communication/programming |
| SD Card Slot | 1ch SDHC compliant slot (maximum 32GB) |
The GT2308-VTBA shares the identical 227 x 176 mm panel cutout dimensions of legacy models GT1665 and GT1565. This standardization allows for direct drop-in hardware replacement during control cabinet upgrades. When upgrading legacy applications, always use GT Works3 software to convert the source HMI project and update the PLC communication parameters to align with modern GOT2000 firmware dependencies.
Do not install the HMI in configurations where it will be continuously exposed to direct sunlight or temperatures exceeding the operational limit of 55 degC, as thermal saturation will degrade LCD response times and shorten the life of the non-replaceable LED backlight. Ensure that high-frequency motor control lines or VFD power cabling are routed separately from the HMI serial communication cables to prevent electromagnetic noise induction on the RS-422/485 serial bus.
For reliable ground loop suppression, connect the HMI protective earth terminal to a dedicated ground system using 0.75 to 2 mm² wire. Secure all AC input connections to the terminal block using M3 ring terminals (such as RAV1.25-3) and torque the terminal screws precisely to 0.5 to 0.8 N·m. Always back up the active HMI project directly to an external SDHC card or through GT Works3 prior to firmware updates.
CRITICAL WARNING:
Isolate and verify the de-energization of all power distribution blocks leading to the installation area before mounting or wiring the terminal. Contact with line voltage (100 to 240VAC) can cause catastrophic system failure, heavy electrical shock, or personal injury.
Global Express Shipping
Returns & Warranty
Manufacturer: Mitsubishi Electric
Product No.: GT2308-VTBA
Country of origin:United States
Product Type: HMI Touch Panels
Payment: T/T, Western Union
Weight: 8000g
Dimensions: 241 x 194 x 56 mm
Shipping port: Xiamen
Warranty: 12 months
