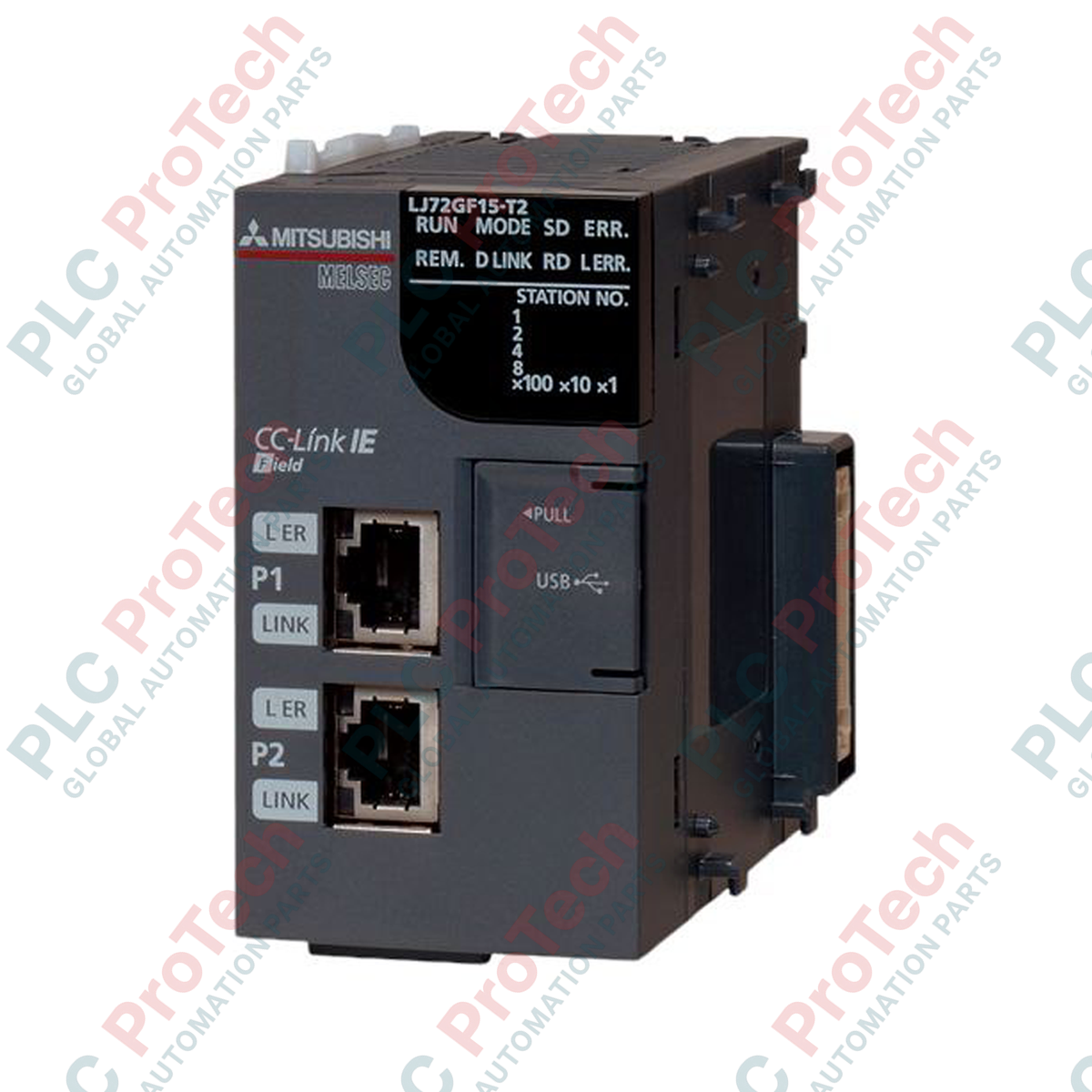

Facilitating high-speed deterministic communication within distributed control architectures, the Mitsubishi Electric LJ72GF15-T2 serves as a rugged interface node linking remote MELSEC L Series I/O and intelligent function modules to a CC-Link IE Field Network. This head module translates high-speed network frames into local backplane transactions, allowing seamlessly distributed physical arrangements without sacrificing I/O response speeds. Designed with dual RJ45 ports, it accommodates robust redundant and ring topologies to maximize system uptime in continuous-process industrial environments.
| Parameter | Specification |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | LJ72GF15-T2 |
| Network Type | CC-Link IE Field Network |
| Transmission Rate | 1 Gbps |
| Communication Scheme | Token passing (Deterministic) |
| Maximum Connected Modules | 10 slots (local backplane extension) |
| Interface Ports | 2 x RJ45 (PORT1 and PORT2) |
| Cable Requirement | Category 5e or higher (Double-shielded STP) |
| Internal Current Consumption (5 VDC) | 1.00 A |
| Net Weight | 0.23 kg |
| Shipping Weight (Calculated) | 1.50 kg |
| Terminal / Port | Function / Assignment |
|---|---|
| PORT 1 | CC-Link IE Field upstream / downstream connection (RJ45) |
| PORT 2 | CC-Link IE Field loop-back / downstream connection (RJ45) |
| FG Terminal | Functional ground connection for shield noise dissipation |
The LJ72GF15-T2 is specifically designed for the MELSEC L Series modular platform. Ensure your engineering environment is updated with GX Works2 to allow seamless network profile registration of this specific head module station.
This module relies on passive ventilation. In high-density electrical cabinets with ambient temperatures trending toward the upper limit, ensure at least 80mm of vertical clearances above and below the module assembly to prevent localized overheating and subsequent fieldbus dropouts.
For reliable 1 Gbps performance, standard unshielded patch cords are strictly prohibited. You must use double-shielded industrial-grade Category 5e (STP) cables. Ensure the metal shield of the RJ45 jack is properly grounded to the DIN rail ground assembly via the head module's functional ground connection.
Isolate and lock out all external power supplies connected to the master PLC and the remote node prior to physical hardware mounting, module joining, or communication cable termination. Failure to de-energize can damage sensitive internal backplane components.
