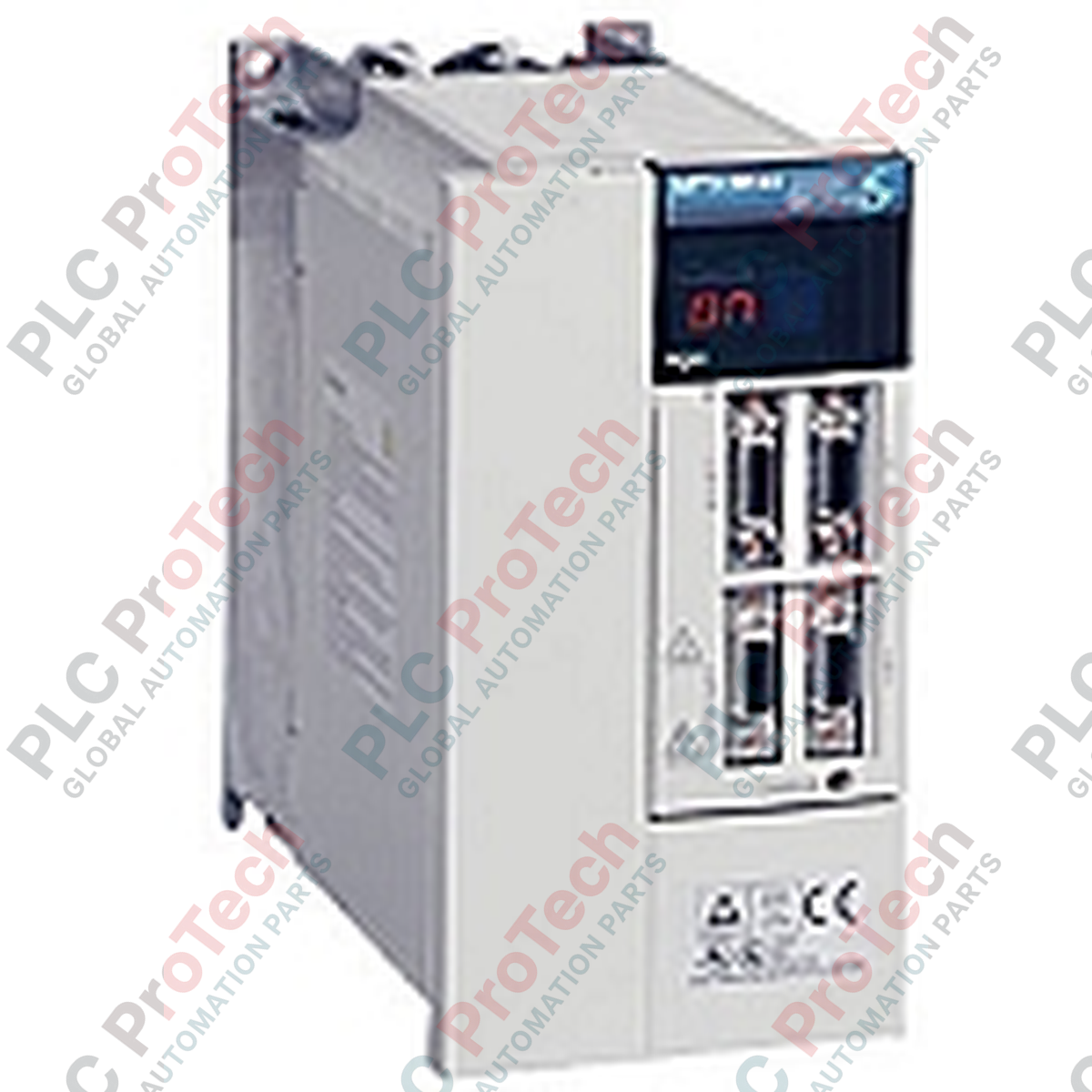

Engineered to deliver high-precision motion control within automated systems, the Mitsubishi Electric MR-J2S-100A servo amplifier provides robust closed-loop regulation for industrial positioning applications. This 1.0 kW drive module integrates seamlessly into standard control architectures, accepting both analog commands and high-speed pulse train inputs to drive compatible MELSERVO rotary motors with exceptional dynamic response.
| Parameter | Specification Value |
|---|---|
| Manufacturer | Mitsubishi Electric |
| Model Number | MR-J2S-100A |
| Series | MELSERVO J2-Super |
| Rated Output Power | 1.0 kW (1000 Watts) |
| Main Circuit Power Supply | 3-phase 200-230 VAC, 50/60 Hz |
| Permissible Voltage Fluctuation | 3-phase 170-253 VAC |
| Control Circuit Power Supply | 1-phase 200-230 VAC, 50/60 Hz |
| Control System | Sinusoidal PWM control / current control system |
| Speed Frequency Response | 550 Hz or more |
| Dynamic Brake | Built-in |
| Cooling Method | Forced cooling (integrated fan) |
| Enclosure Rating | IP00 (Open type) |
| Country of Origin | Japan |
| Shipping Weight (Calculated) | 3.0 kg |
| Package Dimensions (Calculated) | 280 x 210 x 130 mm |
| Connector / Terminal | Function / Circuit Assignment |
|---|---|
| L1, L2, L3 | Main AC power input terminals (3-phase 200-230 VAC) |
| L11, L21 | Control circuit AC power input terminals (1-phase 200-230 VAC) |
| U, V, W | Servo motor power output connections (Phase U, V, W) |
| P, C, D | Regenerative option terminals (short-circuit bar between P and D for internal resistor) |
| CN1A / CN1B | Control I/O, pulse train input, and analog command interfaces |
| CN2 | Encoder feedback connector (10-pin high-density interface) |
| CN3 | RS-232C / RS-422 serial communication port for PC connection |
The MR-J2S-100A is the direct, enhanced successor to the legacy MR-J2-100A amplifier. When migrating from the older J2 series, parameters must be converted using the MR Configurator software (Setup121E or newer). Note that physical mounting dimensions are identical, but the J2S features improved encoder processing algorithms, meaning older J2 motors may require parameter adjustments to prevent initialization errors.
In high-inertia or rapid deceleration applications, the internal regenerative resistor can overheat, triggering an AL.30 (Regenerative Error). If this occurs, install an external regenerative resistor (such as the MR-RB32) across terminals P and C, and ensure the factory-installed short-circuit bar between P and D is completely removed. Failure to remove this bar when using an external resistor will damage the internal drive circuitry.
During initial bench testing or commissioning without a host controller, the drive will display a persistent AL.E6 (Emergency Stop) fault. To bypass this for testing, wire a physical jumper between terminal EMG (CN1A, pin 15) and SG (CN1A, pin 10). Always ensure that the encoder cable connected to CN2 uses double-shielded twisted-pair cabling with the shield terminated directly to the connector shell to mitigate high-frequency EMI.
Mount the amplifier vertically on a flat, unpainted metal panel to ensure optimal heat dissipation and solid chassis grounding.
Maintain a minimum clearance of 10 mm on both sides and 40 mm above and below the unit for adequate airflow from the integrated cooling fan.
Connect the control circuit power supply to L11 and L21 before or simultaneously with the main circuit power (L1, L2, L3) to prevent synchronization faults.
Route motor power cables (U, V, W) and encoder feedback cables through separate conduits with at least 30 cm separation to prevent noise coupling.
