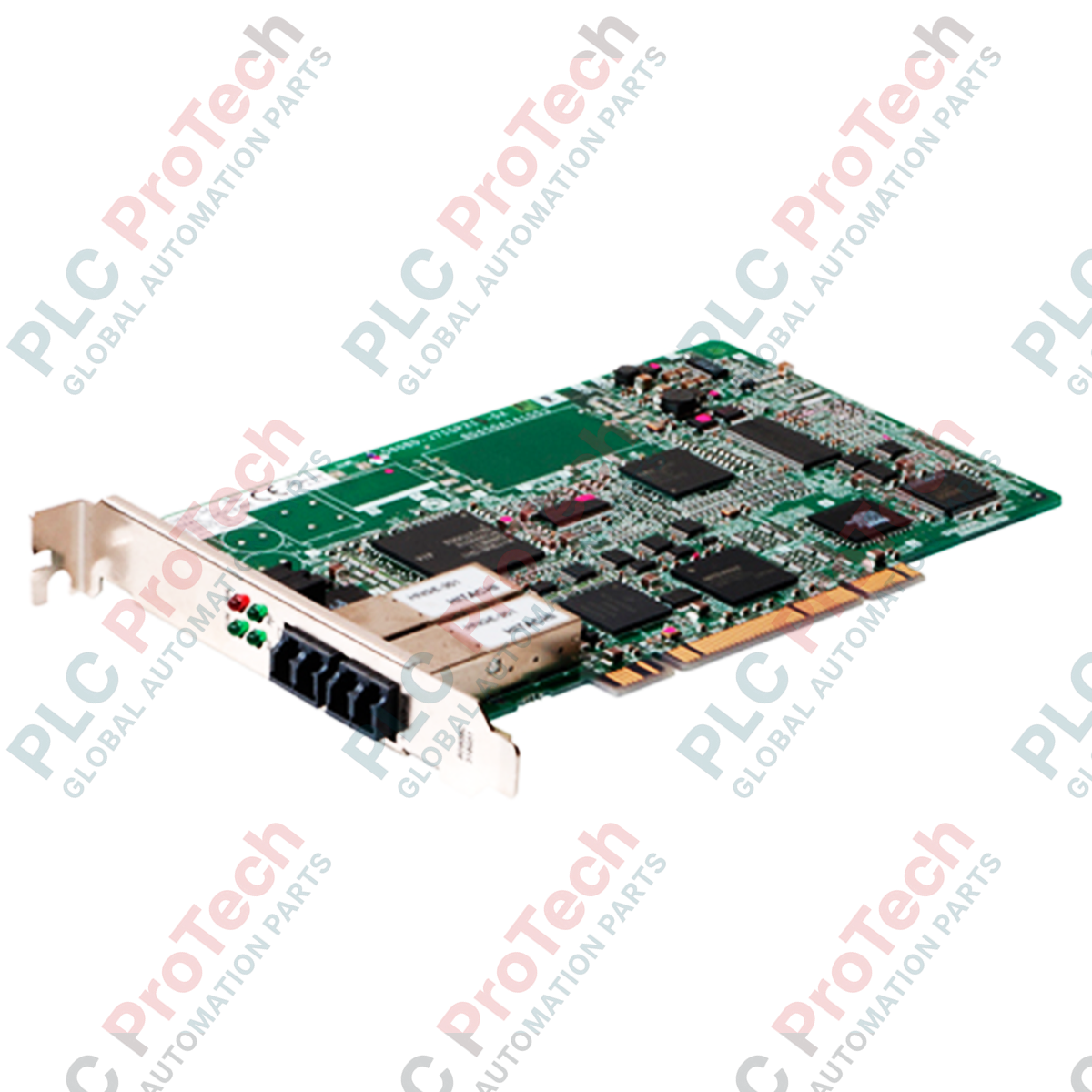

Designed for integration into industrial personal computer systems, the Q80BD-J71GP21-SX serves as a high-speed CC-Link IE Controller Network Interface Board. This module enables direct, high-capacity communication between PC-based controllers and industrial automation networks using a redundant double-loop optical fiber topology. By utilizing a 1 Gbps transmission speed, the board facilitates real-time deterministic data exchanges (cyclic transmission) and transient message transfers, making it suitable for distributed control and supervisory applications.
The hardware is configured for installation within a single standard PCI or PCI-X half-size expansion slot. Up to four of these interface boards can be installed in a single host PC, allowing multi-network gateway configurations. The integrated fiber-optic transceiver complies with Class 1 laser safety standards, utilizing dual LC-type connectors for secure fiber termination.
| System and Network Specifications | |
|---|---|
| Mitsubishi Electric | |
| Q80BD-J71GP21-SX | |
| CC-Link IE Controller Network | |
| 1 Gbps | |
| Double loop | |
| Token ring method | |
| Double LC type connector | |
| Multimode optical fiber (GI) meeting 1000BASE-SX standards | |
| Class 1 laser product (JIS C 6802, IEC 60825-1) | |
| 550 m | |
| 66000 m (when 120 units are connected) | |
| 120 stations (1 management station, 119 normal stations) | |
| LB: 32K points (32768 points), LW: 128K points (131072 points), LX: 8K points (8192 points), LY: 8K points (8192 points) | |
| Maximum 1920 bytes | |
| PCI slot or PCI-X slot (half size), occupies 1 slot | |
| Up to 4 boards per host PC | |
| 1.10 A at 5 VDC | |
| 0.12 kg | |
| 0 to 55 degC | |
| -25 to 75 degC | |
| 5 to 95% RH, non-condensing | |
| Meets JIS B 3502, IEC 61131-2 limits | |
| Meets JIS B 3502, IEC 61131-2 (147 m/s2, 3 times in X, Y, and Z axes) | |
Global Express Shipping
Returns & Warranty
Manufacturer: Mitsubishi Electric
Product No.: Q80BD-J71GP21-SX
Country of origin:United States
Product Type: Network Interface Boards
Payment: T/T, Western Union
Weight: 120g
Shipping port: Xiamen
Warranty: 12 months
