Description

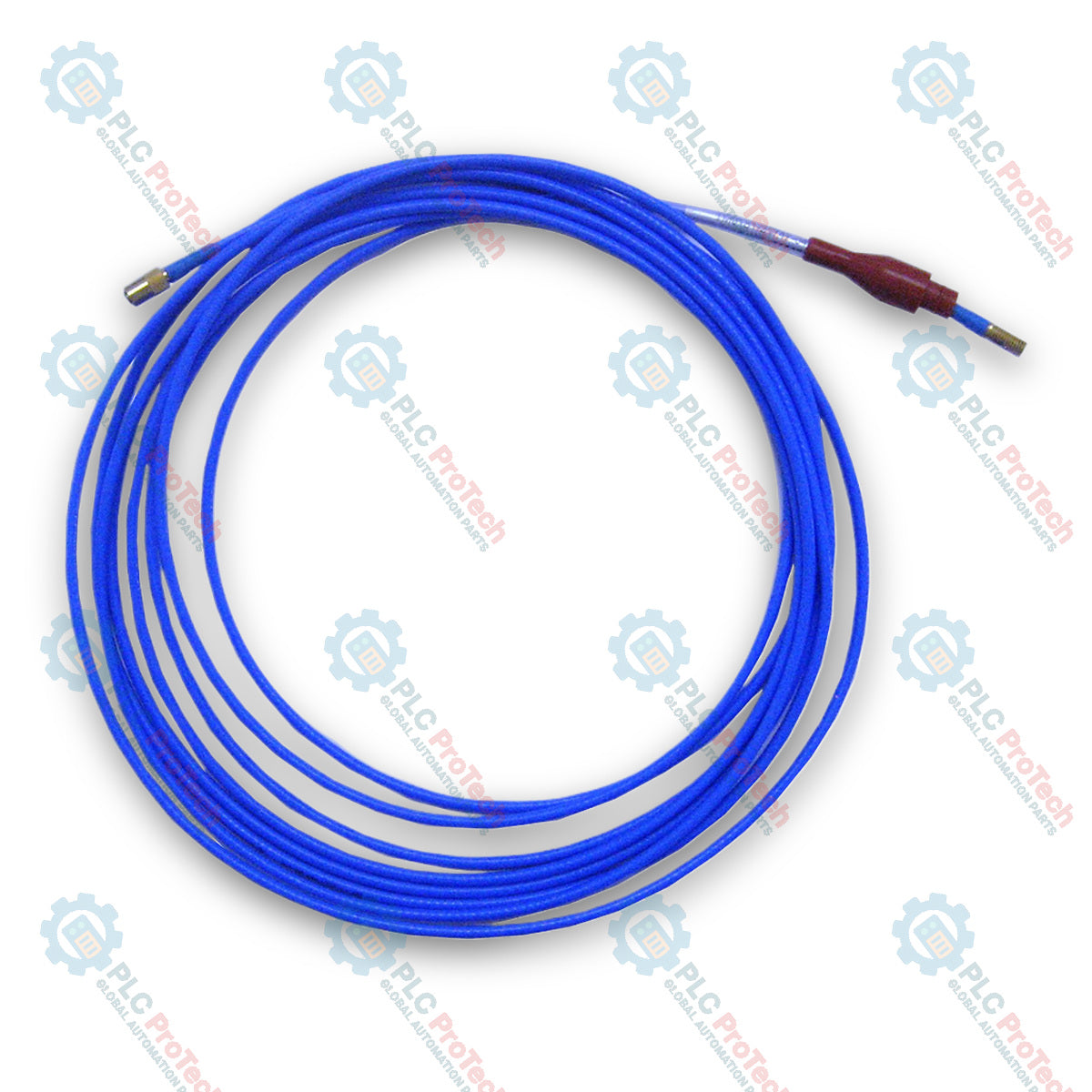

The ProvibTech TM0181-045-01 is an extension cable designed for static and dynamic distance measurements in rotating machinery monitoring applications. It connects TM0180 (8mm) or TM0105 (5mm) eddy current proximity probes to a TM0182 probe driver or compatible transmitters (such as DTM and TR series). The extension cable is built to API 670 standards, enabling system compatibility for monitoring radial vibration, axial thrust position, shaft radial position, eccentricity, and phase reference speed. With a custom cable jacket and an API 670 standard connector, the TM0181-045-01 maintains system isolation and protection in harsh industrial environments.

Features

• API 670 standard compliant connector for cross-system compatibility
• Interfacing capability with TM0180 8mm probes, TM0105 5mm probes, and TM0182 drivers
• Direct connection capability with DTM and TR series transmitters without a separate driver
• Custom protective cable jacket engineered to prevent tearing and resist corrosive chemical environments
• Protective rubber boot supplied to cover connectors and guard against oil and dirt penetration

Applications

• Steam turbine, gas turbine, and hydro turbine shaft monitoring
• Radial vibration measurement for rotor imbalance, misalignment, and shaft cracks
• Axial thrust position measurement for bearing wear detection
• Shaft radial position and rotor attitude angle stability analysis
• Phase reference and rotational speed monitoring for diagnostic analysis

Ordering Information

Technical Specifications

Installation Guidelines

• Ensure the combined length of the proximity probe cable and the TM0181 extension cable totals exactly 5.0 meters or 9.0 meters for proper system calibration.
• Utilize the standard protective rubber boot over the cable connection to prevent oil, water, and dirt ingress.
• Avoid tight bend radii and ensure the armored cable jacket is secured away from sharp metal edges or moving machine parts.
• Maintain proper ground isolation along the cable run to prevent ground loop interference in the vibration monitoring signal.

Compliance and Certifications

• ATEX: II 1 G, Ex ia IIC T4 Ga @ Ta = -55 degC to +115 degC; II 2 G, Ex ia IIC T2 Gb @ Ta = -55 degC to +232 degC (KEMA07ATEX0110X)
• IECEx: Ex ia IIC T4 Ga or Ex ia IIC T2 Gb (IECEx DEK 13.0037X)
• CSA: Class I, Div 1, Groups A, B, C, D, Ex ia IIC T4
• TR CU: 0Ex ia IIC T4 Ga X (No TC RU C-US.AA87.B.01245)
