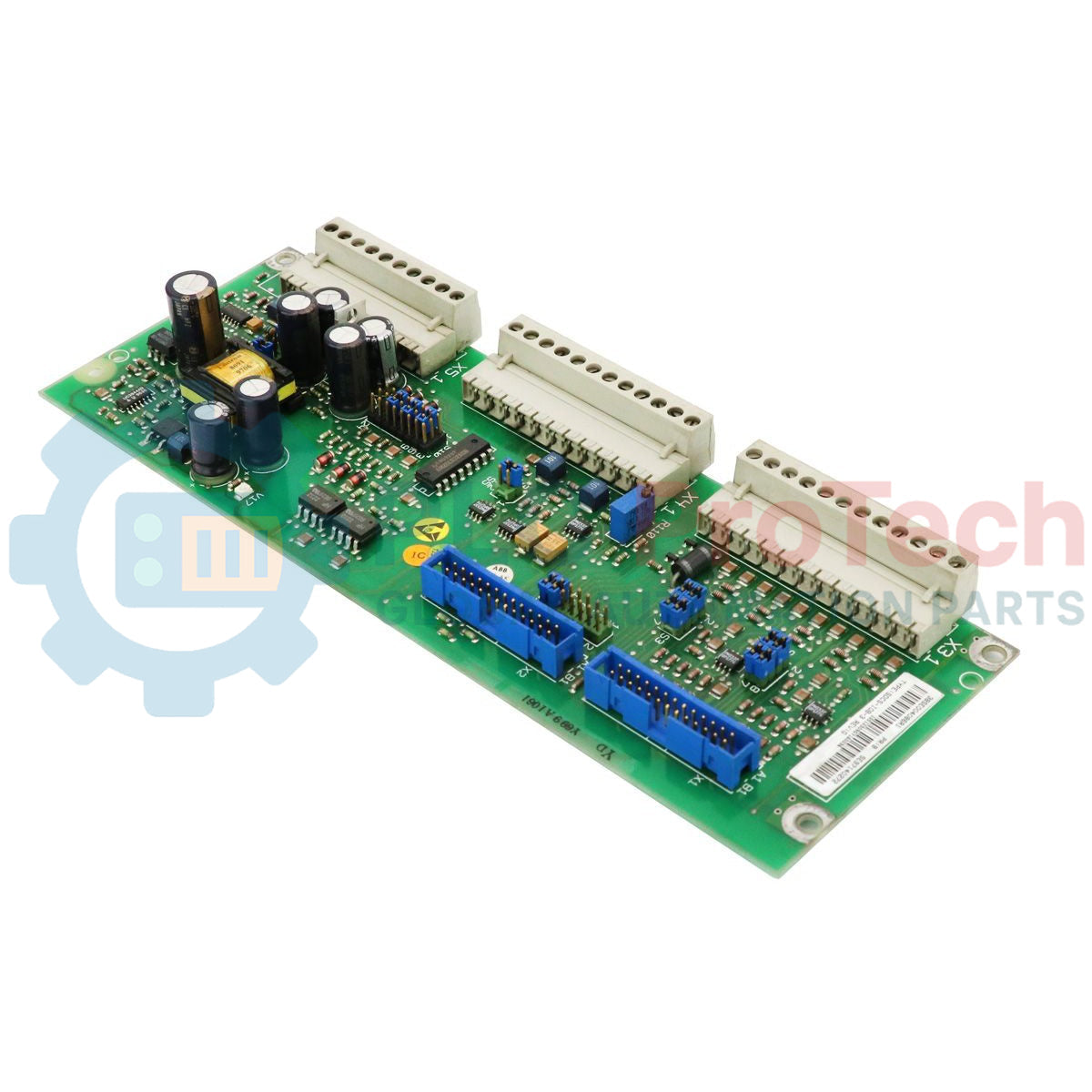

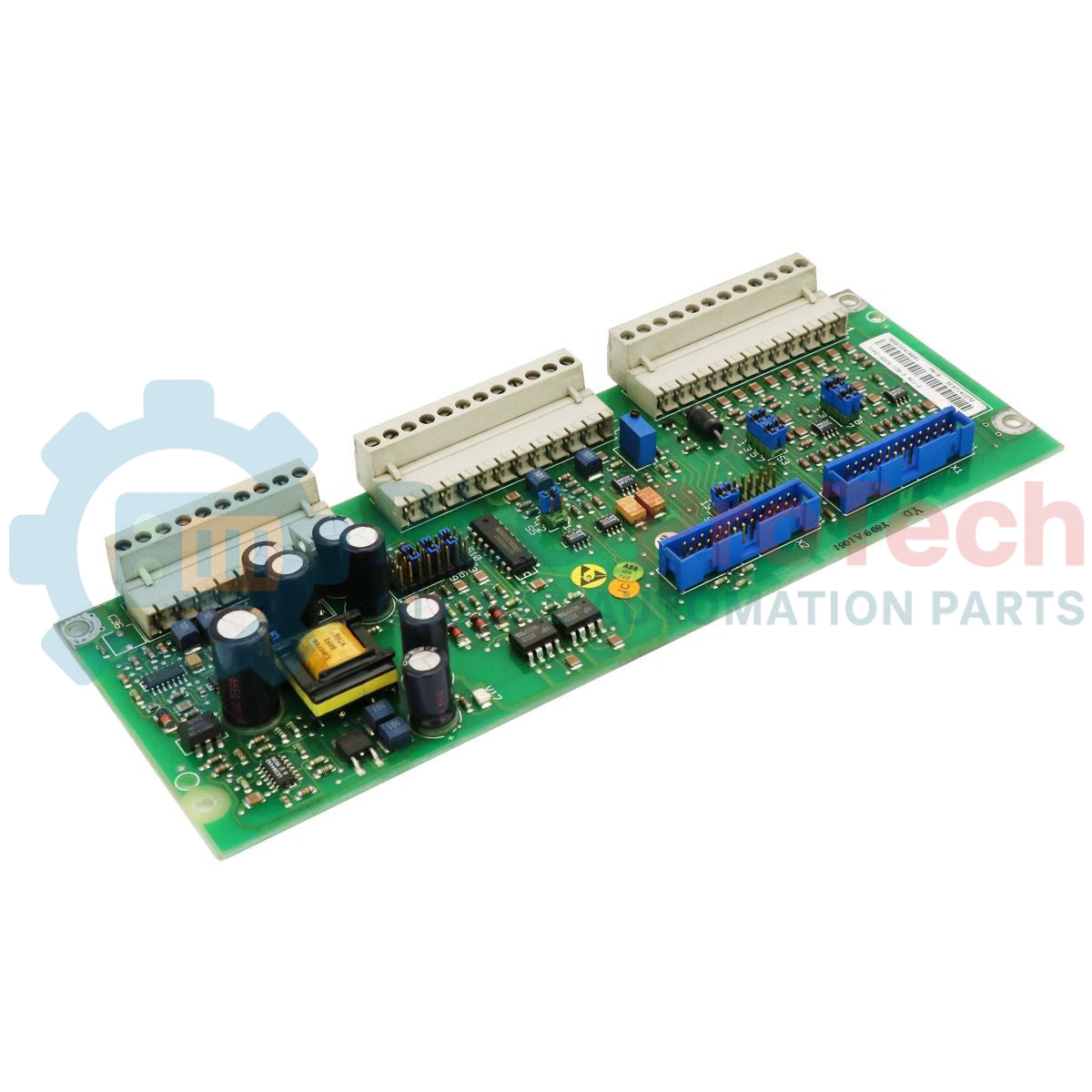

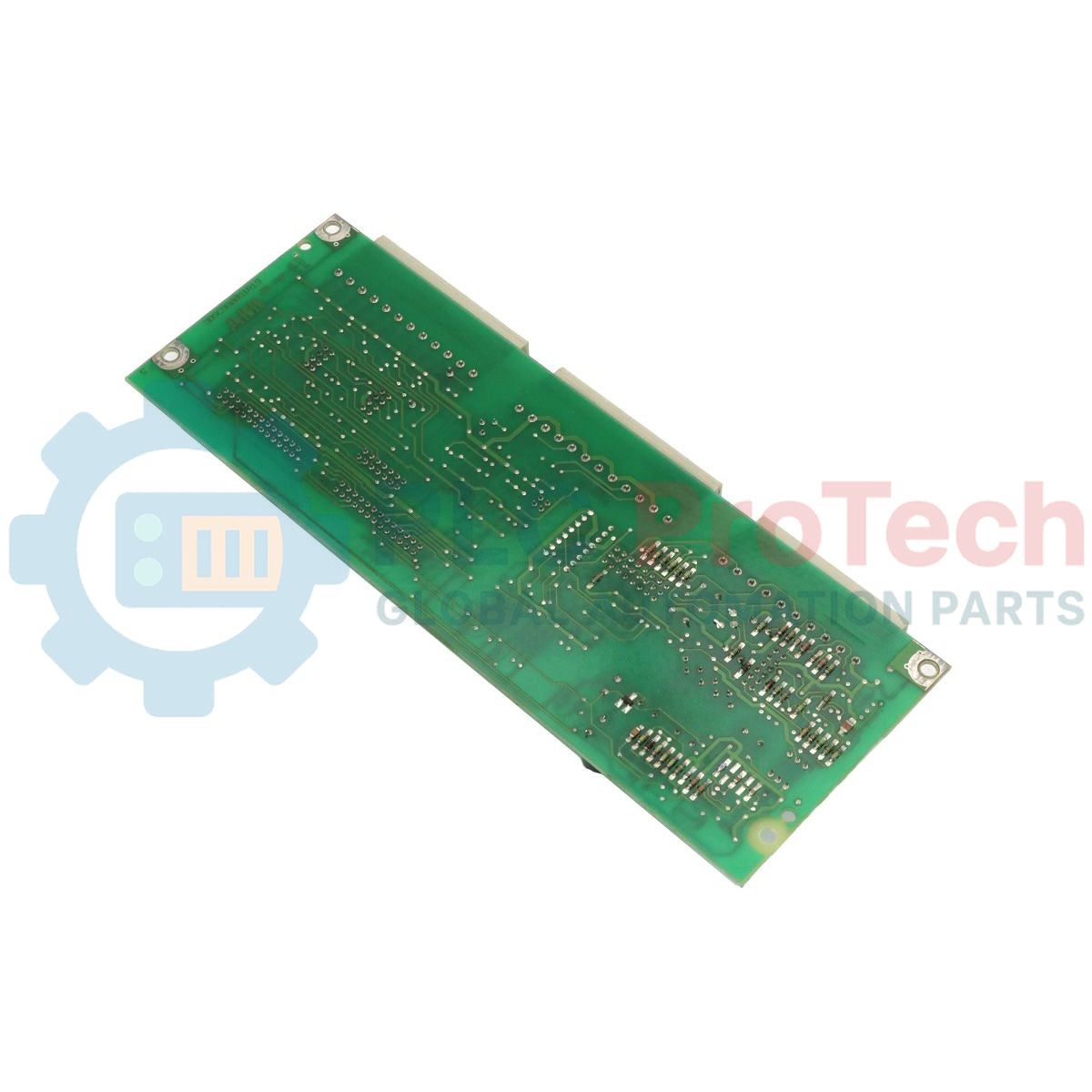

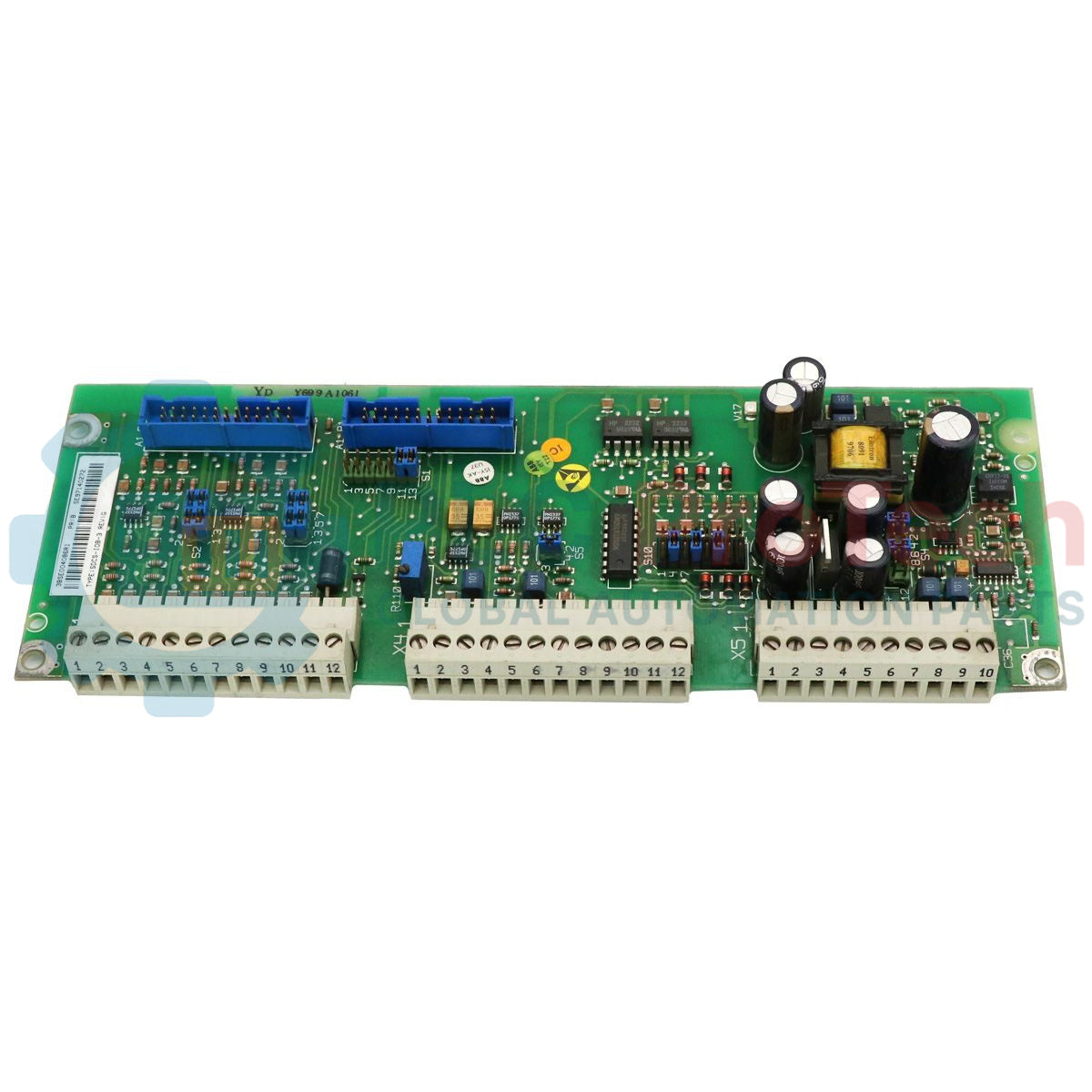

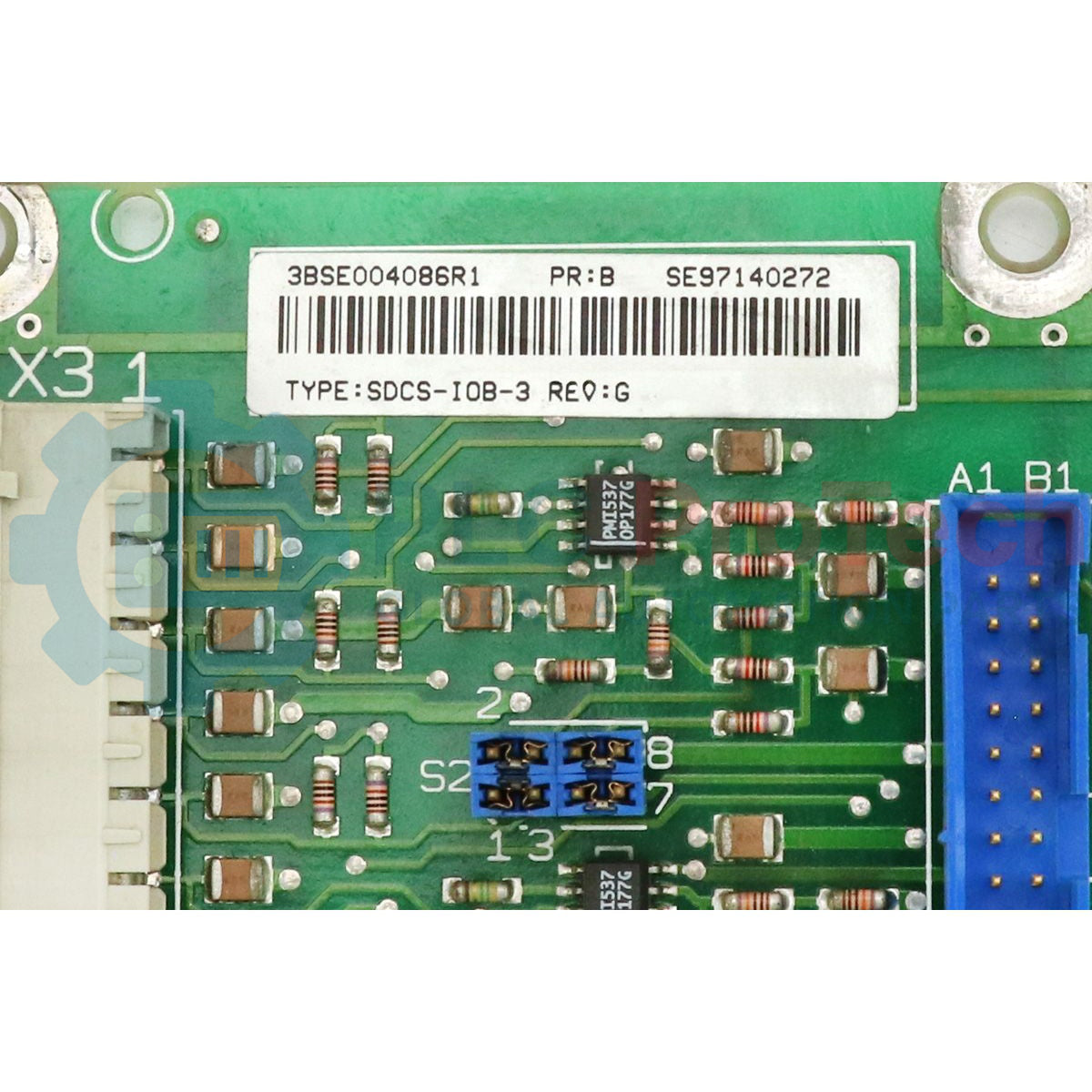

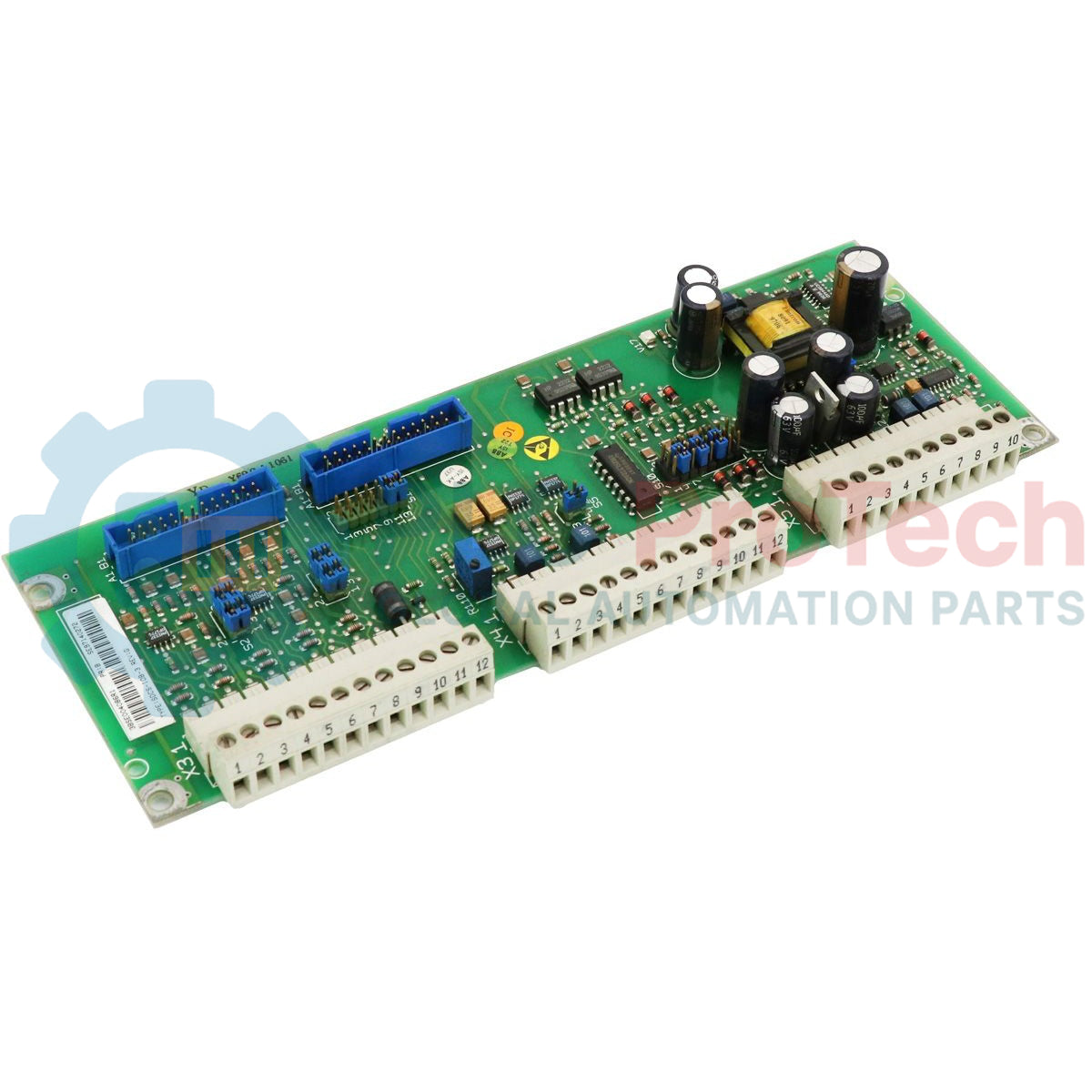

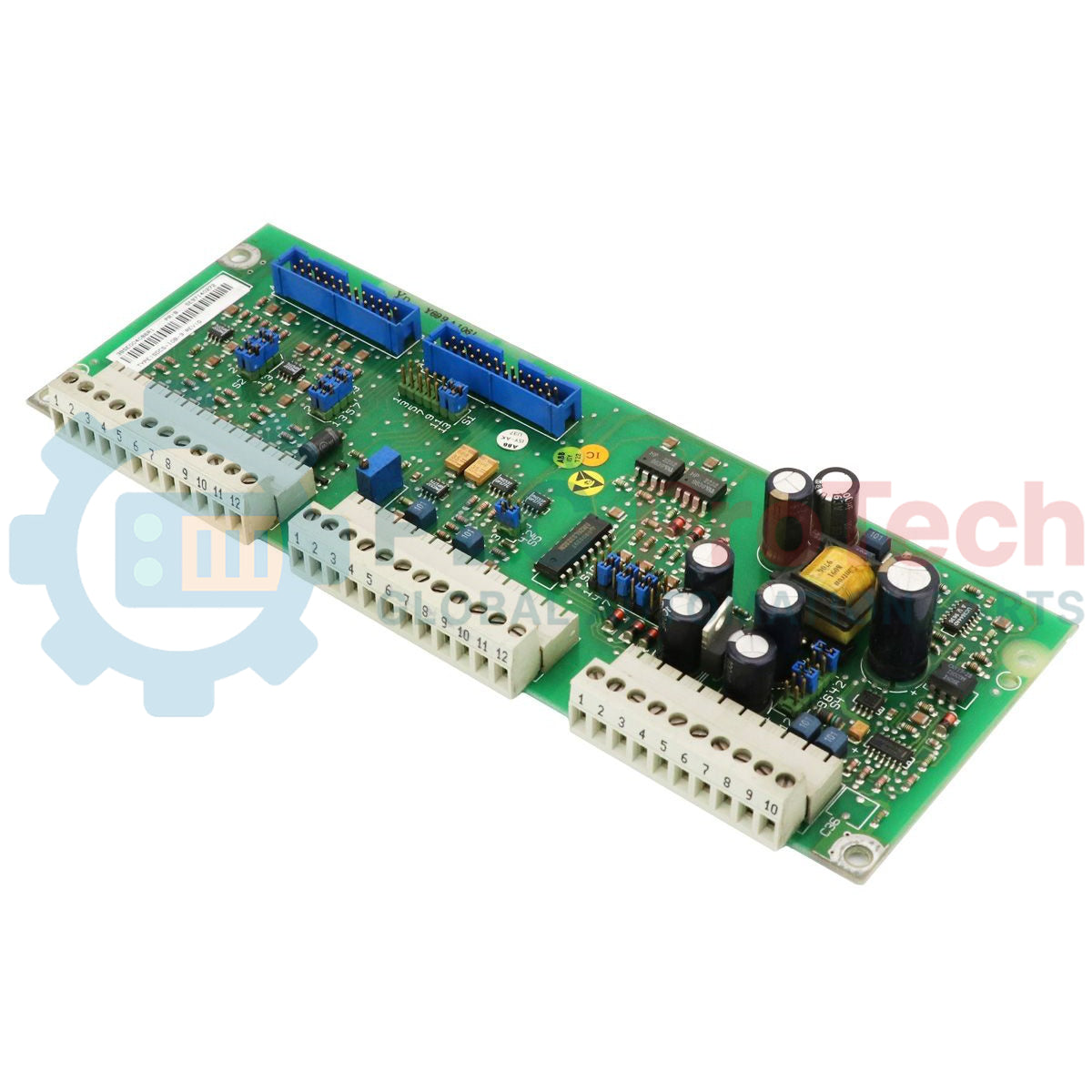

The SDCS-IOB-3 (3BSE004086R1) is a high-performance I/O connection board engineered for the ABB DCS drive series. As a critical interface component, the SDCS-IOB-3 (3BSE004086R0001) facilitates the seamless exchange of analog and digital signals between the drive's control unit and external peripheral hardware. This board is indispensable in heavy industrial applications such as steel rolling mills, mine hoists, and pulp and paper processing, where precise signal synchronization is required to maintain system stability. By providing dedicated, ruggedized termination points, the module ensures signal integrity and minimizes electromagnetic interference, directly contributing to the reduction of unplanned system trips and extending the operational lifecycle of the drive assembly.
The SDCS-IOB-3 is designed as a plug-in interface card that streamlines the wiring architecture of ABB DC drives. It features high-density terminal blocks that support a variety of signal types, typically including digital inputs for status monitoring, digital outputs for relay control, and analog channels for speed or torque references. The hardware is built with industrial-grade traces and components to withstand the thermal cycling and vibration levels common in motor control centers. Its configuration allows for direct mounting within the drive cabinet, utilizing high-speed ribbon cable connectors to communicate with the main SDCS-CON control board. This localized signal processing approach reduces the length of sensitive analog wiring, thereby decreasing the risk of signal attenuation and noise pickup.
| Feature | Specification |
| Model | SDCS-IOB-3 |
| Product ID | 3BSE004086R1 / 3BSE004086R0001 |
| Brand | ABB |
| Origin | Thailand / Germany |
| Part Type | I/O Connection Board (Spare Part) |
| Mounting | Internal Drive Cabinet |
| Net Weight | 0.19 kg |
| Gross Weight | 0.19 kg |
| Customs Tariff | 85049099 |
| Operating Temp | 0 to 55 deg C |
| Dimensions | Standard ABB DCS Series Form Factor |
Is the SDCS-IOB-3 compatible with all ABB DCS series drives?
The SDCS-IOB-3 is primarily designed for the DCS 500 and DCS 600 series drives. However, compatibility depends on the firmware version of the main control board. Always verify the hardware version compatibility in the specific drive manual before installation.
How does this board differ from the SDCS-IOB-2?
While both are I/O connection boards, the "3" variant typically features a different channel density or specific isolation characteristics designed for advanced signal processing. The SDCS-IOB-3 is often required when utilizing specific analog feedback loops that require higher precision or different voltage ranges.
What should I check if I experience signal loss after installing a new board?
Ensure that the flat ribbon cables connecting the SDCS-IOB-3 to the SDCS-CON board are fully seated and that the locking clips are engaged. Additionally, verify that the DIN rail or standoff mounting is providing a sufficient ground reference to the board’s chassis.
Ribbon Cable Handling: The high-density ribbon cables used to connect the SDCS-IOB-3 are sensitive to sharp bends. Maintain a minimum bend radius of 25 mm to prevent micro-fractures in the conductors which can lead to intermittent "I/O Fault" alarms that are difficult to diagnose.
ESD Protection: This board contains highly sensitive CMOS components. During installation or replacement, the technician must wear a grounded ESD wrist strap. Failure to do so can result in latent electrostatic damage that may not manifest until the drive is under full load.
Terminal Torque and Ferrules: For field wiring, it is strongly recommended to use insulated bootlace ferrules. Tighten terminal screws to a maximum of 0.5 Nm. Over-tightening can stress the PCB solder joints, leading to hairline cracks and eventual circuit failure under high-vibration conditions.
Signal Separation: Keep high-voltage AC power lines at least 100 mm away from the SDCS-IOB-3 signal wiring. Use shielded twisted pair (STP) cables for analog inputs to ensure the 12-bit or 14-bit resolution of the drive is not compromised by induced noise.
