Siemens 6AV7812-0AC10-1AB0 SIMATIC Panel PC 877

Description

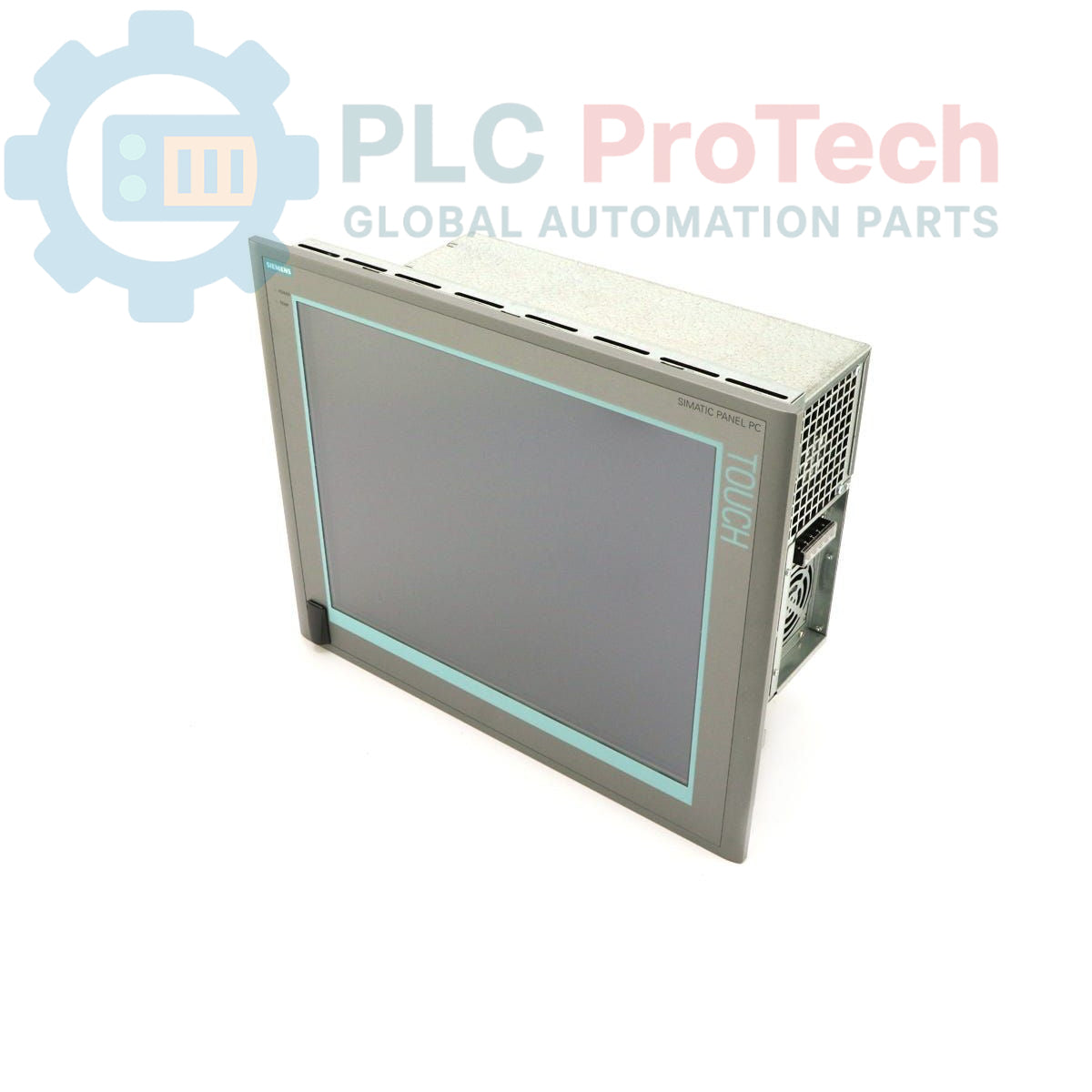

The Siemens 6AV7812-0AC10-1AB0 is a SIMATIC Panel PC 877 designed for industrial human-machine interface (HMI) applications. This unit features a 15-inch touchscreen display with a 1024 x 768 pixel resolution and a convenient front-side USB port. It is powered by a Pentium 4 Mobile 2.2 GHz processor and is equipped with 512 MB of DDR266 SDRAM and a 40 GB EIDE hard drive. The system comes pre-installed with Windows 2000 Professional Multi-Language User Interface (MUI) and includes a DVD-ROM drive for software installation and data access. This model requires a 24V DC power source for operation.

Features

• ■15-inch color touchscreen display
• ■Pentium 4 Mobile 2.2 GHz processor
• ■512 MB DDR266 SDRAM
• ■40 GB EIDE hard disk drive (3.5-inch)
• ■Integrated DVD-ROM drive
• ■Front-accessible USB interface
• ■Operates on a 24V DC power supply
• ■Pre-installed Windows 2000 Professional MUI

Applications

• ■Process visualization and control
• ■Machine-level operator interfaces
• ■Industrial data acquisition and logging
• ■Factory automation systems

Technical Specifications

Installation Guidelines

1. 1 Verify that the panel cutout dimensions match the unit's specifications for a proper fit and seal. Ensure the mounting surface is clean, flat, and rigid.
2. 2 Insert the Panel PC into the cutout from the front of the enclosure. Secure it from the rear using all provided mounting clamps, tightening them evenly to the manufacturer's recommended torque to ensure a uniform seal.
3. 3 Connect the protective earth (PE) or grounding terminal to the enclosure's main ground point using a low-impedance conductor. A reliable ground connection is essential for safety and noise immunity.
4. 4 Connect the 24V DC power supply, ensuring correct polarity. Use appropriately sized wiring for the current draw and route power cables separately from high-voltage or communication lines to prevent interference.
5. 5 Connect all required communication and I/O cables. Ensure all connectors are fully seated and secured. Provide adequate strain relief for all cabling.
